BEP_PCB Temperatures Check
Summary
| Date start | 2026:123:23:20:16.016 |
| Date stop | 2026:130:20:58:40.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY0426/oflsa |
| Run time | Thu Apr 30 10:23:22 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

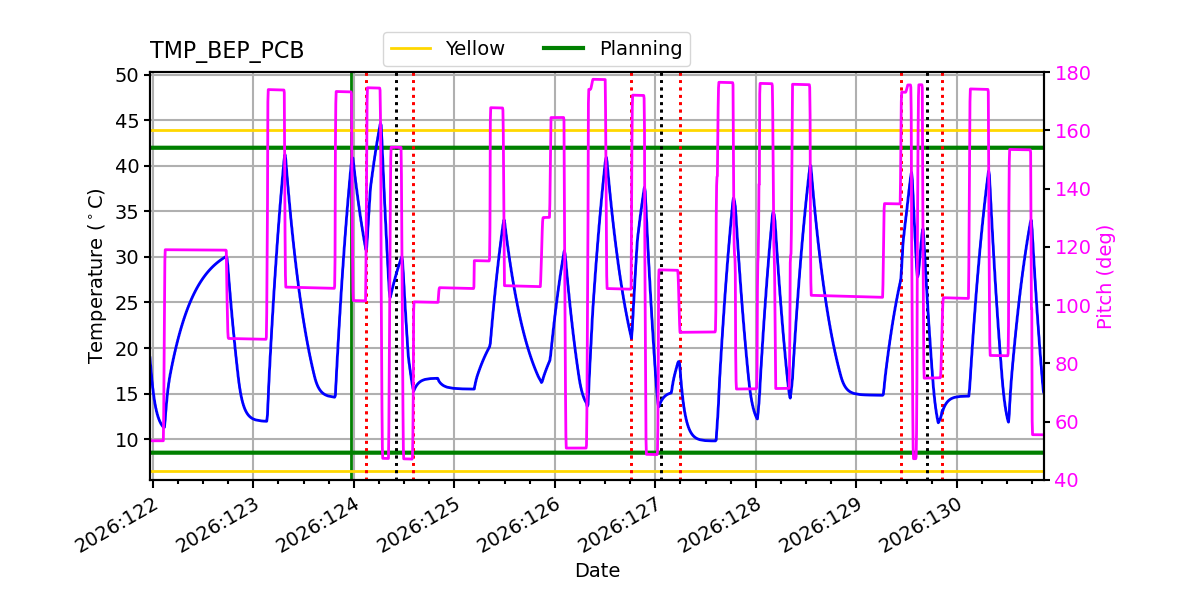

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:124:05:21:34.816 | 2026:124:06:44:05.548 | 4.95 | 44.67 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.02 | -10.67 | -6.17 | -1.71 | 0.93 | 2.55 | 3.33 |
| pitch | -10.339 | -0.634 | -0.004 | 0.000 | 0.004 | 0.599 | 11.057 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.838 | -0.137 | -0.007 | -0.000 | 0.008 | 0.158 | 2.137 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.02 | 2.00 |
| TMP_BEP_PCB | 50 | -1.71 | 1.00 |
| TMP_BEP_PCB | 99 | 3.33 | 2.00 |
| PITCH | 1 | -10.339 | 3.00 |
| PITCH | 99 | 11.057 | 3.00 |
TMP_BEP_PCB

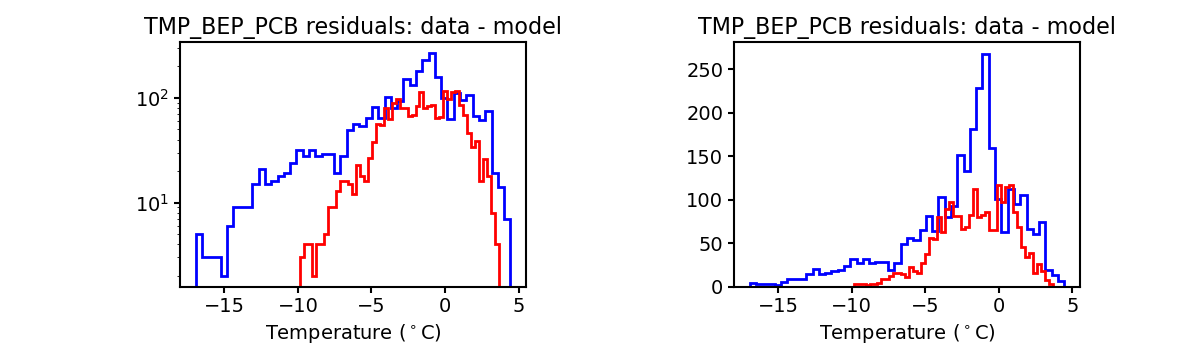

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

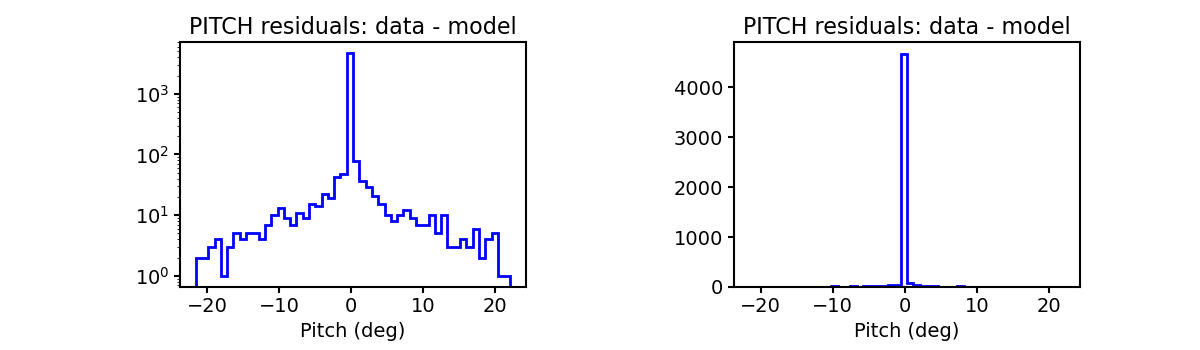

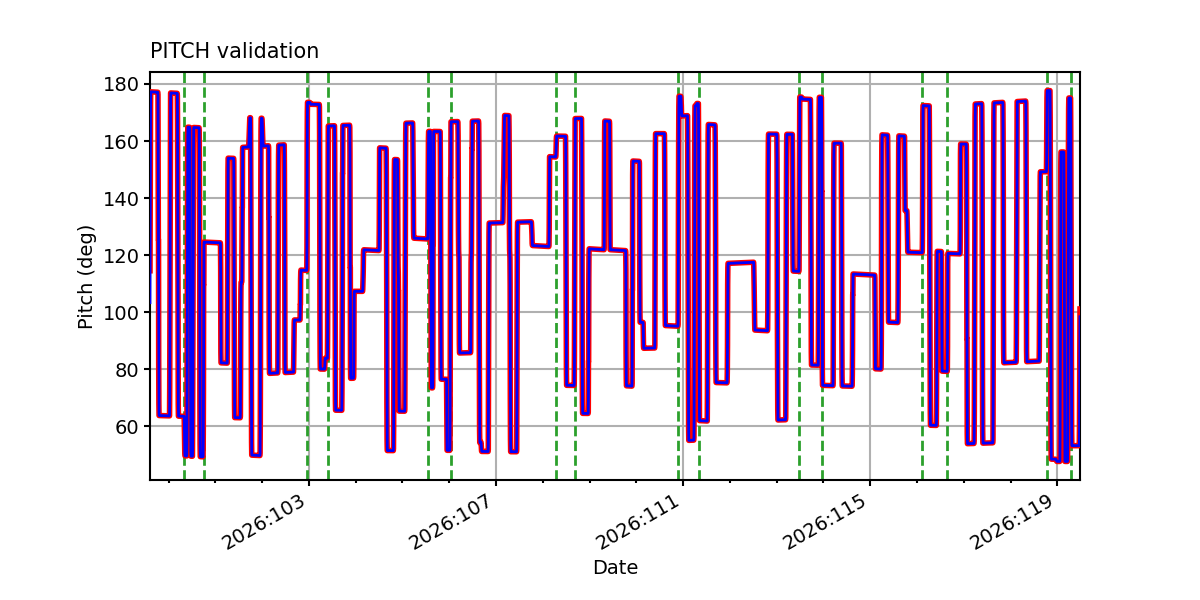

PITCH
TSCPOS

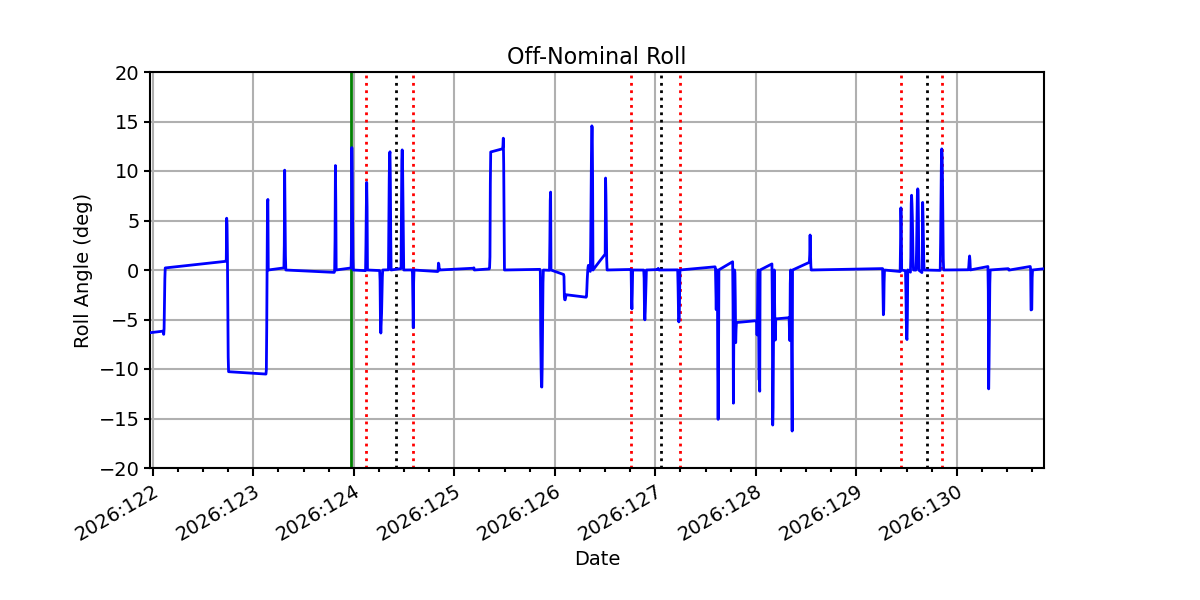

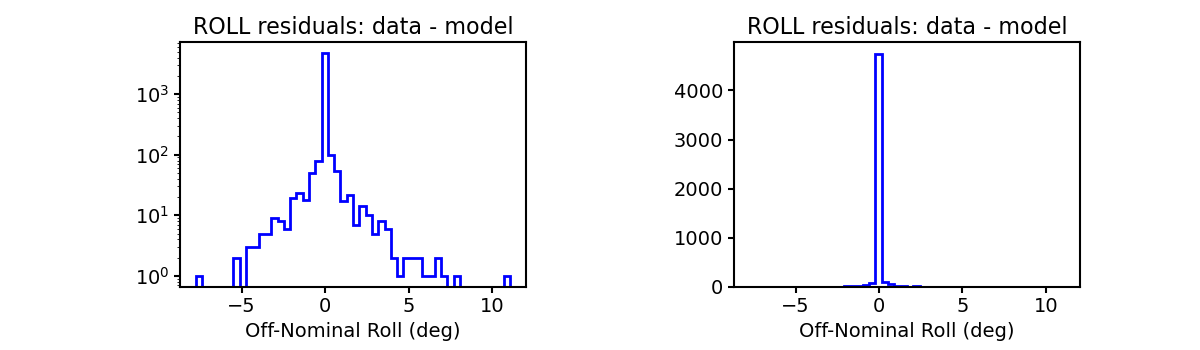

ROLL

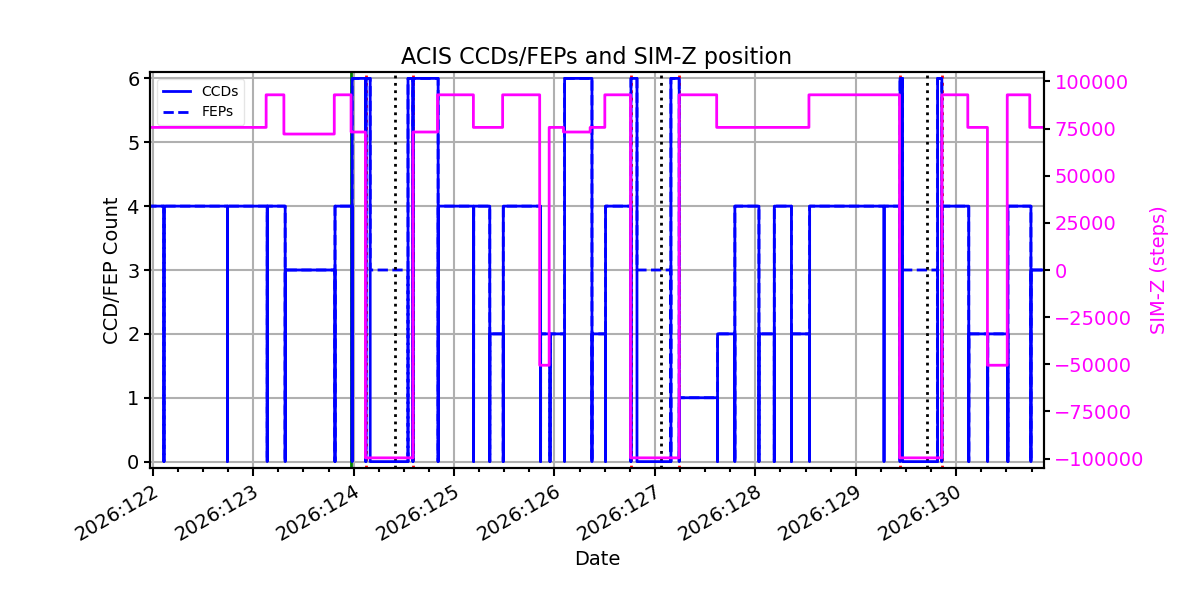

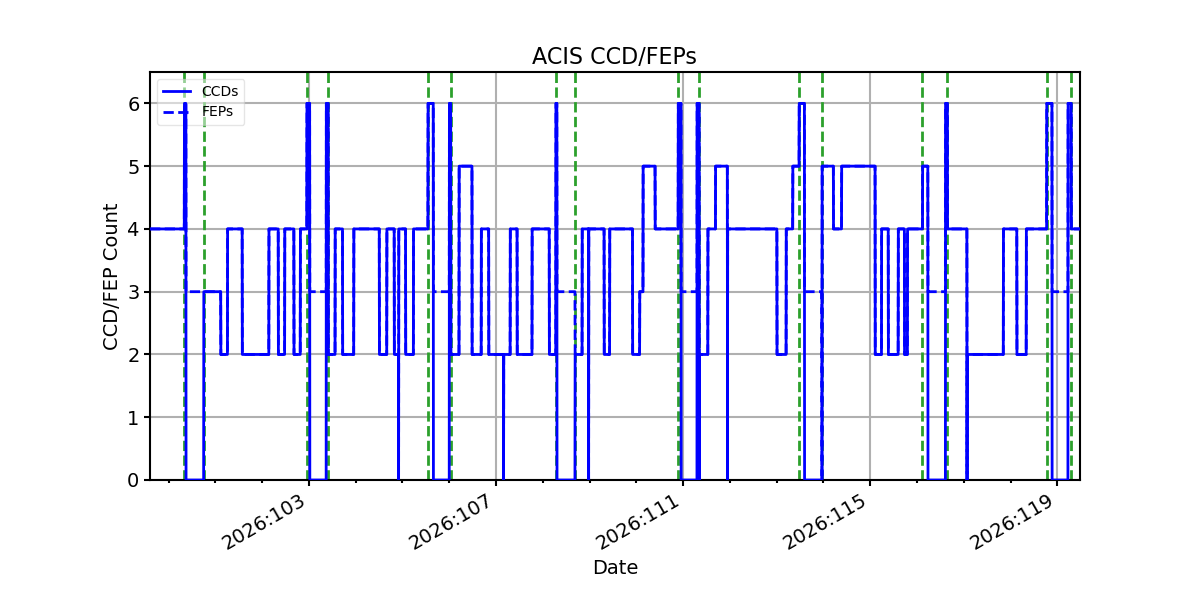

ACIS CCD/FEP Count
