BEP_PCB Temperatures Check
Summary
| Date start | 2025:125:01:49:24.916 |
| Date stop | 2025:131:21:15:39.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/MAY0525/ofls |
| Run time | Wed Apr 30 12:18:16 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:129:14:46:06.816 | 2025:129:15:25:48.372 | 2.38 | 43.06 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -9.29 | -7.46 | -4.88 | -1.42 | 1.13 | 2.85 | 4.05 |
| pitch | -6.644 | -0.416 | -0.004 | 0.000 | 0.004 | 0.666 | 5.803 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.413 | -0.079 | -0.004 | 0.000 | 0.006 | 0.166 | 1.367 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -9.29 | 2.00 |
| TMP_BEP_PCB | 50 | -1.42 | 1.00 |
| TMP_BEP_PCB | 99 | 4.05 | 2.00 |
| PITCH | 1 | -6.644 | 3.00 |
| PITCH | 99 | 5.803 | 3.00 |

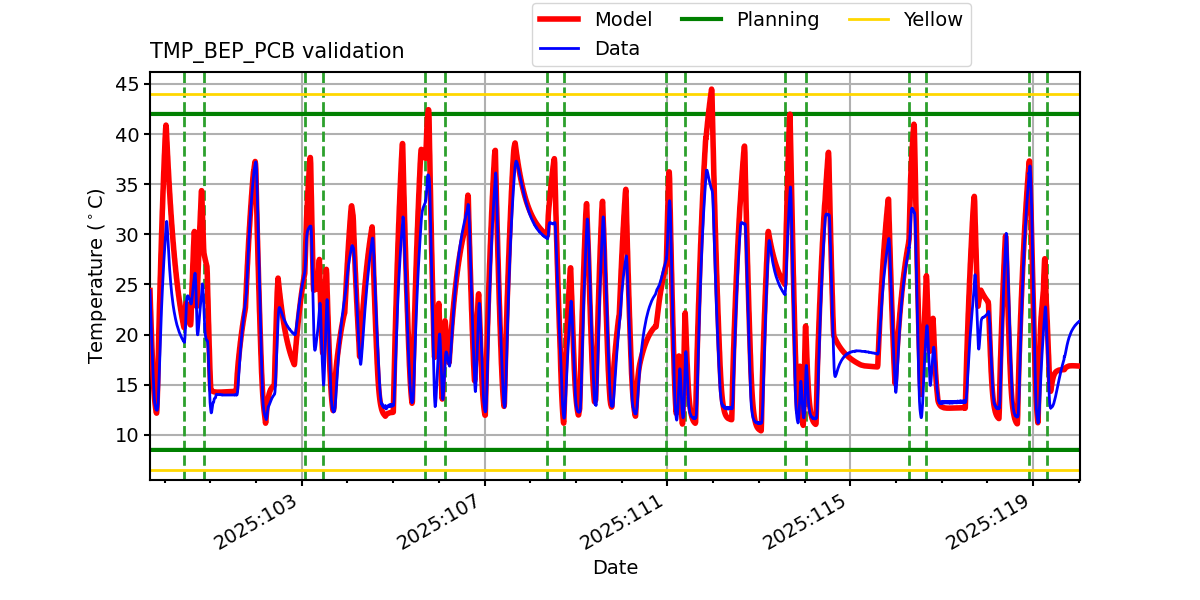

TMP_BEP_PCB

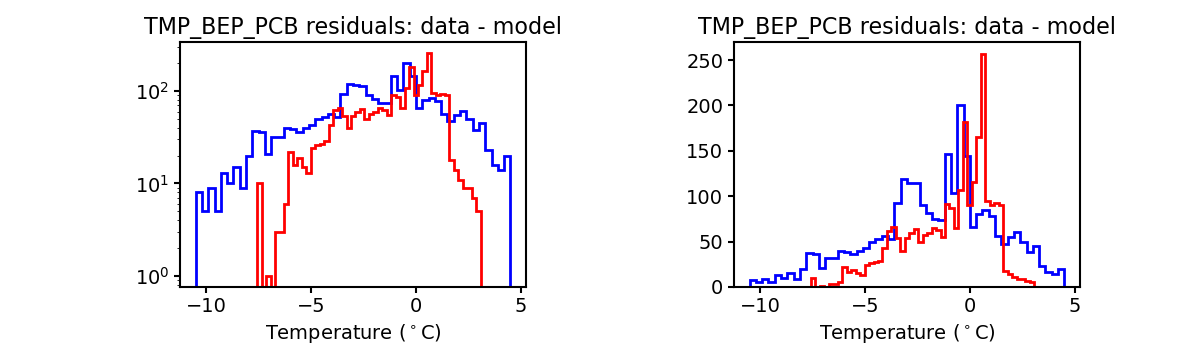

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

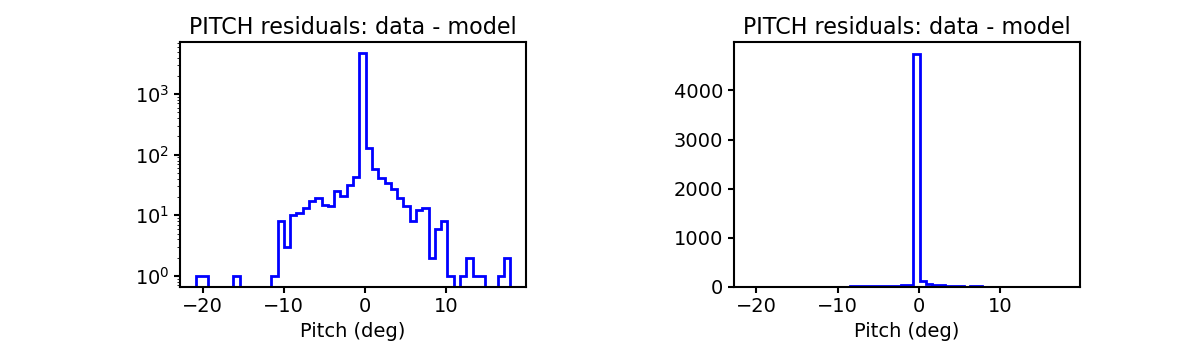

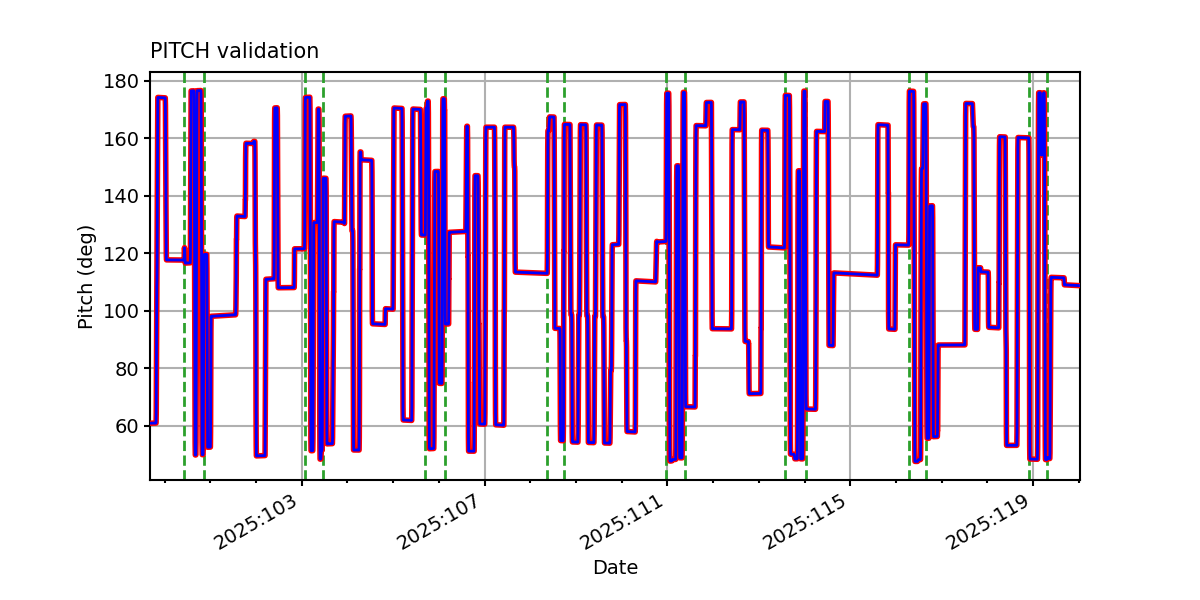

PITCH

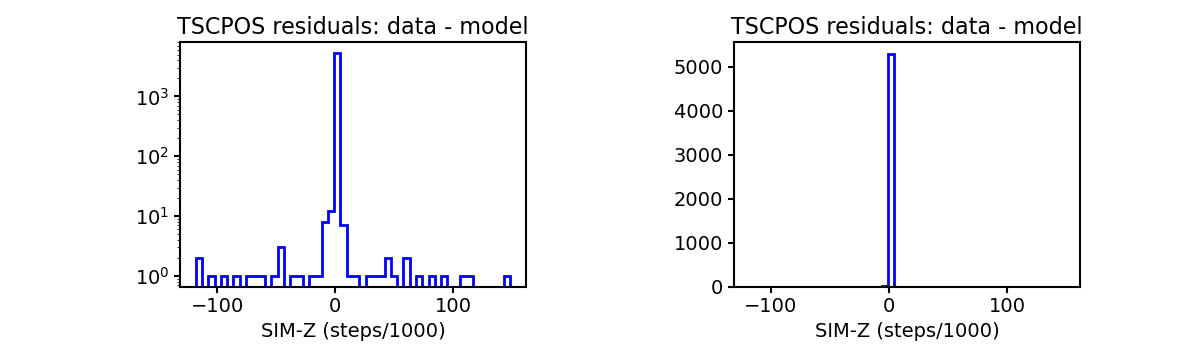

TSCPOS

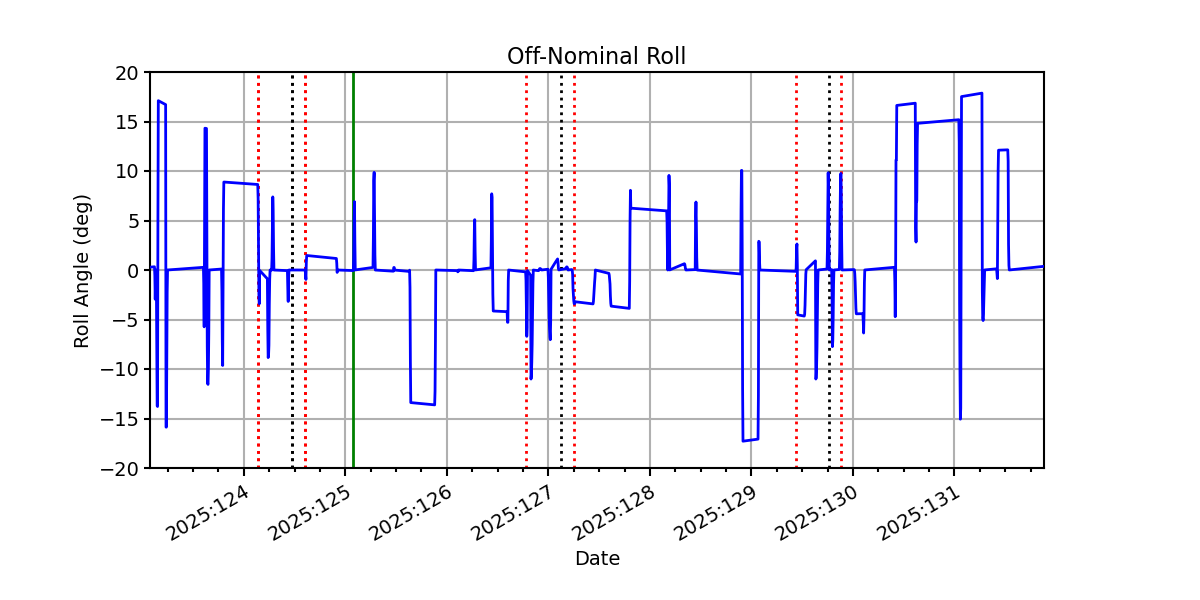

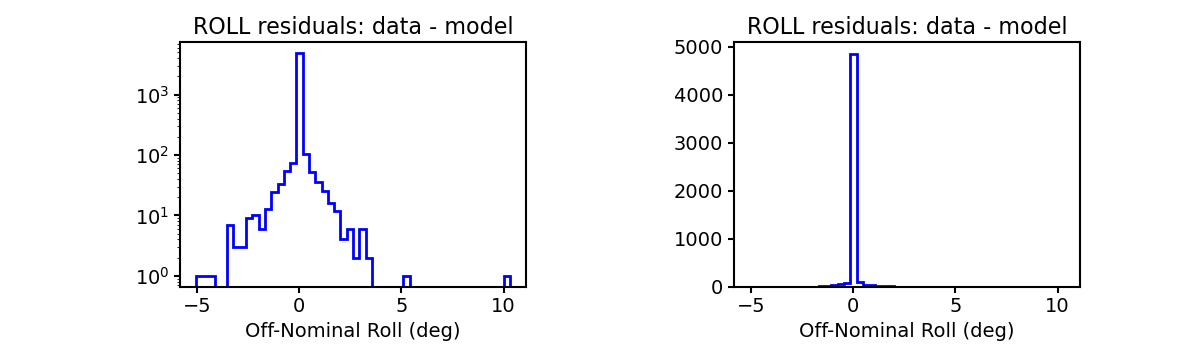

ROLL

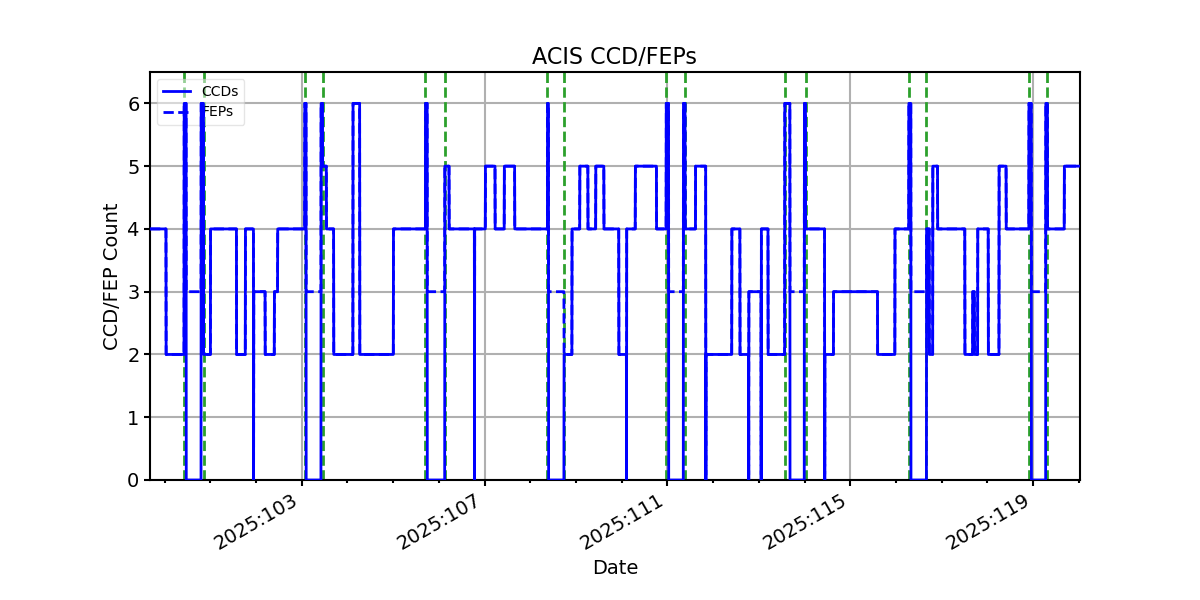

ACIS CCD/FEP Count
