BEP_PCB Temperatures Check
Summary
| Date start | 2026:130:20:55:40.716 |
| Date stop | 2026:137:09:59:04.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1126/oflsa |
| Run time | Wed May 6 15:53:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

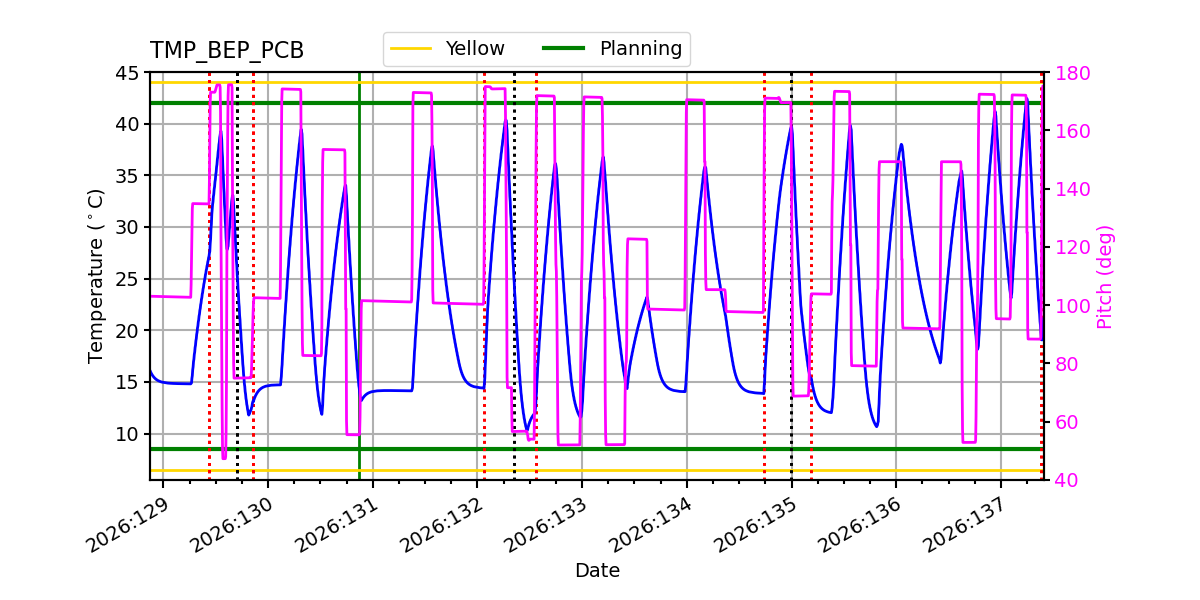

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:137:05:48:34.441 | 2026:137:06:04:41.927 | 0.97 | 42.43 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.06 | -10.04 | -6.24 | -1.44 | 1.47 | 2.44 | 3.18 |
| pitch | -10.038 | -0.149 | -0.004 | 0.000 | 0.004 | 0.185 | 10.249 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.812 | -0.077 | -0.004 | -0.000 | 0.004 | 0.098 | 2.103 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.06 | 2.00 |
| TMP_BEP_PCB | 50 | -1.44 | 1.00 |
| TMP_BEP_PCB | 99 | 3.18 | 2.00 |
| PITCH | 1 | -10.038 | 3.00 |
| PITCH | 99 | 10.249 | 3.00 |

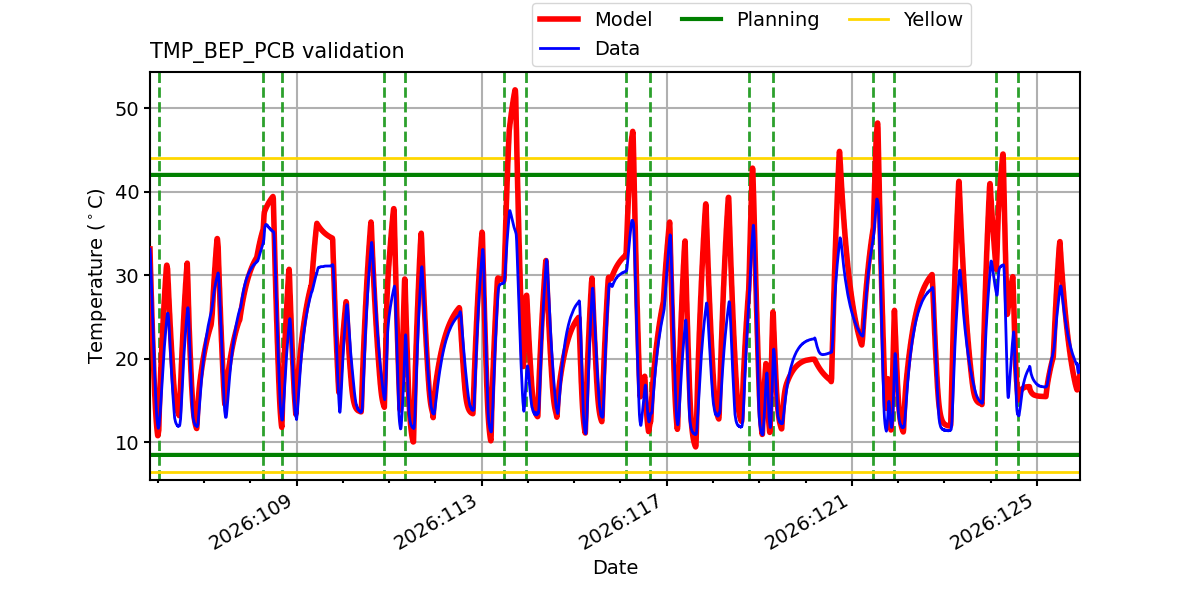

TMP_BEP_PCB

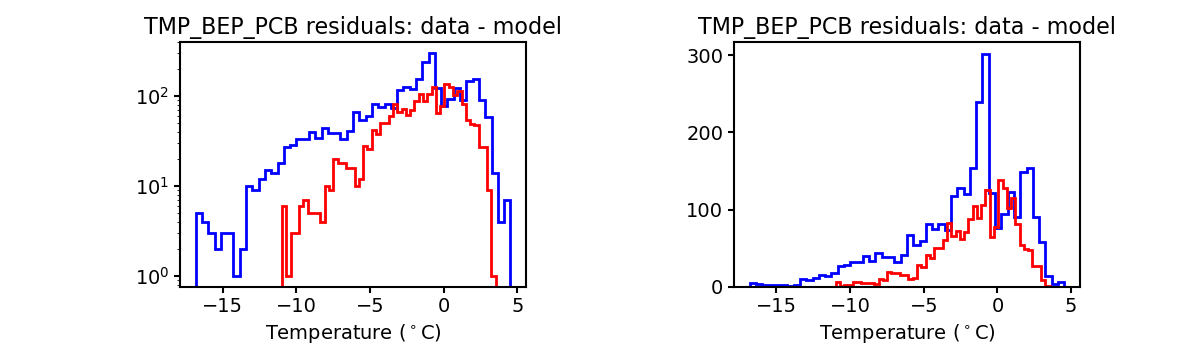

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

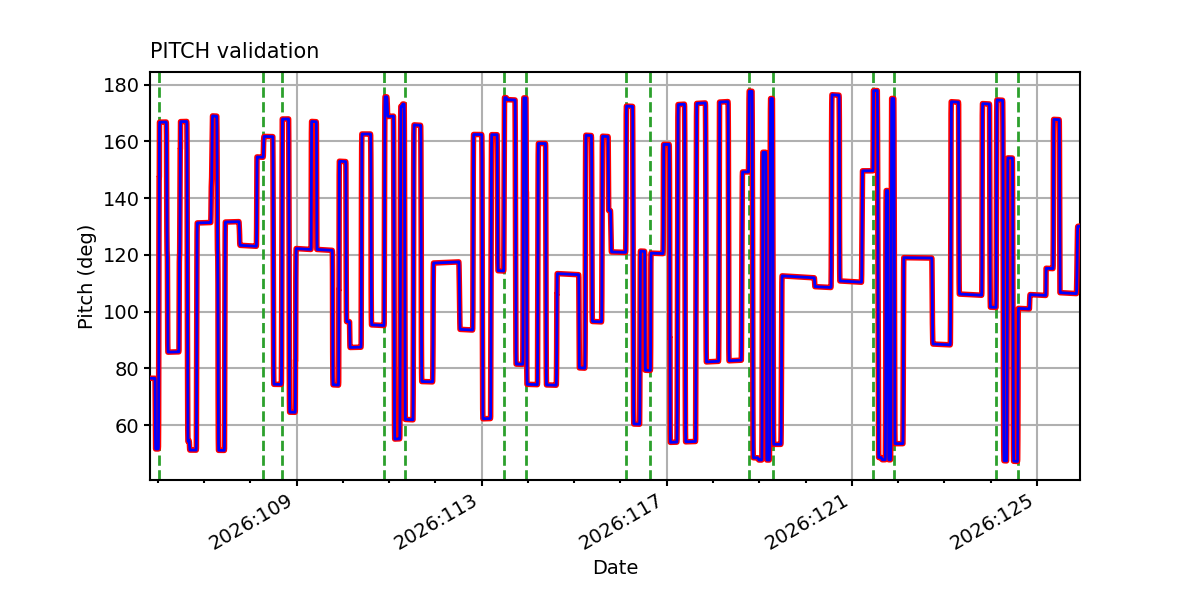

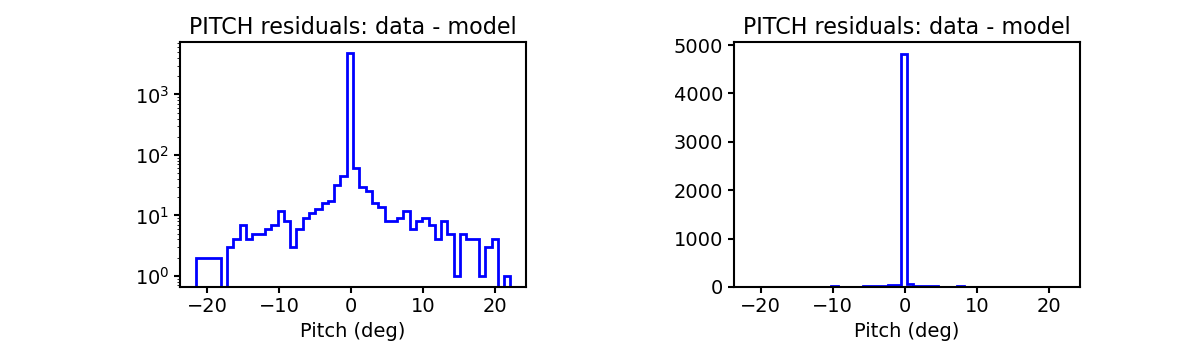

PITCH
TSCPOS

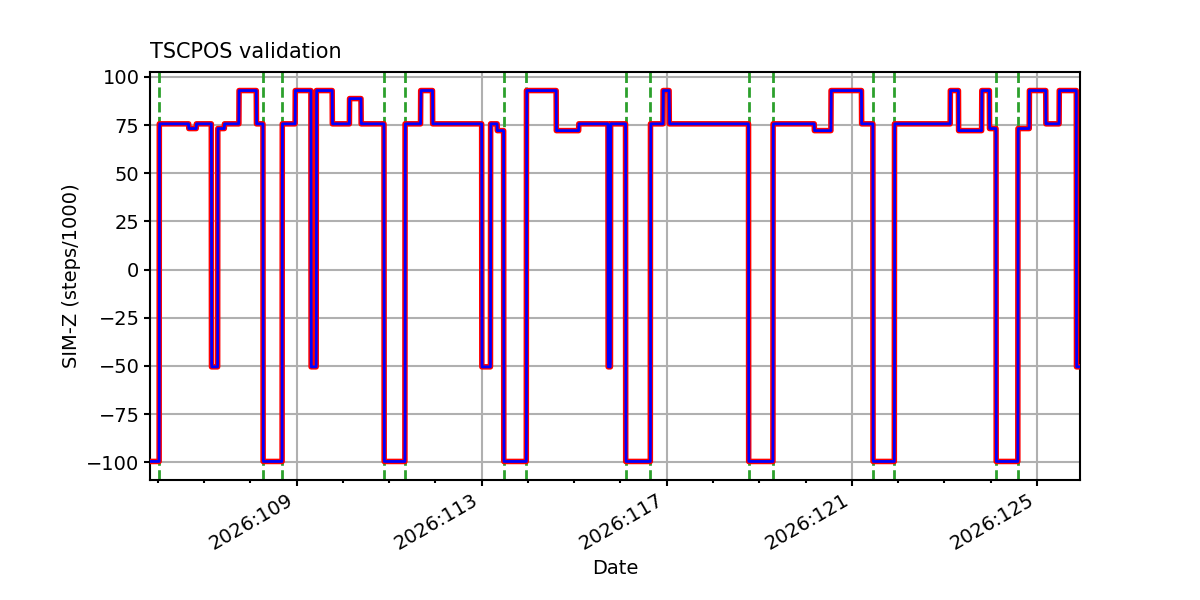

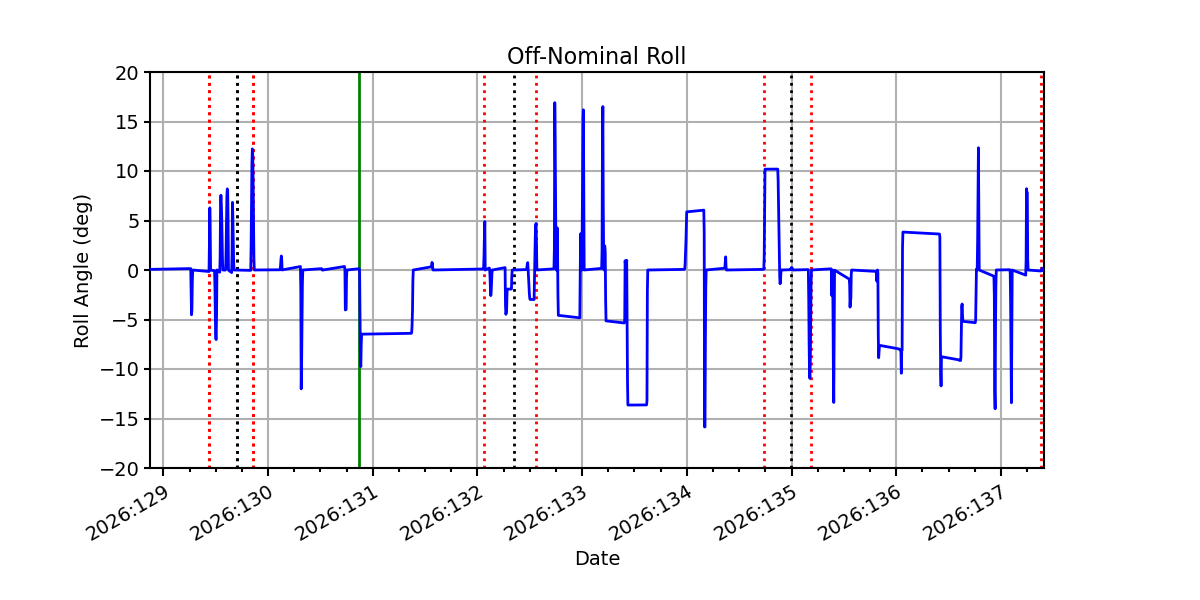

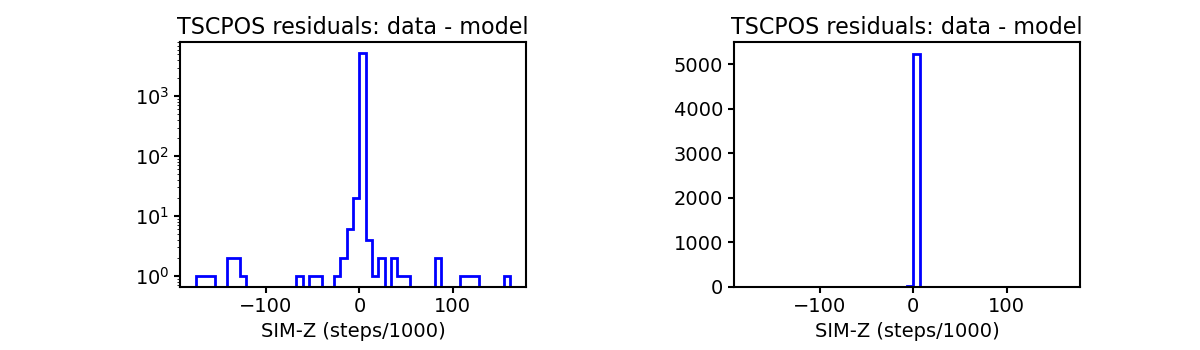

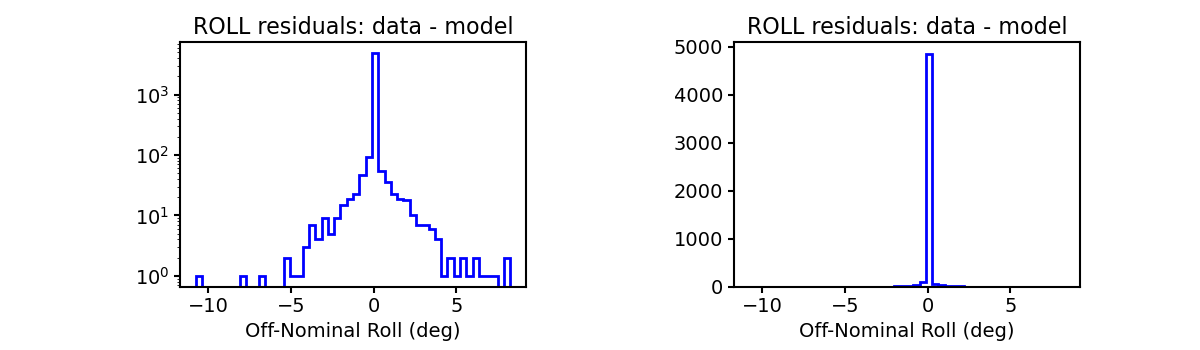

ROLL

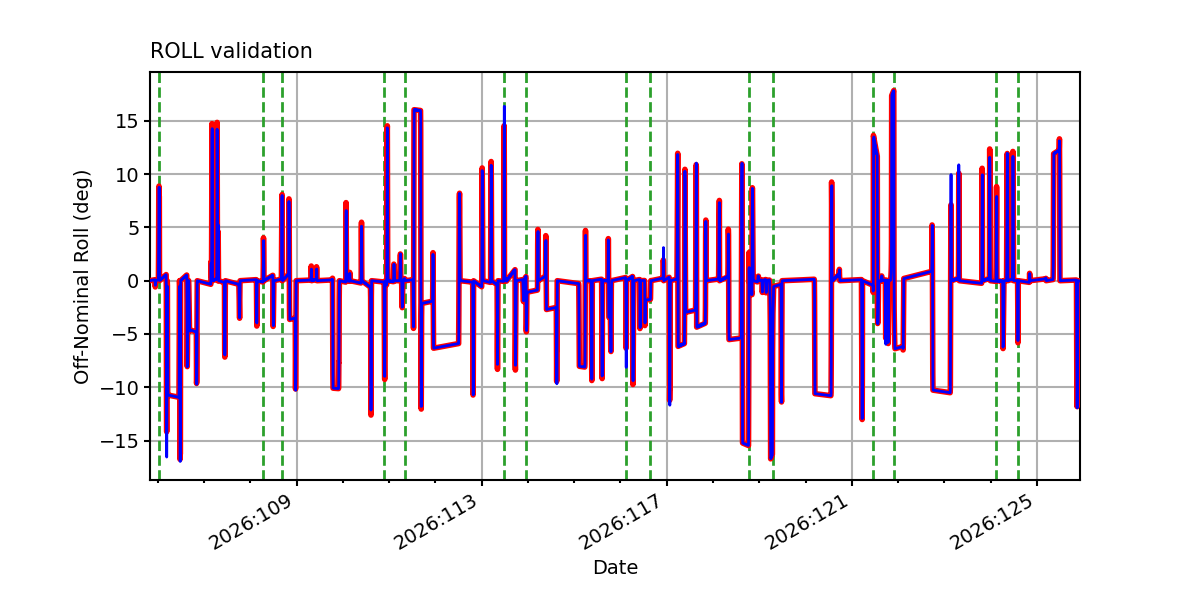

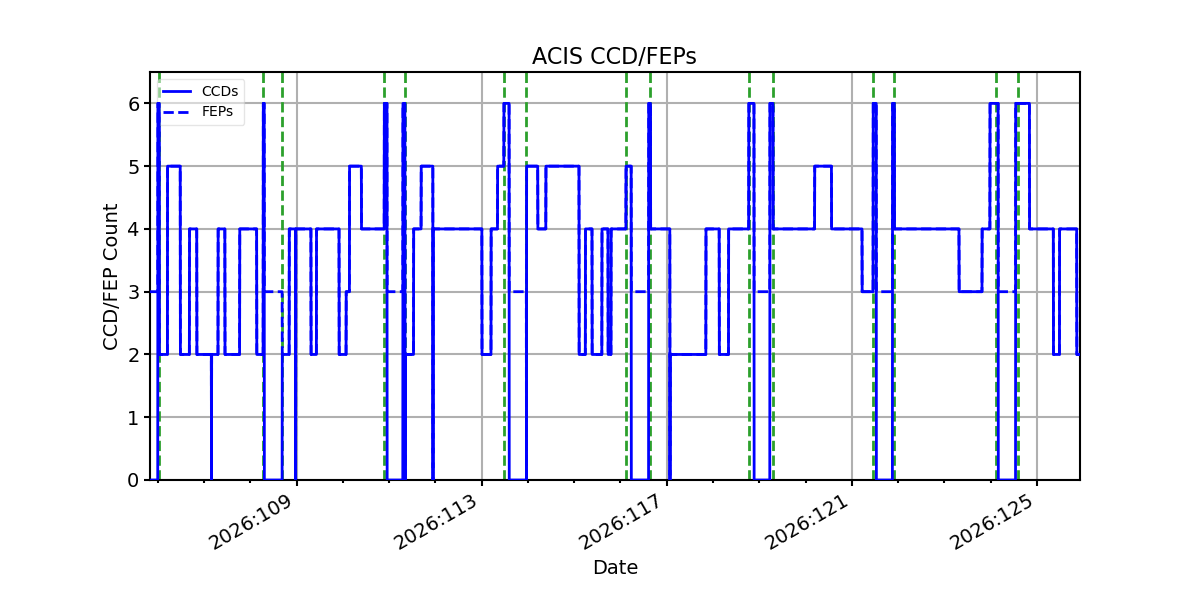

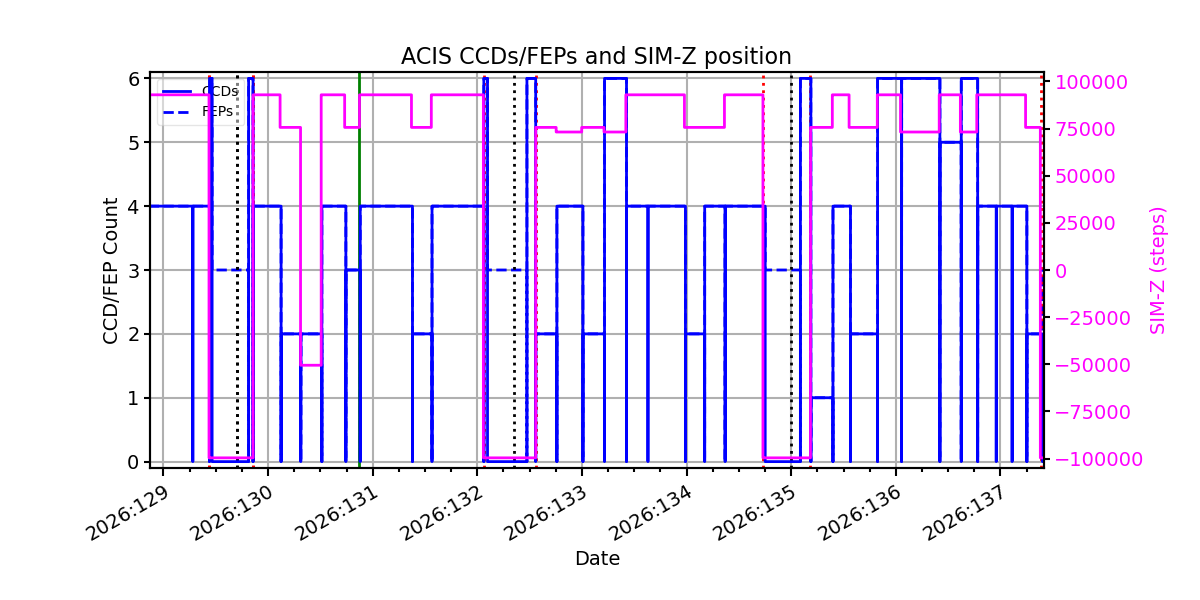

ACIS CCD/FEP Count
