BEP_PCB Temperatures Check
Summary
| Date start | 2026:137:09:56:04.316 |
| Date stop | 2026:144:21:52:00.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1826/oflsa |
| Run time | Wed May 13 12:12:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:140:02:23:10.816 | 2026:140:03:06:54.816 | 2.62 | 43.18 / 42.00 |
| 2026:140:12:02:38.816 | 2026:140:12:48:37.189 | 2.76 | 43.94 / 42.00 |
| 2026:142:18:31:42.816 | 2026:142:19:06:32.346 | 2.09 | 43.01 / 42.00 |
| 2026:144:03:14:14.816 | 2026:144:03:47:55.303 | 2.02 | 42.90 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.15 | -11.96 | -9.27 | -2.53 | 1.51 | 2.49 | 3.32 |
| pitch | -9.288 | -0.364 | -0.004 | -0.000 | 0.004 | 0.134 | 11.773 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.789 | -0.087 | -0.005 | -0.000 | 0.005 | 0.095 | 1.896 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.15 | 2.00 |
| TMP_BEP_PCB | 50 | -2.53 | 1.00 |
| TMP_BEP_PCB | 99 | 3.32 | 2.00 |
| PITCH | 1 | -9.288 | 3.00 |
| PITCH | 99 | 11.773 | 3.00 |

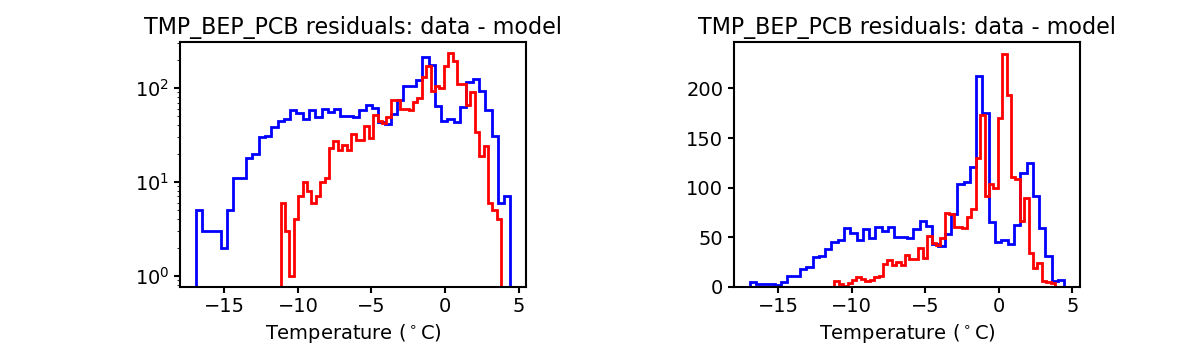

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

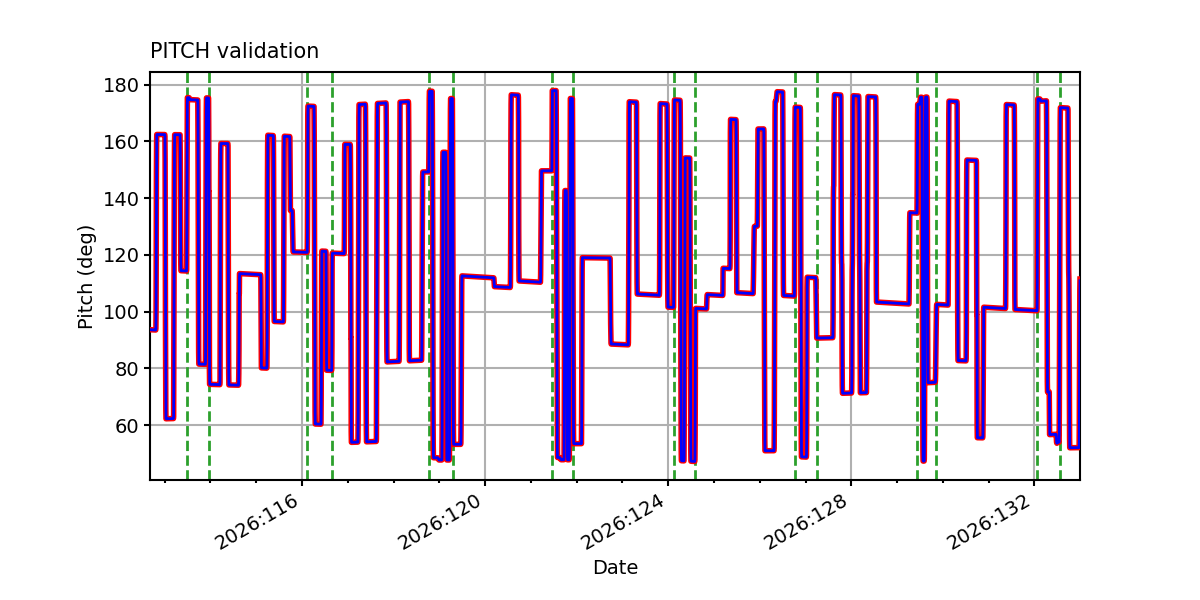

PITCH

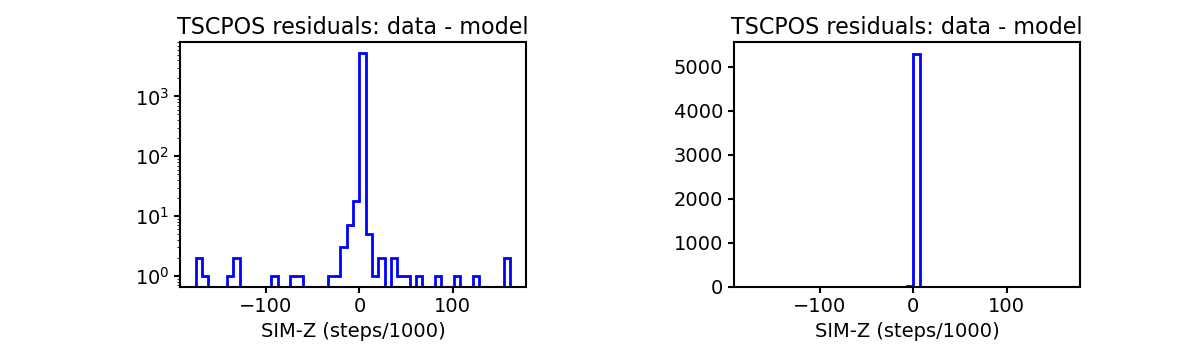

TSCPOS

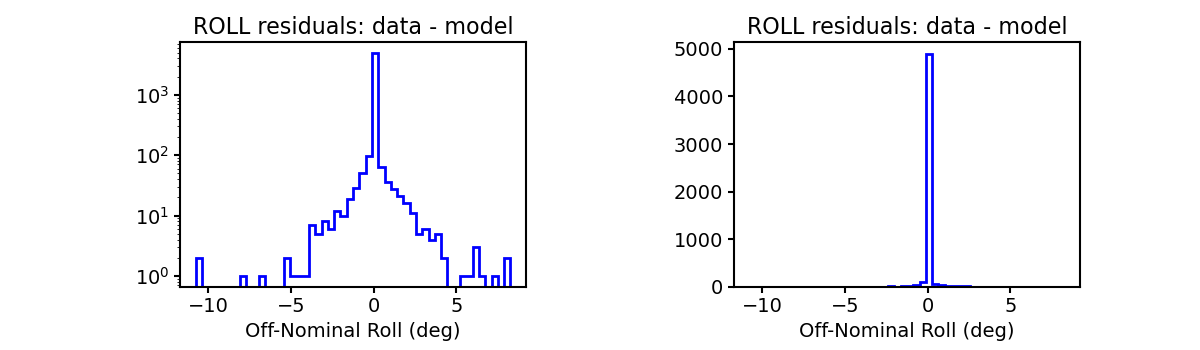

ROLL

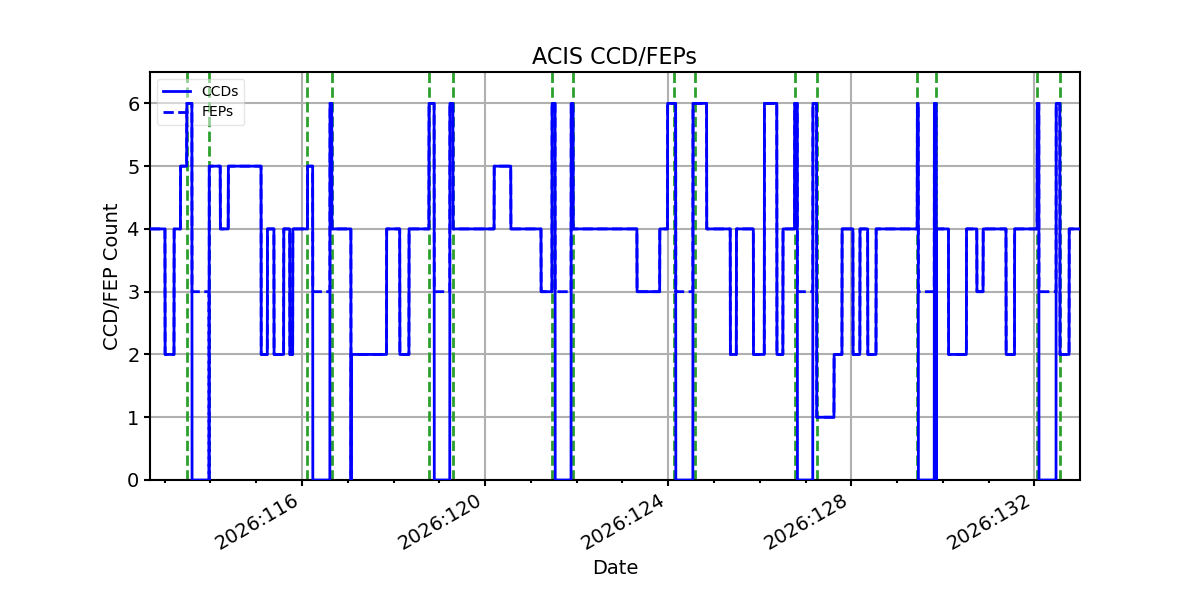

ACIS CCD/FEP Count
