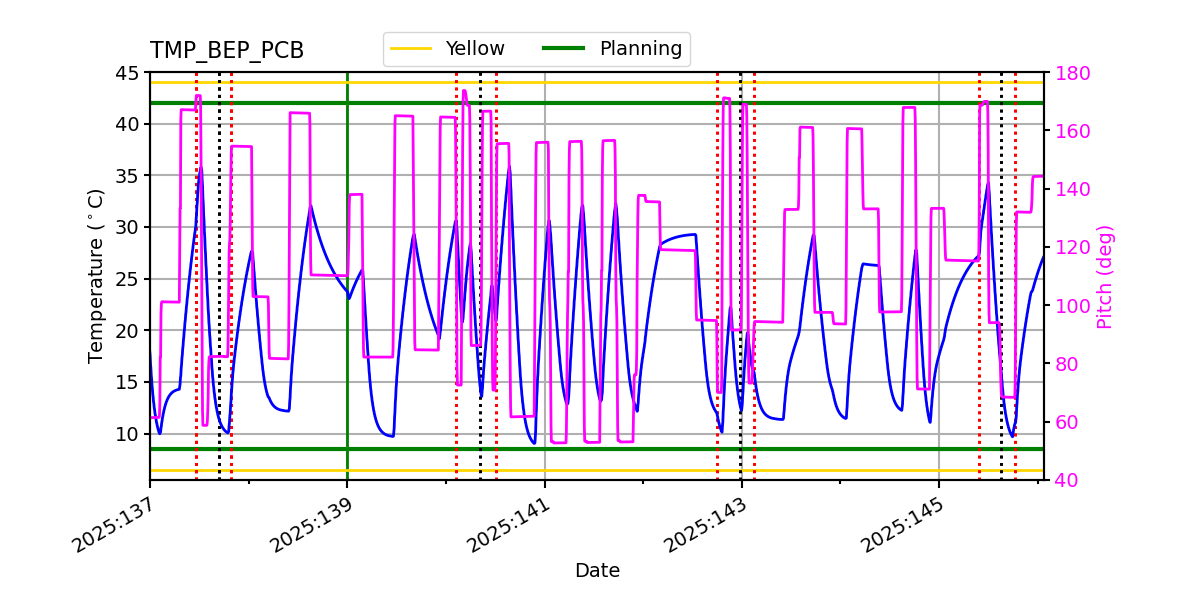

BEP_PCB Temperatures Check
Summary
| Date start | 2025:138:23:57:00.816 |
| Date stop | 2025:146:01:43:21.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1925/ofls |
| Run time | Thu May 15 11:33:43 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -10.14 | -8.13 | -5.41 | -0.99 | 1.40 | 3.43 | 4.25 |
| pitch | -5.715 | -0.223 | -0.004 | -0.000 | 0.004 | 0.128 | 5.227 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.648 | -0.077 | -0.004 | -0.000 | 0.003 | 0.060 | 1.164 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -10.14 | 2.00 |
| TMP_BEP_PCB | 99 | 4.25 | 2.00 |
| PITCH | 1 | -5.715 | 3.00 |
| PITCH | 99 | 5.227 | 3.00 |

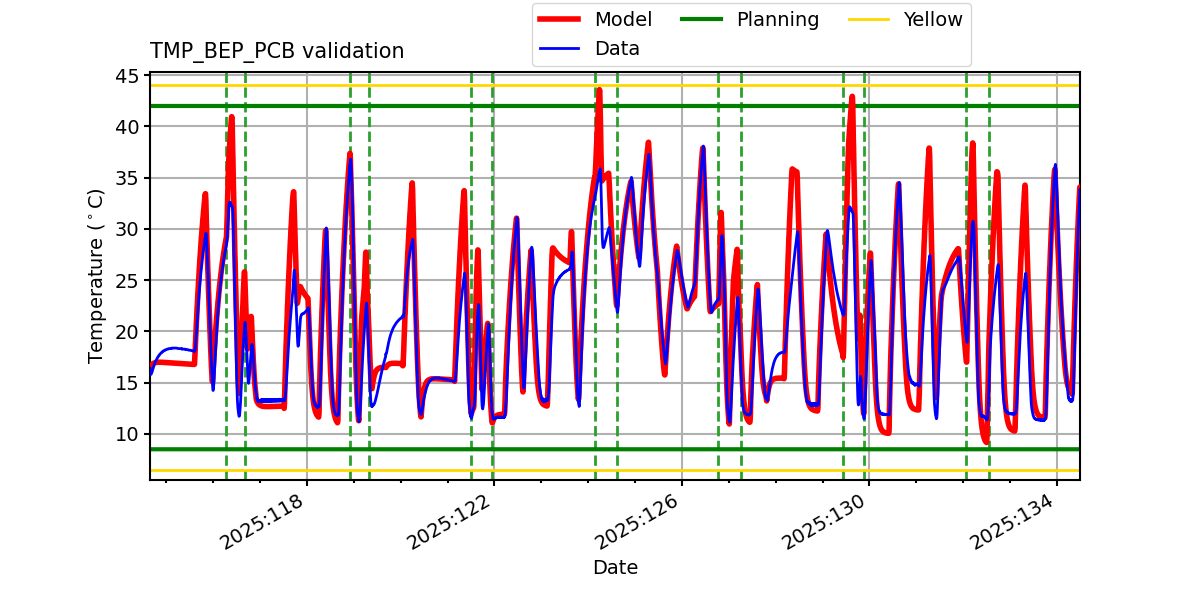

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH

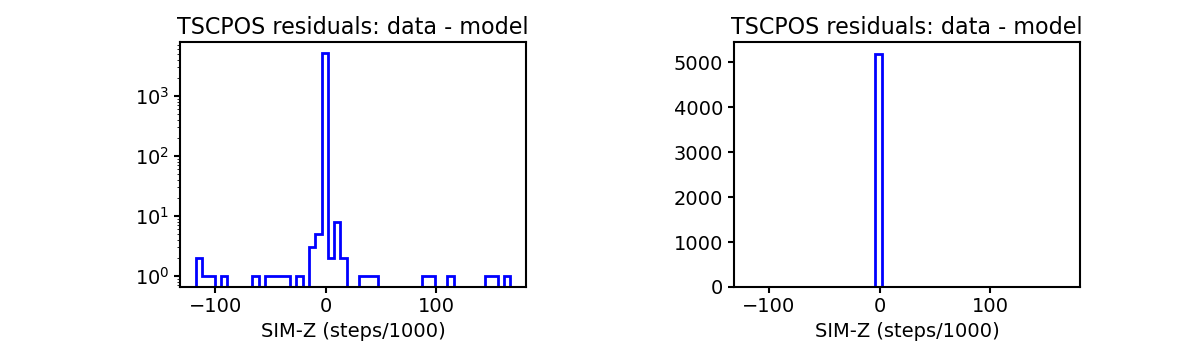

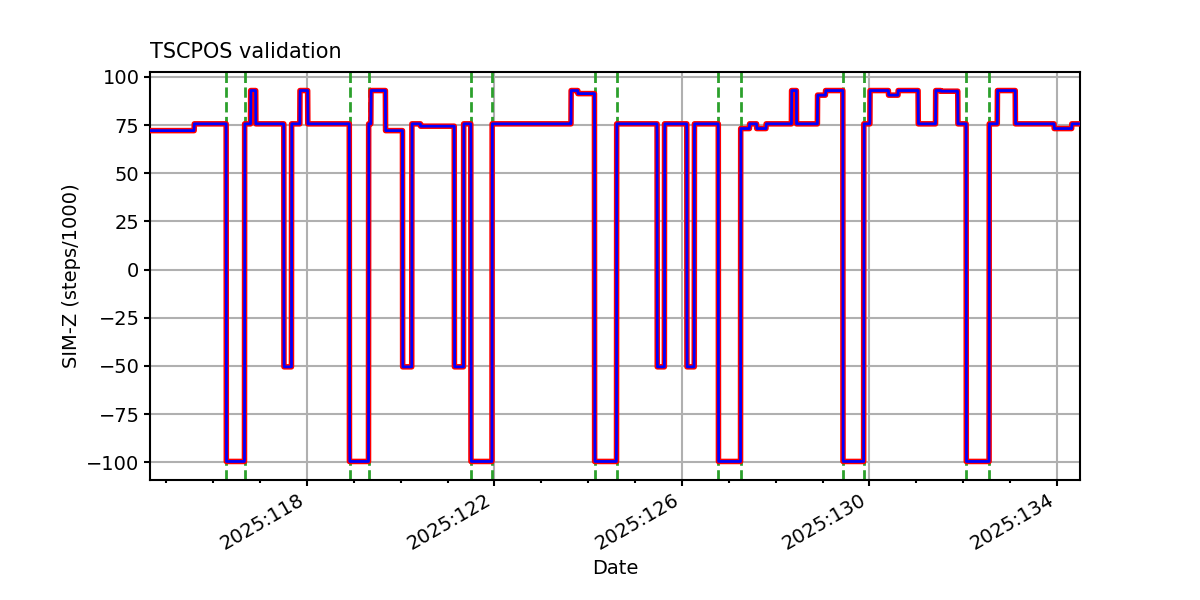

TSCPOS

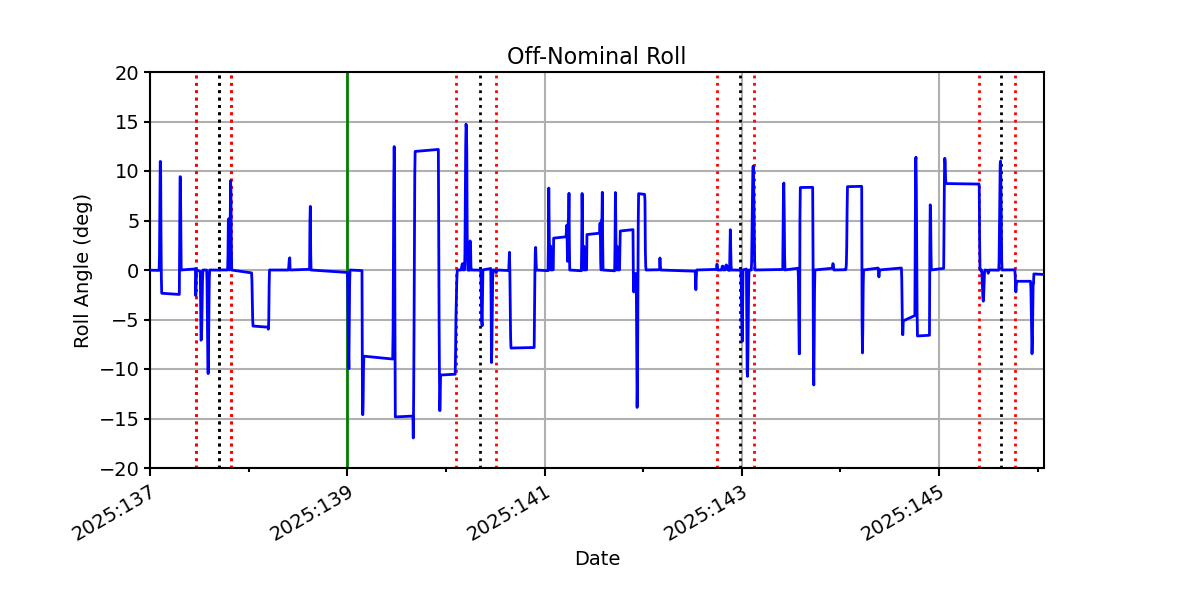

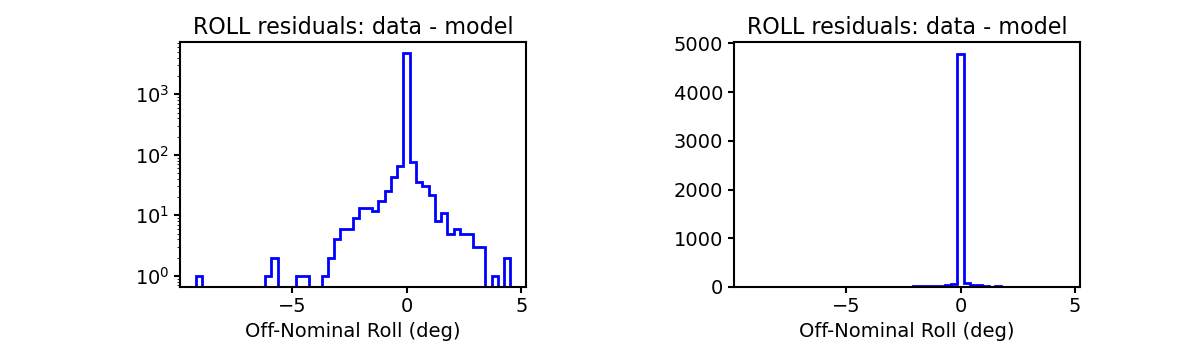

ROLL

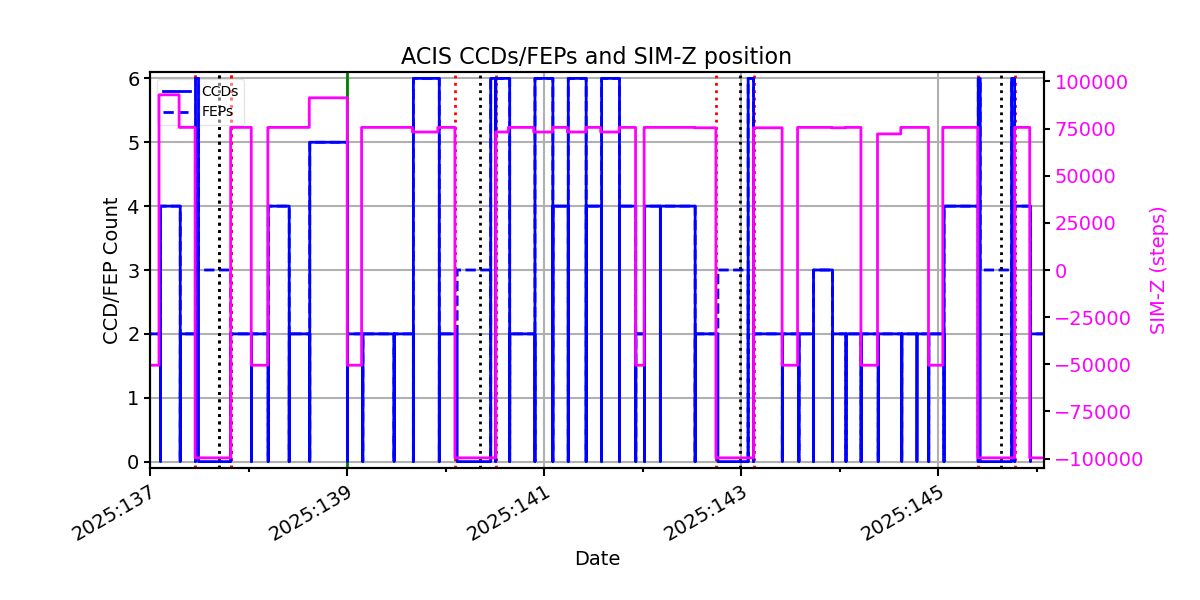

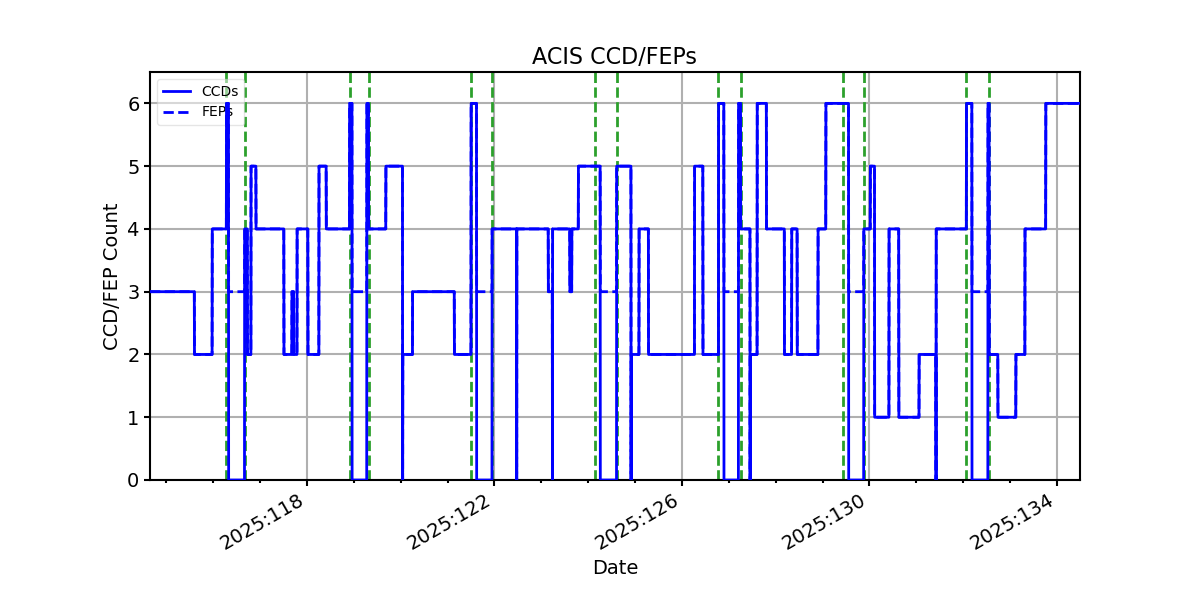

ACIS CCD/FEP Count
