BEP_PCB Temperatures Check
Summary
| Date start | 2025:318:21:50:00.016 |
| Date stop | 2025:327:21:06:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV1425/oflsa |
| Run time | Thu Nov 13 11:28:01 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:324:03:45:26.816 | 2025:324:04:12:58.087 | 1.65 | 42.93 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.21 | -10.49 | -7.12 | -1.15 | 2.27 | 3.01 | 3.82 |
| pitch | -12.858 | -1.629 | -0.004 | -0.000 | 0.004 | 1.061 | 12.290 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.247 | -0.221 | -0.007 | -0.000 | 0.007 | 0.229 | 2.500 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.21 | 2.00 |
| TMP_BEP_PCB | 50 | -1.15 | 1.00 |
| TMP_BEP_PCB | 99 | 3.82 | 2.00 |
| PITCH | 1 | -12.858 | 3.00 |
| PITCH | 99 | 12.29 | 3.00 |

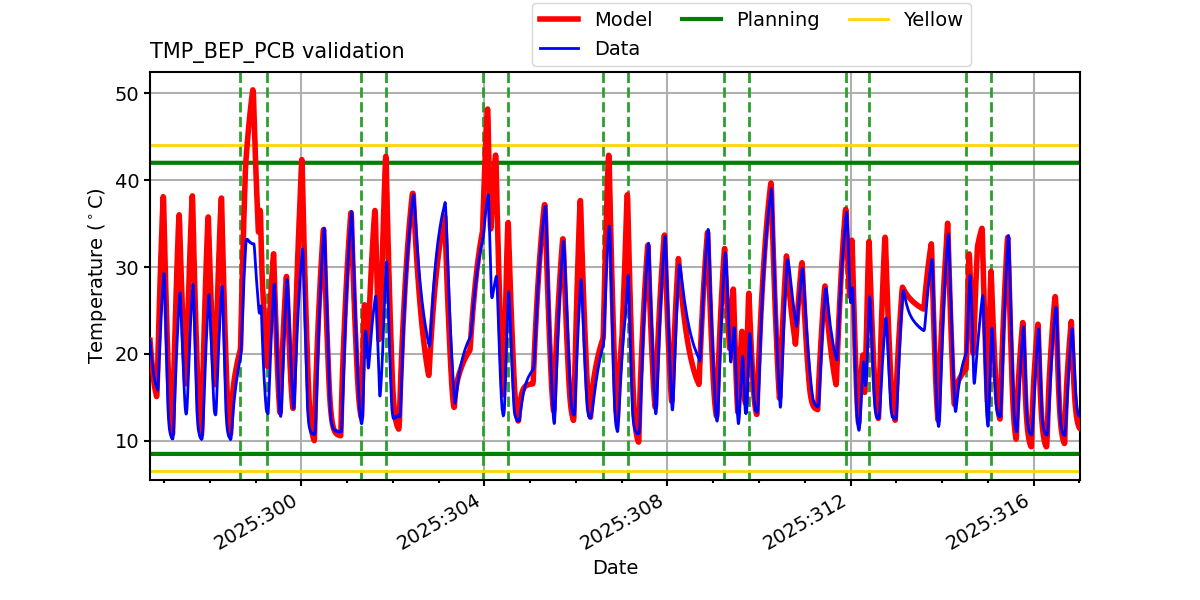

TMP_BEP_PCB

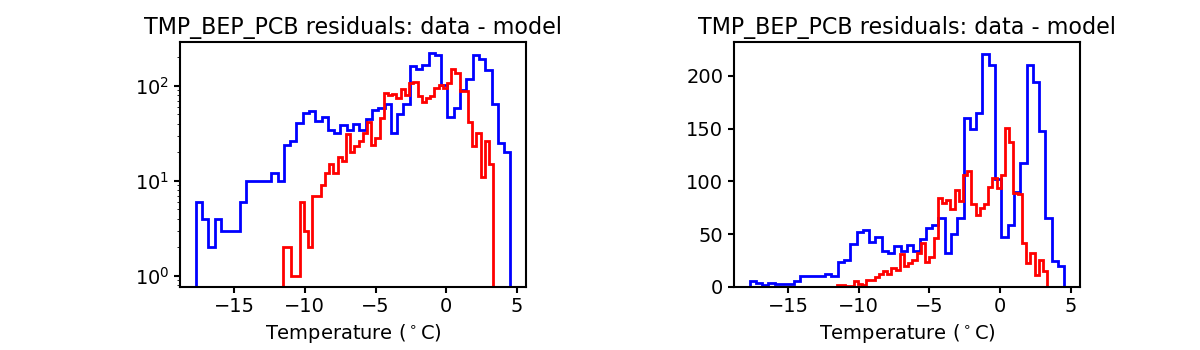

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

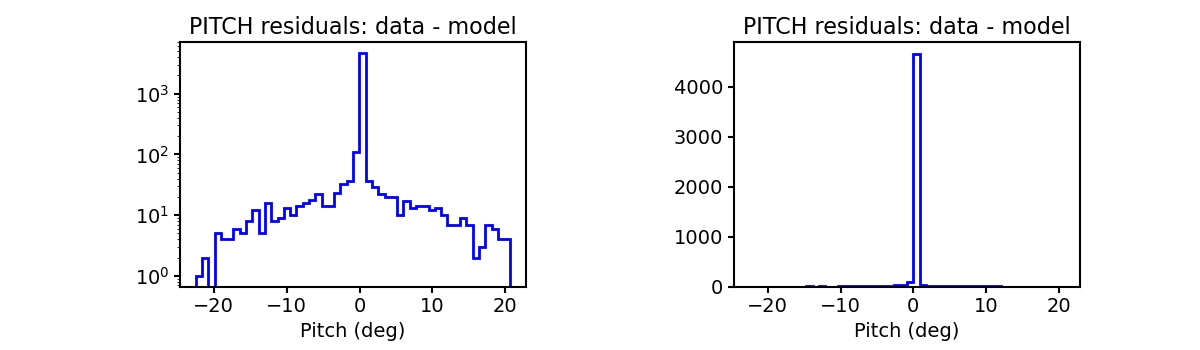

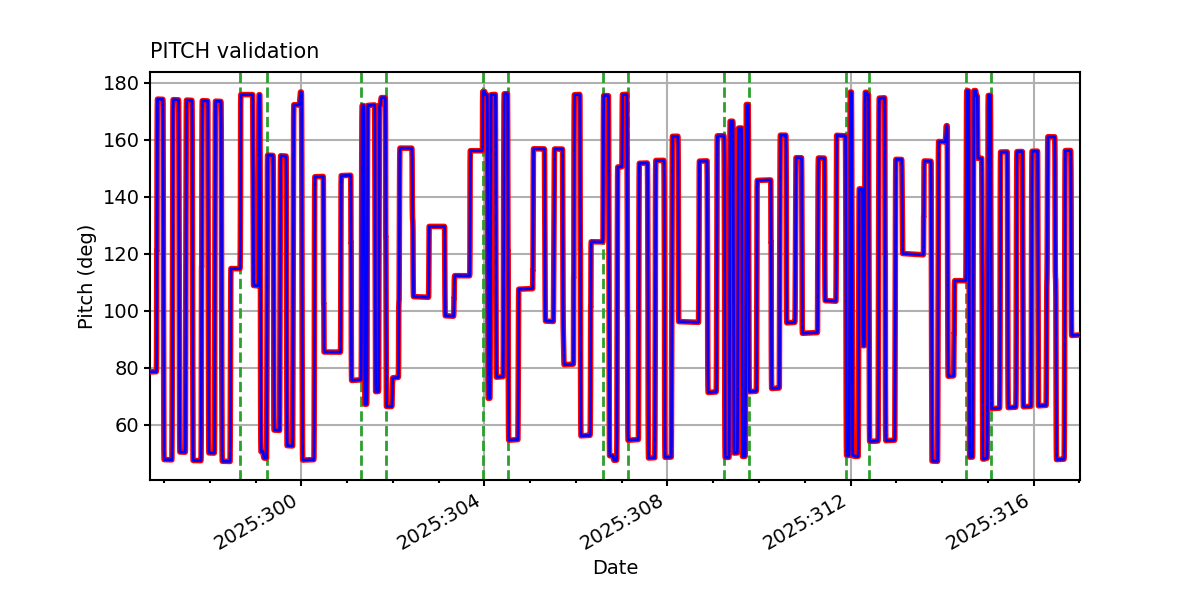

PITCH

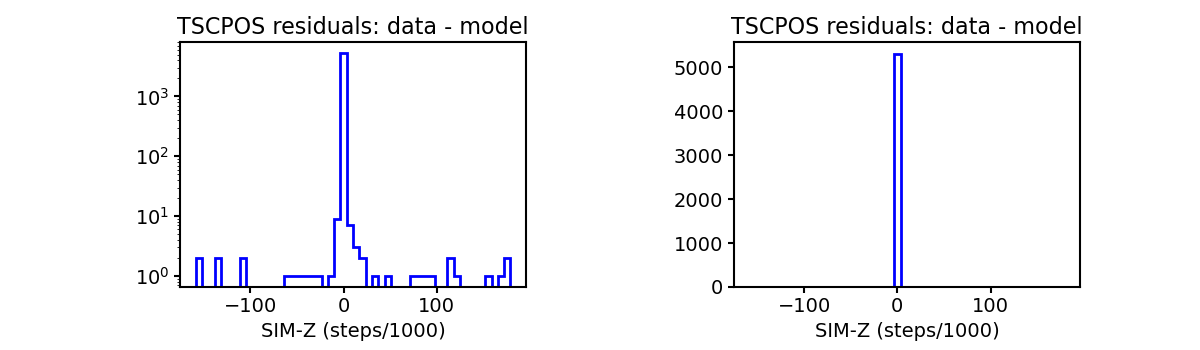

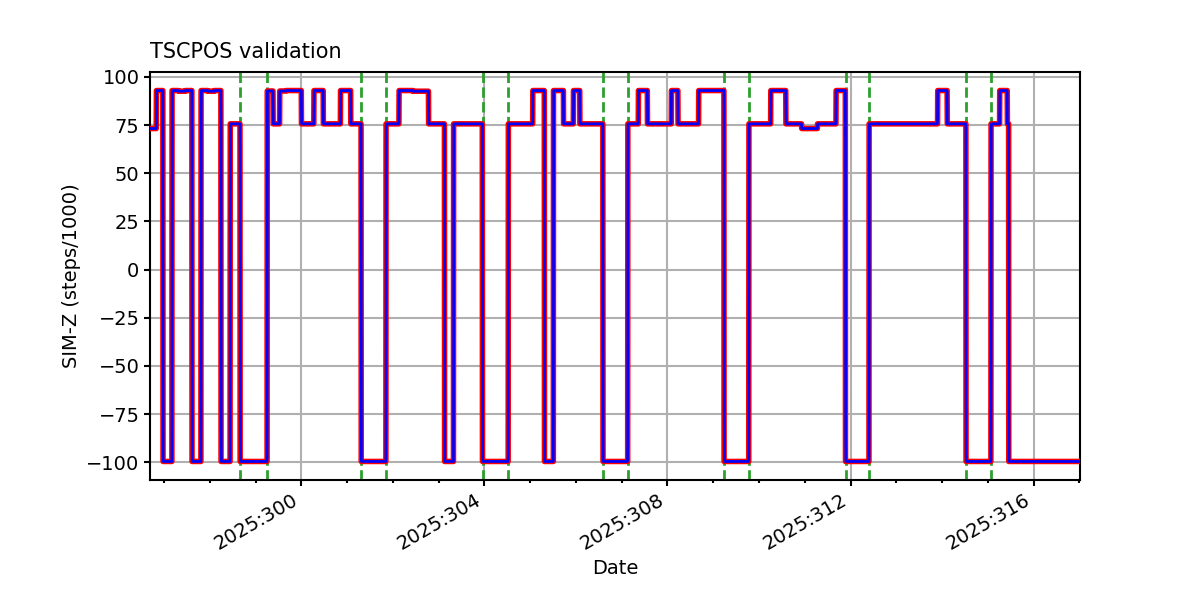

TSCPOS

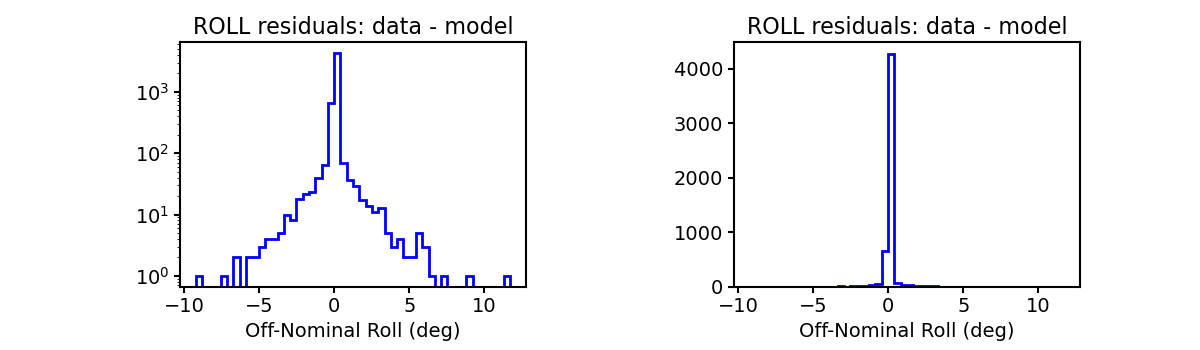

ROLL

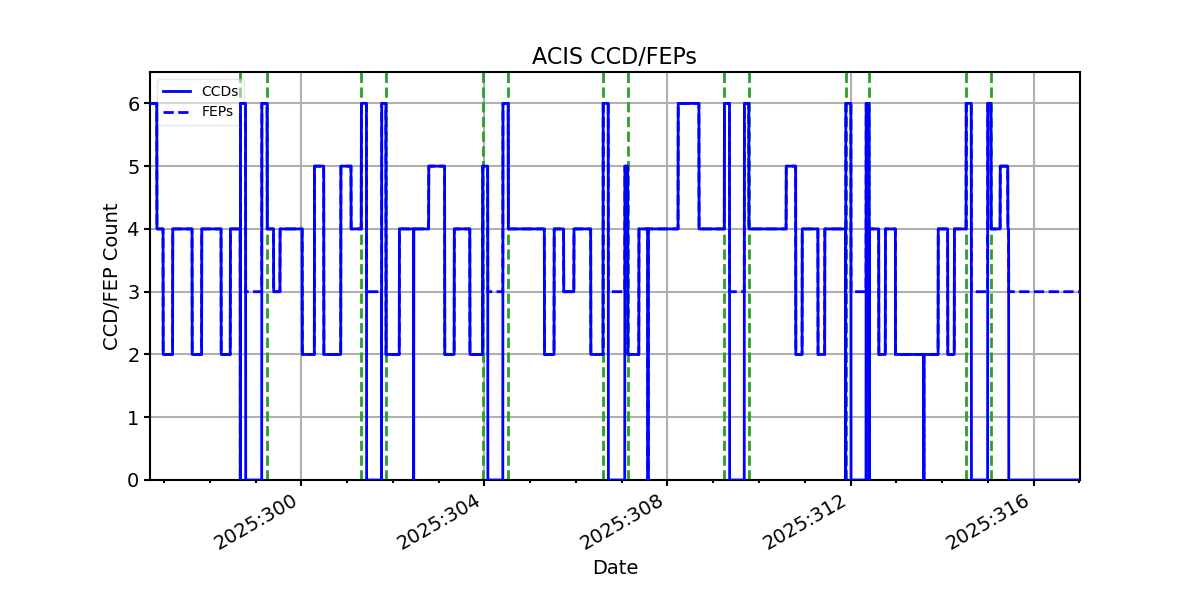

ACIS CCD/FEP Count
