BEP_PCB Temperatures Check
Summary
| Date start | 2025:327:21:03:00.016 |
| Date stop | 2025:335:01:22:35.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV2425/oflsa |
| Run time | Wed Nov 19 21:08:12 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:327:22:24:46.816 | 2025:328:01:53:09.825 | 12.50 | 45.60 / 42.00 |
| 2025:330:11:21:58.816 | 2025:330:21:28:46.816 | 36.41 | 52.51 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.24 | -8.99 | -4.35 | -1.08 | 2.24 | 2.92 | 3.61 |
| pitch | -12.655 | -1.630 | -0.004 | 0.000 | 0.004 | 1.399 | 12.292 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.475 | -0.209 | -0.007 | -0.000 | 0.007 | 0.264 | 2.420 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.24 | 2.00 |
| TMP_BEP_PCB | 50 | -1.08 | 1.00 |
| TMP_BEP_PCB | 99 | 3.61 | 2.00 |
| PITCH | 1 | -12.655 | 3.00 |
| PITCH | 99 | 12.292 | 3.00 |

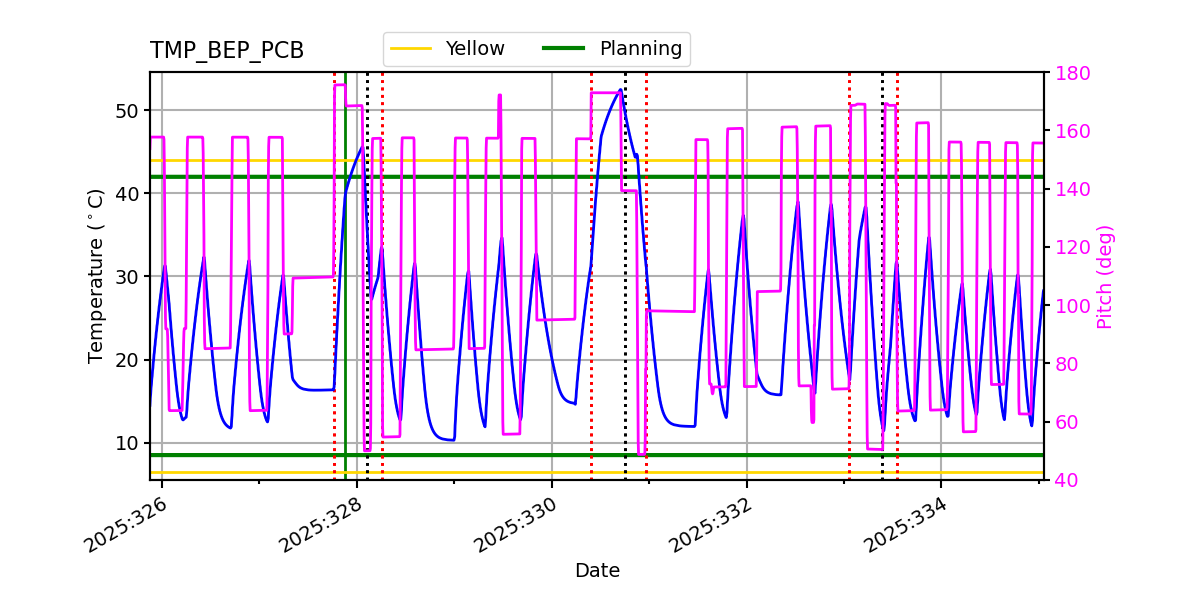

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

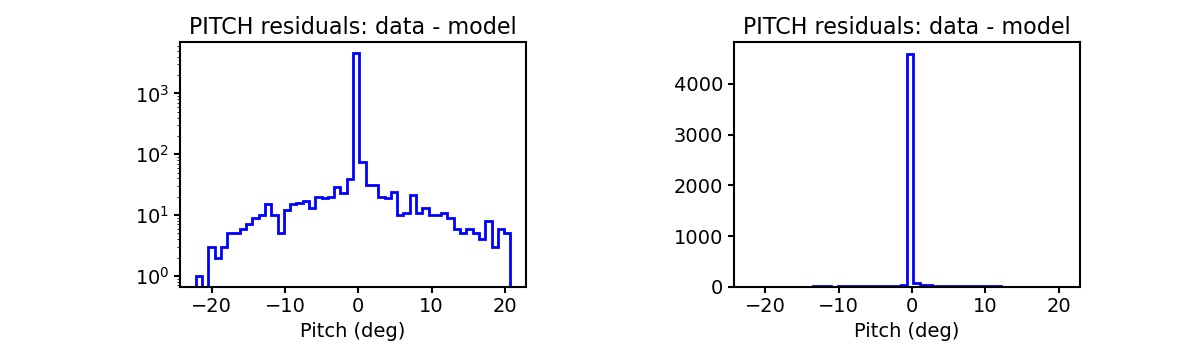

PITCH

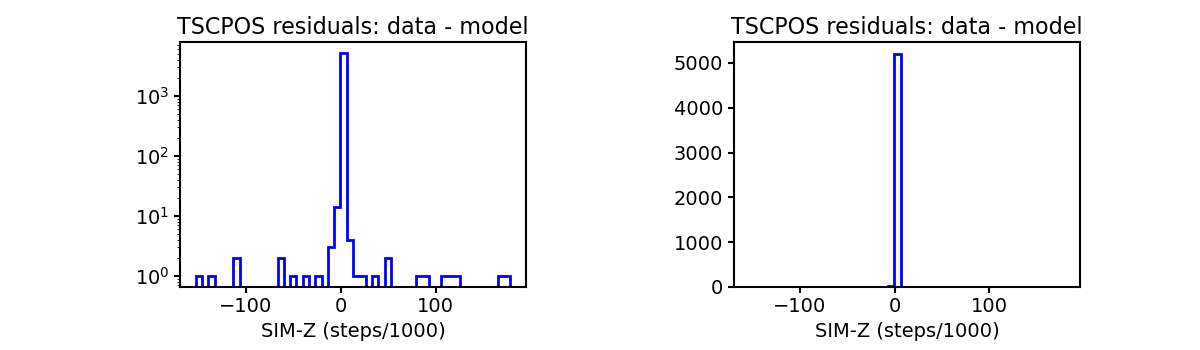

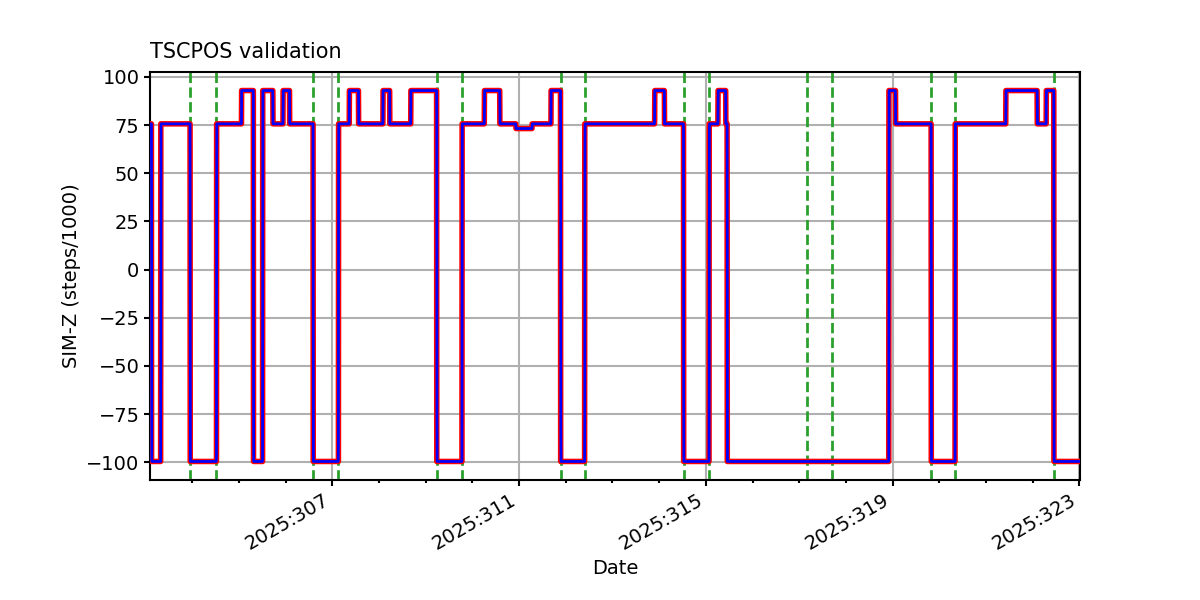

TSCPOS

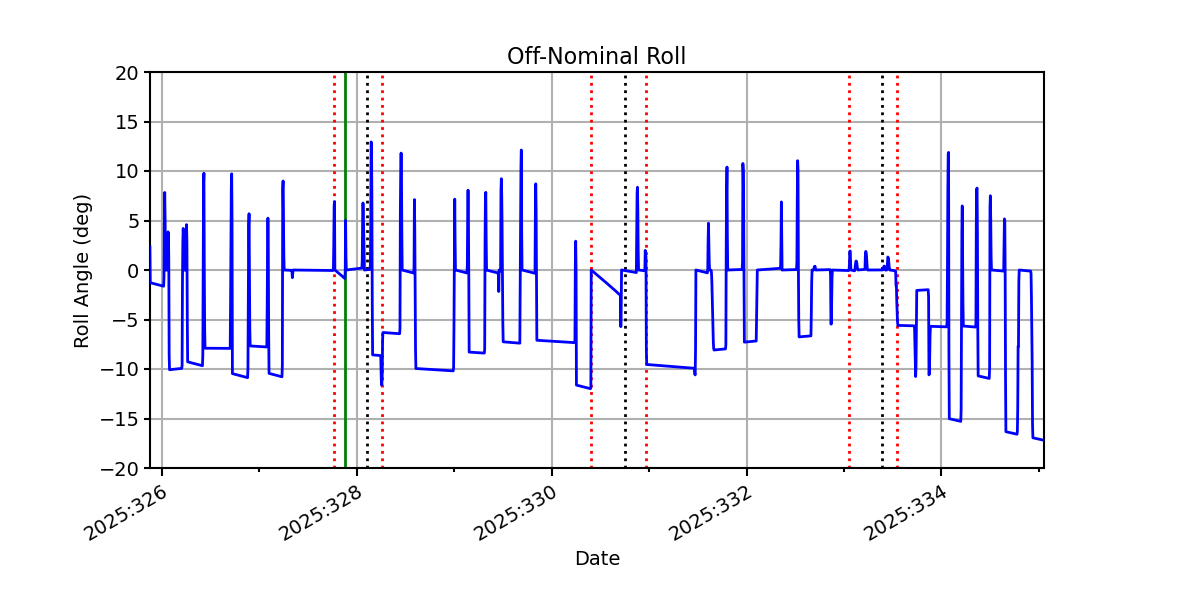

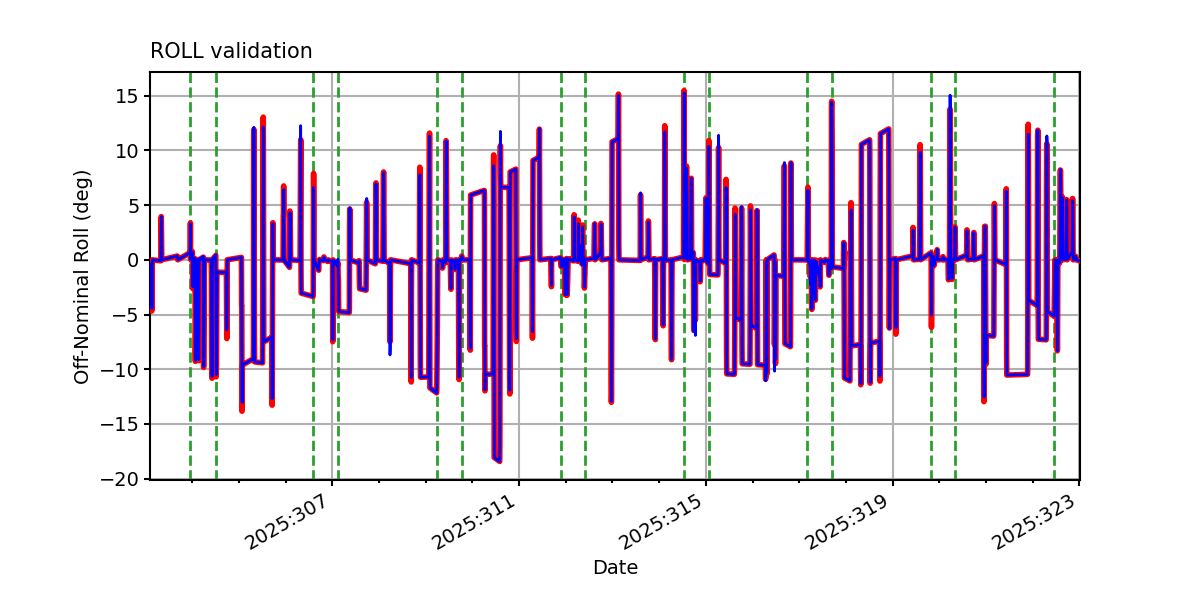

ROLL

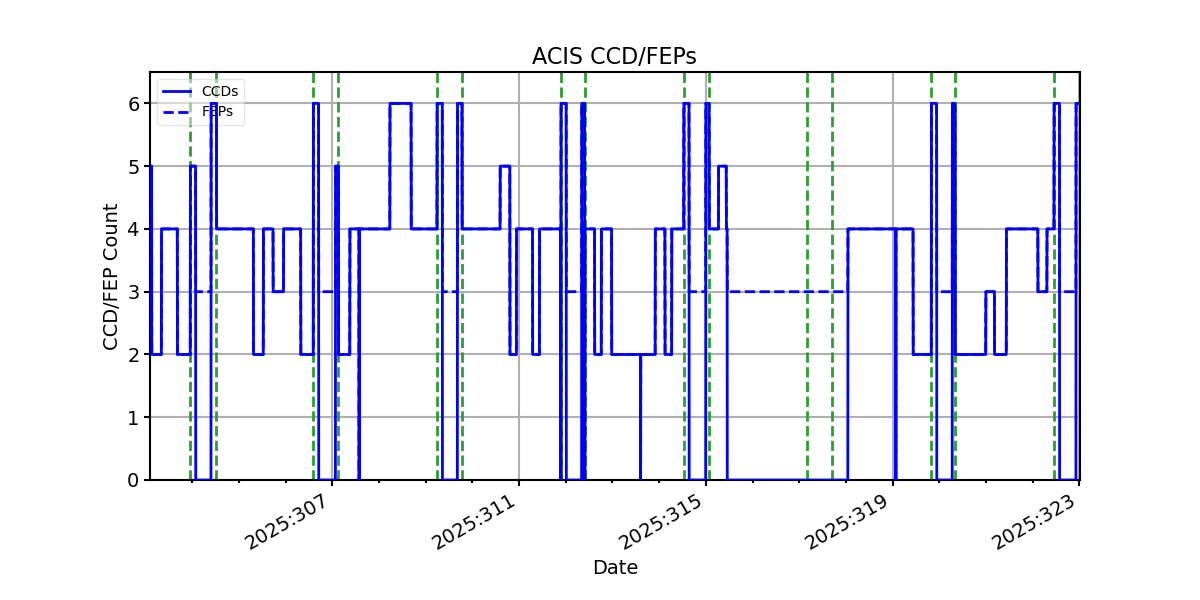

ACIS CCD/FEP Count
