BEP_PCB Temperatures Check
Summary
| Date start | 2025:278:23:10:04.316 |
| Date stop | 2025:285:13:23:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT0625/oflsa |
| Run time | Thu Oct 2 10:51:44 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:279:03:27:10.816 | 2025:279:05:43:50.816 | 8.20 | 46.56 / 42.00 |
| 2025:279:16:28:54.816 | 2025:279:19:01:58.816 | 9.18 | 49.45 / 42.00 |
| 2025:285:12:47:34.816 | 2025:285:13:23:00.000 | 2.13 | 44.11 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.80 | -10.68 | -6.55 | -1.51 | 1.73 | 3.29 | 3.93 |
| pitch | -10.078 | -0.824 | -0.004 | 0.000 | 0.004 | 0.944 | 10.915 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.093 | -0.241 | -0.007 | 0.000 | 0.007 | 0.207 | 1.933 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.8 | 2.00 |
| TMP_BEP_PCB | 50 | -1.51 | 1.00 |
| TMP_BEP_PCB | 99 | 3.93 | 2.00 |
| PITCH | 1 | -10.078 | 3.00 |
| PITCH | 99 | 10.915 | 3.00 |

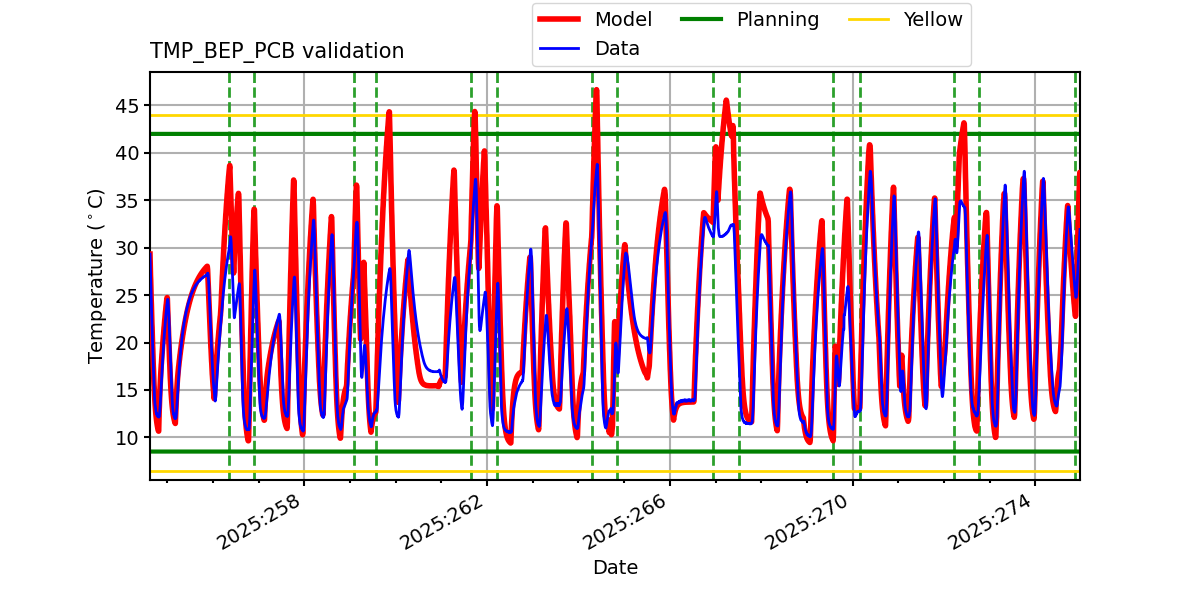

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

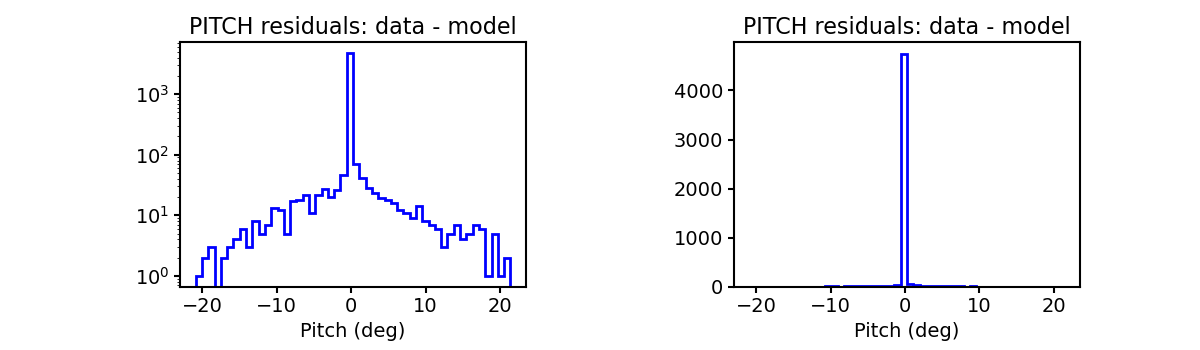

PITCH

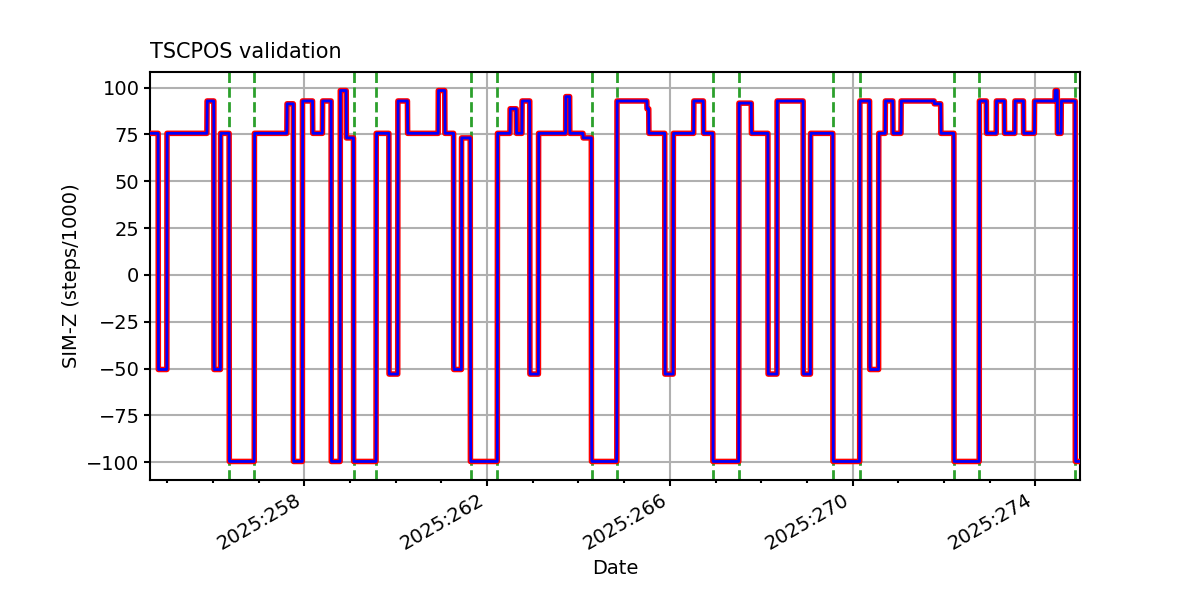

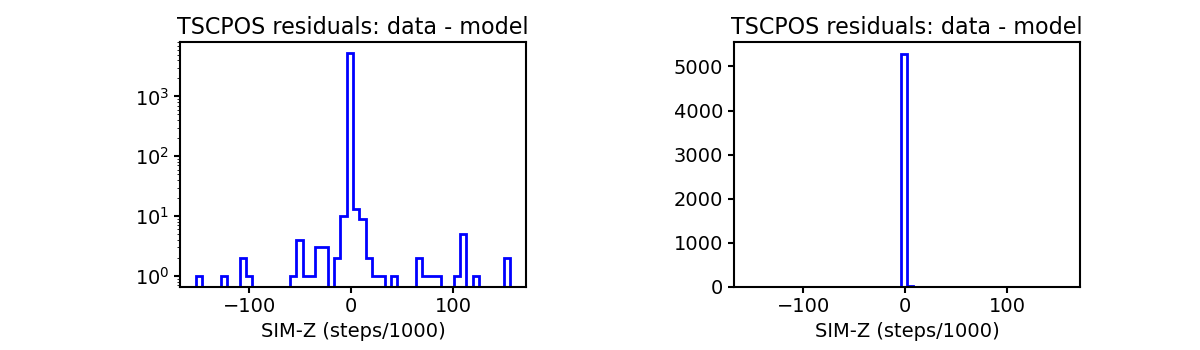

TSCPOS

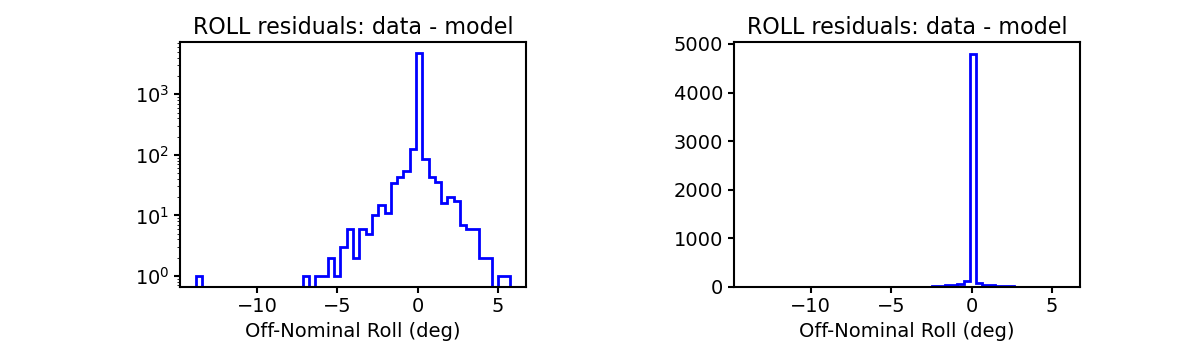

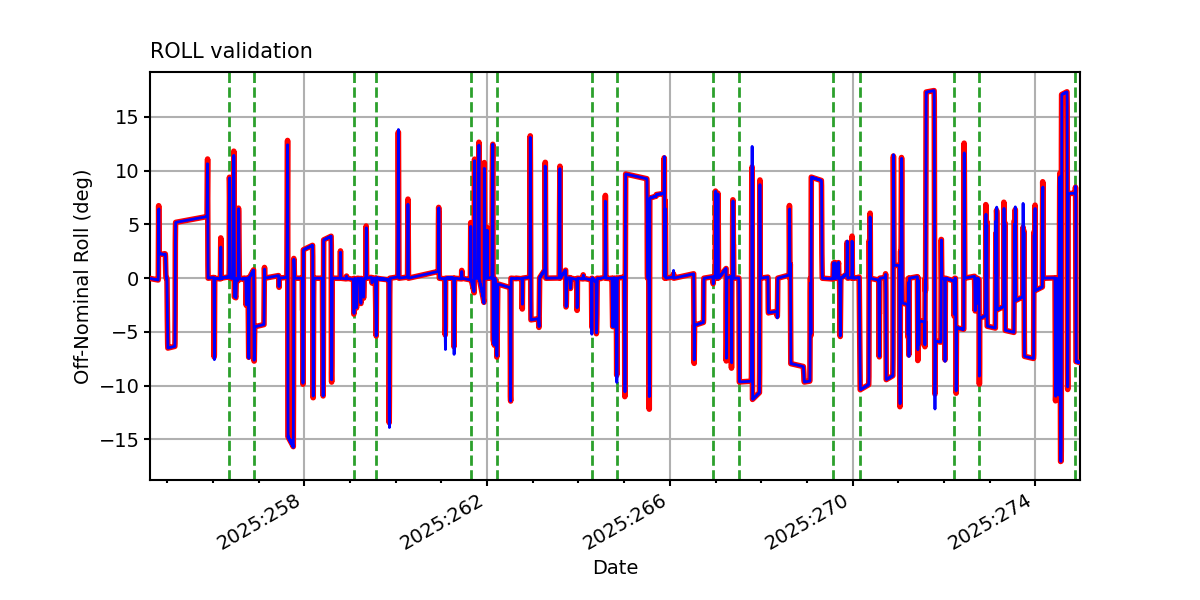

ROLL

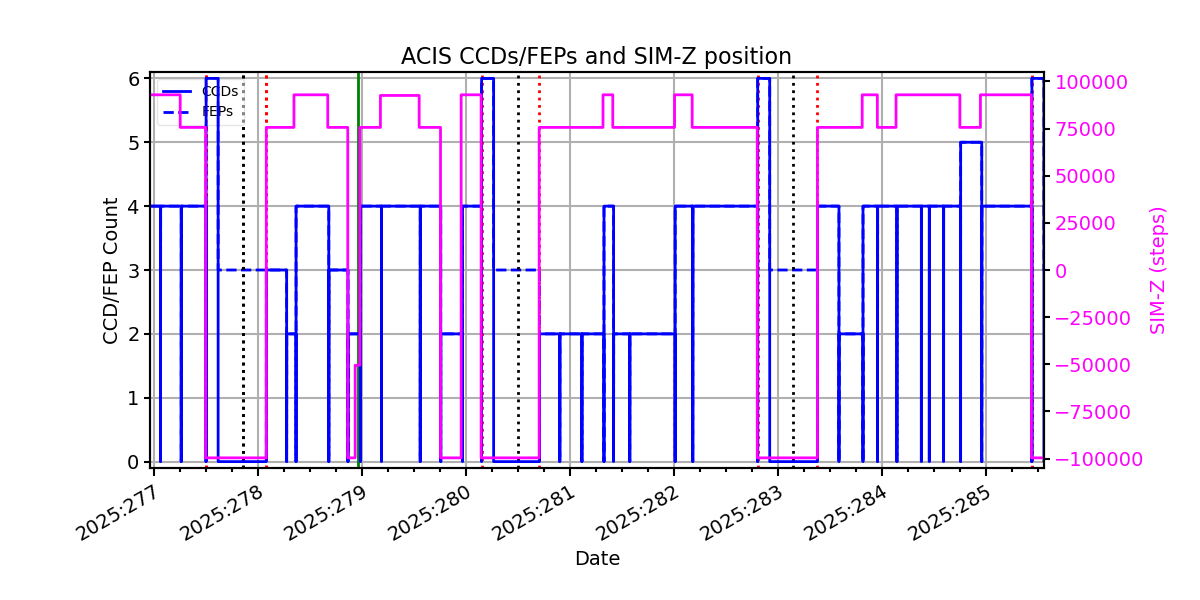

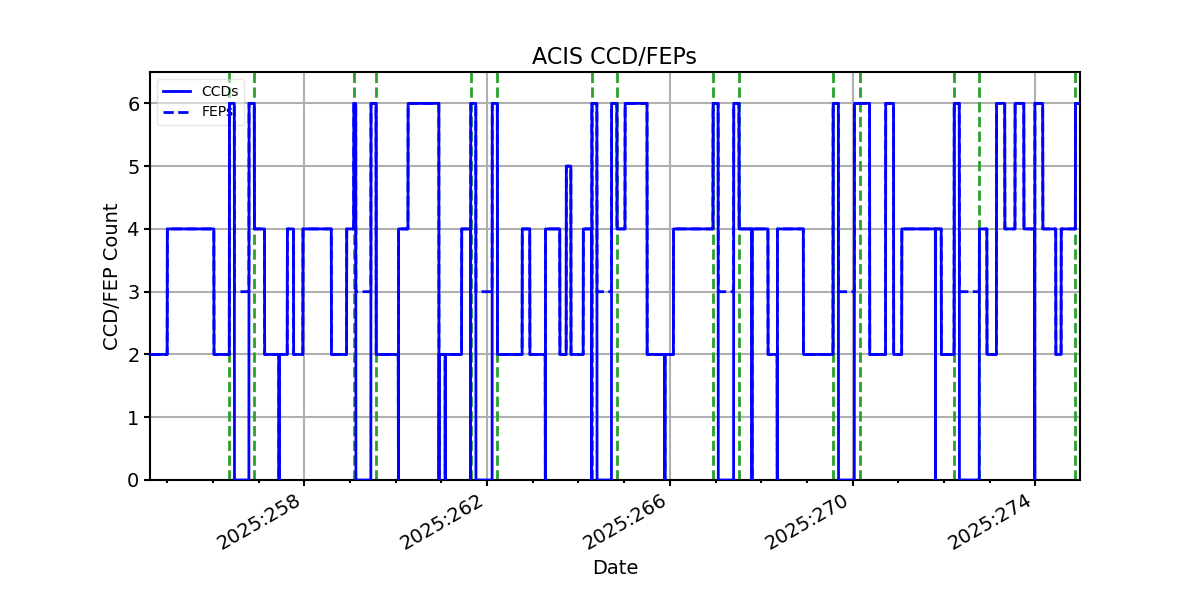

ACIS CCD/FEP Count
