BEP_PCB Temperatures Check
Summary
| Date start | 2026:284:19:09:22.016 |
| Date stop | 2026:291:23:52:06.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1226/oflsa |
| Run time | Thu Oct 8 08:20:53 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:285:12:45:42.816 | 2026:285:14:25:40.251 | 6.00 | 46.05 / 42.00 |
| 2026:286:07:15:26.816 | 2026:286:08:37:26.816 | 4.92 | 45.75 / 42.00 |
| 2026:286:16:05:42.816 | 2026:286:17:00:43.066 | 3.30 | 44.44 / 42.00 |
| 2026:287:05:12:54.816 | 2026:287:06:13:02.816 | 3.61 | 44.89 / 42.00 |
| 2026:287:14:52:22.816 | 2026:287:15:41:34.816 | 2.95 | 43.87 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.44 | -9.35 | -6.31 | -2.01 | 2.48 | 4.04 | 4.81 |
| pitch | -11.369 | -1.552 | -0.004 | -0.000 | 0.004 | 1.531 | 12.148 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.432 | -0.299 | -0.009 | 0.000 | 0.010 | 0.328 | 2.269 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.44 | 2.00 |
| TMP_BEP_PCB | 50 | -2.01 | 1.00 |
| TMP_BEP_PCB | 99 | 4.81 | 2.00 |
| PITCH | 1 | -11.369 | 3.00 |
| PITCH | 99 | 12.148 | 3.00 |

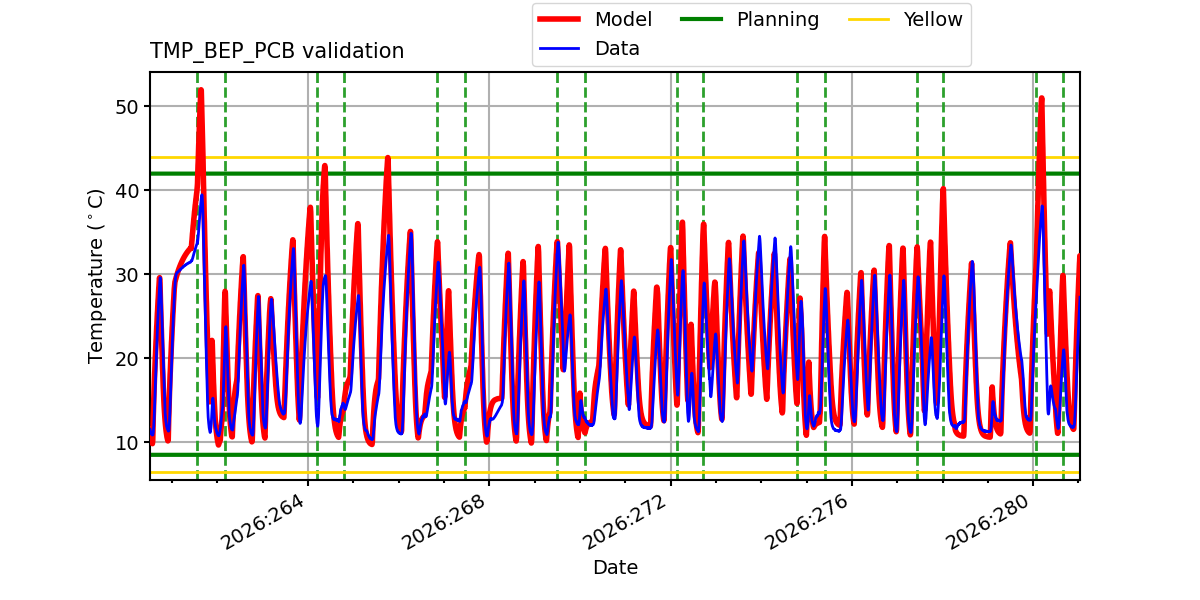

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

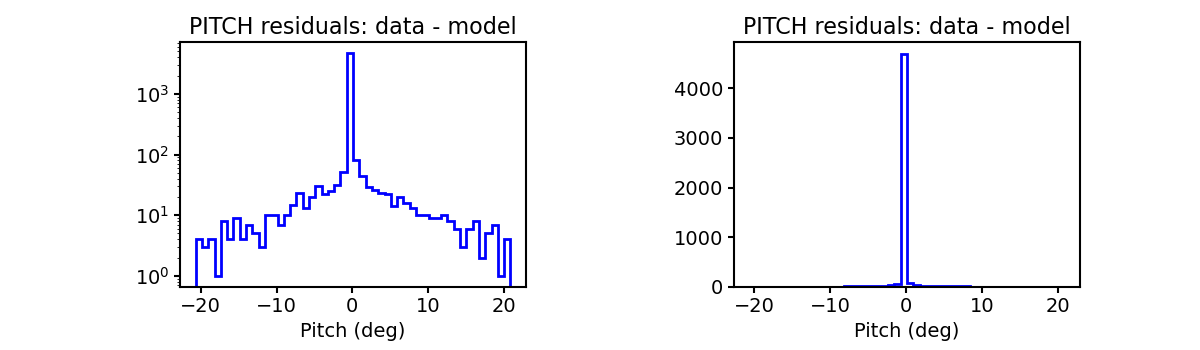

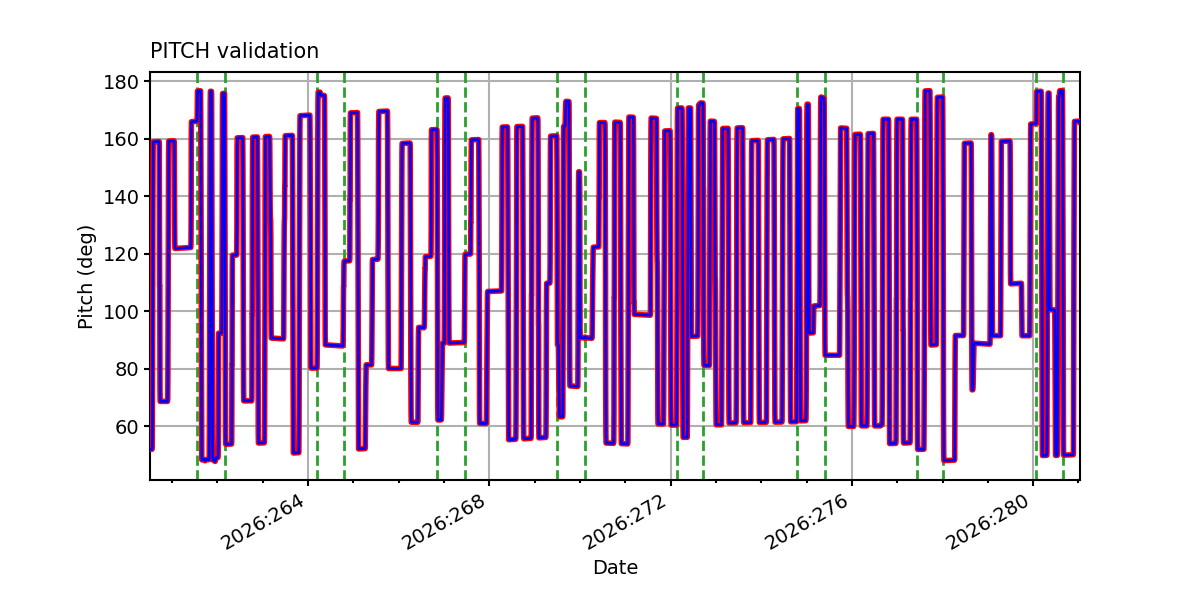

PITCH

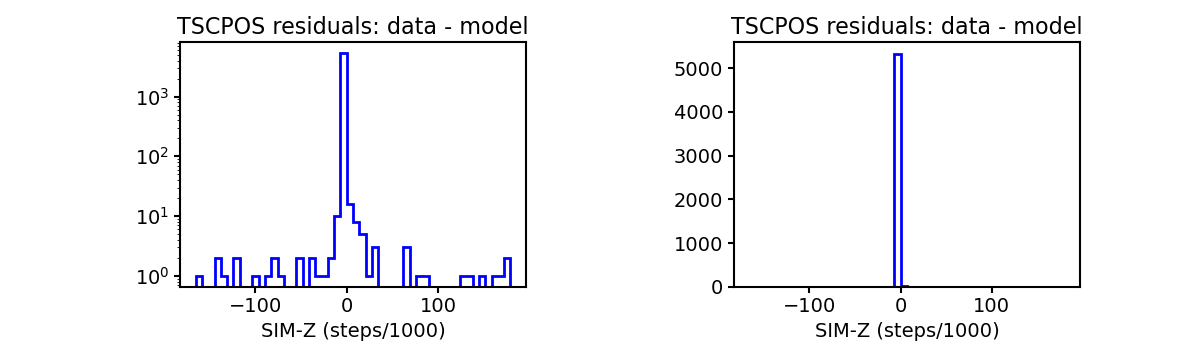

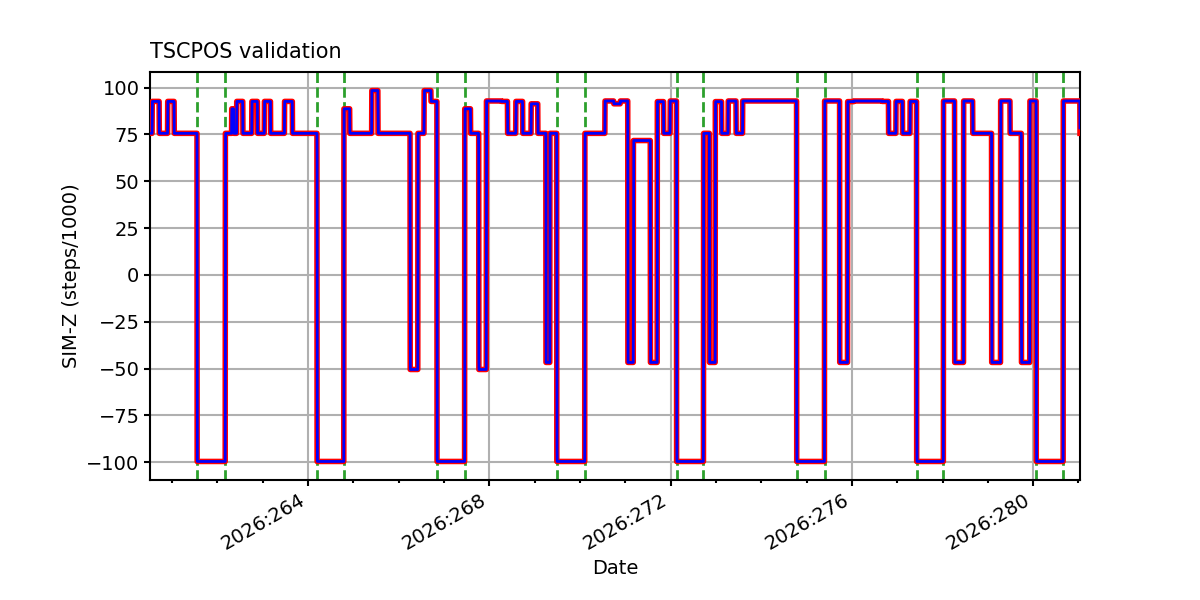

TSCPOS

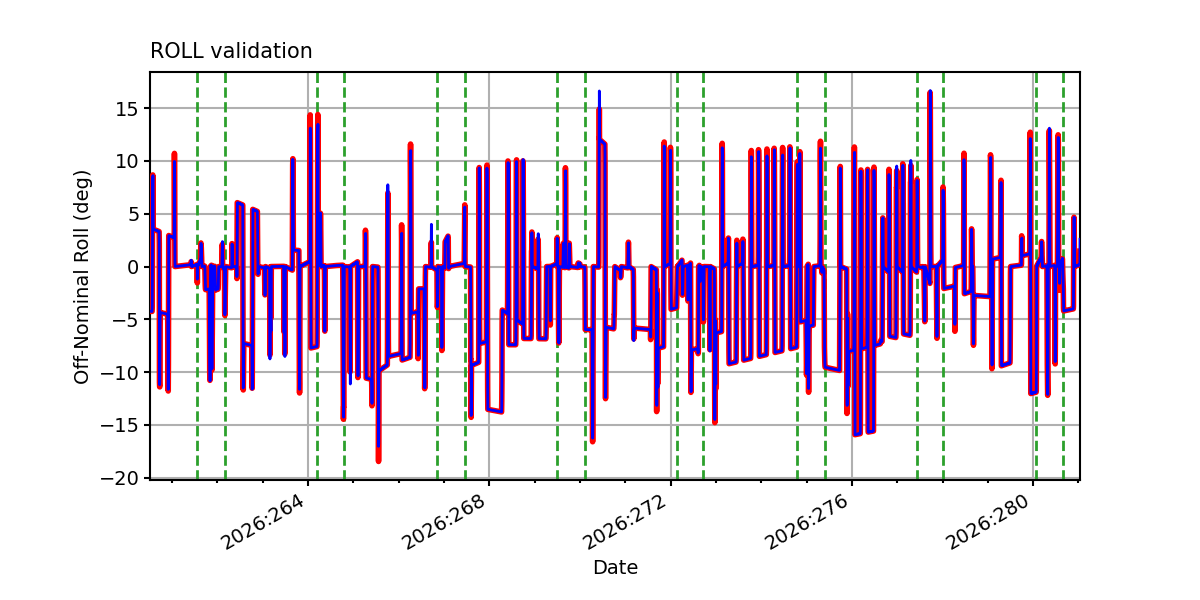

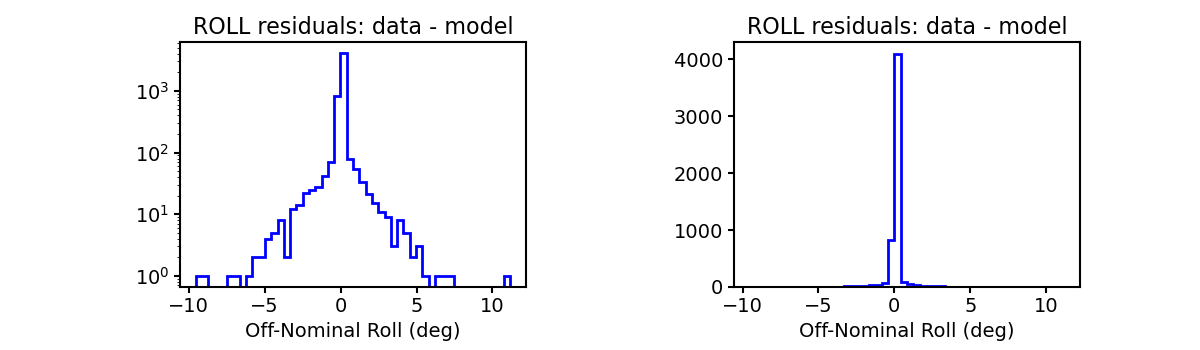

ROLL
ACIS CCD/FEP Count
