BEP_PCB Temperatures Check
Summary
| Date start | 2025:285:13:20:00.016 |
| Date stop | 2025:292:21:47:50.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT1325/oflsa |
| Run time | Thu Oct 9 14:36:31 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:285:13:20:00.016 | 2025:285:13:53:46.110 | 2.03 | 45.27 / 42.00 |
| 2025:290:19:26:14.816 | 2025:290:23:54:06.816 | 16.07 | 52.20 / 42.00 |
| 2025:291:07:05:58.816 | 2025:291:08:06:06.816 | 3.61 | 44.79 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.37 | -10.35 | -7.15 | -2.19 | 1.56 | 2.99 | 3.85 |
| pitch | -10.319 | -1.135 | -0.004 | -0.000 | 0.004 | 1.070 | 10.563 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.187 | -0.291 | -0.007 | -0.000 | 0.008 | 0.305 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.37 | 2.00 |
| TMP_BEP_PCB | 50 | -2.19 | 1.00 |
| TMP_BEP_PCB | 99 | 3.85 | 2.00 |
| PITCH | 1 | -10.319 | 3.00 |
| PITCH | 99 | 10.563 | 3.00 |

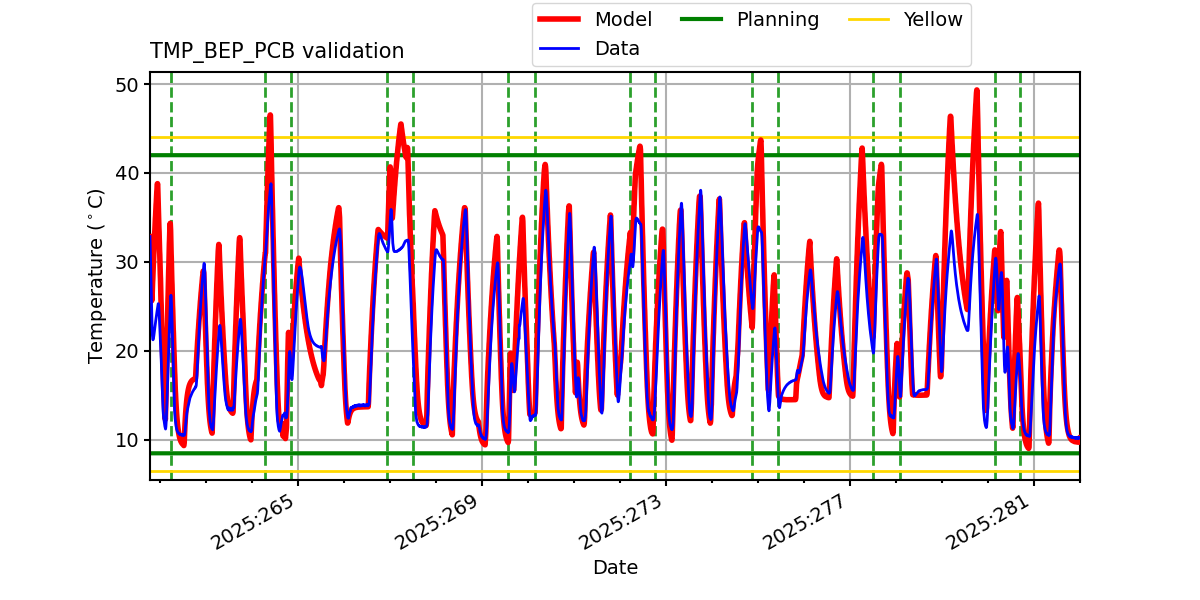

TMP_BEP_PCB

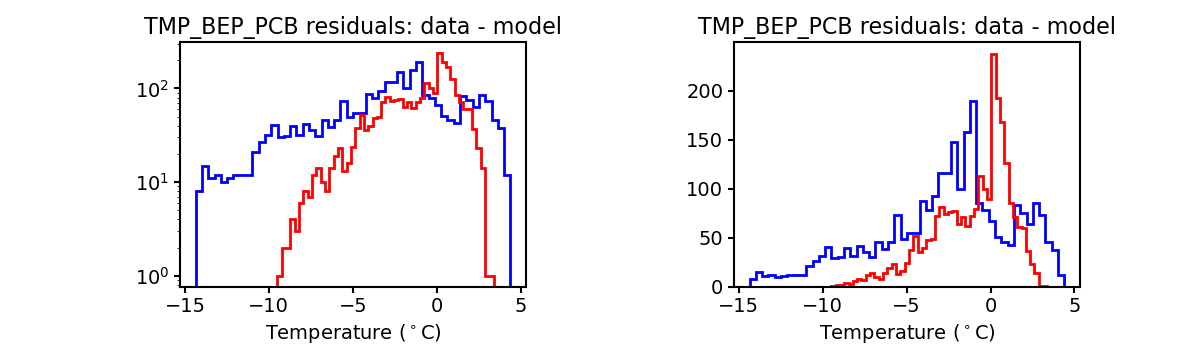

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

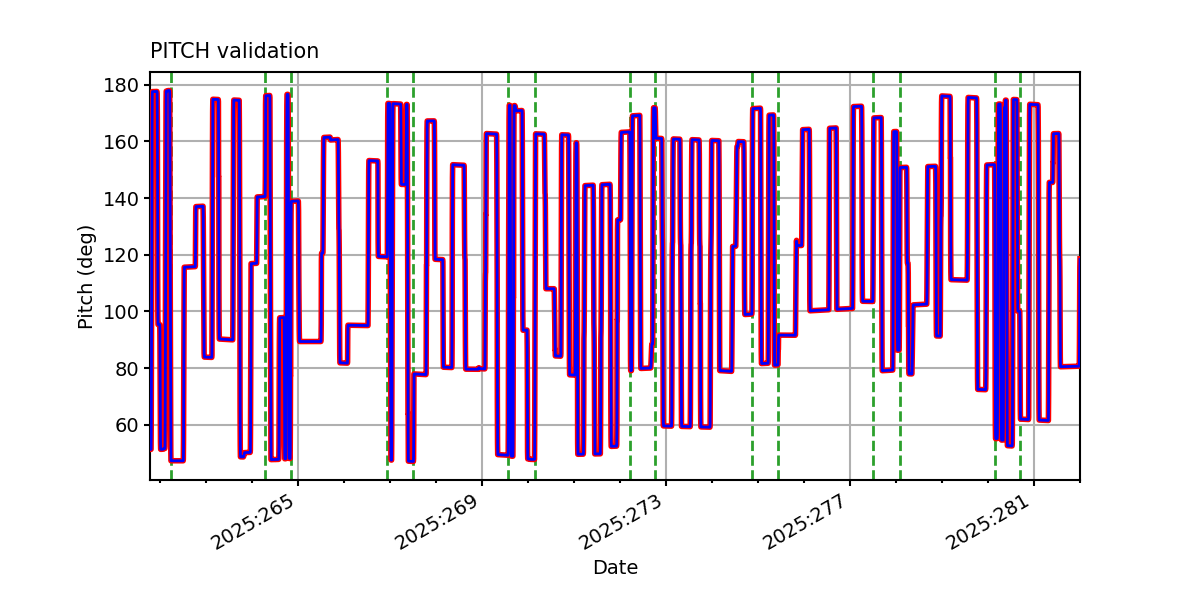

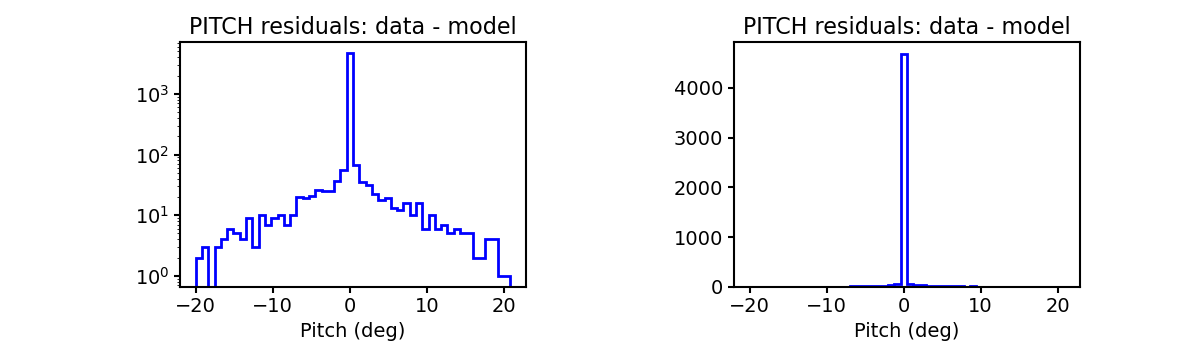

PITCH
TSCPOS

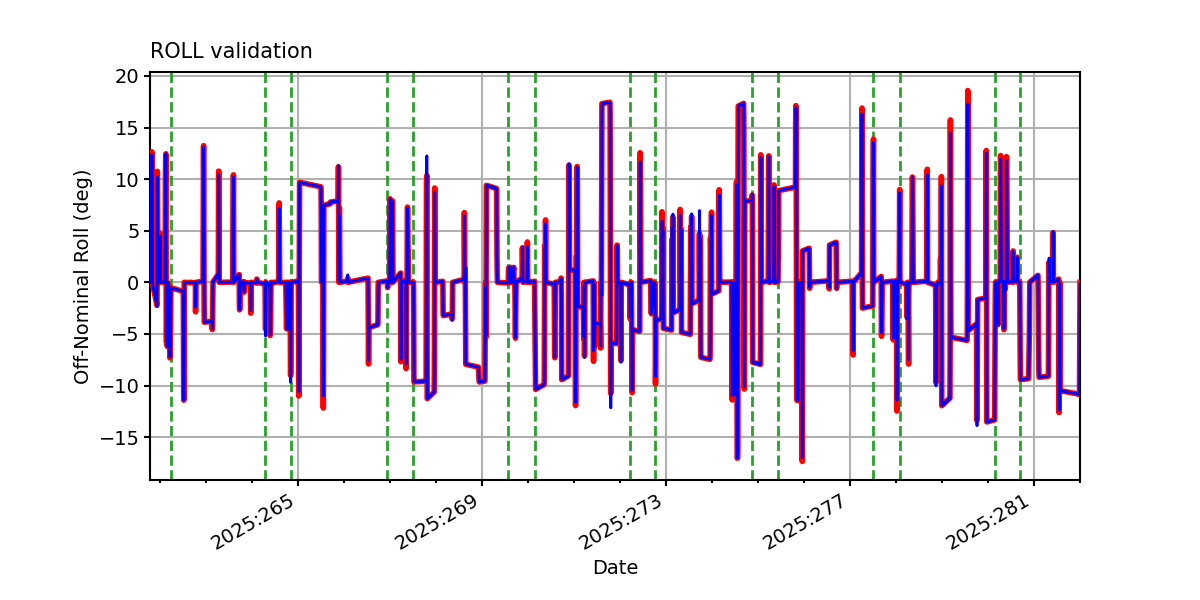

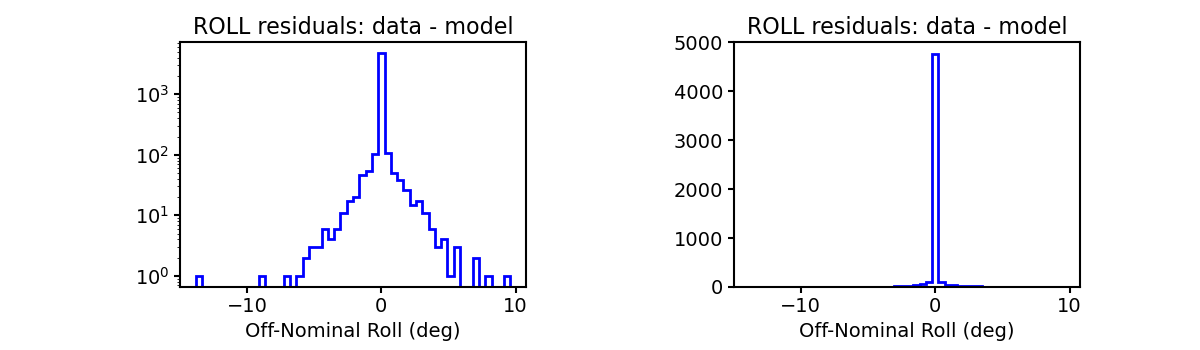

ROLL

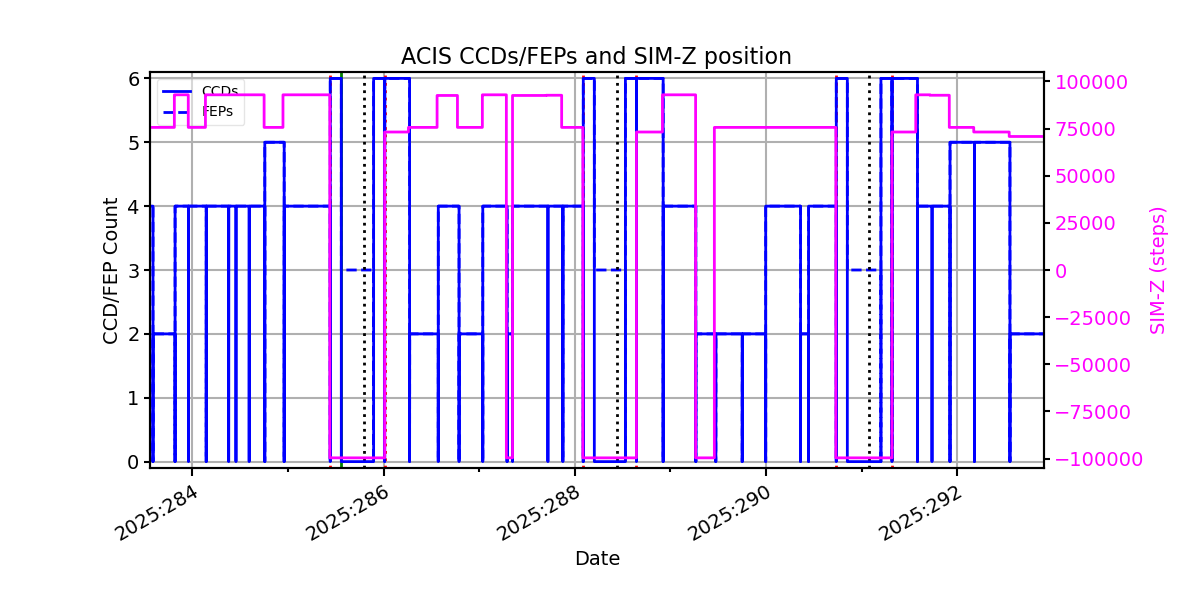

ACIS CCD/FEP Count
