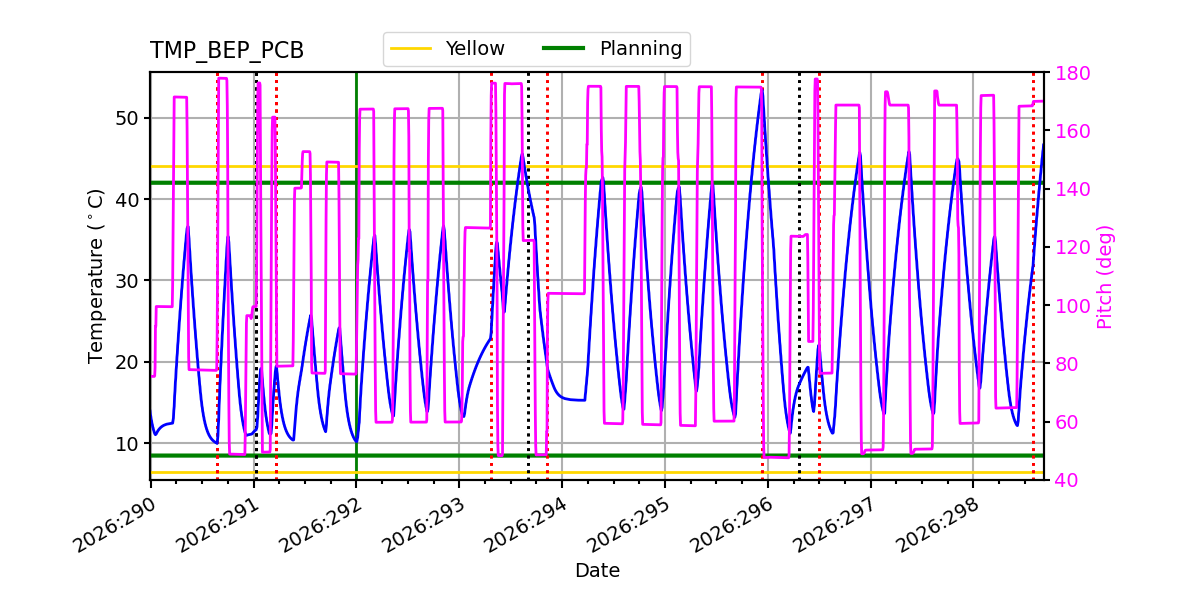

BEP_PCB Temperatures Check
Summary
| Date start | 2026:291:23:49:06.416 |
| Date stop | 2026:298:16:38:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1926/oflsa |
| Run time | Thu Oct 15 08:43:27 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:293:13:38:38.816 | 2026:293:15:49:50.816 | 7.87 | 45.53 / 42.00 |
| 2026:294:09:08:30.816 | 2026:294:09:36:32.130 | 1.68 | 42.64 / 42.00 |
| 2026:295:20:07:42.816 | 2026:296:00:08:14.816 | 14.43 | 53.43 / 42.00 |
| 2026:296:20:27:18.816 | 2026:296:22:00:14.816 | 5.58 | 45.74 / 42.00 |
| 2026:297:07:56:06.816 | 2026:297:09:29:02.816 | 5.58 | 45.84 / 42.00 |
| 2026:297:19:24:54.816 | 2026:297:20:57:50.816 | 5.58 | 44.97 / 42.00 |
| 2026:298:15:33:02.816 | 2026:298:16:38:00.000 | 3.90 | 46.72 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.77 | -10.57 | -7.41 | -3.09 | 1.86 | 3.60 | 4.78 |
| pitch | -12.547 | -1.543 | -0.004 | 0.000 | 0.004 | 1.729 | 12.779 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.287 | -0.267 | -0.011 | -0.000 | 0.011 | 0.224 | 2.289 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.77 | 2.00 |
| TMP_BEP_PCB | 50 | -3.09 | 1.00 |
| TMP_BEP_PCB | 99 | 4.78 | 2.00 |
| PITCH | 1 | -12.547 | 3.00 |
| PITCH | 99 | 12.779 | 3.00 |

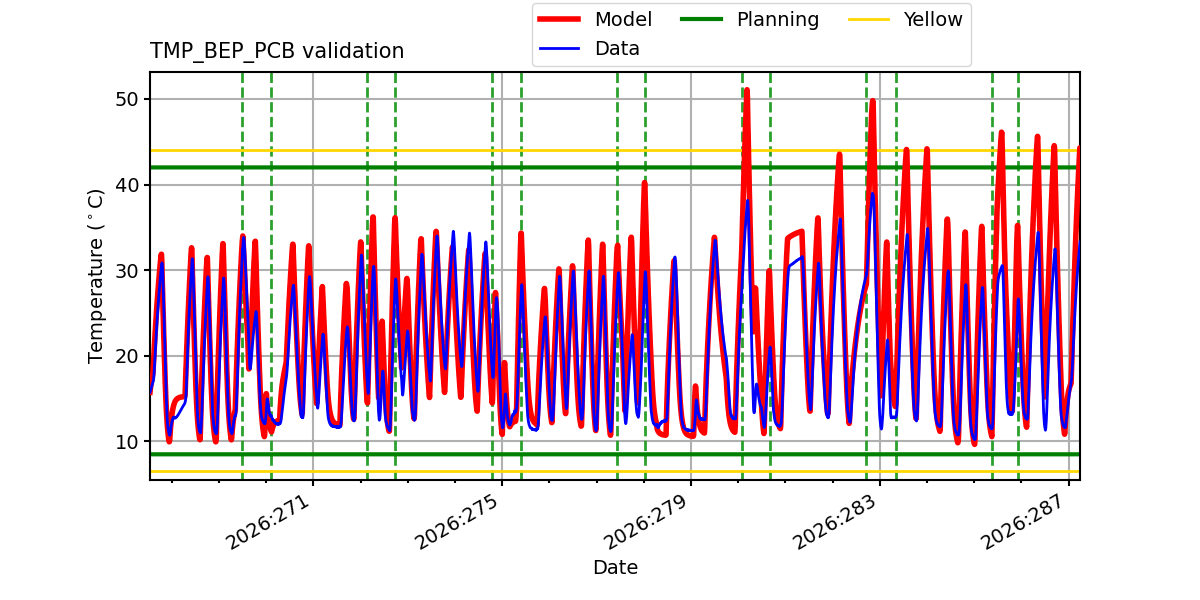

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

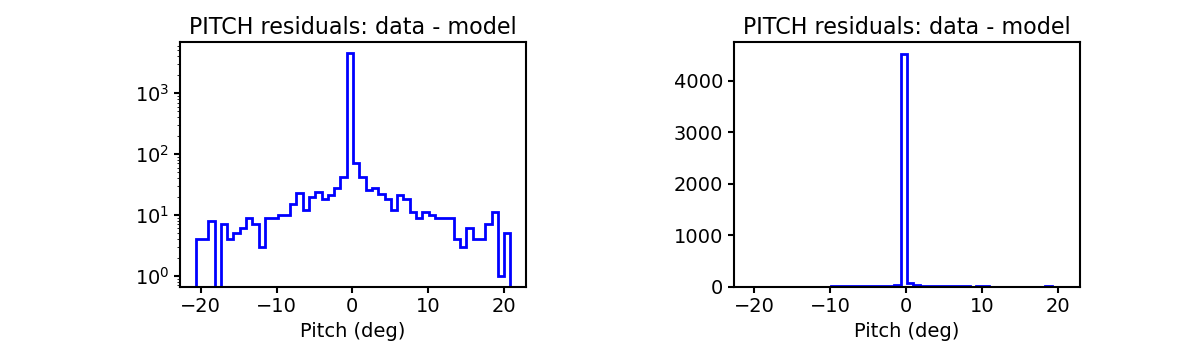

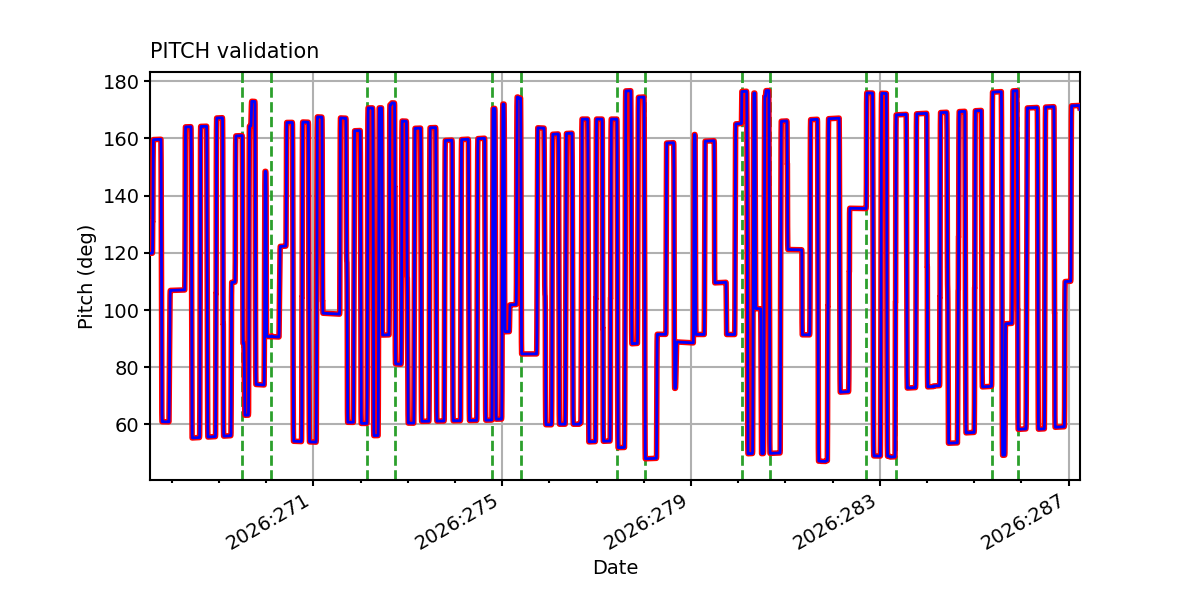

PITCH

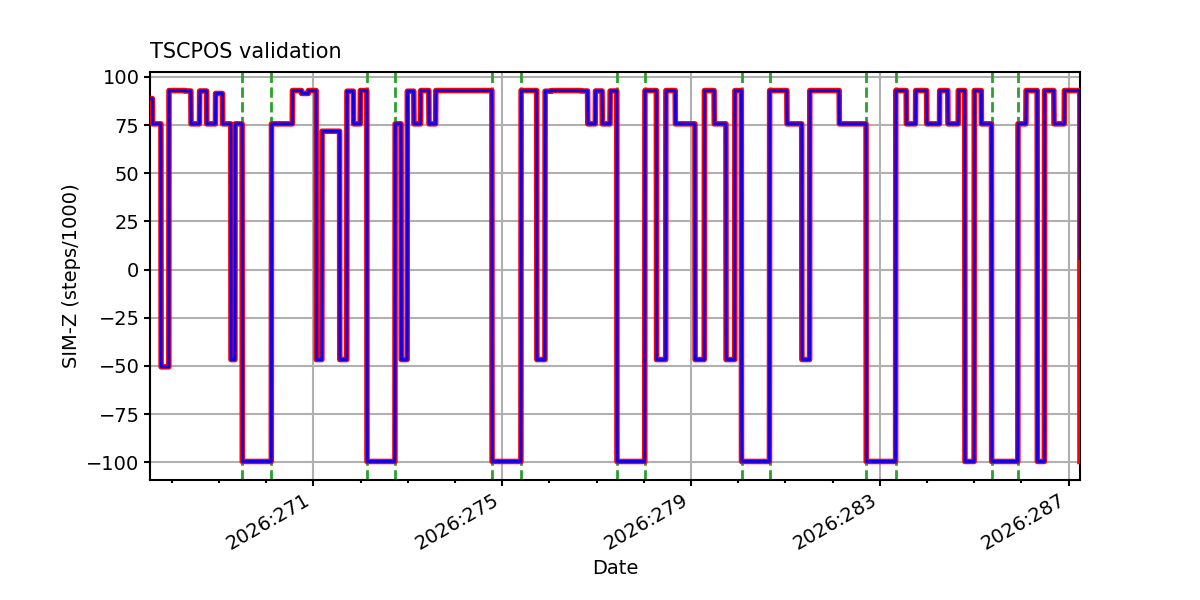

TSCPOS

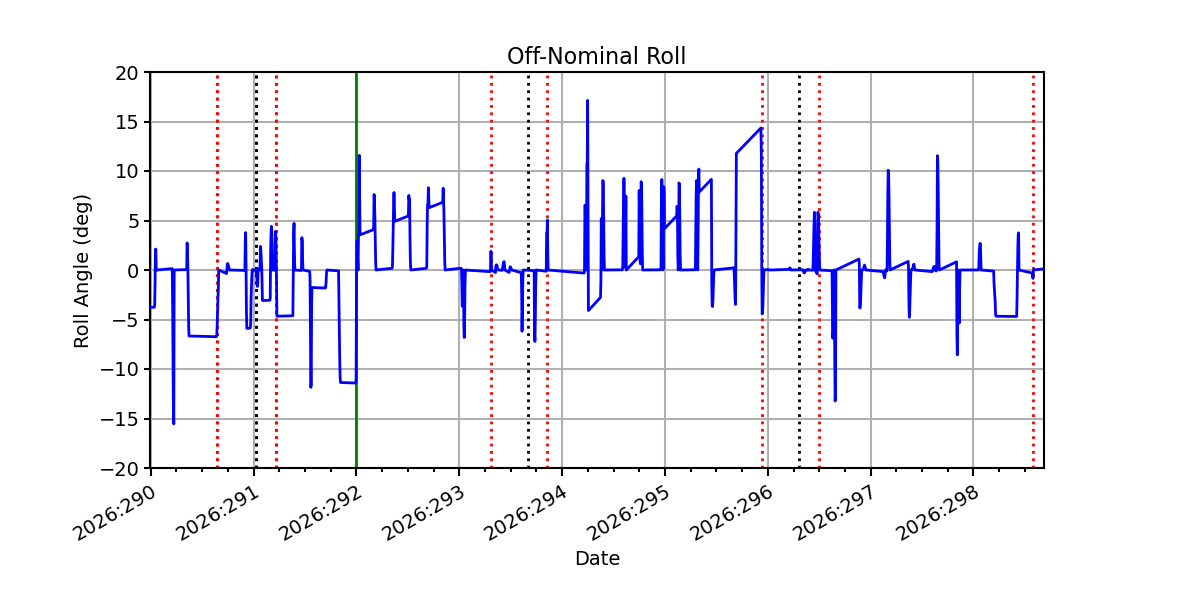

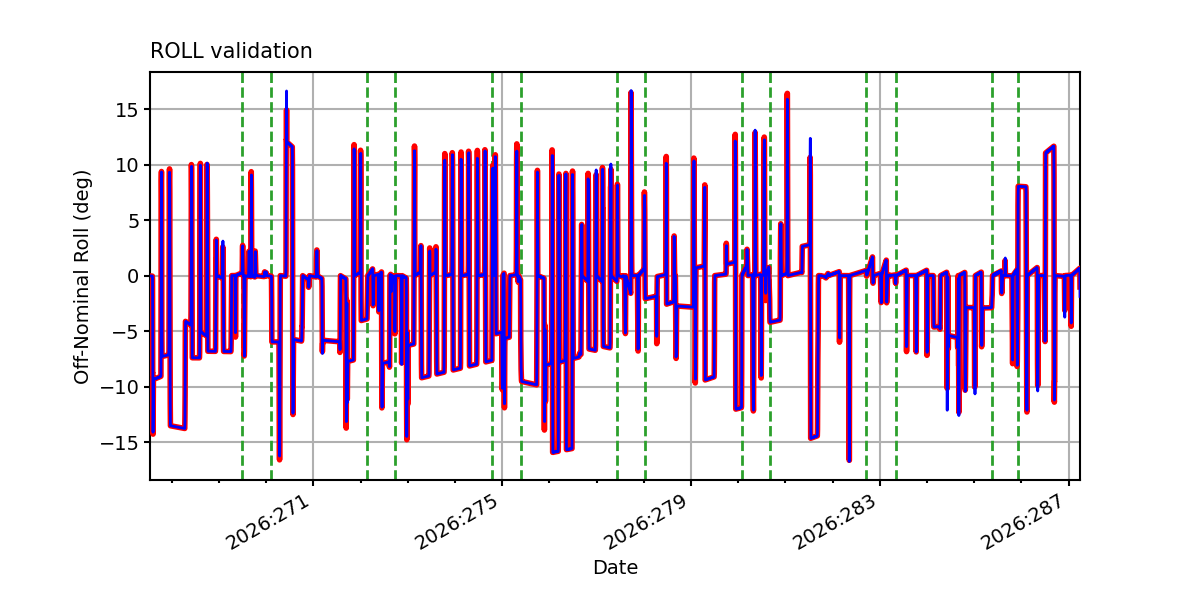

ROLL

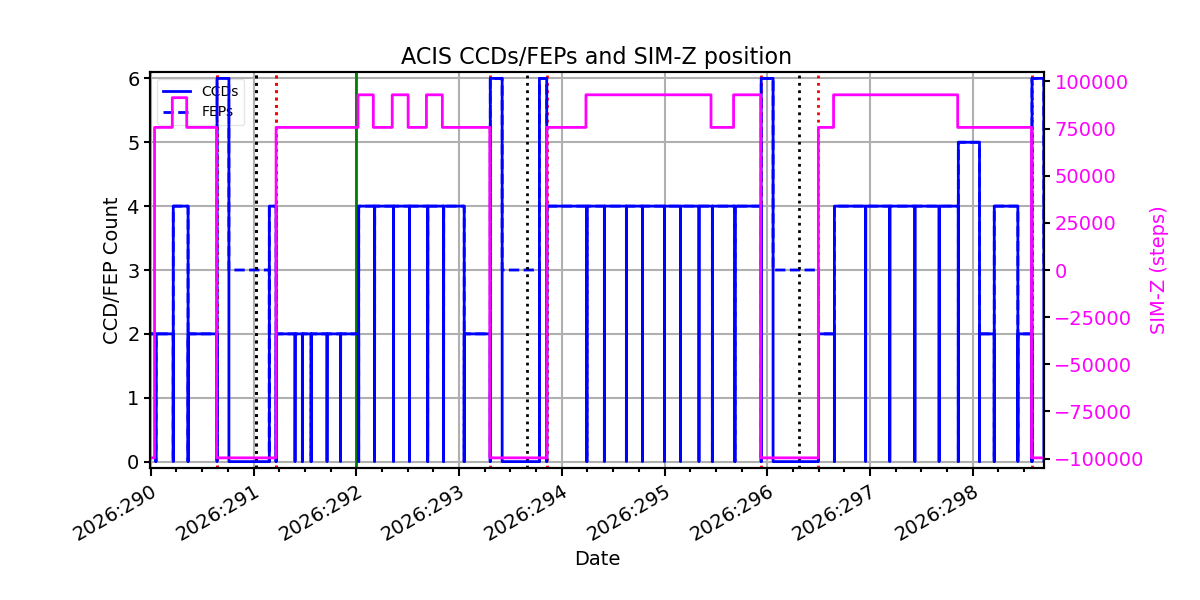

ACIS CCD/FEP Count
