BEP_PCB Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:23:23 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:293:10:51:02.816 | 2025:293:18:02:54.816 | 25.91 | 51.35 / 42.00 |
| 2025:296:04:16:06.816 | 2025:296:07:50:10.251 | 12.84 | 47.79 / 42.00 |
| 2025:298:20:05:30.816 | 2025:298:23:35:58.816 | 12.63 | 48.09 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.44 | -10.33 | -6.76 | -2.35 | 1.63 | 3.32 | 4.06 |
| pitch | -11.161 | -1.258 | -0.004 | -0.000 | 0.004 | 1.276 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.200 | -0.008 | 0.000 | 0.009 | 0.332 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.44 | 2.00 |
| TMP_BEP_PCB | 50 | -2.35 | 1.00 |
| TMP_BEP_PCB | 99 | 4.06 | 2.00 |
| PITCH | 1 | -11.161 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |
TMP_BEP_PCB

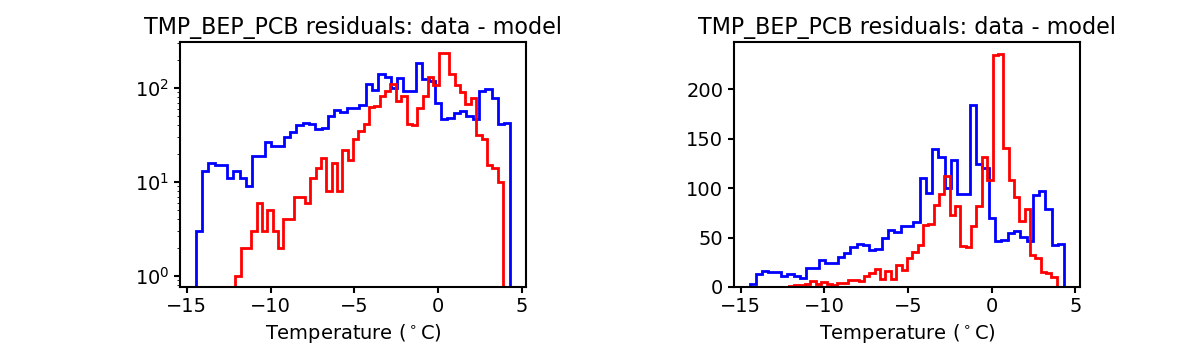

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

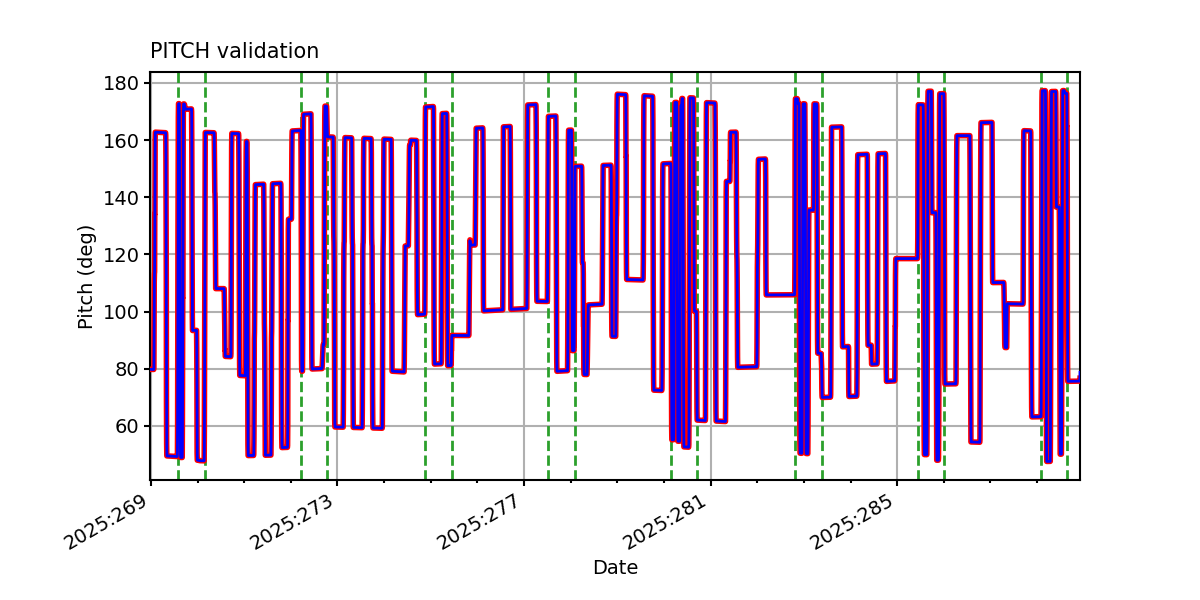

PITCH

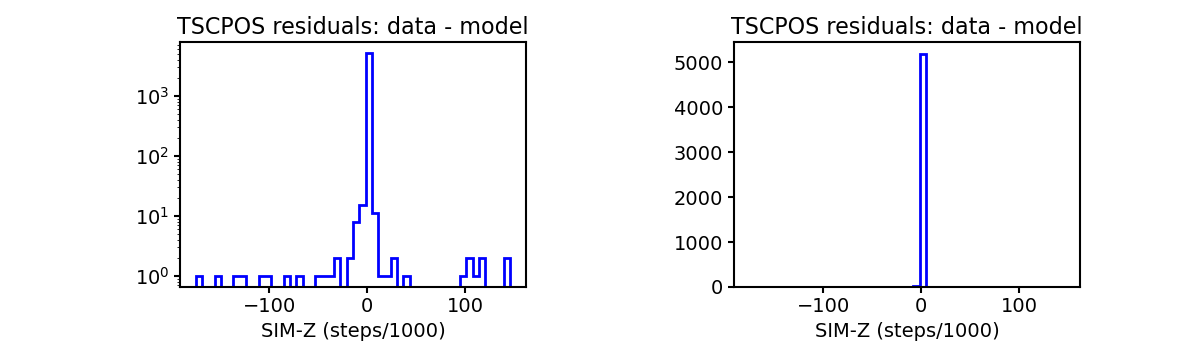

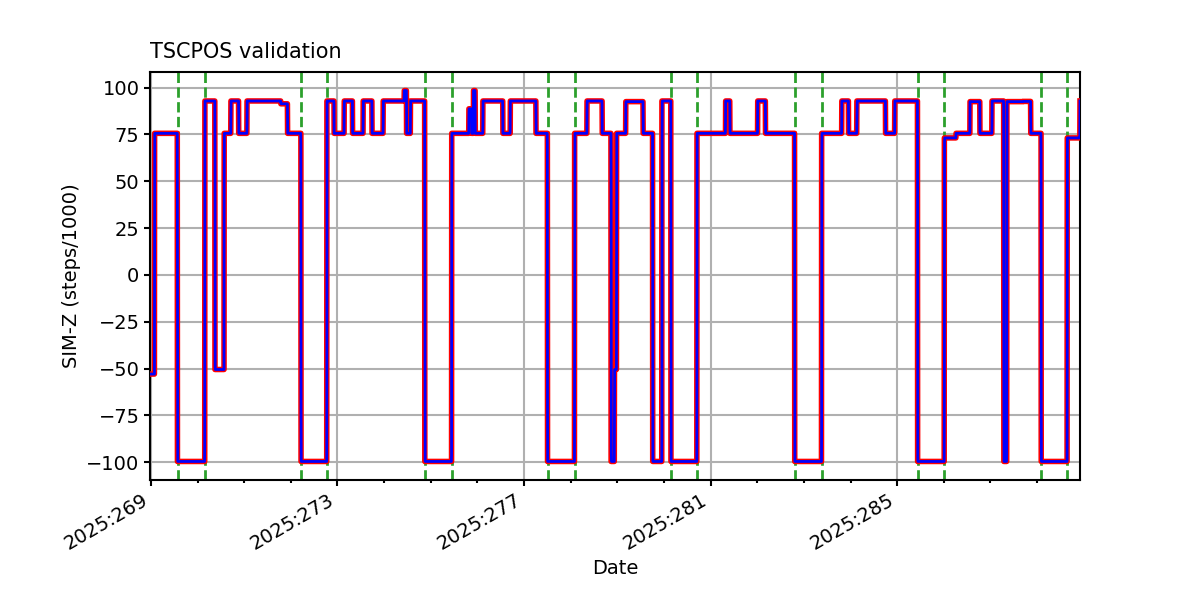

TSCPOS

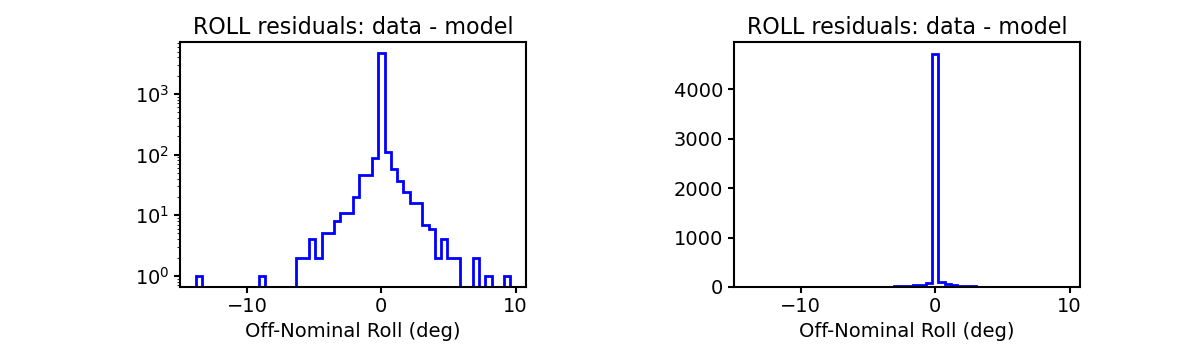

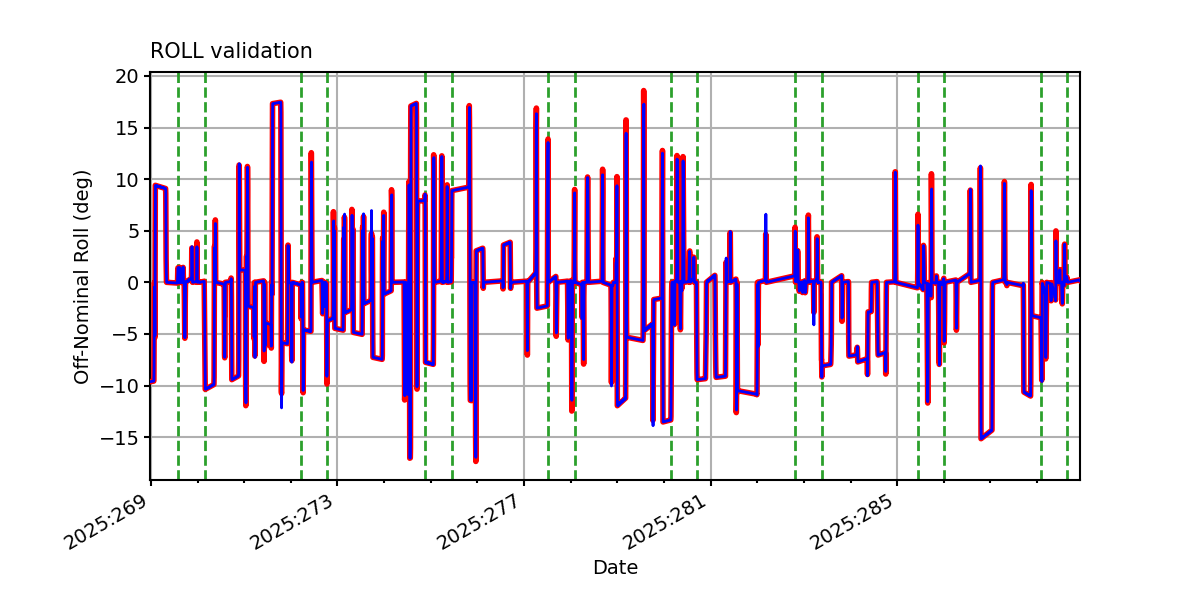

ROLL

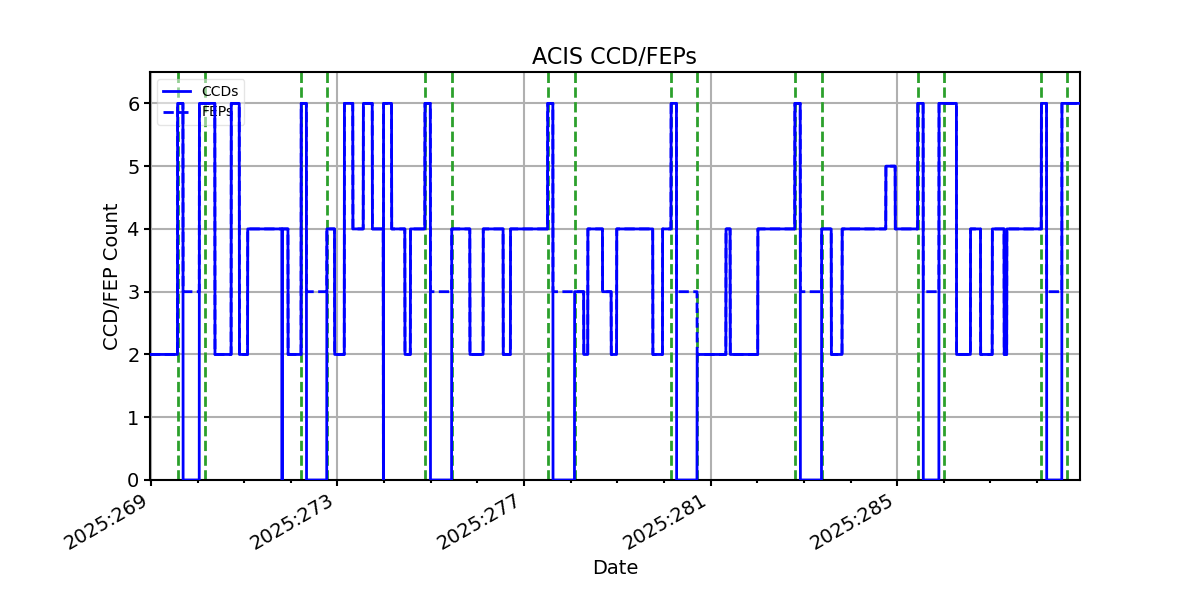

ACIS CCD/FEP Count
