BEP_PCB Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Wed Oct 22 21:31:40 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:300:00:05:04.583 | 2025:300:00:19:05.290 | 0.84 | 42.46 / 42.00 |
| 2025:301:20:01:26.816 | 2025:301:20:28:46.816 | 1.64 | 43.01 / 42.00 |
| 2025:304:00:19:10.320 | 2025:304:02:19:34.816 | 7.22 | 48.02 / 42.00 |
| 2025:304:05:30:54.816 | 2025:304:06:00:00.531 | 1.75 | 42.90 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.51 | -11.13 | -7.73 | -2.78 | 1.05 | 3.27 | 4.03 |
| pitch | -11.079 | -1.019 | -0.004 | -0.000 | 0.004 | 0.766 | 12.415 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.701 | -0.087 | -0.007 | 0.000 | 0.008 | 0.203 | 2.081 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.51 | 2.00 |
| TMP_BEP_PCB | 50 | -2.78 | 1.00 |
| TMP_BEP_PCB | 99 | 4.03 | 2.00 |
| PITCH | 1 | -11.079 | 3.00 |
| PITCH | 99 | 12.415 | 3.00 |

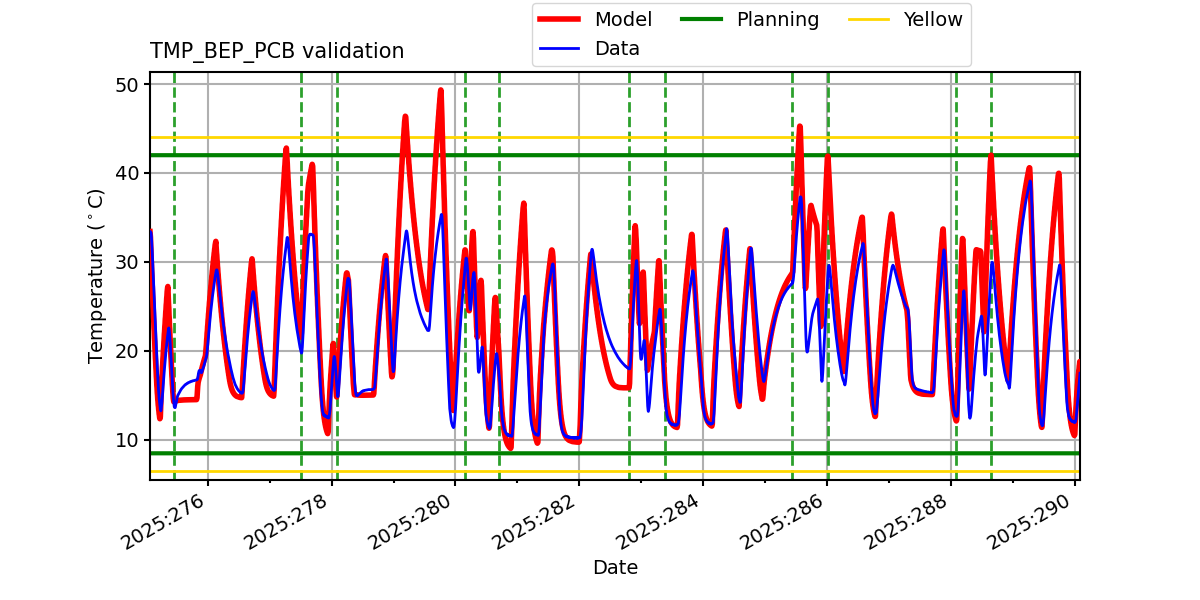

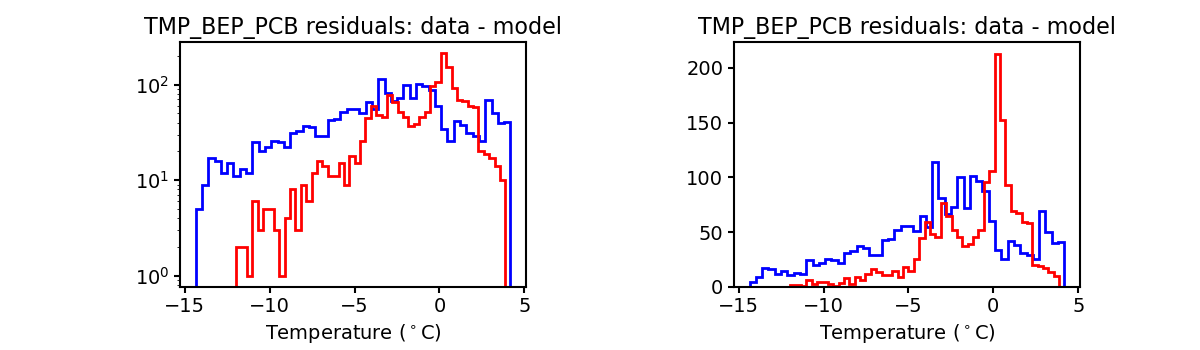

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

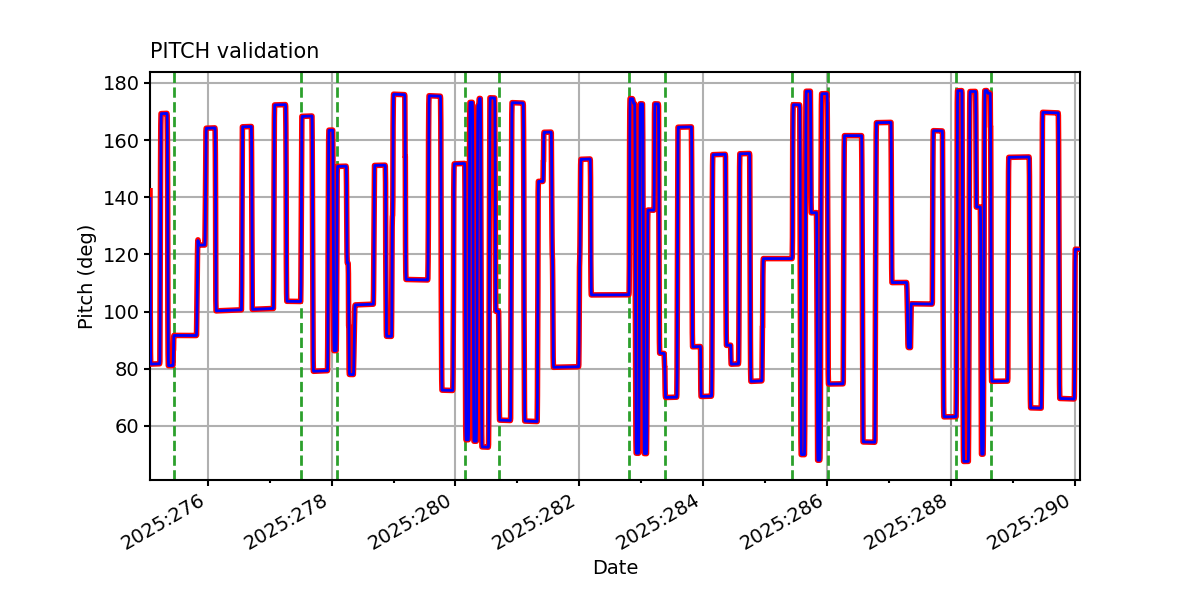

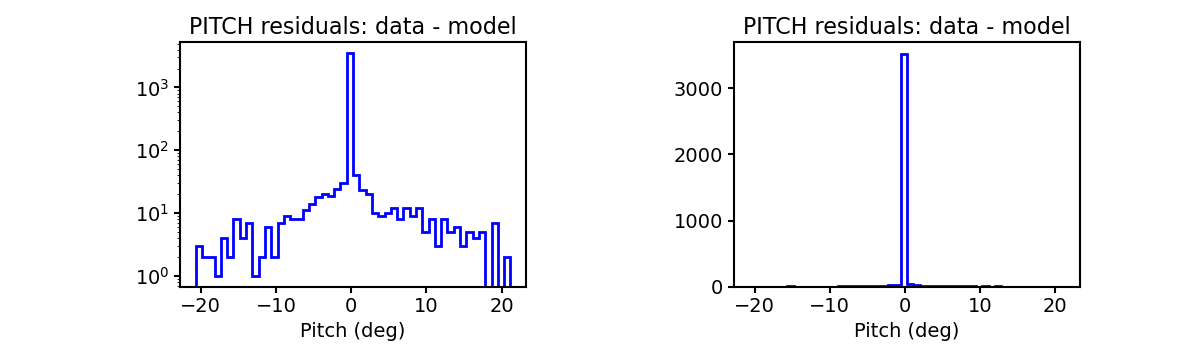

PITCH

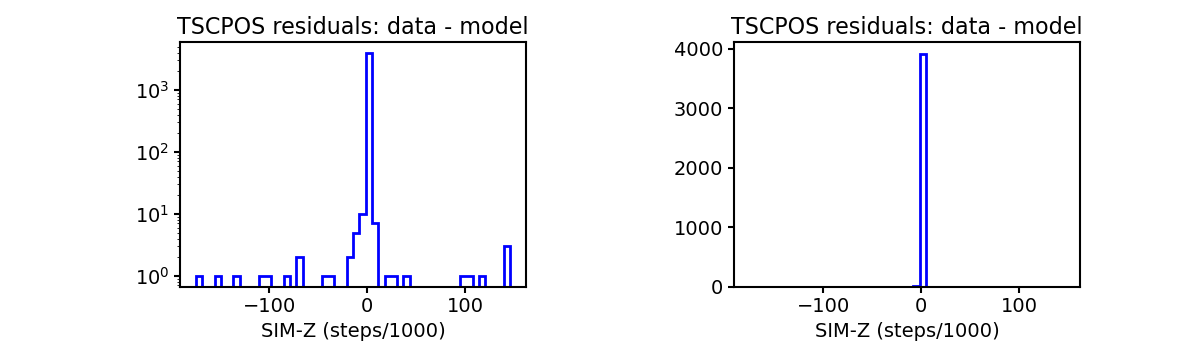

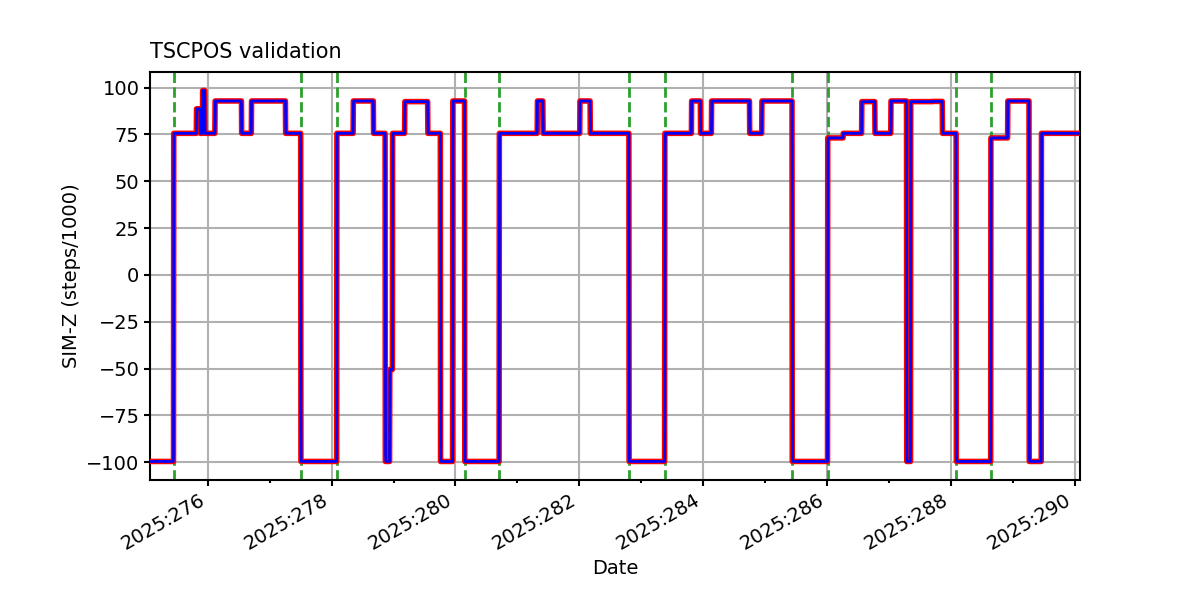

TSCPOS

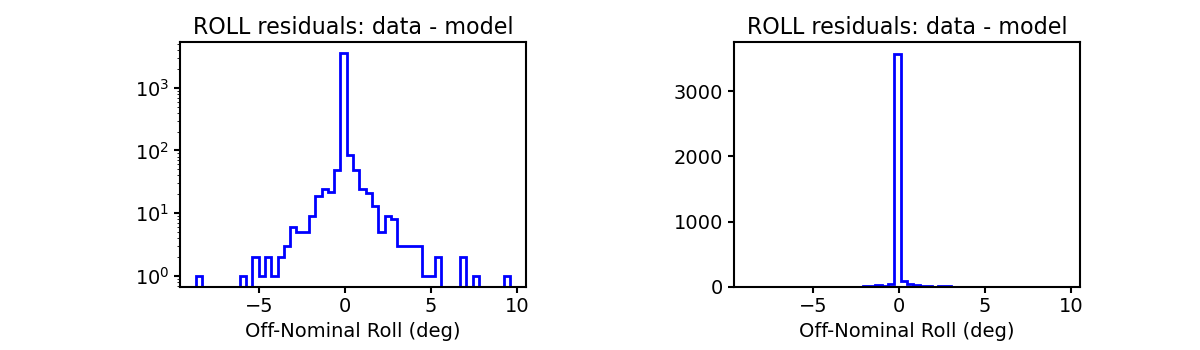

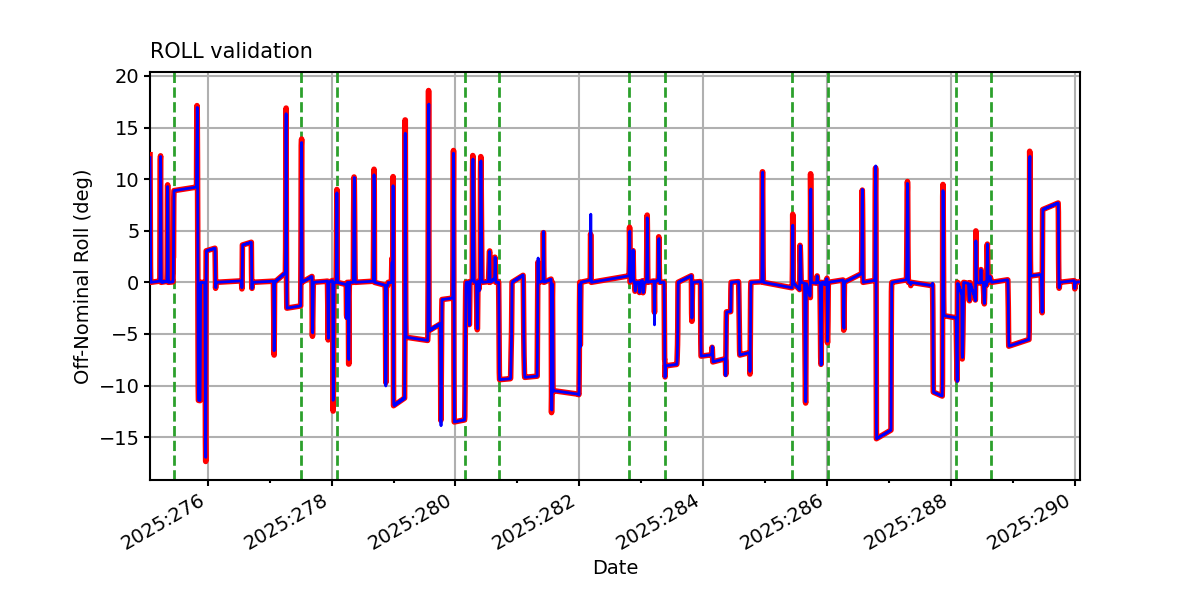

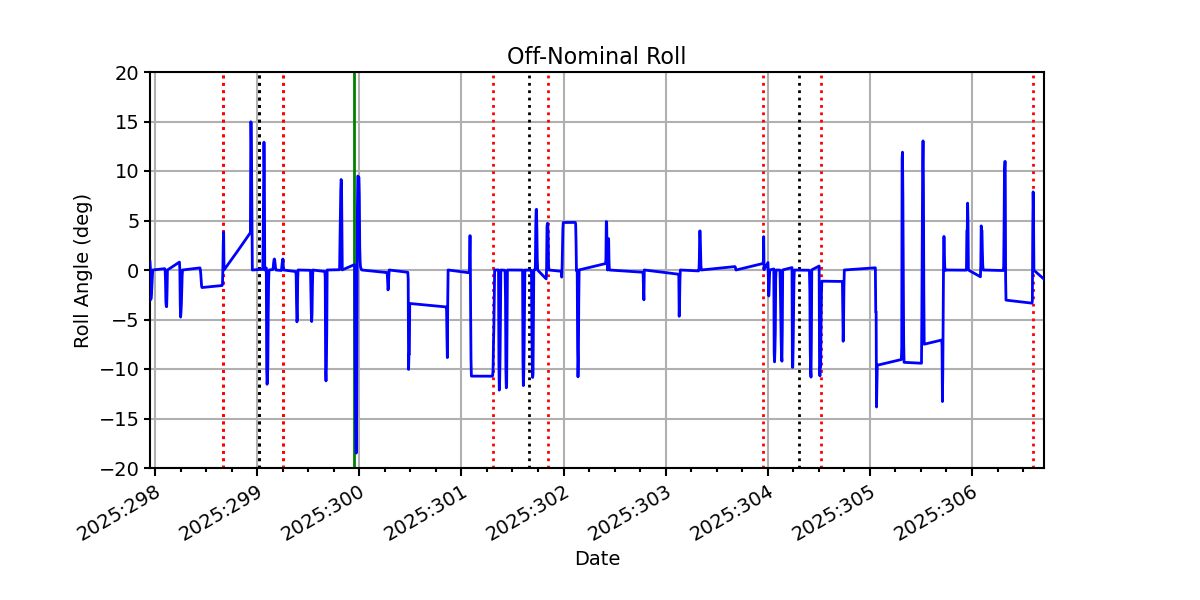

ROLL

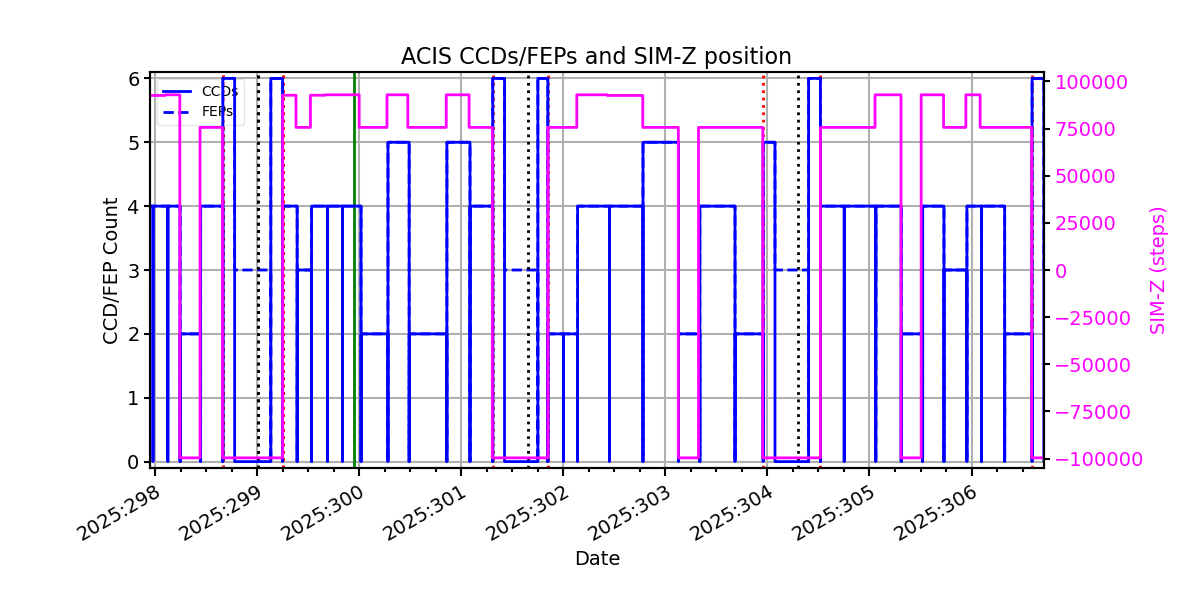

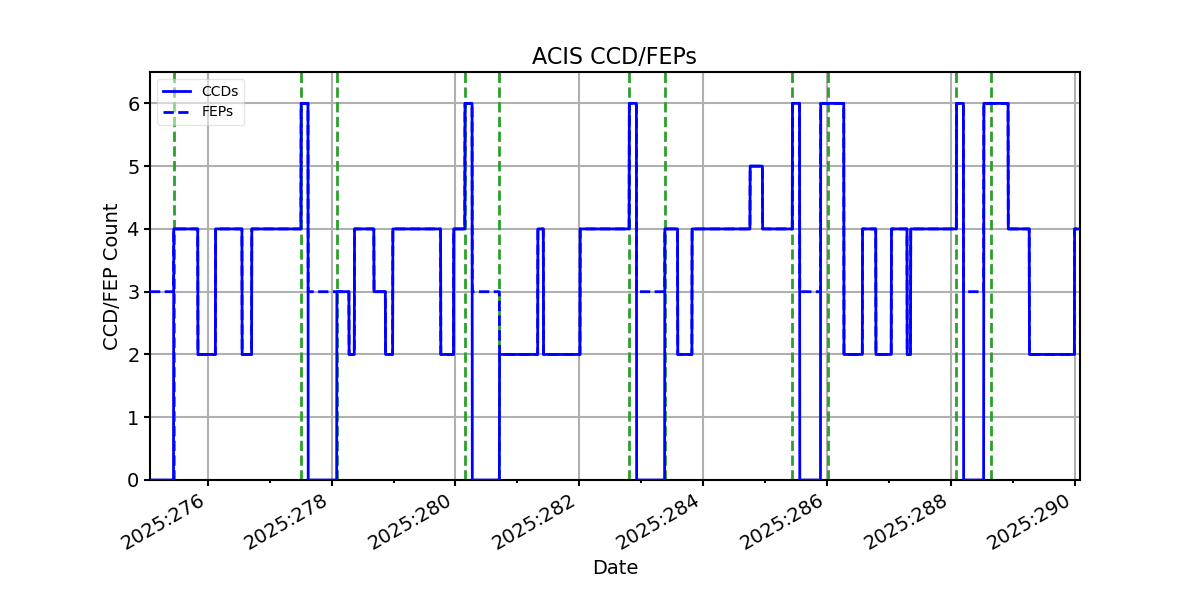

ACIS CCD/FEP Count
