BEP_PCB Temperatures Check
Summary
| Date start | 2025:244:00:20:40.116 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0125/oflsa |
| Run time | Thu Aug 28 10:32:10 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:248:03:31:50.816 | 2025:248:07:59:42.816 | 16.07 | 49.81 / 42.00 |
| 2025:248:12:00:14.816 | 2025:248:17:28:14.816 | 19.68 | 50.90 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -10.97 | -9.14 | -6.58 | -2.12 | 0.45 | 1.81 | 3.72 |
| pitch | -8.328 | -0.190 | -0.004 | -0.000 | 0.004 | 0.035 | 9.308 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.290 | -0.057 | -0.005 | 0.000 | 0.005 | 0.066 | 1.640 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -10.97 | 2.00 |
| TMP_BEP_PCB | 50 | -2.12 | 1.00 |
| TMP_BEP_PCB | 99 | 3.72 | 2.00 |
| PITCH | 1 | -8.328 | 3.00 |
| PITCH | 99 | 9.308 | 3.00 |
TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL

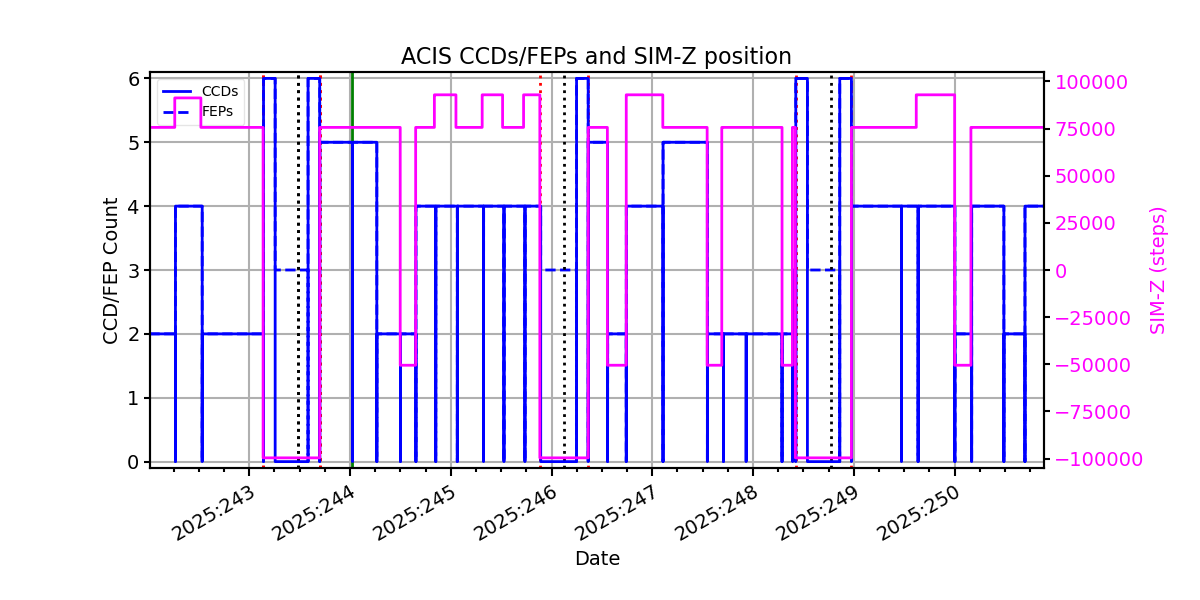

ACIS CCD/FEP Count
