BEP_PCB Temperatures Check
Summary
| Date start | 2025:246:00:40:00.016 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0325/oflsa |
| Run time | Mon Sep 1 23:23:00 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

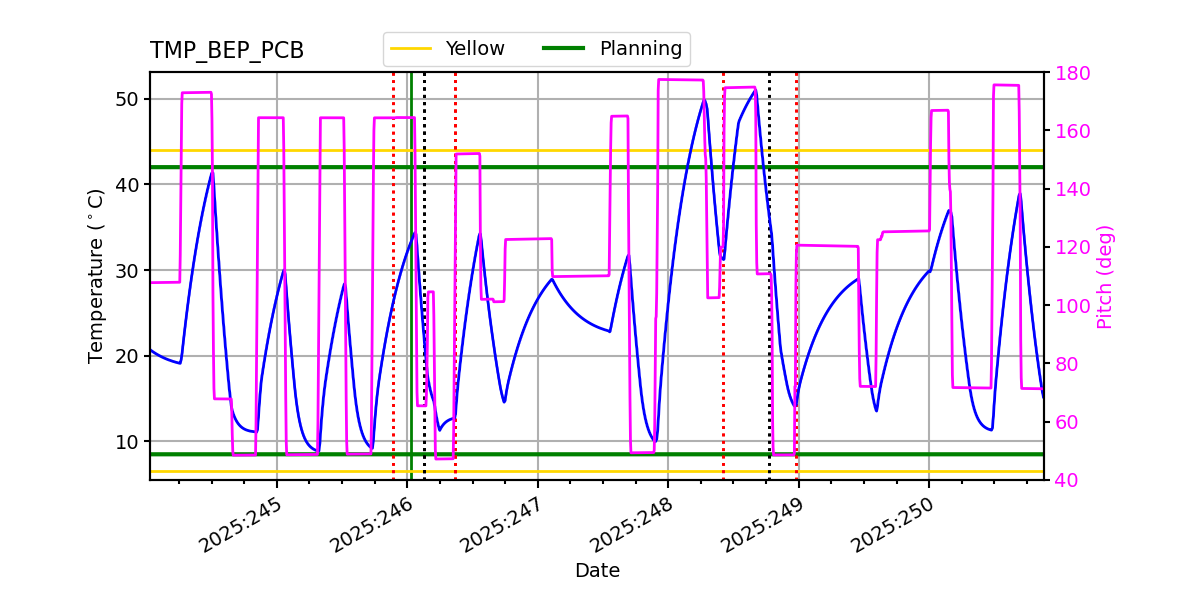

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:248:03:37:18.816 | 2025:248:07:54:14.816 | 15.42 | 49.86 / 42.00 |
| 2025:248:12:00:14.816 | 2025:248:17:28:14.816 | 19.68 | 51.00 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.59 | -9.83 | -6.96 | -2.32 | -0.13 | 1.69 | 3.62 |
| pitch | -8.799 | -0.117 | -0.004 | -0.000 | 0.004 | 0.053 | 8.420 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.357 | -0.052 | -0.006 | -0.000 | 0.006 | 0.053 | 1.515 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.59 | 2.00 |
| TMP_BEP_PCB | 50 | -2.32 | 1.00 |
| TMP_BEP_PCB | 99 | 3.62 | 2.00 |
| PITCH | 1 | -8.799 | 3.00 |
| PITCH | 99 | 8.42 | 3.00 |

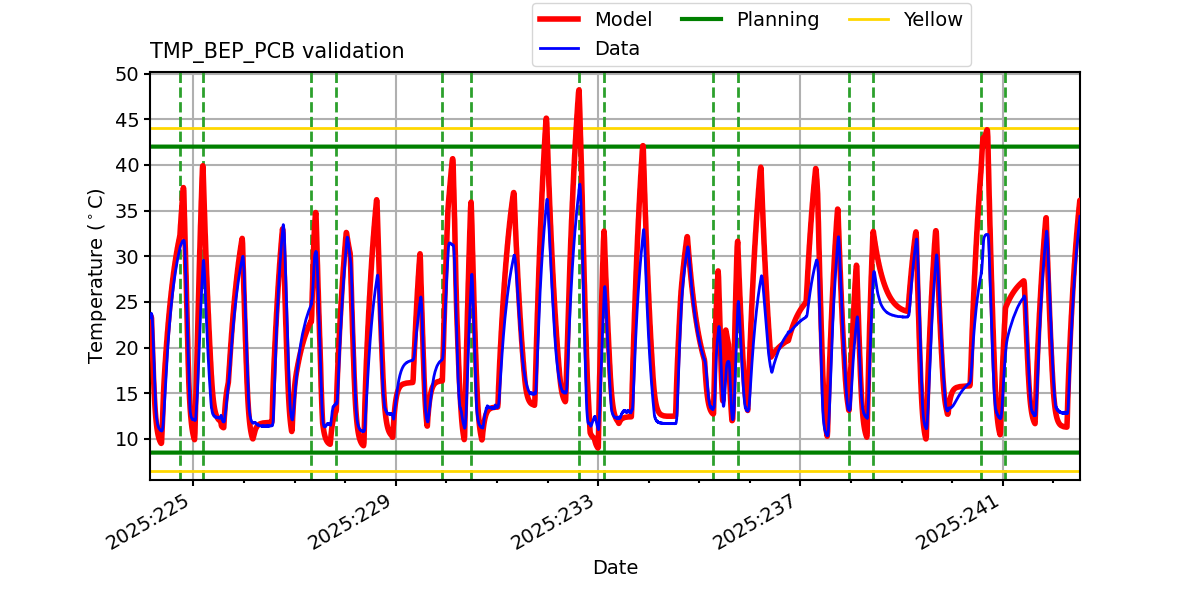

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

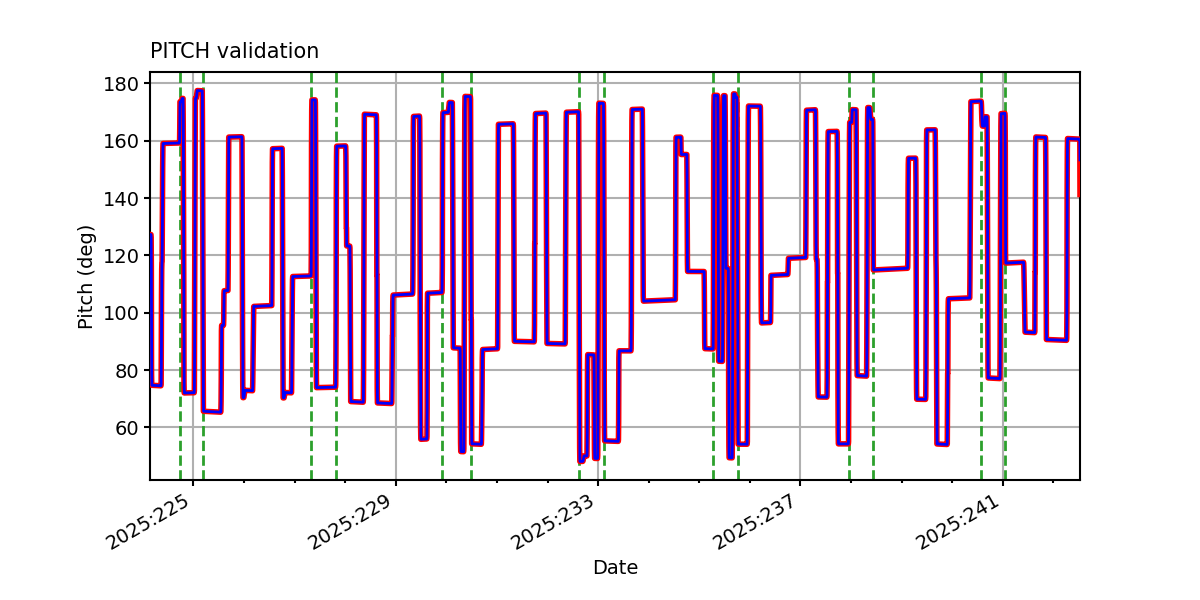

PITCH

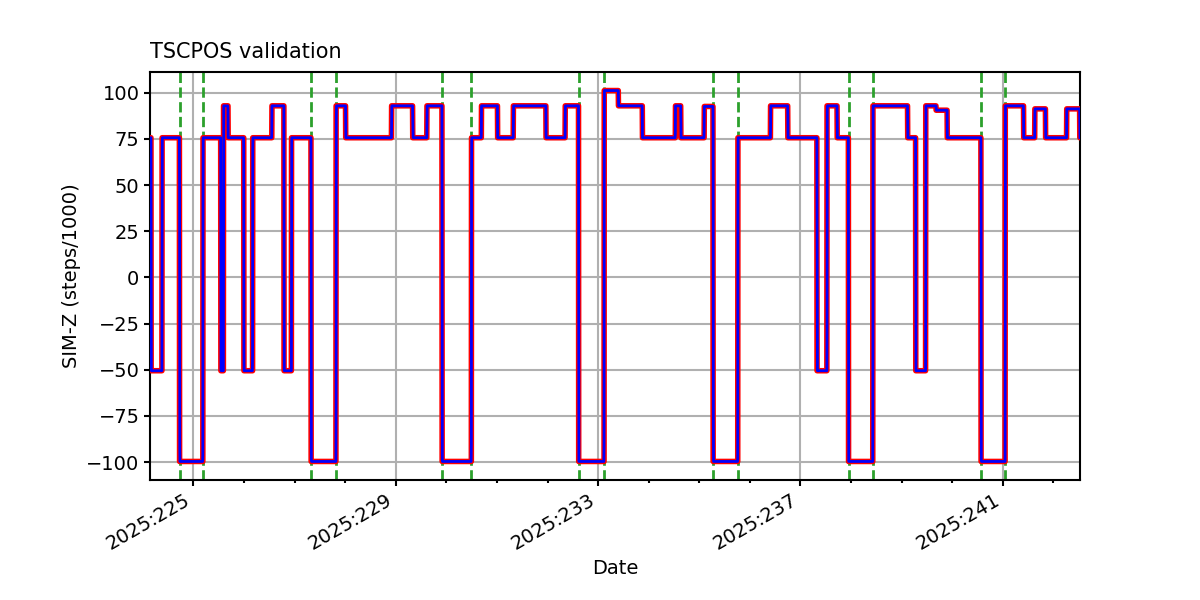

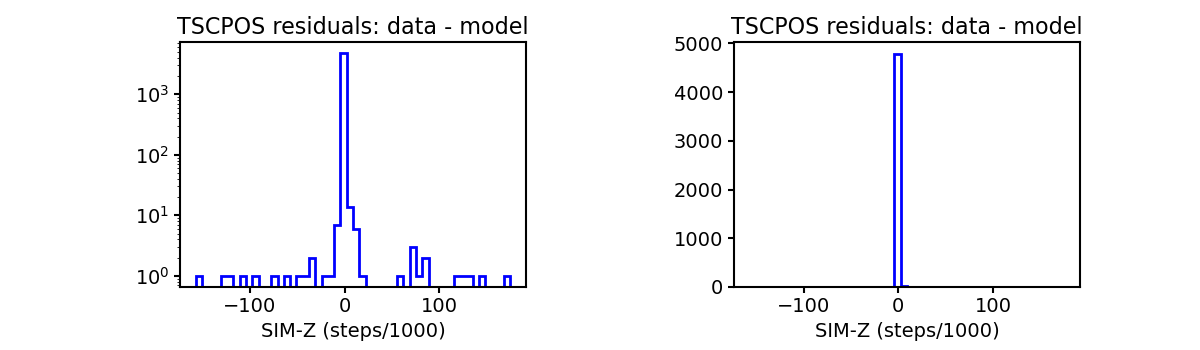

TSCPOS

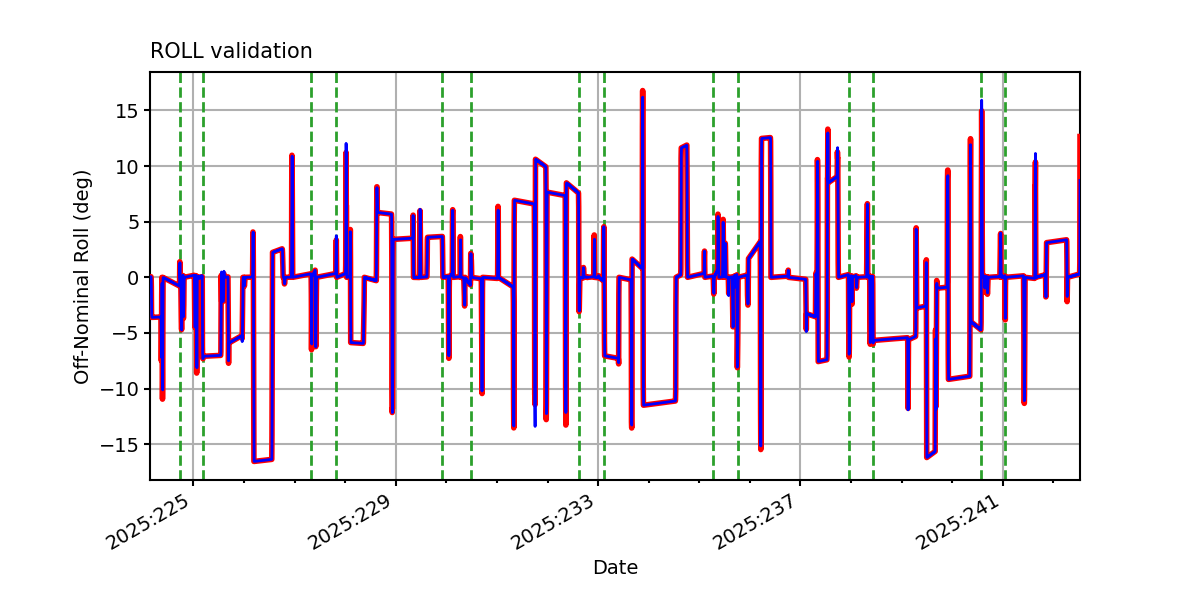

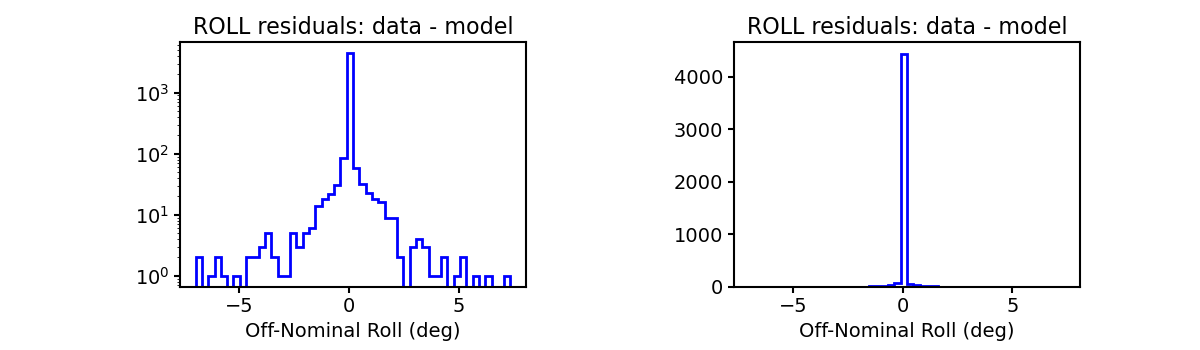

ROLL

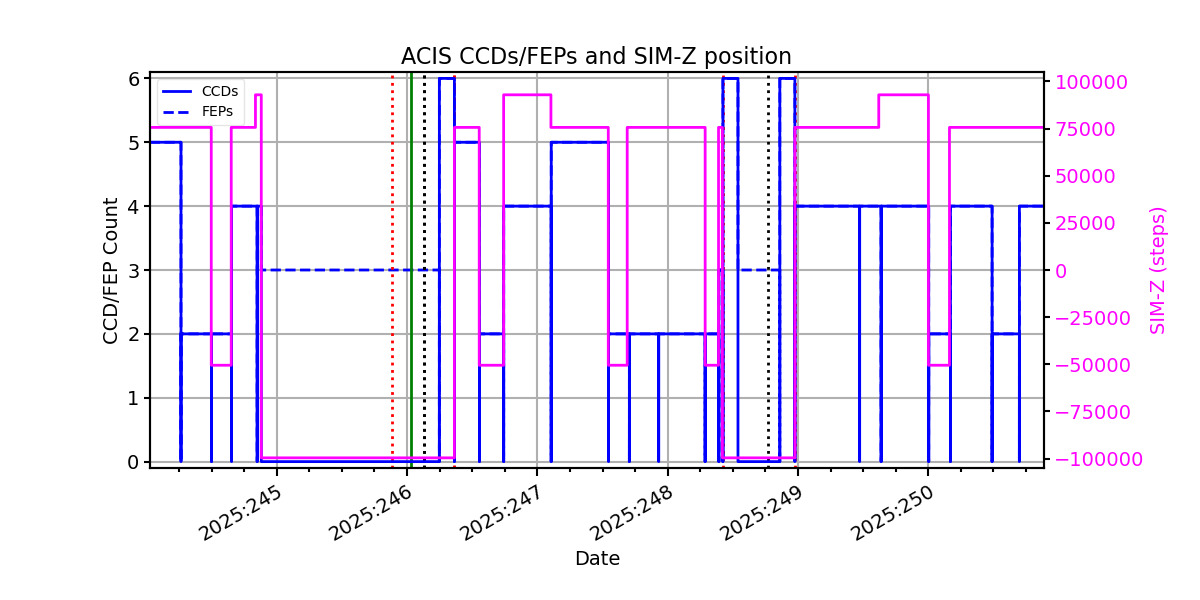

ACIS CCD/FEP Count
