BEP_PCB Temperatures Check
Summary
| Date start | 2026:250:02:14:56.816 |
| Date stop | 2026:257:02:09:19.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP0726/oflsa |
| Run time | Thu Sep 3 09:57:27 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

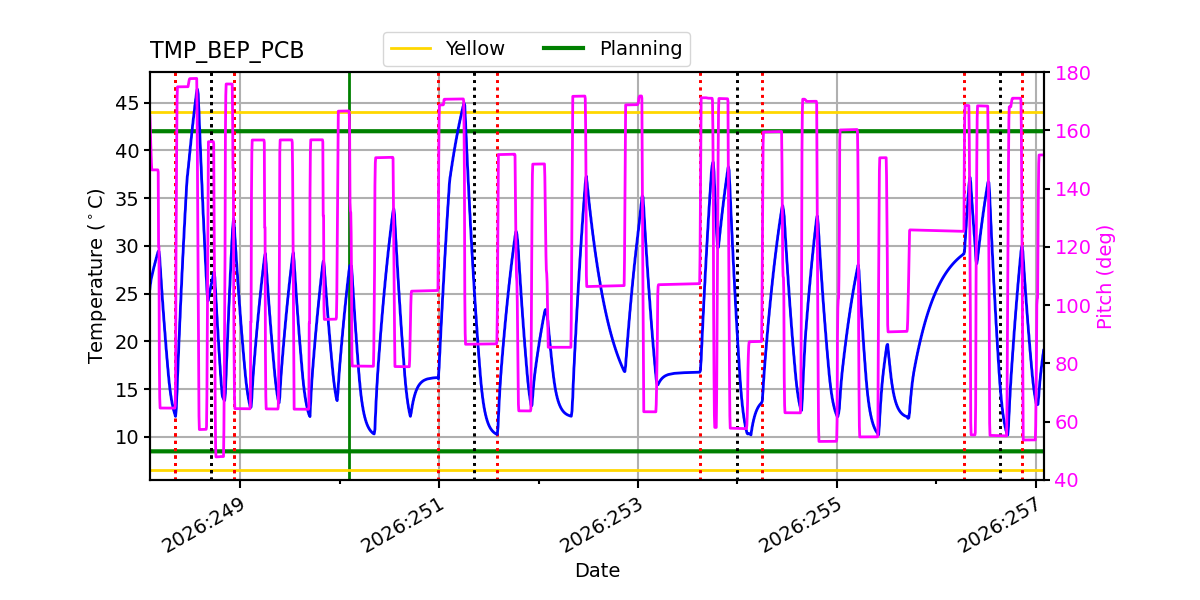

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:251:04:34:14.816 | 2026:251:06:25:40.251 | 6.69 | 44.94 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -16.94 | -12.04 | -6.67 | -1.52 | 1.49 | 3.38 | 4.83 |
| pitch | -9.464 | -0.298 | -0.004 | 0.000 | 0.004 | 0.476 | 9.000 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.873 | -0.119 | -0.005 | -0.000 | 0.004 | 0.104 | 1.616 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -16.94 | 2.00 |
| TMP_BEP_PCB | 50 | -1.52 | 1.00 |
| TMP_BEP_PCB | 99 | 4.83 | 2.00 |
| PITCH | 1 | -9.464 | 3.00 |
| PITCH | 99 | 9.0 | 3.00 |

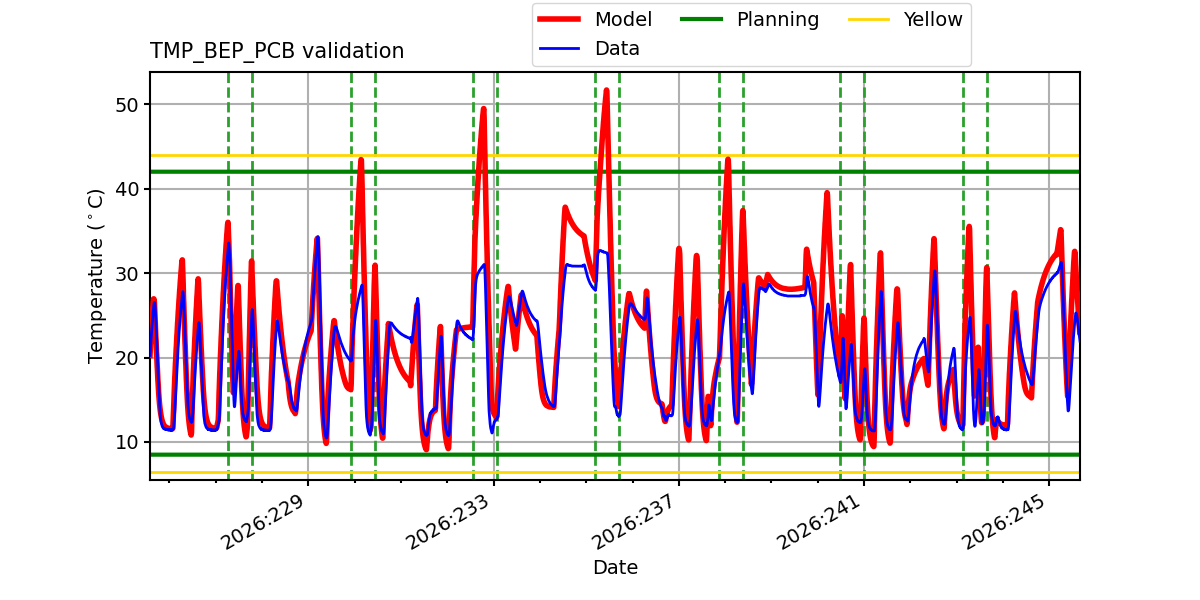

TMP_BEP_PCB

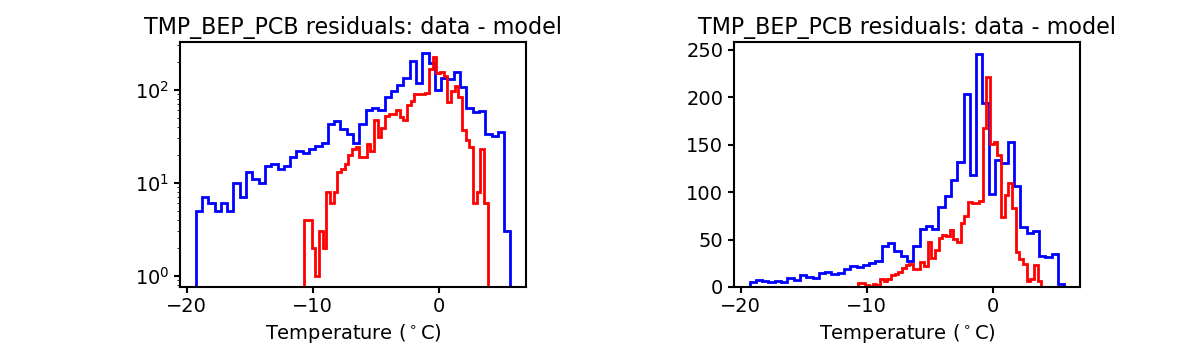

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

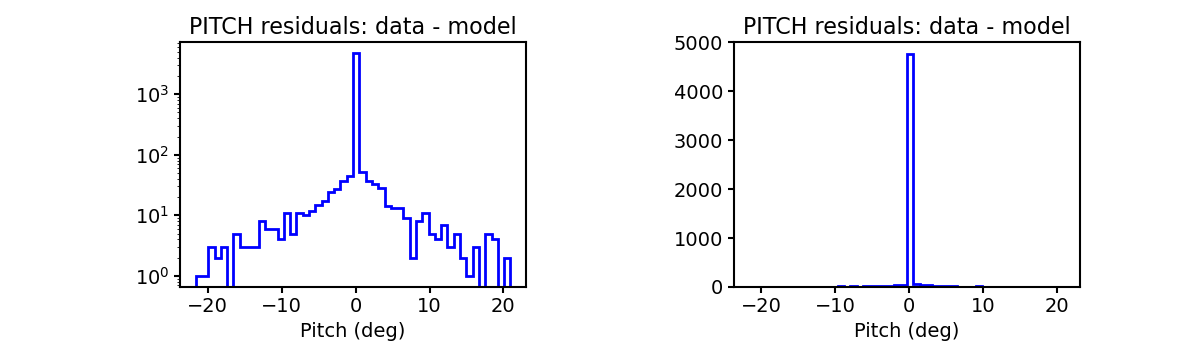

PITCH
TSCPOS

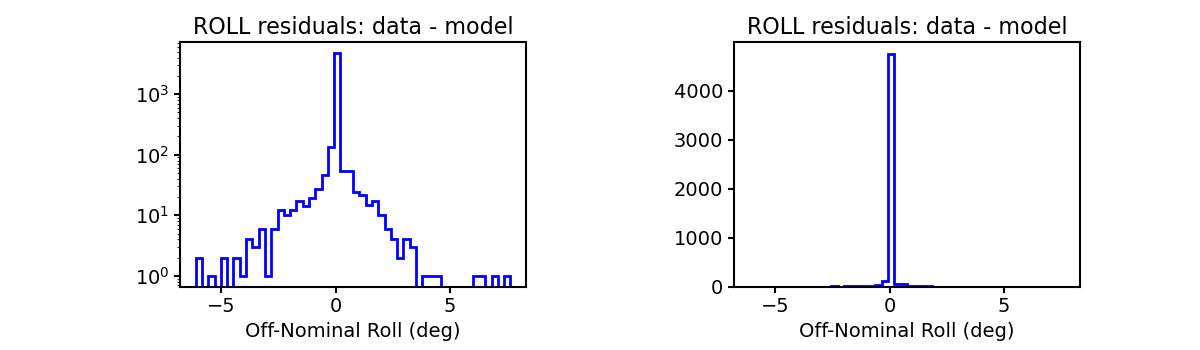

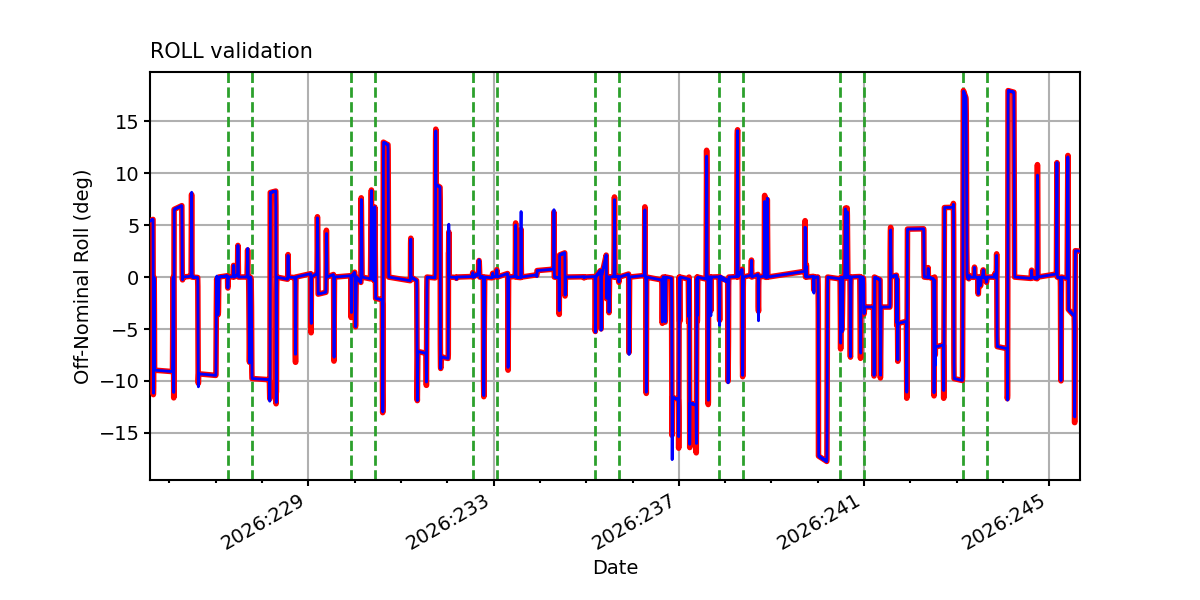

ROLL

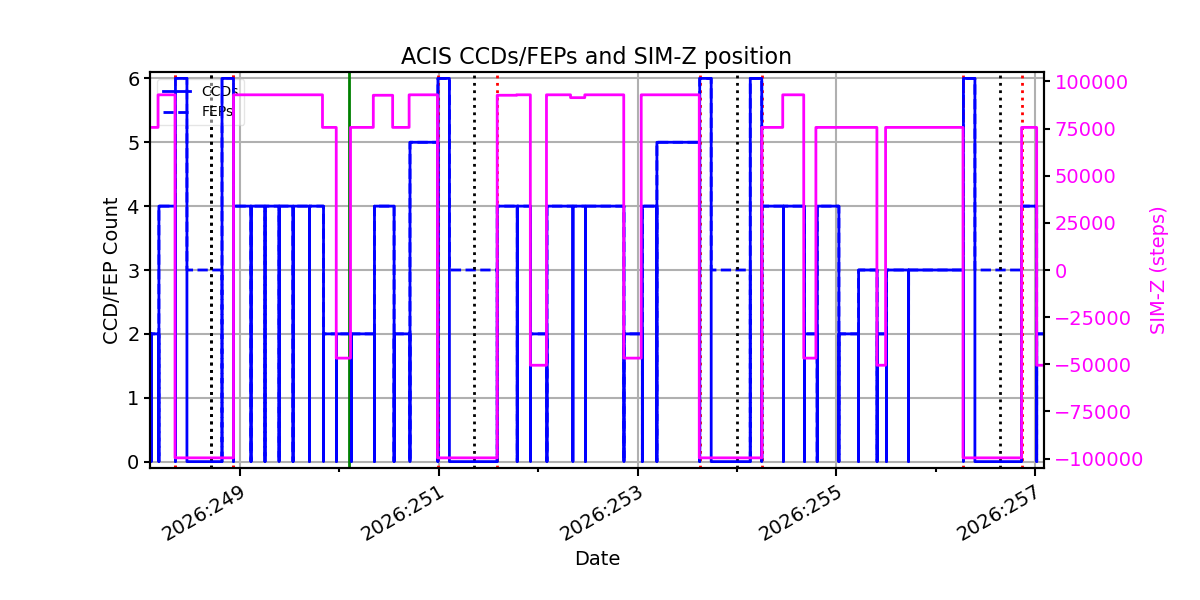

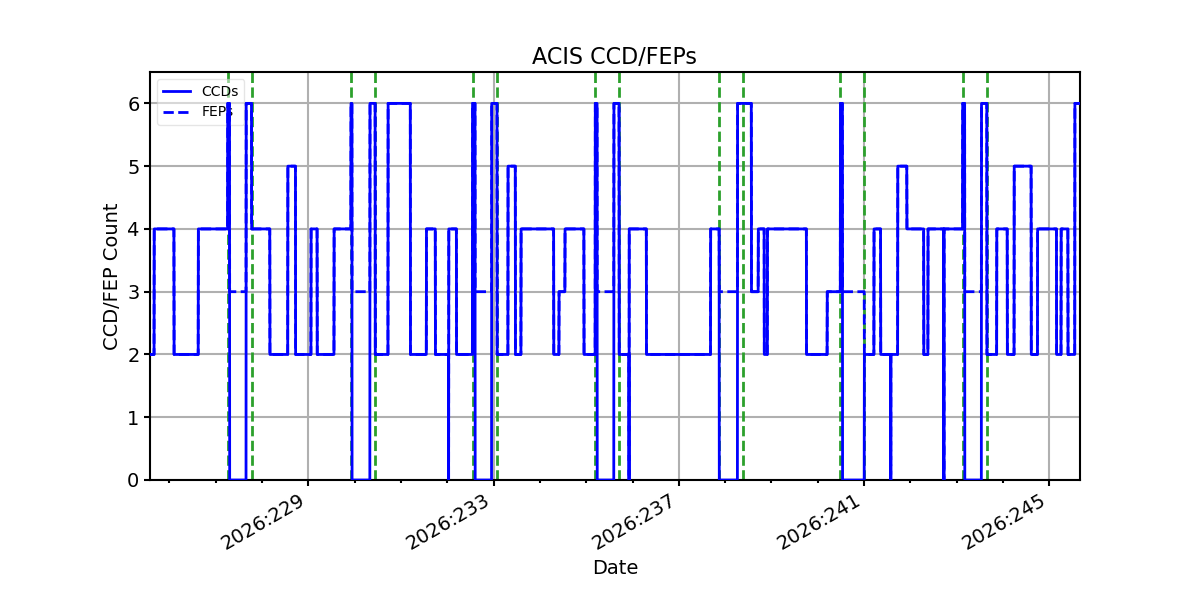

ACIS CCD/FEP Count
