BEP_PCB Temperatures Check
Summary
| Date start | 2025:250:21:15:18.716 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0825/oflsa |
| Run time | Thu Sep 4 14:11:10 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:251:06:18:35.075 | 2025:251:06:36:22.816 | 1.07 | 42.43 / 42.00 |
| 2025:253:04:26:06.816 | 2025:253:05:49:58.193 | 5.03 | 44.29 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.57 | -9.64 | -6.64 | -2.53 | 0.33 | 2.17 | 3.63 |
| pitch | -8.642 | -0.065 | -0.004 | -0.000 | 0.004 | 0.091 | 9.256 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.438 | -0.042 | -0.006 | -0.000 | 0.005 | 0.046 | 1.580 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.57 | 2.00 |
| TMP_BEP_PCB | 50 | -2.53 | 1.00 |
| TMP_BEP_PCB | 99 | 3.63 | 2.00 |
| PITCH | 1 | -8.642 | 3.00 |
| PITCH | 99 | 9.256 | 3.00 |
TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

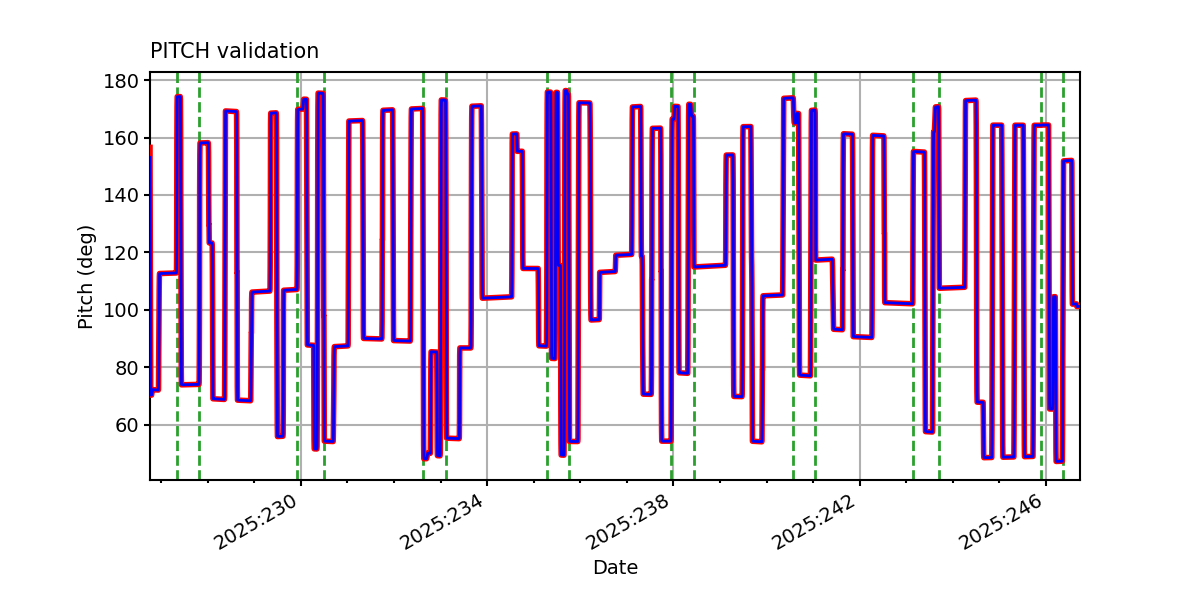

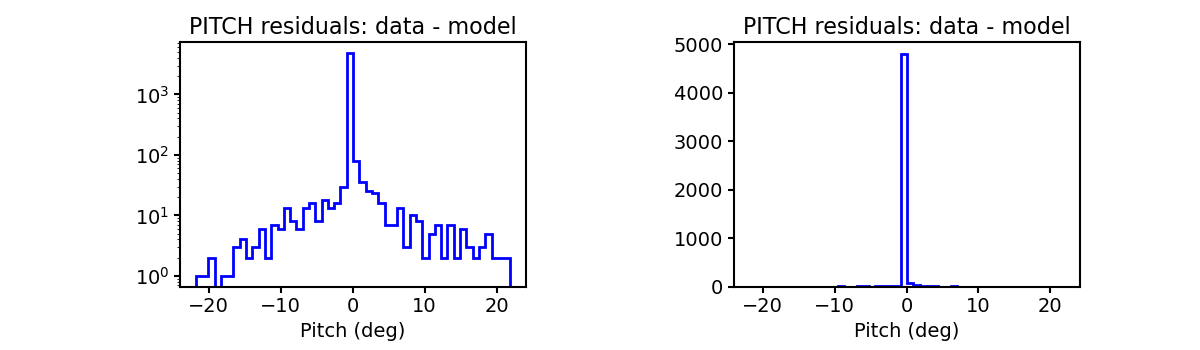

PITCH

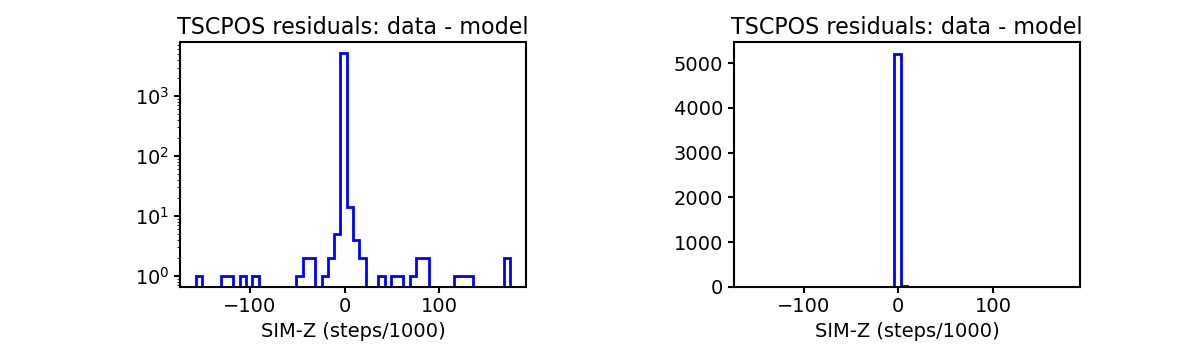

TSCPOS

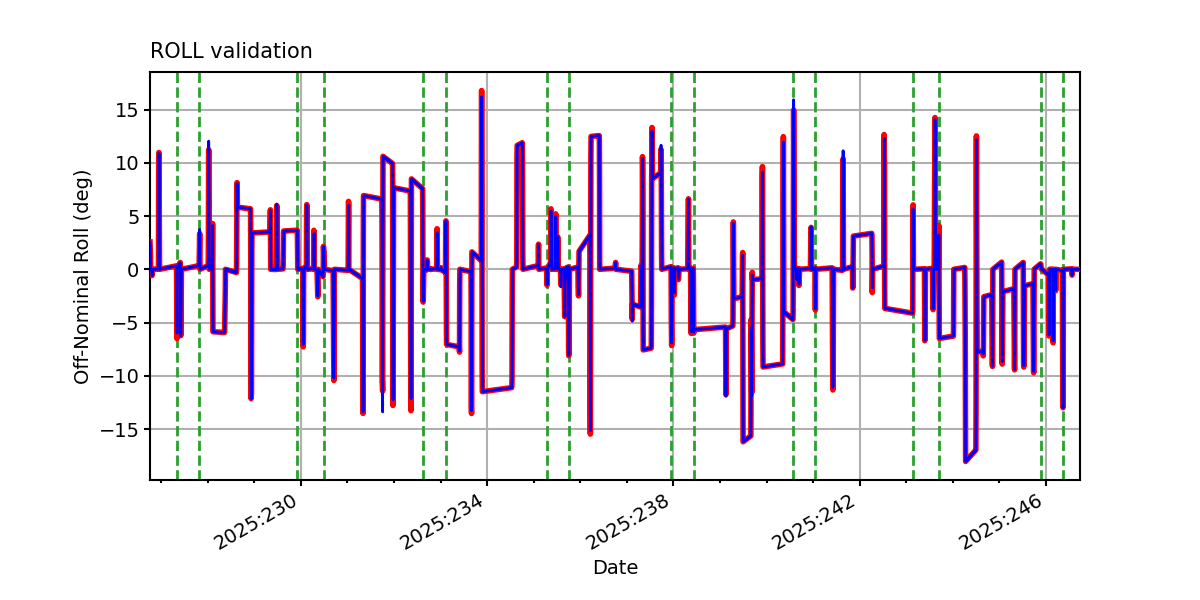

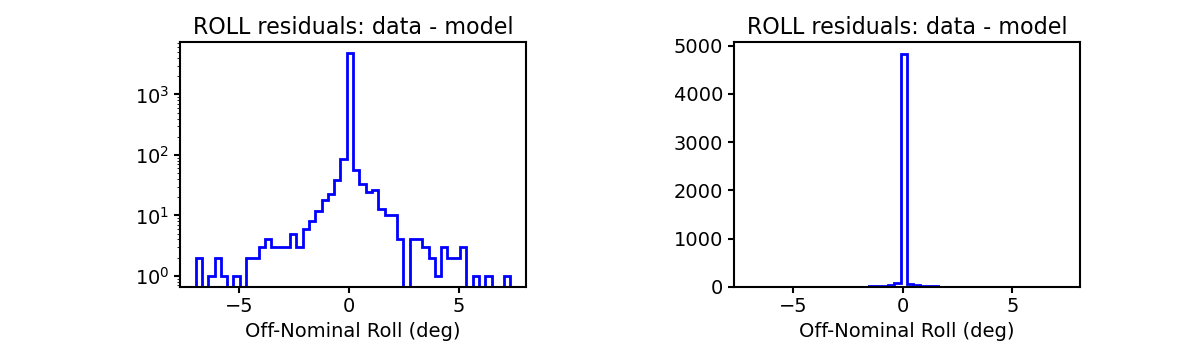

ROLL

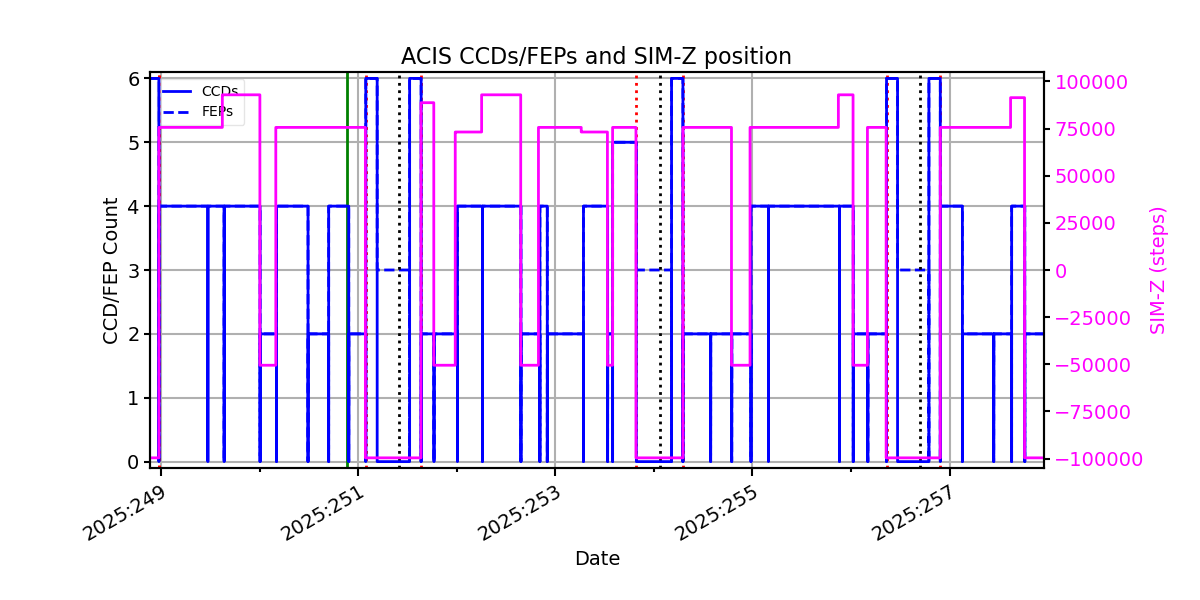

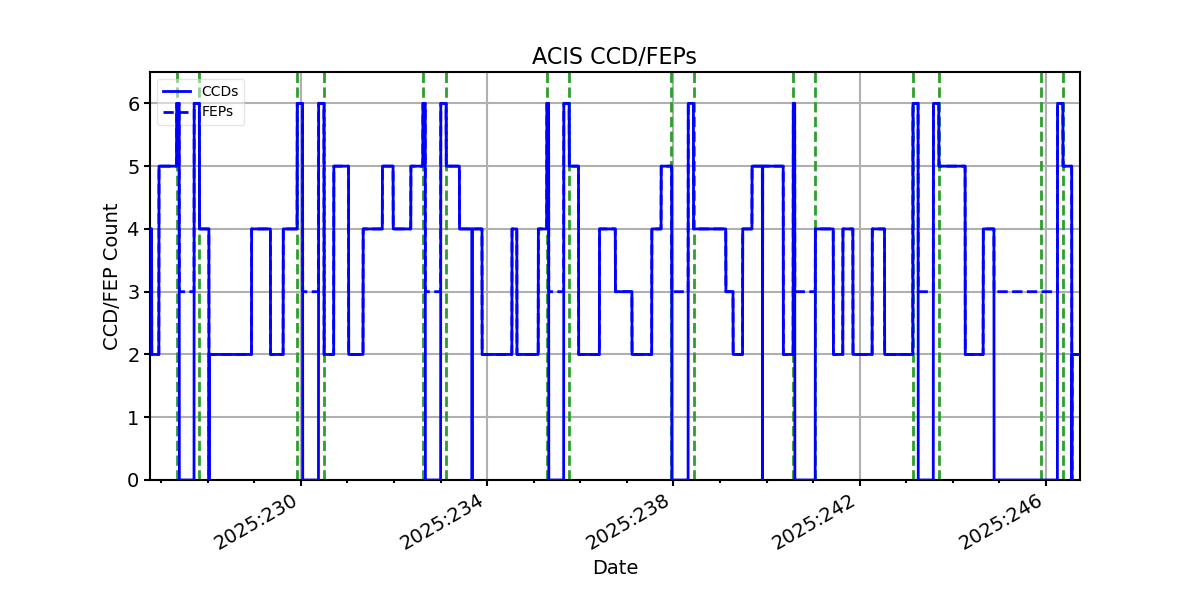

ACIS CCD/FEP Count
