BEP_PCB Temperatures Check
Summary
| Date start | 2025:253:23:44:59.016 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1025/oflsa |
| Run time | Mon Sep 8 18:28:58 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

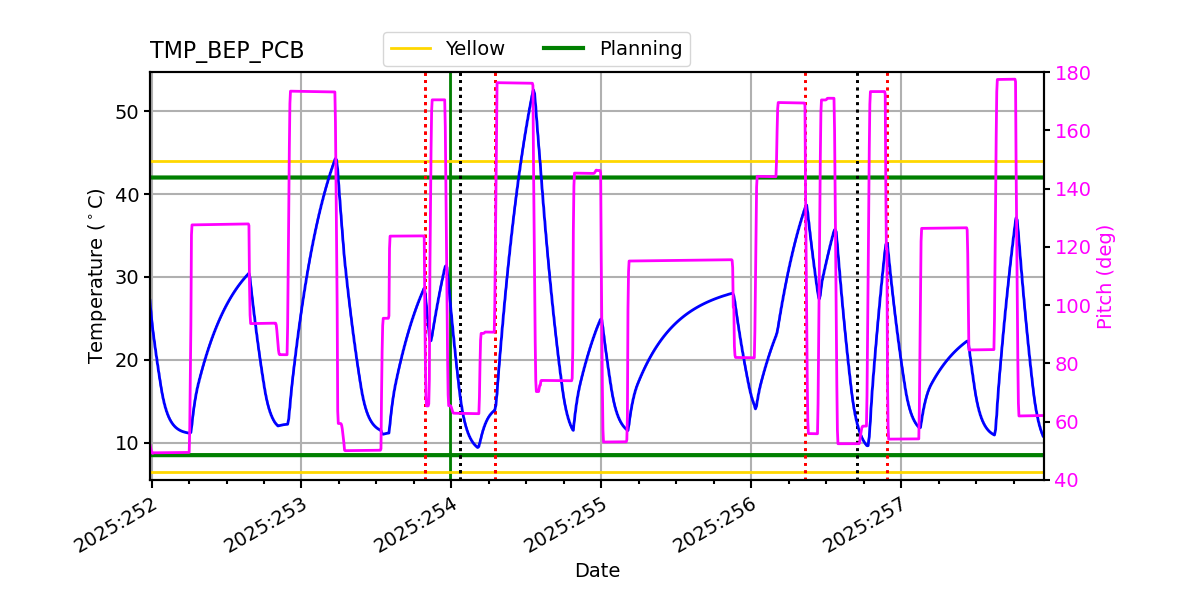

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:254:10:51:58.816 | 2025:254:14:19:53.927 | 12.48 | 52.56 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -18.56 | -13.11 | -8.26 | -2.74 | 0.13 | 2.01 | 3.33 |
| pitch | -8.642 | -0.046 | -0.004 | -0.000 | 0.004 | 0.086 | 9.248 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.589 | -0.067 | -0.007 | -0.000 | 0.006 | 0.061 | 1.698 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -18.56 | 2.00 |
| TMP_BEP_PCB | 50 | -2.74 | 1.00 |
| TMP_BEP_PCB | 99 | 3.33 | 2.00 |
| PITCH | 1 | -8.642 | 3.00 |
| PITCH | 99 | 9.248 | 3.00 |
TMP_BEP_PCB

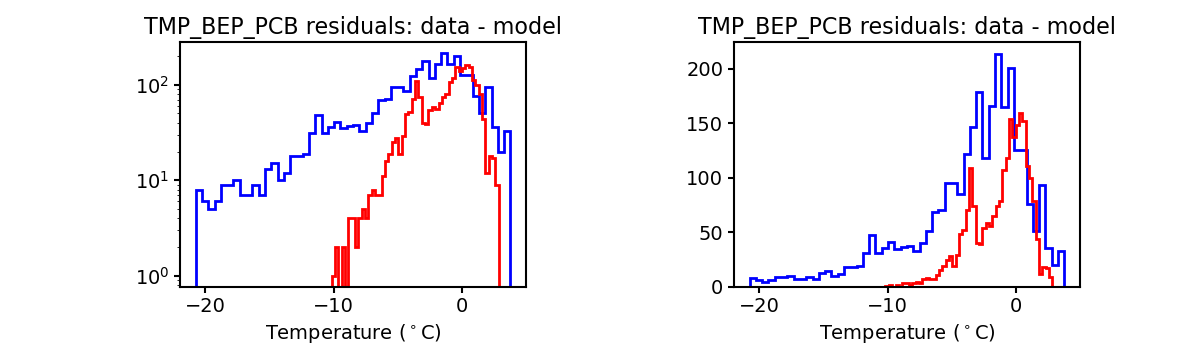

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

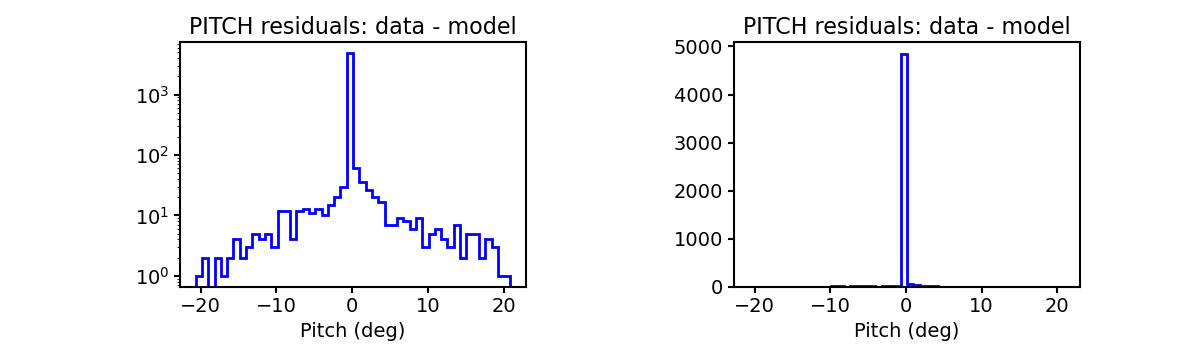

PITCH

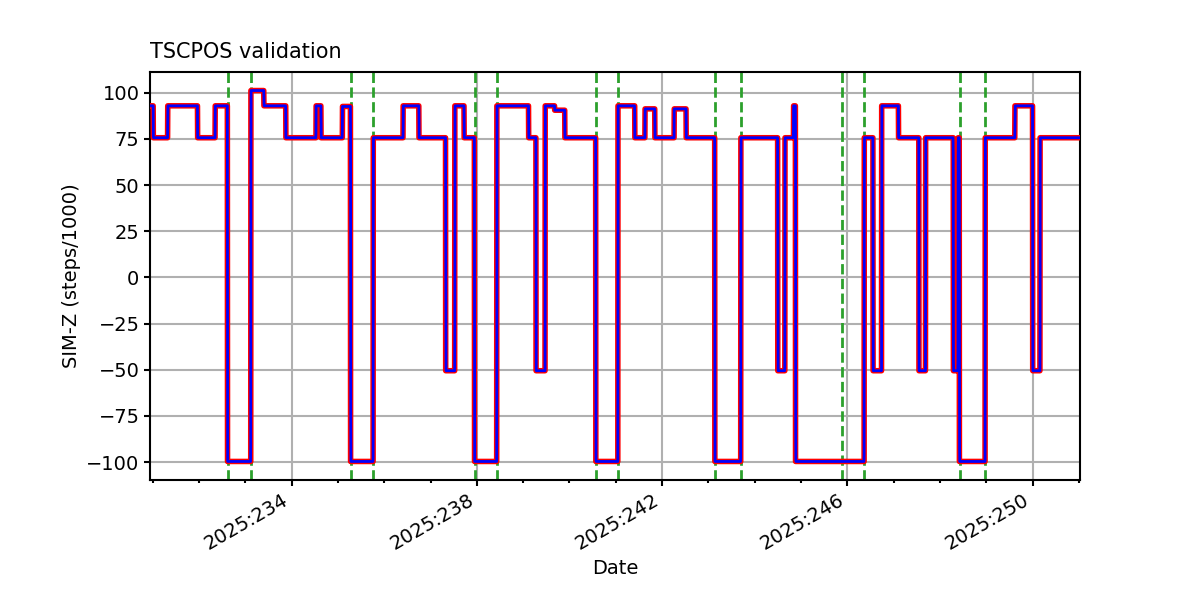

TSCPOS

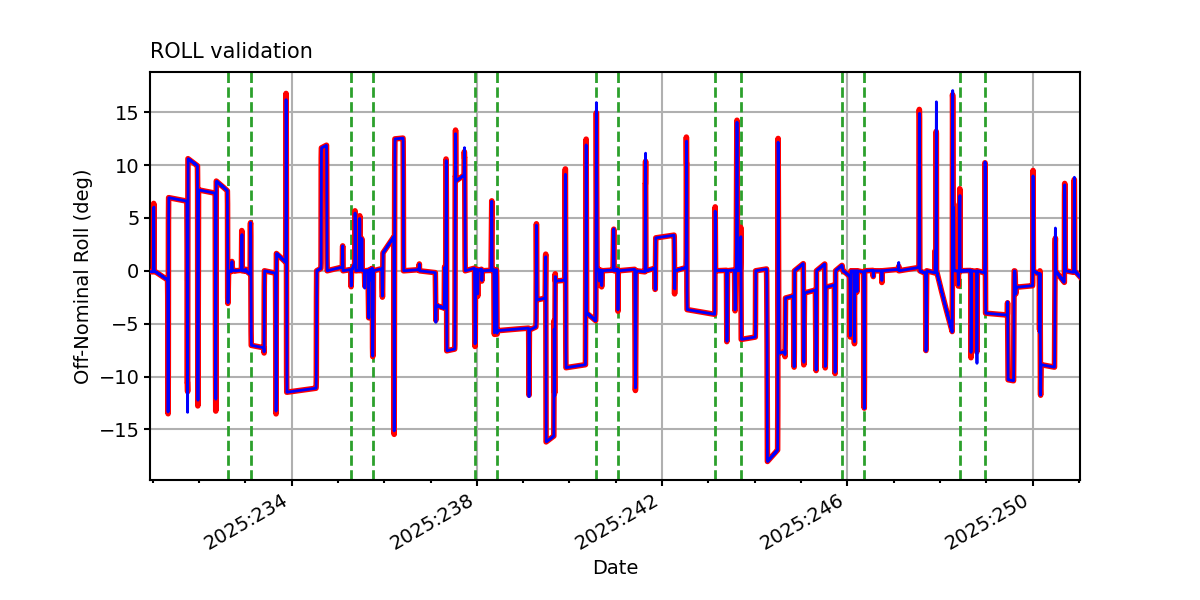

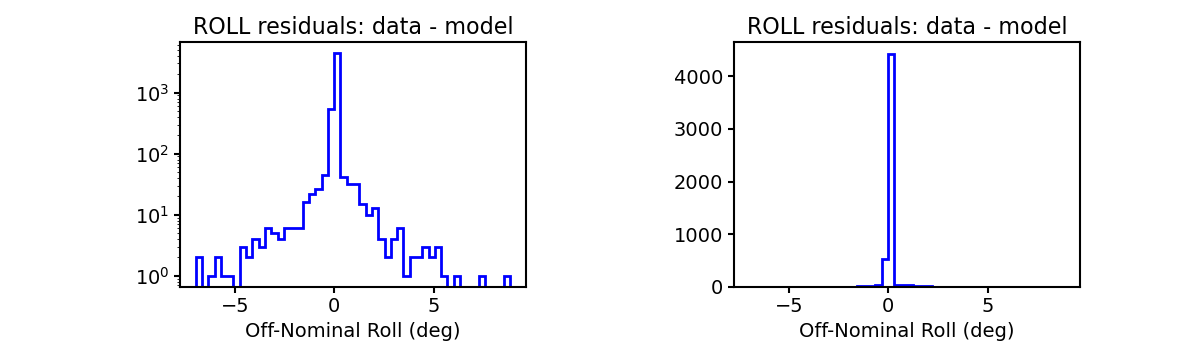

ROLL
ACIS CCD/FEP Count
