BEP_PCB Temperatures Check
Summary
| Date start | 2026:257:02:06:19.916 |
| Date stop | 2026:264:01:05:49.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP1426/oflsa |
| Run time | Thu Sep 10 10:45:28 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:261:13:45:34.816 | 2026:261:16:35:02.816 | 10.17 | 52.10 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.78 | -11.78 | -7.94 | -2.11 | 1.01 | 2.83 | 3.88 |
| pitch | -10.330 | -0.618 | -0.004 | -0.000 | 0.004 | 0.652 | 9.757 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.048 | -0.130 | -0.006 | -0.000 | 0.006 | 0.129 | 1.645 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.78 | 2.00 |
| TMP_BEP_PCB | 50 | -2.11 | 1.00 |
| TMP_BEP_PCB | 99 | 3.88 | 2.00 |
| PITCH | 1 | -10.33 | 3.00 |
| PITCH | 99 | 9.757 | 3.00 |

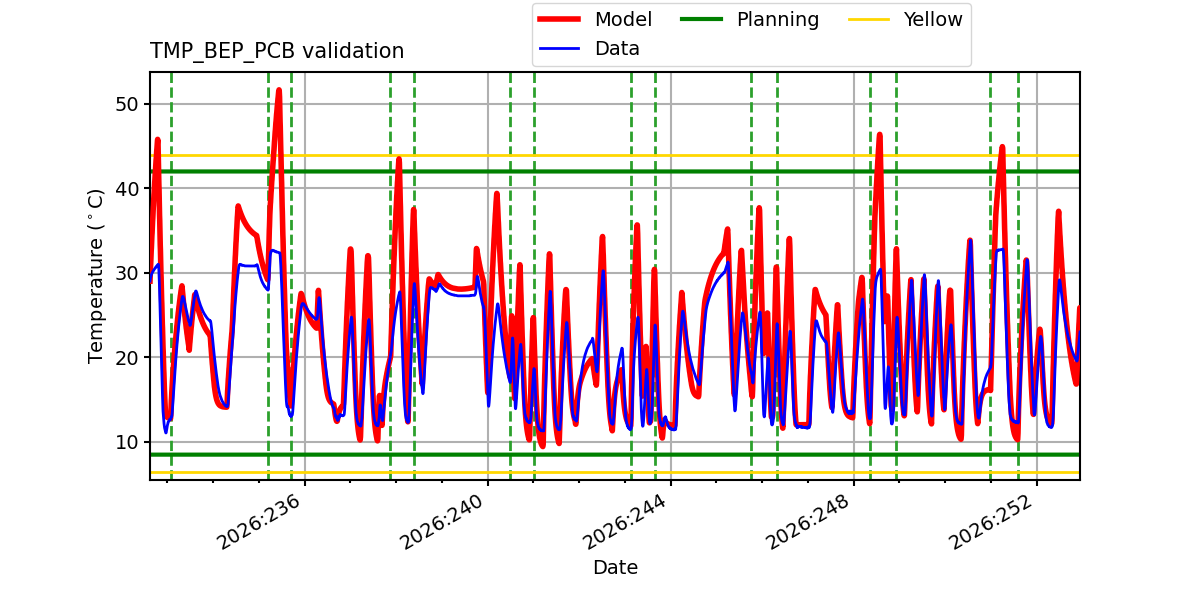

TMP_BEP_PCB

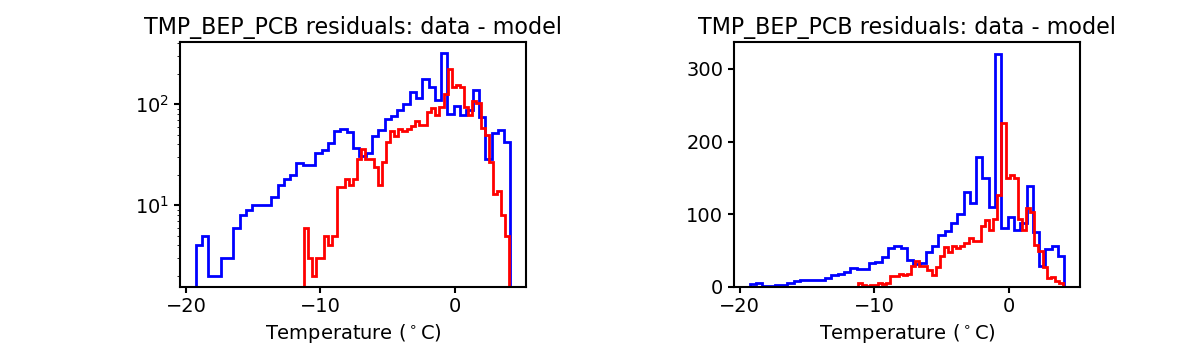

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH

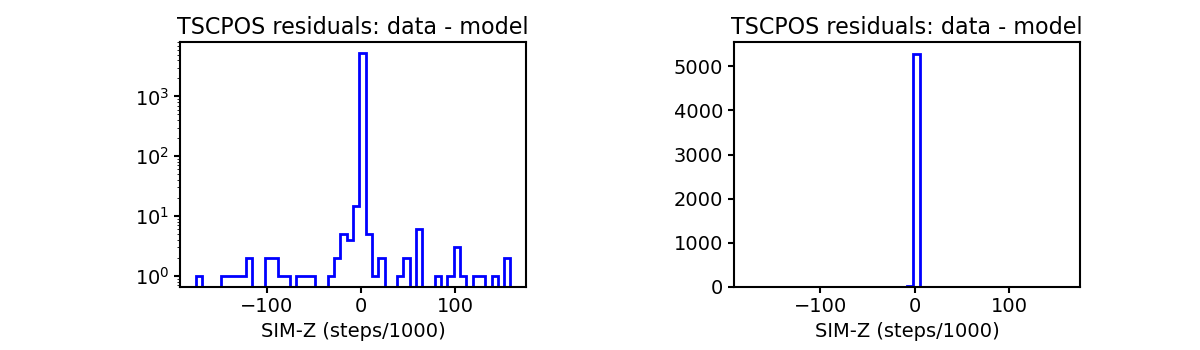

TSCPOS

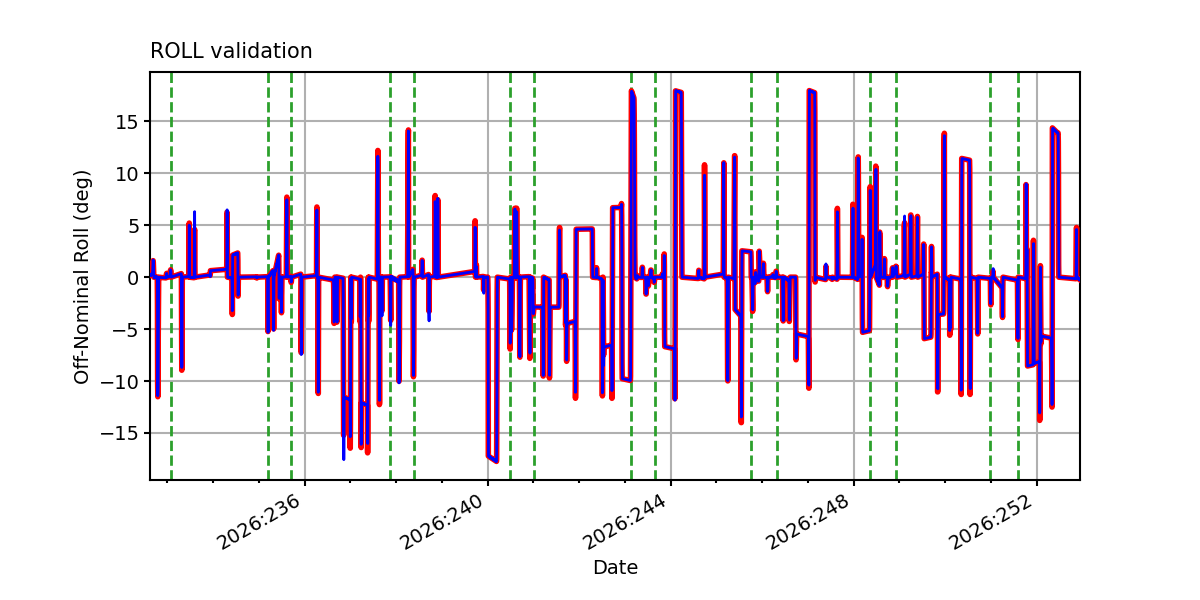

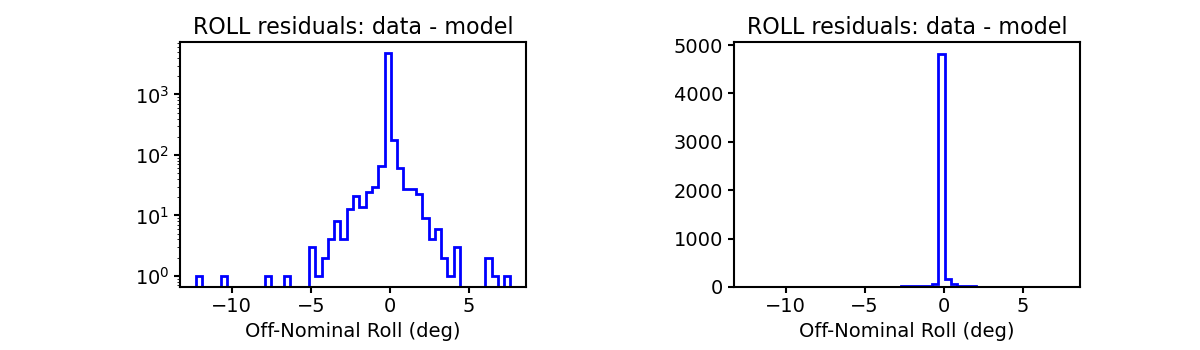

ROLL

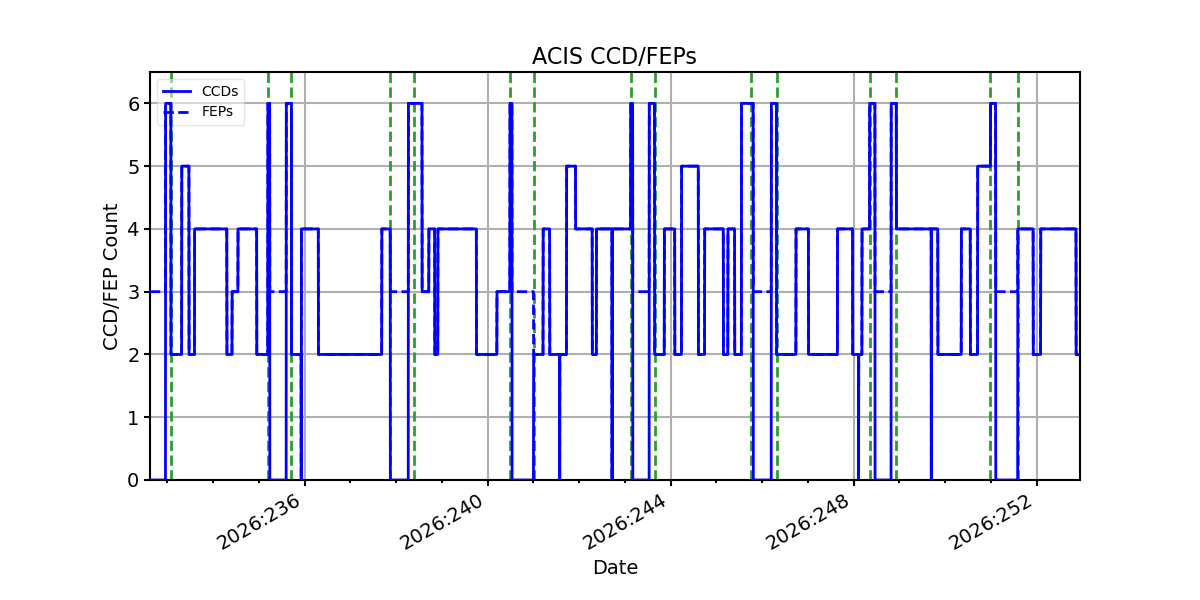

ACIS CCD/FEP Count
