BEP_PCB Temperatures Check
Summary
| Date start | 2025:257:22:57:15.016 |
| Date stop | 2025:265:00:07:59.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1525/oflsa |
| Run time | Thu Sep 11 09:40:26 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:259:19:41:50.816 | 2025:259:20:59:13.532 | 4.64 | 44.34 / 42.00 |
| 2025:261:17:09:42.816 | 2025:261:17:55:40.251 | 2.76 | 44.26 / 42.00 |
| 2025:264:08:39:58.816 | 2025:264:09:56:30.816 | 4.59 | 46.53 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -18.61 | -13.91 | -9.57 | -2.36 | 0.52 | 2.13 | 3.67 |
| pitch | -8.255 | -0.056 | -0.004 | 0.000 | 0.004 | 0.170 | 9.071 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.475 | -0.074 | -0.006 | -0.000 | 0.007 | 0.082 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -18.61 | 2.00 |
| TMP_BEP_PCB | 50 | -2.36 | 1.00 |
| TMP_BEP_PCB | 99 | 3.67 | 2.00 |
| PITCH | 1 | -8.255 | 3.00 |
| PITCH | 99 | 9.071 | 3.00 |

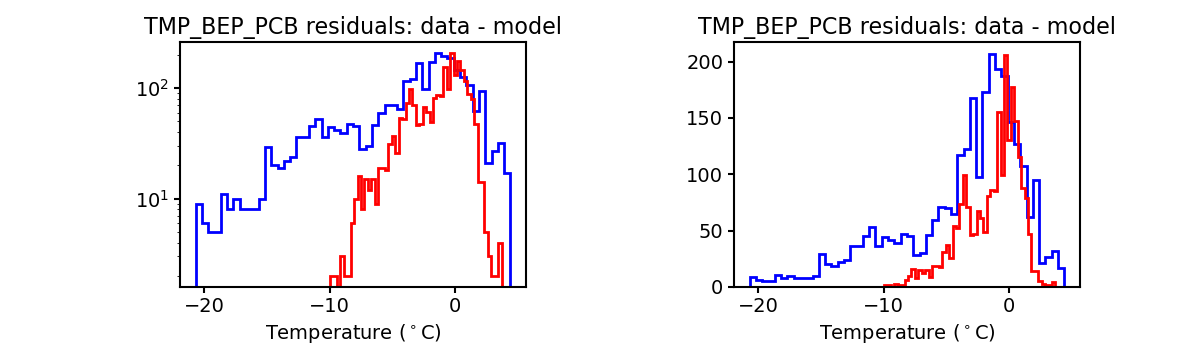

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

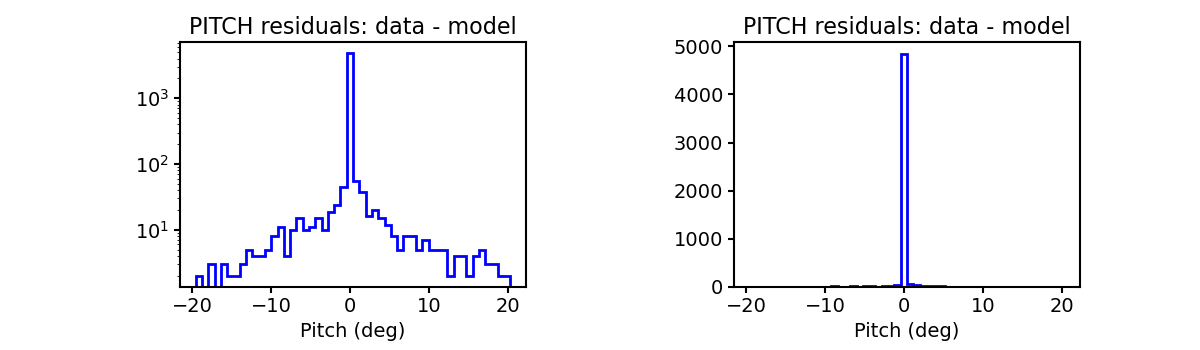

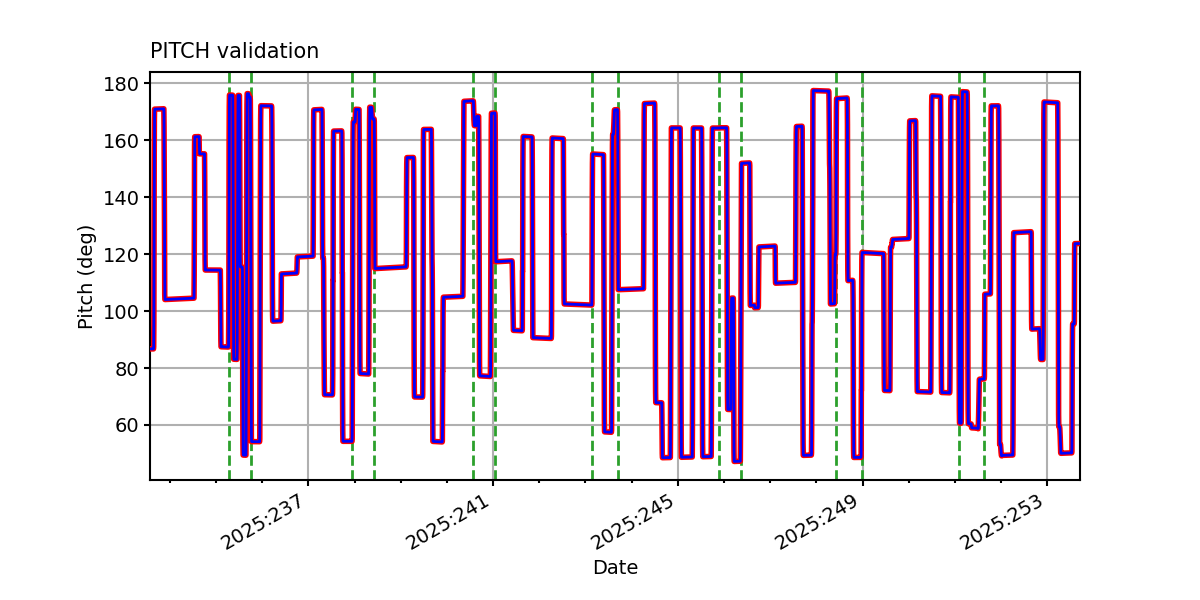

PITCH

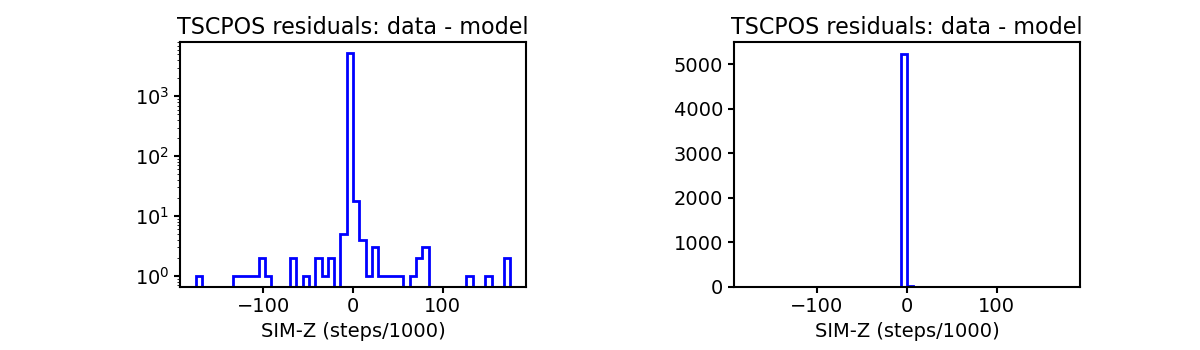

TSCPOS

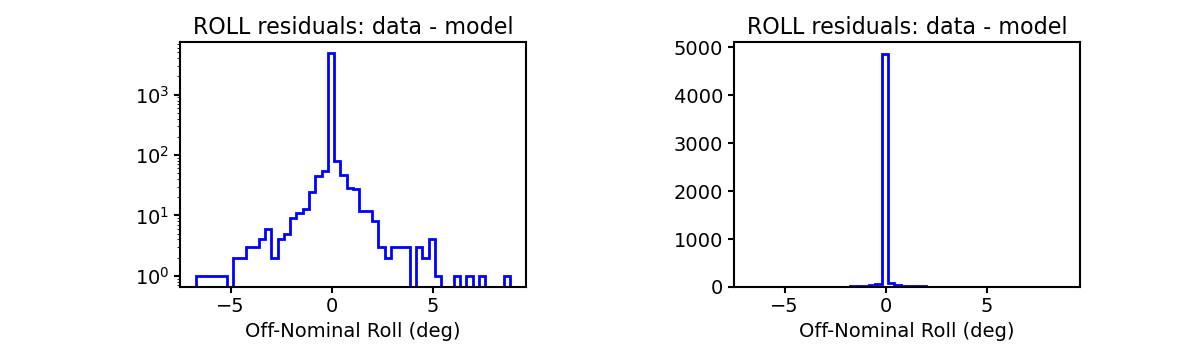

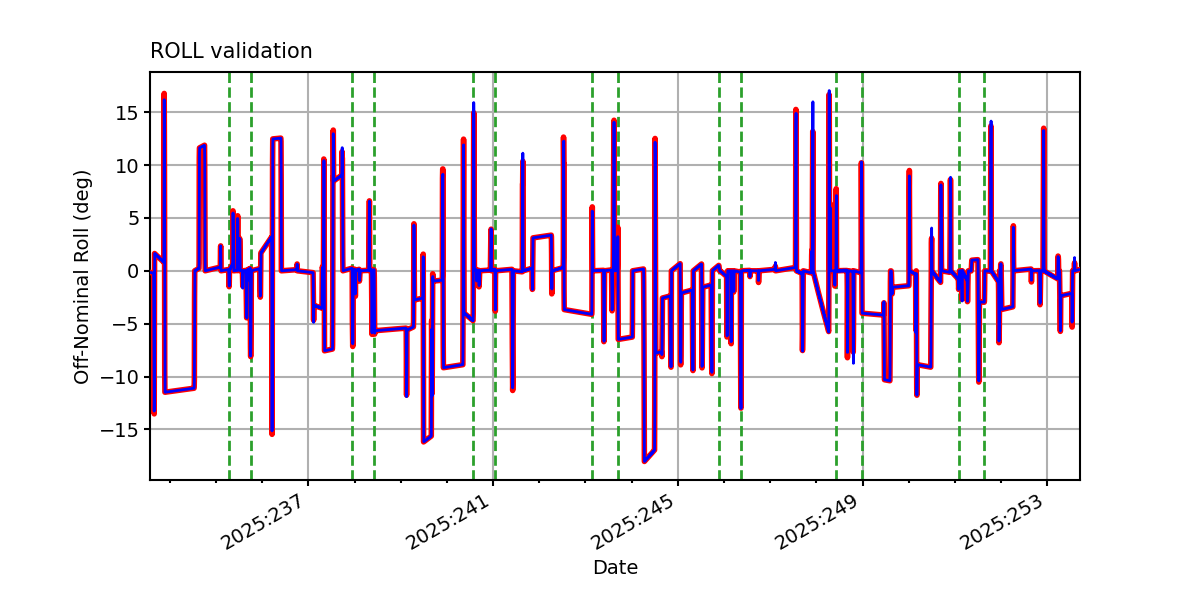

ROLL

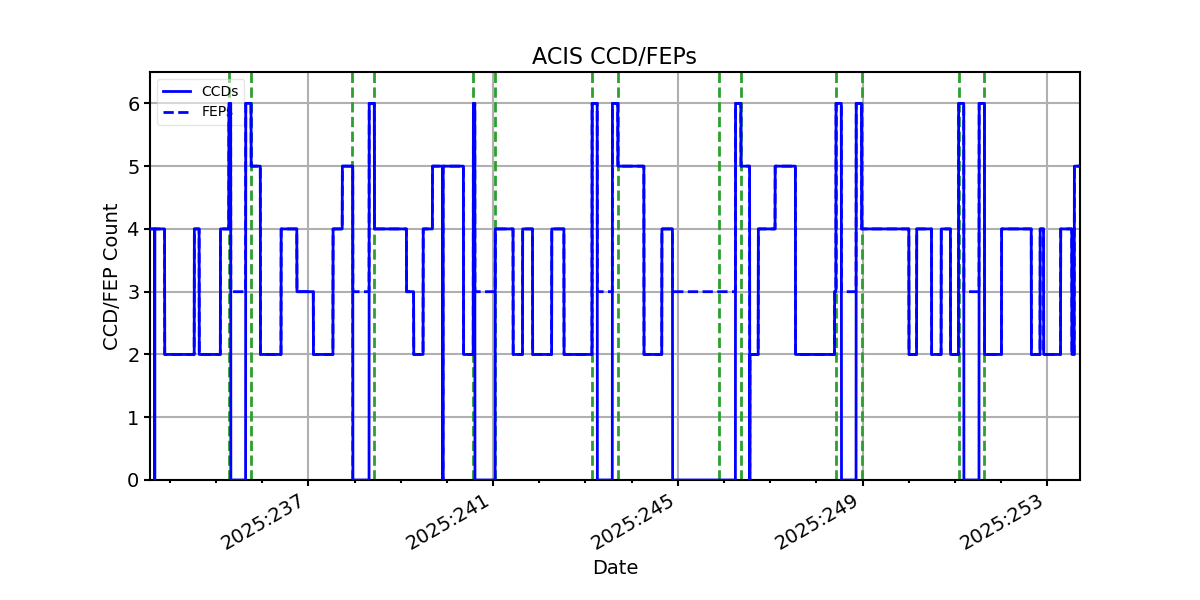

ACIS CCD/FEP Count
