BEP_PCB Temperatures Check
Summary
| Date start | 2026:264:01:02:49.516 |
| Date stop | 2026:271:01:24:07.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2126/oflsa |
| Run time | Wed Sep 16 11:17:15 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:264:08:38:06.816 | 2026:264:09:12:33.146 | 2.07 | 43.03 / 42.00 |
| 2026:265:17:47:58.816 | 2026:265:18:37:10.816 | 2.95 | 43.90 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.87 | -9.94 | -6.41 | -1.88 | 0.89 | 2.99 | 3.98 |
| pitch | -11.697 | -1.341 | -0.004 | -0.000 | 0.004 | 1.014 | 11.528 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.913 | -0.147 | -0.007 | 0.000 | 0.007 | 0.180 | 1.662 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.87 | 2.00 |
| TMP_BEP_PCB | 50 | -1.88 | 1.00 |
| TMP_BEP_PCB | 99 | 3.98 | 2.00 |
| PITCH | 1 | -11.697 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |

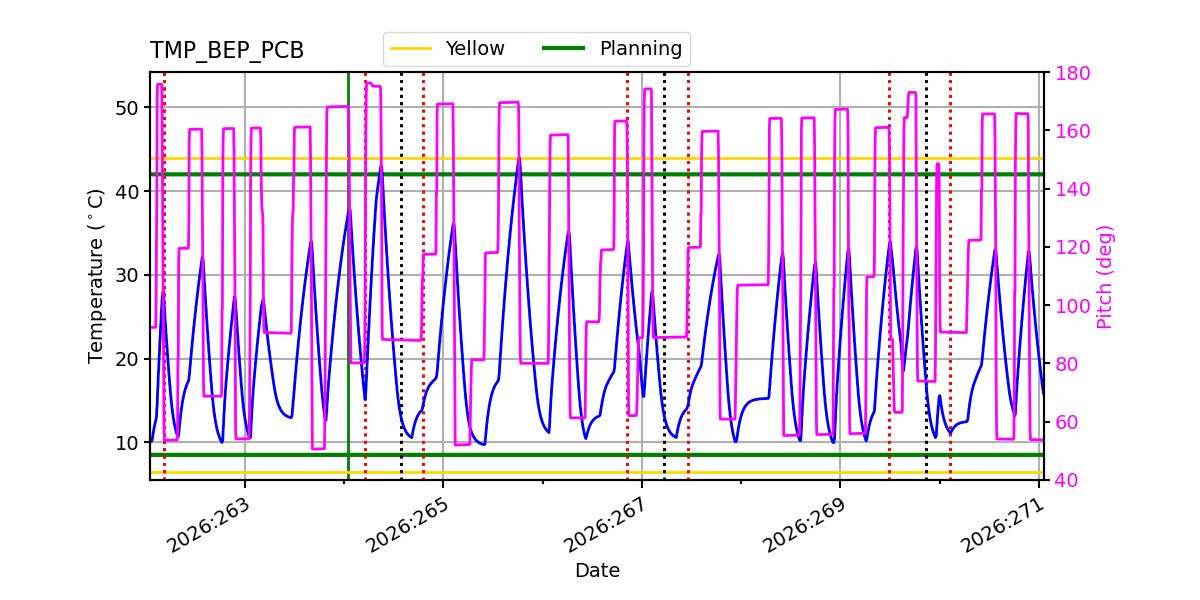

TMP_BEP_PCB

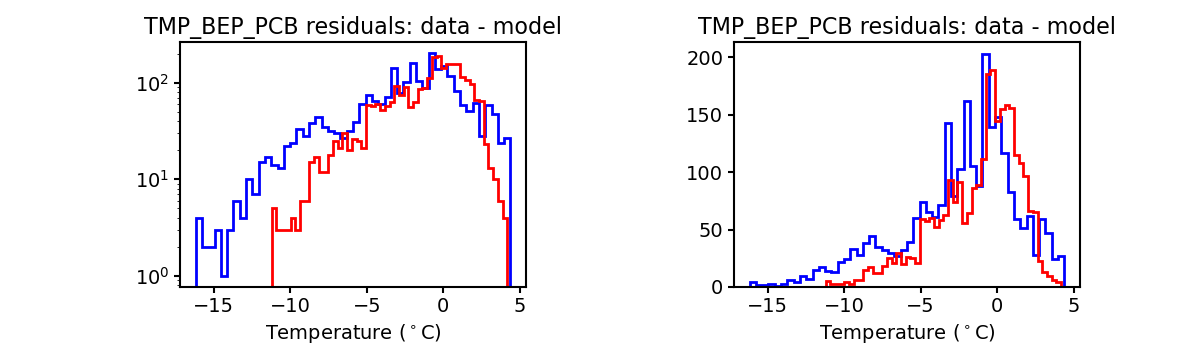

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

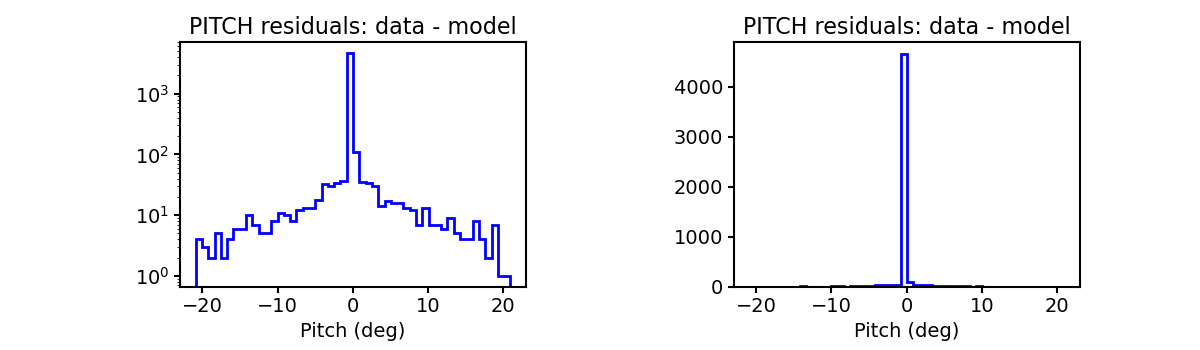

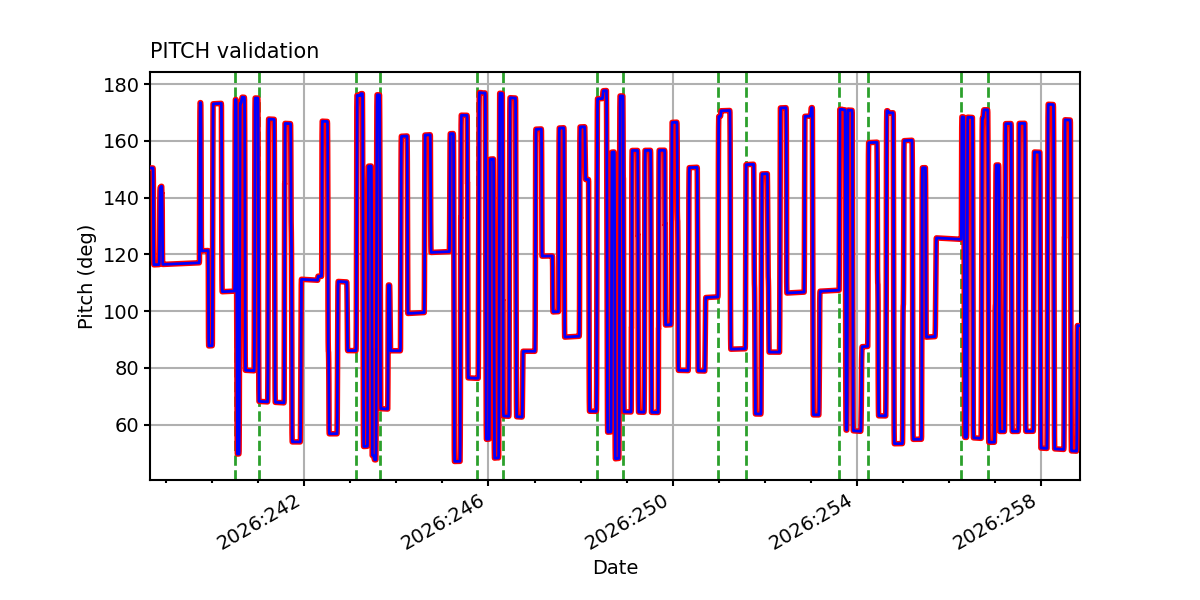

PITCH
TSCPOS

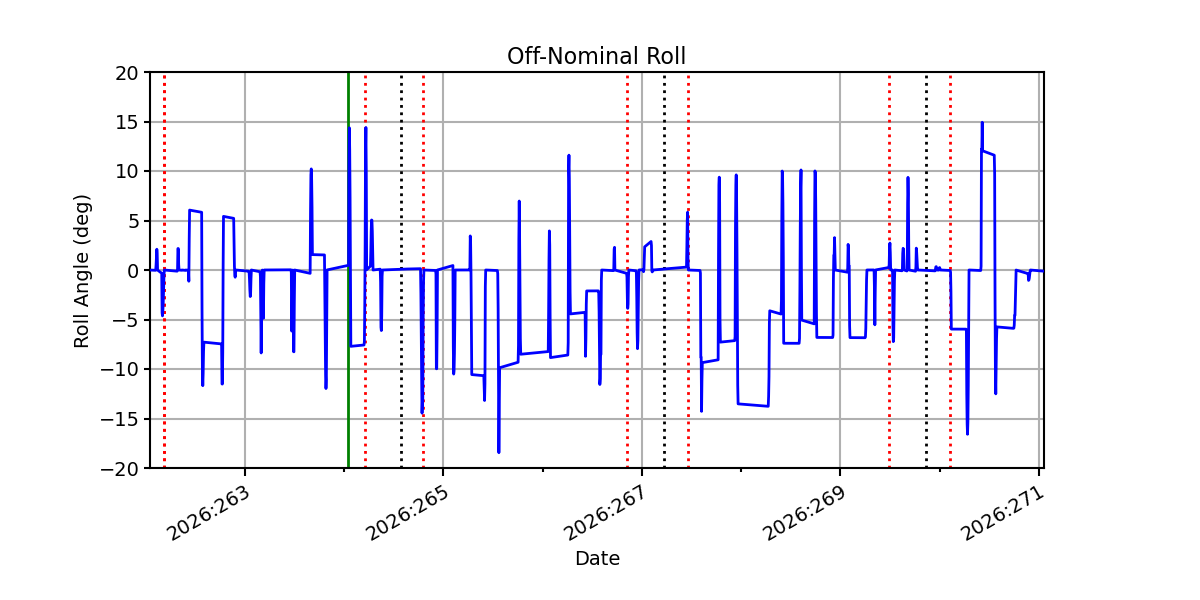

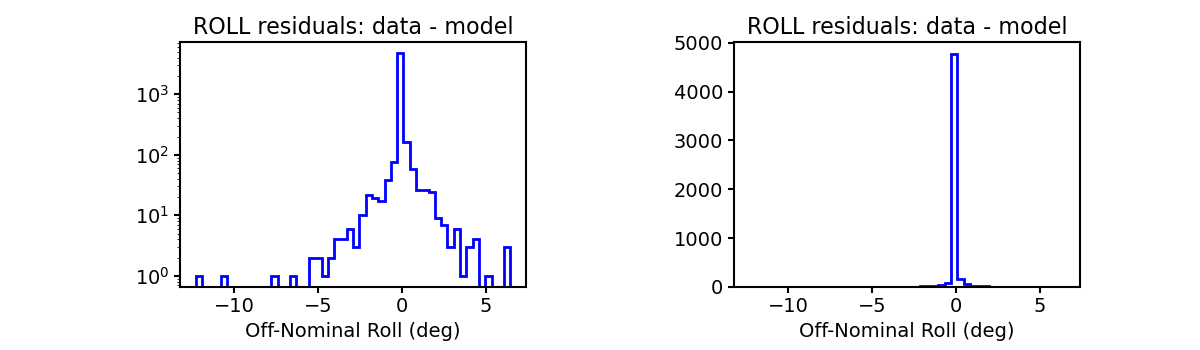

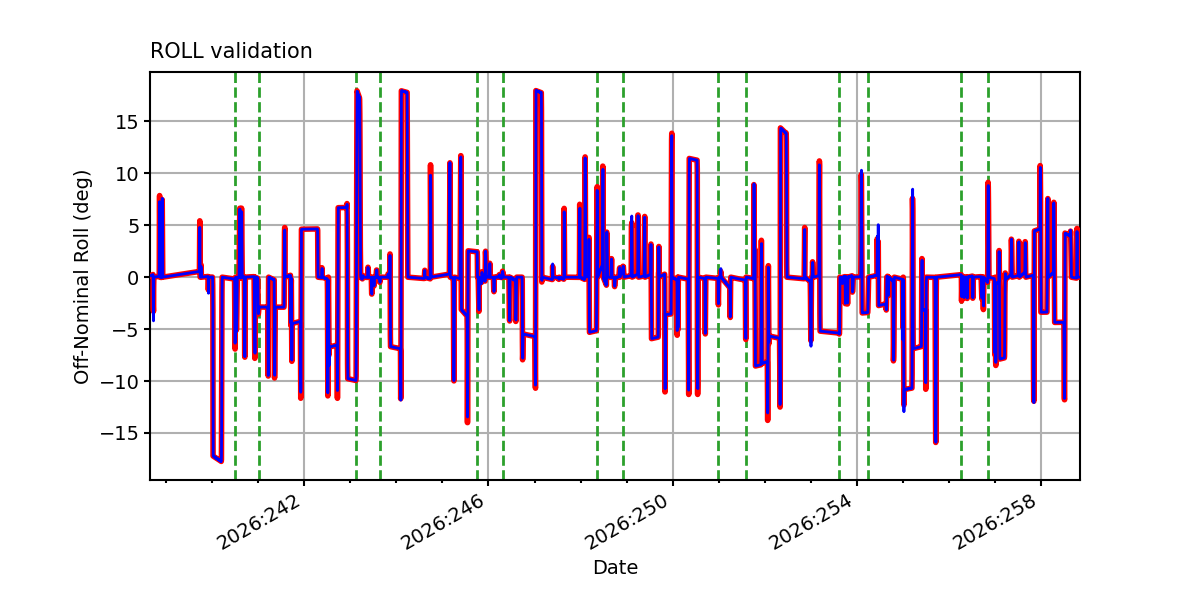

ROLL

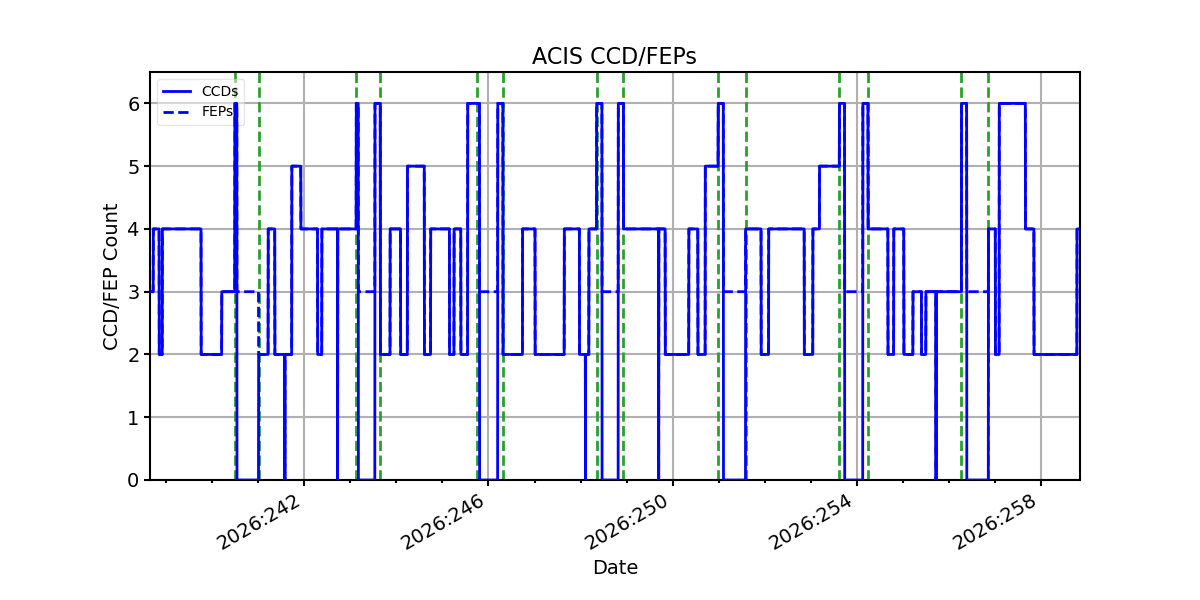

ACIS CCD/FEP Count
