BEP_PCB Temperatures Check
Summary
| Date start | 2025:265:00:04:59.816 |
| Date stop | 2025:272:00:17:23.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2225/oflsa |
| Run time | Thu Sep 18 20:57:29 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:267:03:48:54.816 | 2025:267:08:05:50.816 | 15.42 | 45.56 / 42.00 |
| 2025:267:08:35:40.251 | 2025:267:09:18:53.469 | 2.59 | 42.88 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -18.61 | -14.86 | -10.10 | -1.70 | 1.02 | 2.67 | 3.78 |
| pitch | -8.013 | -0.137 | -0.004 | 0.000 | 0.004 | 0.221 | 11.491 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.546 | -0.078 | -0.006 | -0.000 | 0.007 | 0.086 | 1.399 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -18.61 | 2.00 |
| TMP_BEP_PCB | 50 | -1.7 | 1.00 |
| TMP_BEP_PCB | 99 | 3.78 | 2.00 |
| PITCH | 1 | -8.013 | 3.00 |
| PITCH | 99 | 11.491 | 3.00 |

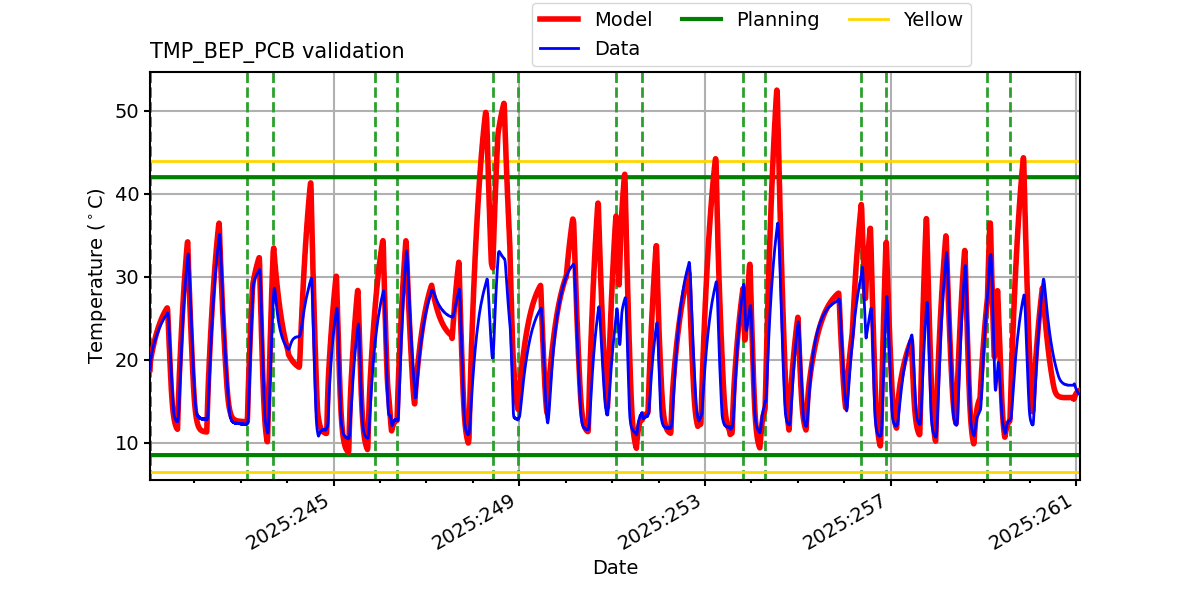

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

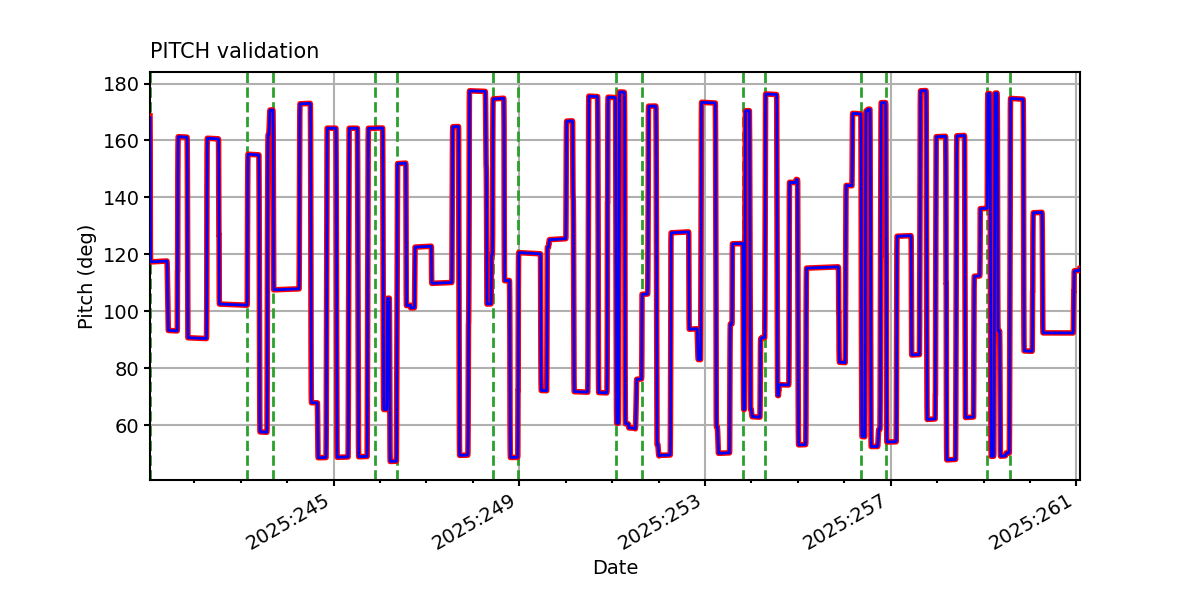

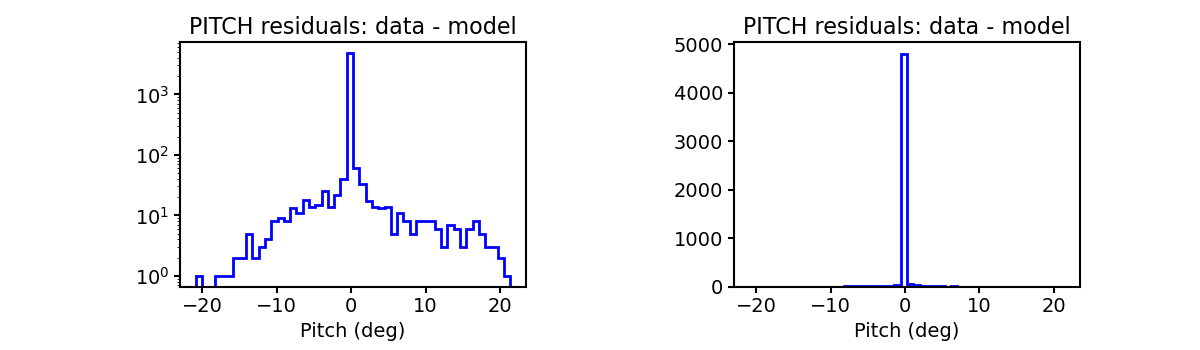

PITCH

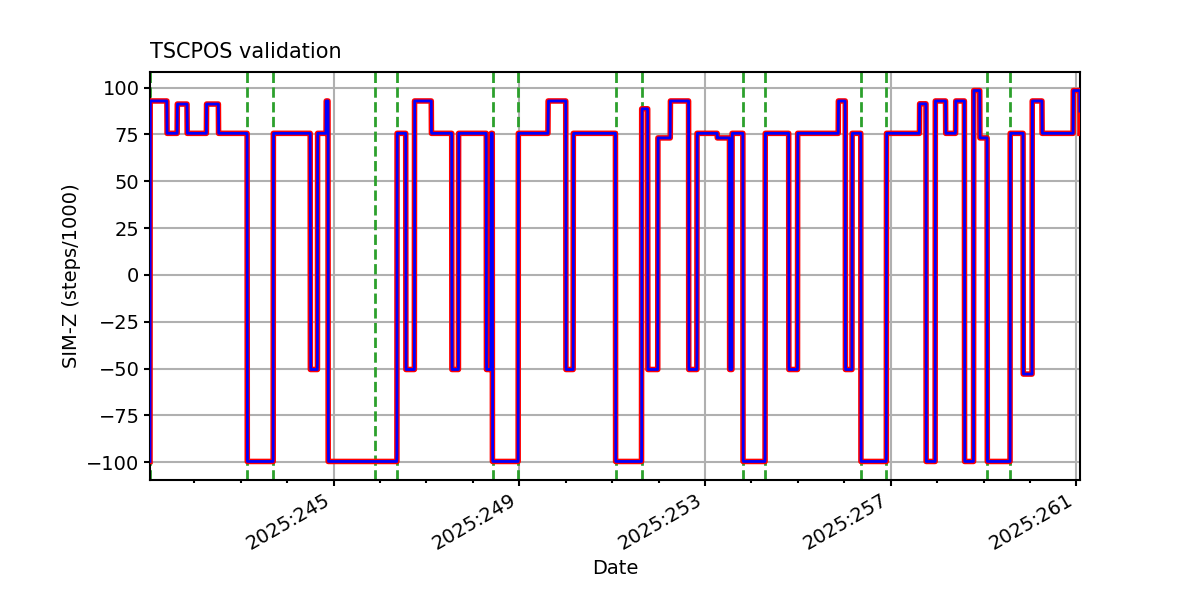

TSCPOS

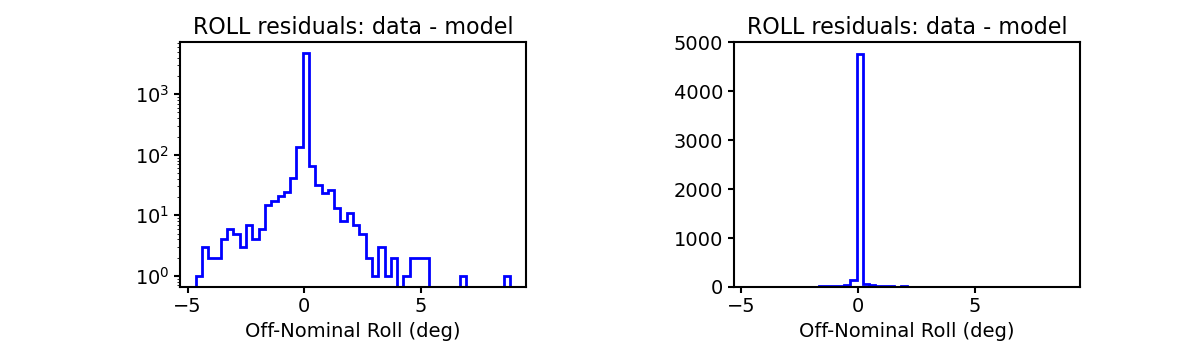

ROLL

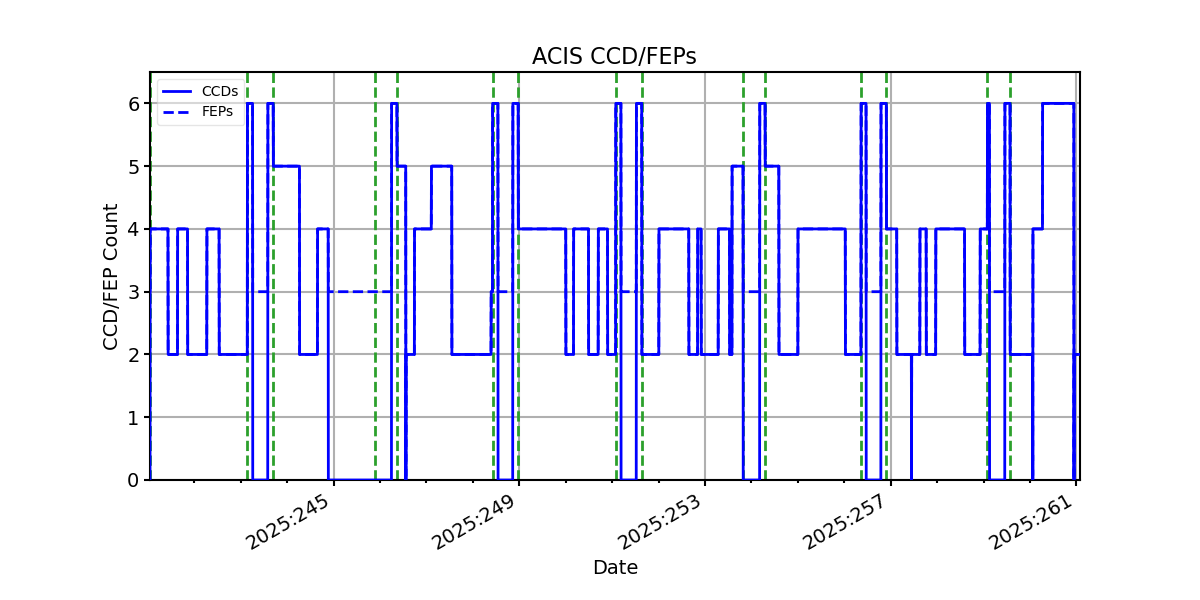

ACIS CCD/FEP Count
