BEP_PCB Temperatures Check
Summary
| Date start | 2026:271:01:21:07.416 |
| Date stop | 2026:277:13:13:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2826/oflsa |
| Run time | Wed Sep 23 15:30:33 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.15 | -10.16 | -7.37 | -2.26 | 1.04 | 3.34 | 3.95 |
| pitch | -12.092 | -1.526 | -0.004 | -0.000 | 0.004 | 1.566 | 12.258 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.937 | -0.188 | -0.009 | 0.000 | 0.009 | 0.222 | 1.720 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.15 | 2.00 |
| TMP_BEP_PCB | 50 | -2.26 | 1.00 |
| TMP_BEP_PCB | 99 | 3.95 | 2.00 |
| PITCH | 1 | -12.092 | 3.00 |
| PITCH | 99 | 12.258 | 3.00 |

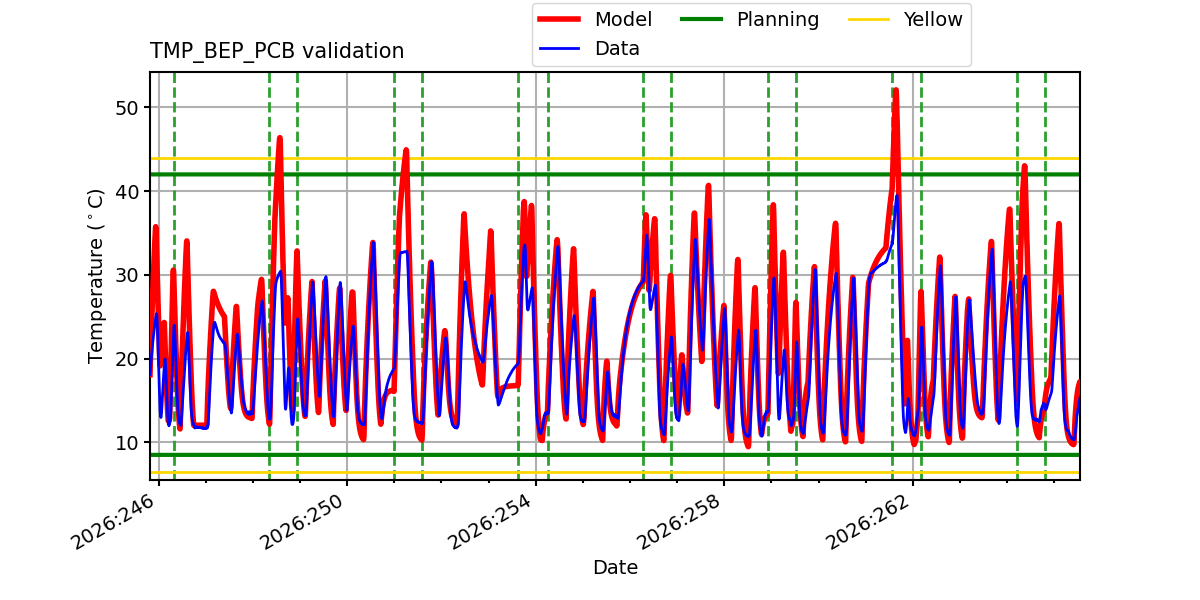

TMP_BEP_PCB

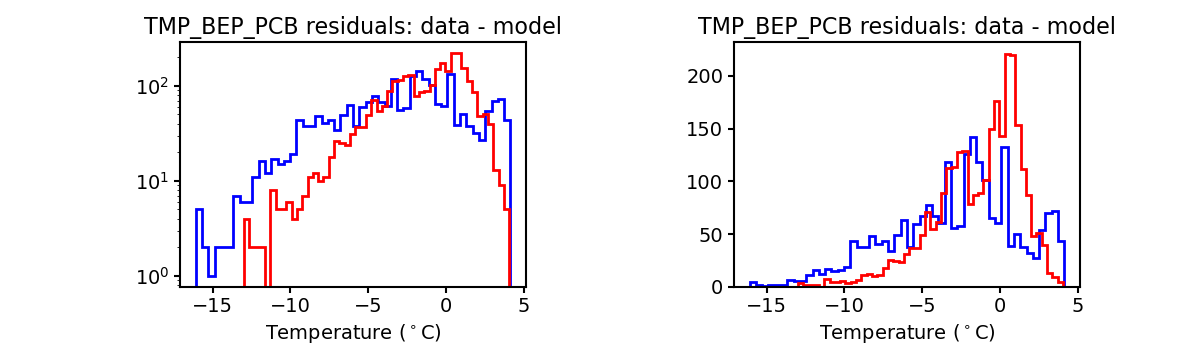

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

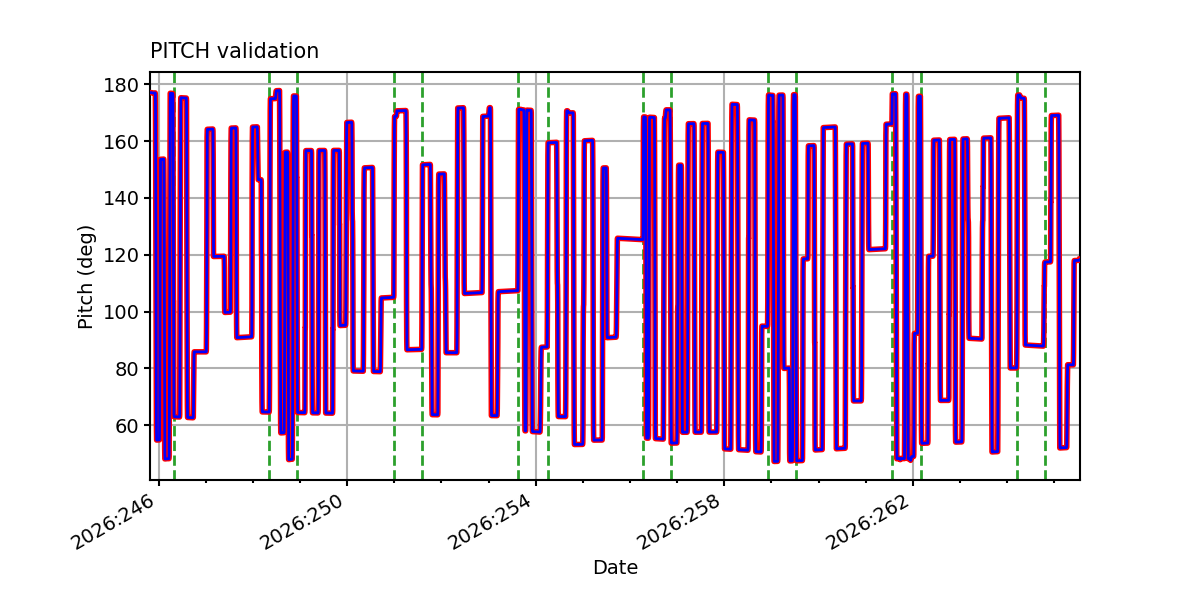

PITCH

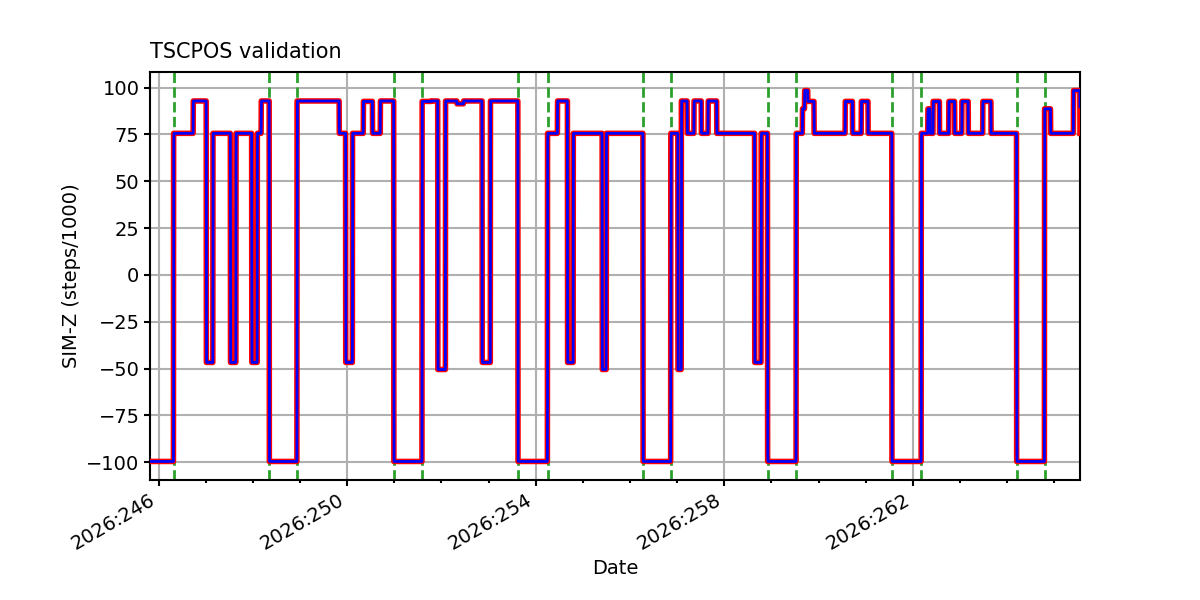

TSCPOS

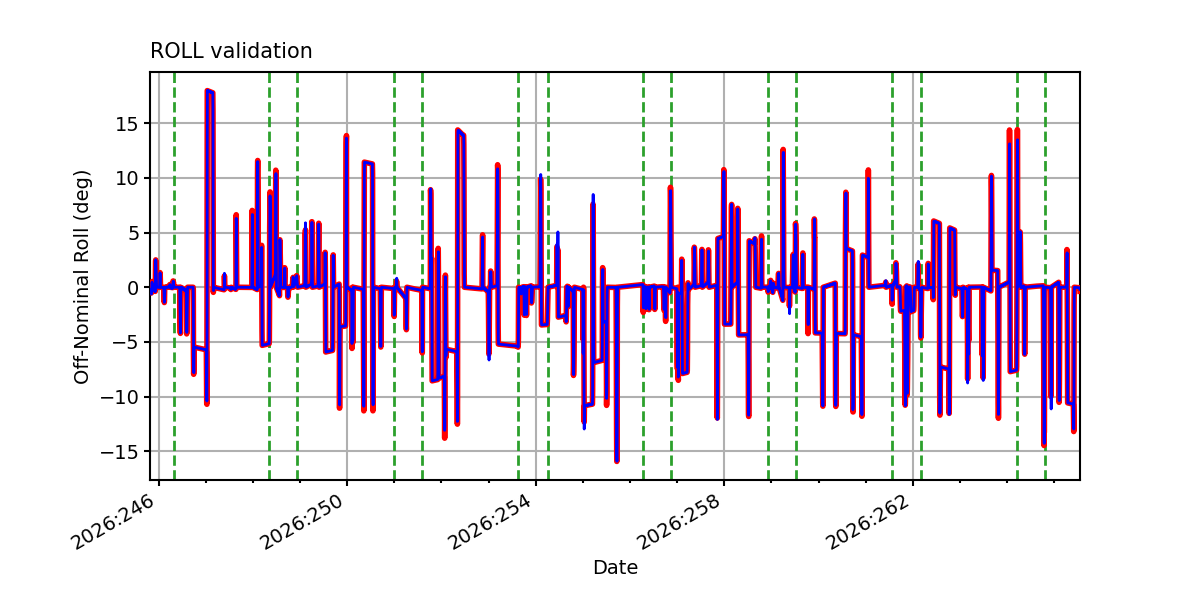

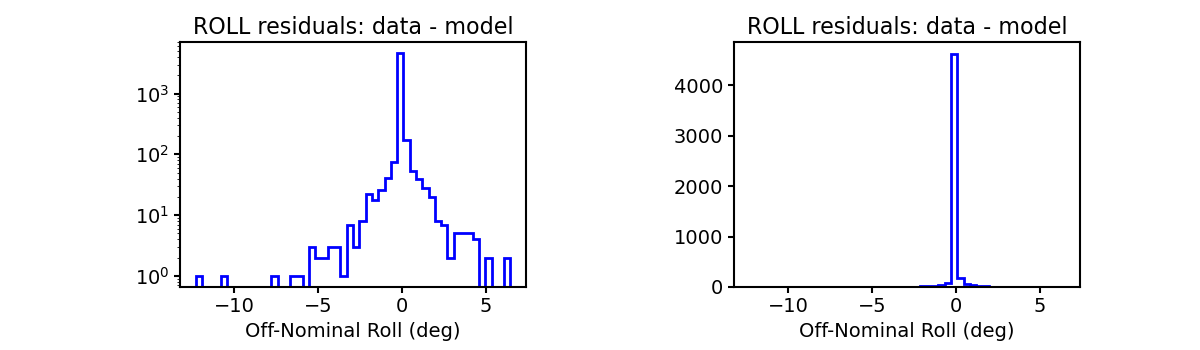

ROLL

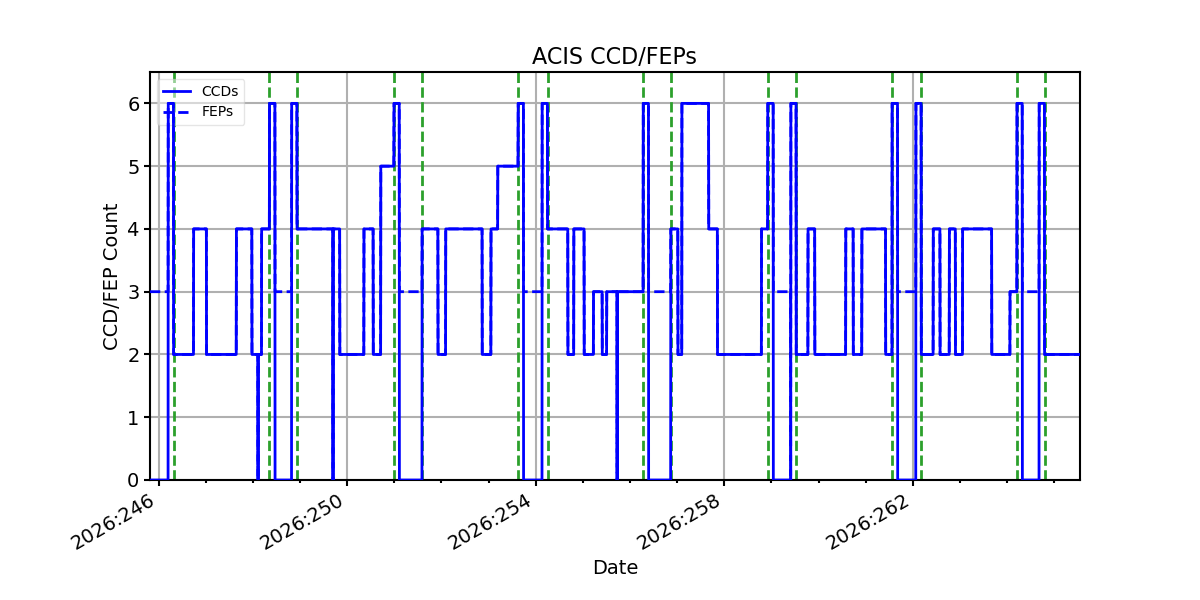

ACIS CCD/FEP Count
