BEP_PCB Temperatures Check
Summary
| Date start | 2025:272:00:14:23.616 |
| Date stop | 2025:278:23:13:04.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2925/oflsa |
| Run time | Thu Sep 25 10:02:21 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:272:09:32:54.816 | 2025:272:10:48:02.710 | 4.51 | 43.16 / 42.00 |
| 2025:275:00:30:22.816 | 2025:275:01:48:02.837 | 4.66 | 43.78 / 42.00 |
| 2025:277:06:10:14.816 | 2025:277:06:32:54.680 | 1.36 | 42.62 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -18.61 | -14.97 | -11.07 | -2.81 | 0.44 | 3.06 | 4.03 |
| pitch | -9.068 | -0.417 | -0.004 | 0.000 | 0.004 | 0.460 | 12.748 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.595 | -0.149 | -0.008 | -0.000 | 0.007 | 0.106 | 1.559 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -18.61 | 2.00 |
| TMP_BEP_PCB | 50 | -2.81 | 1.00 |
| TMP_BEP_PCB | 99 | 4.03 | 2.00 |
| PITCH | 1 | -9.068 | 3.00 |
| PITCH | 99 | 12.748 | 3.00 |

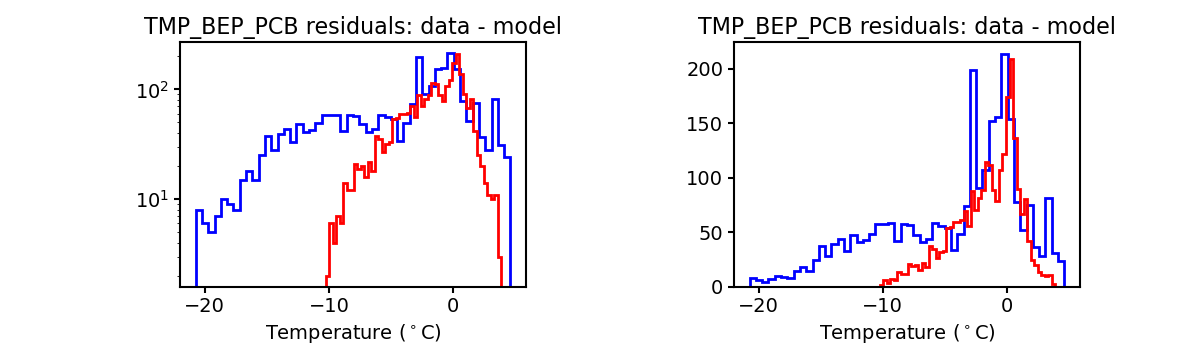

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

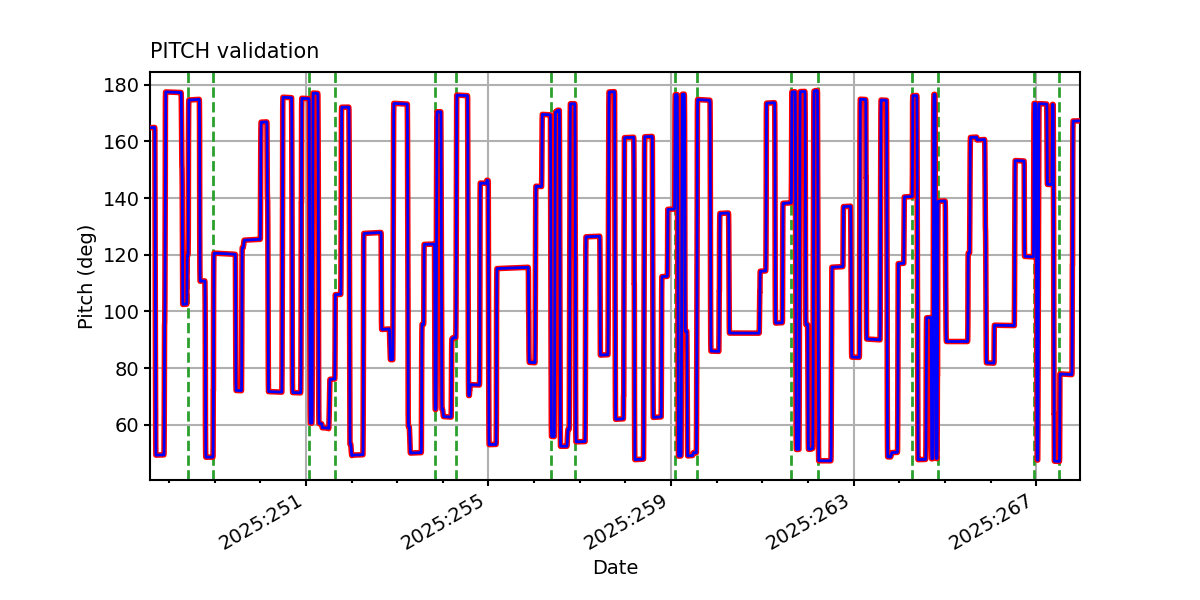

PITCH

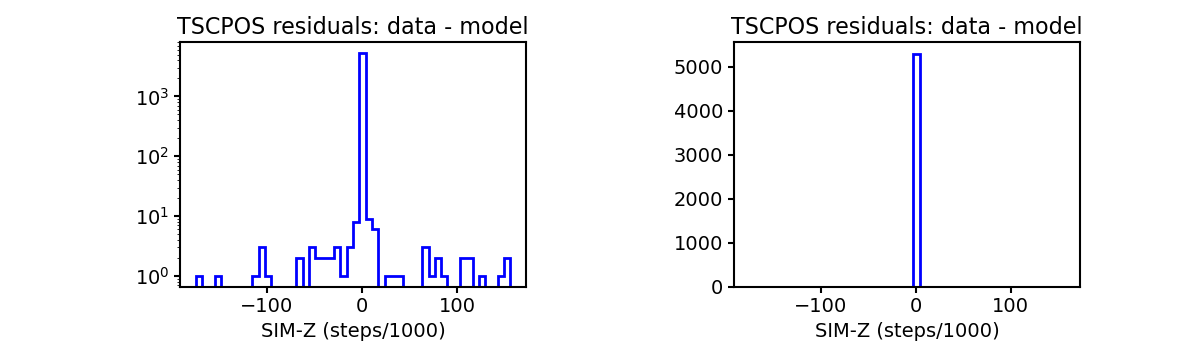

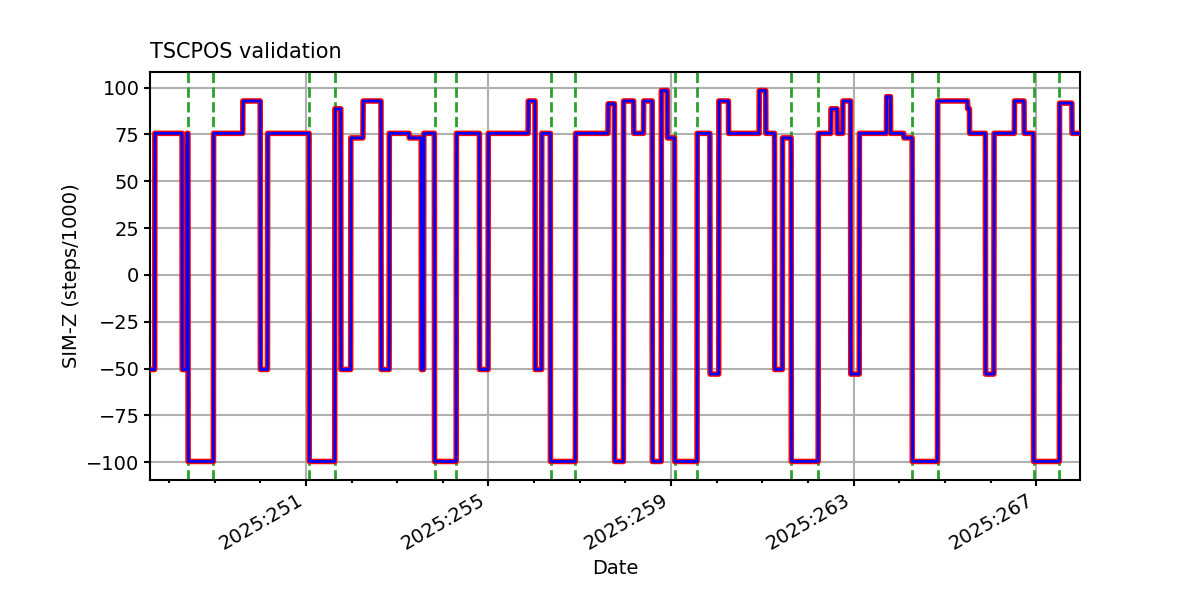

TSCPOS

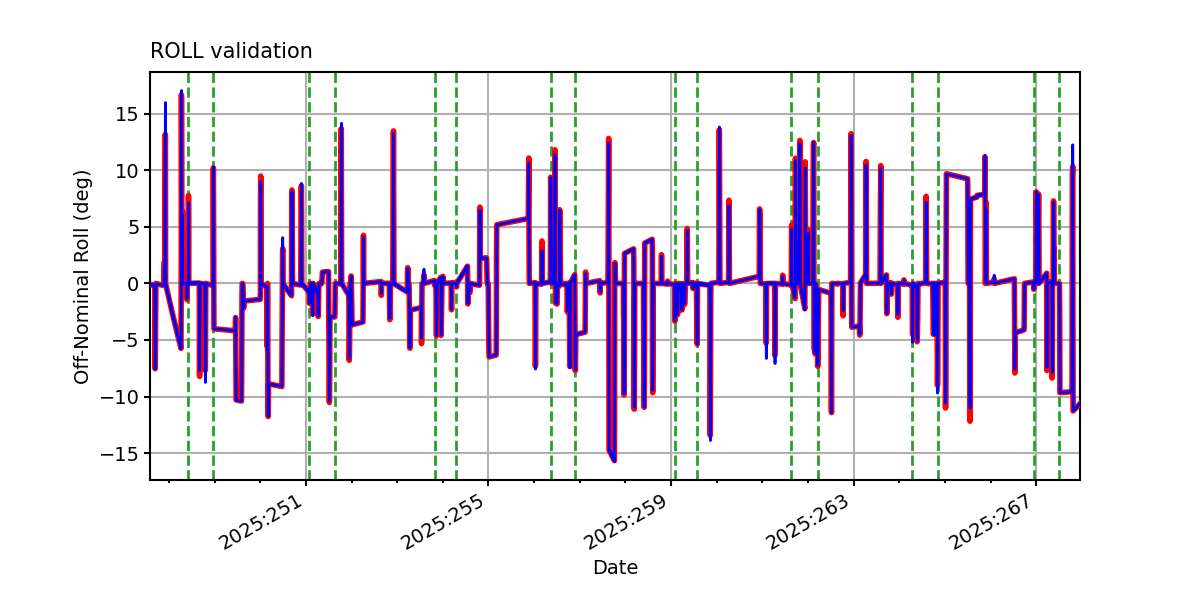

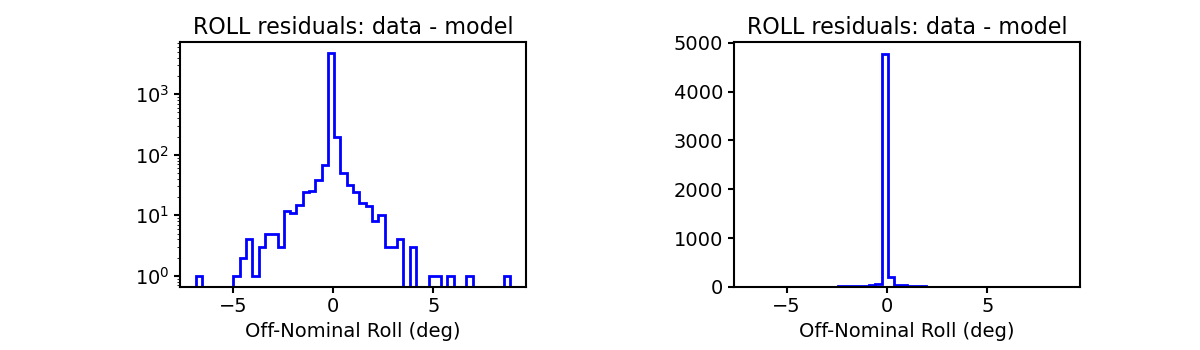

ROLL

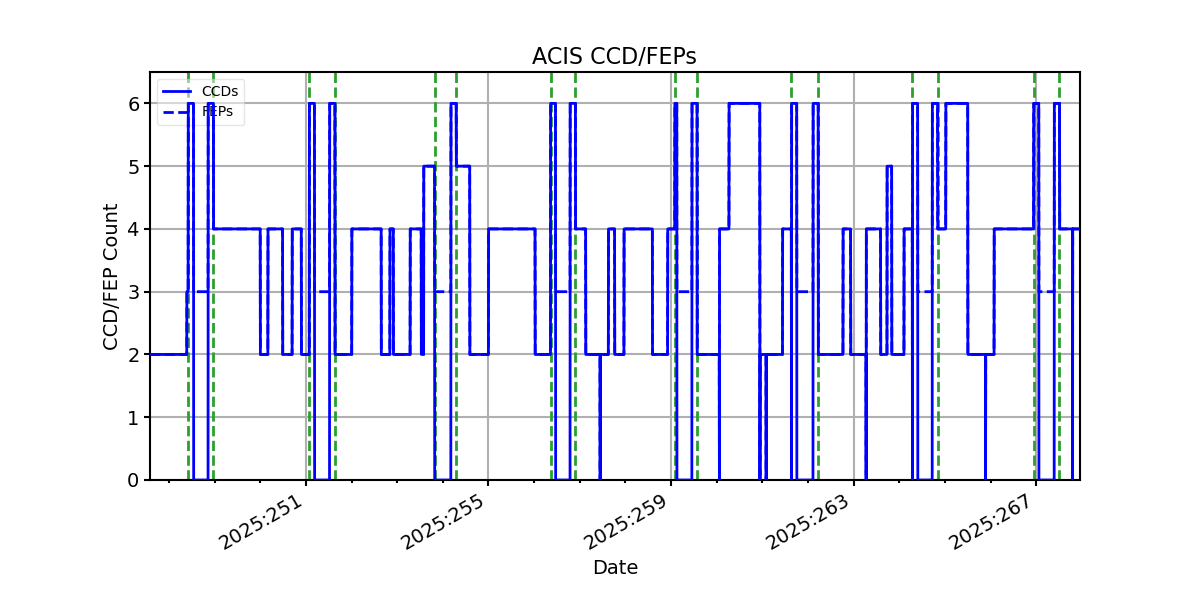

ACIS CCD/FEP Count
