DEA Temperatures Check
Summary
| Date start | 2026:103:00:26:00.016 |
| Date stop | 2026:110:01:32:52.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/APR1326/oflsa |
| Run time | Wed Apr 8 16:50:27 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.58 | -1.29 | -1.08 | -0.12 | 1.02 | 1.71 | 2.05 |
| pitch | -12.422 | -1.106 | -0.004 | -0.000 | 0.004 | 1.635 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.210 | -0.185 | -0.007 | -0.000 | 0.007 | 0.164 | 2.112 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.05 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

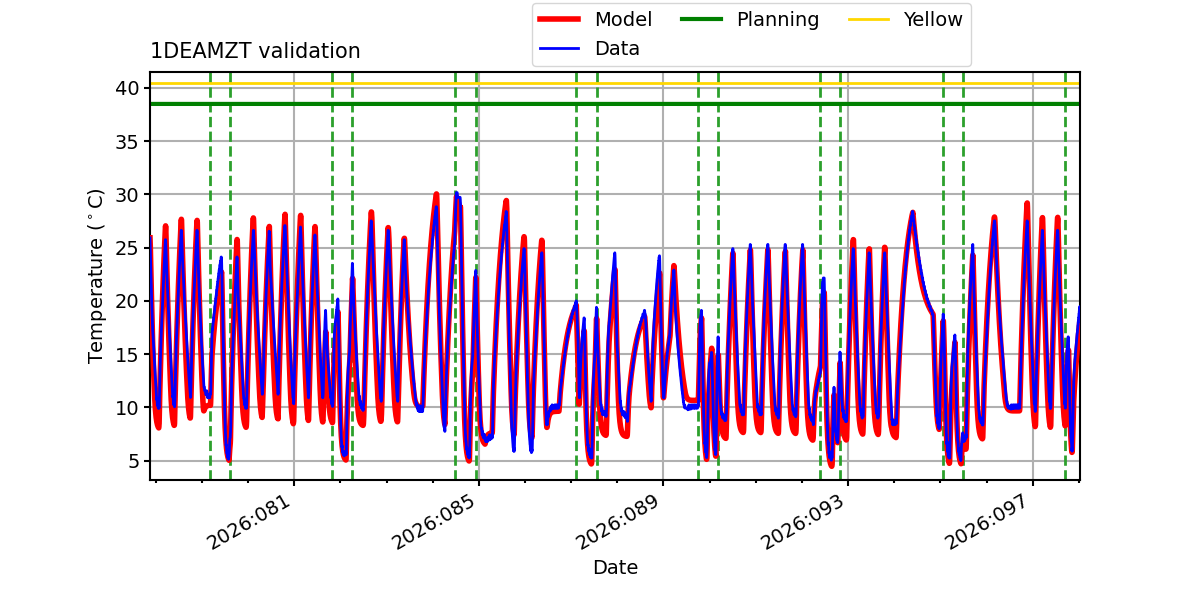

1DEAMZT

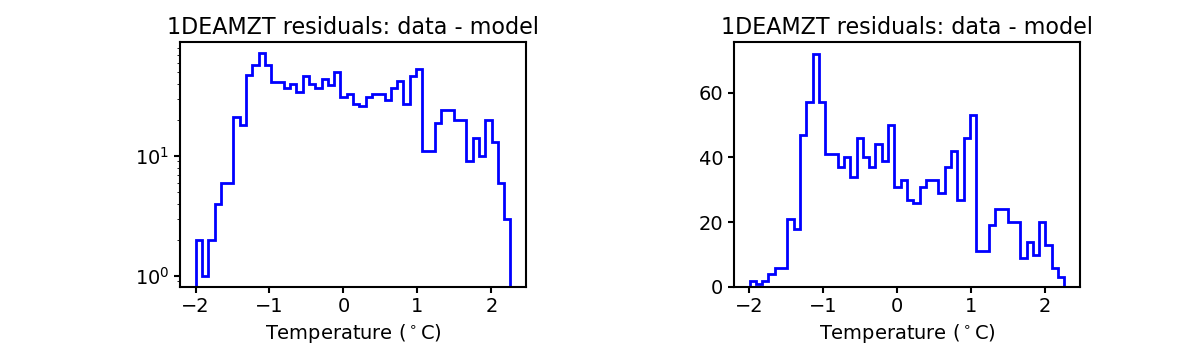

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.
PITCH

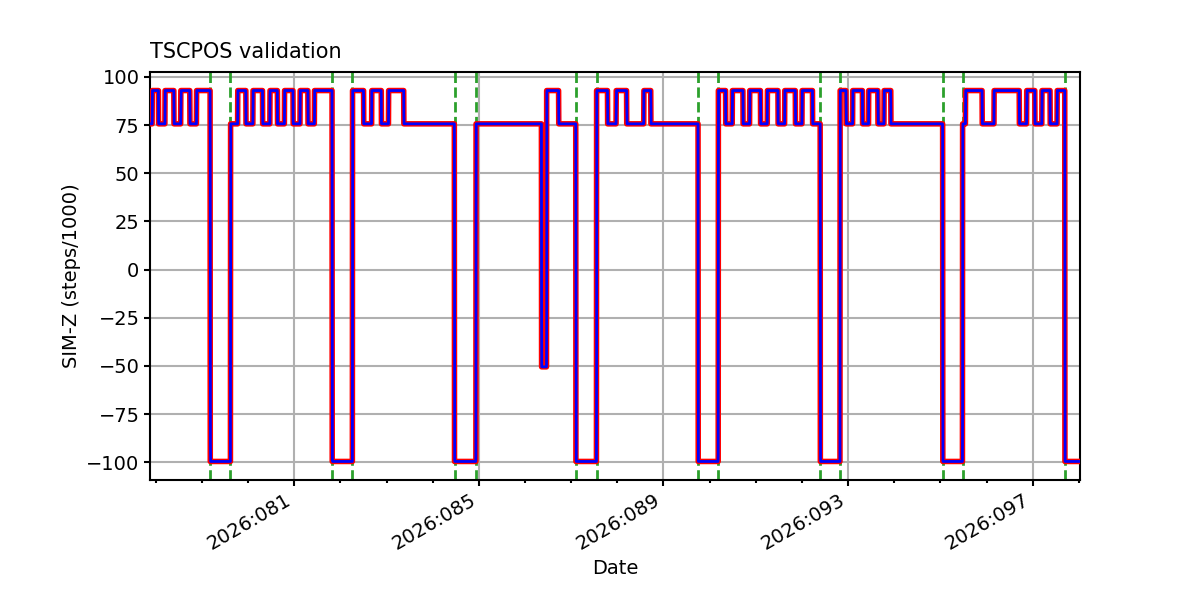

TSCPOS

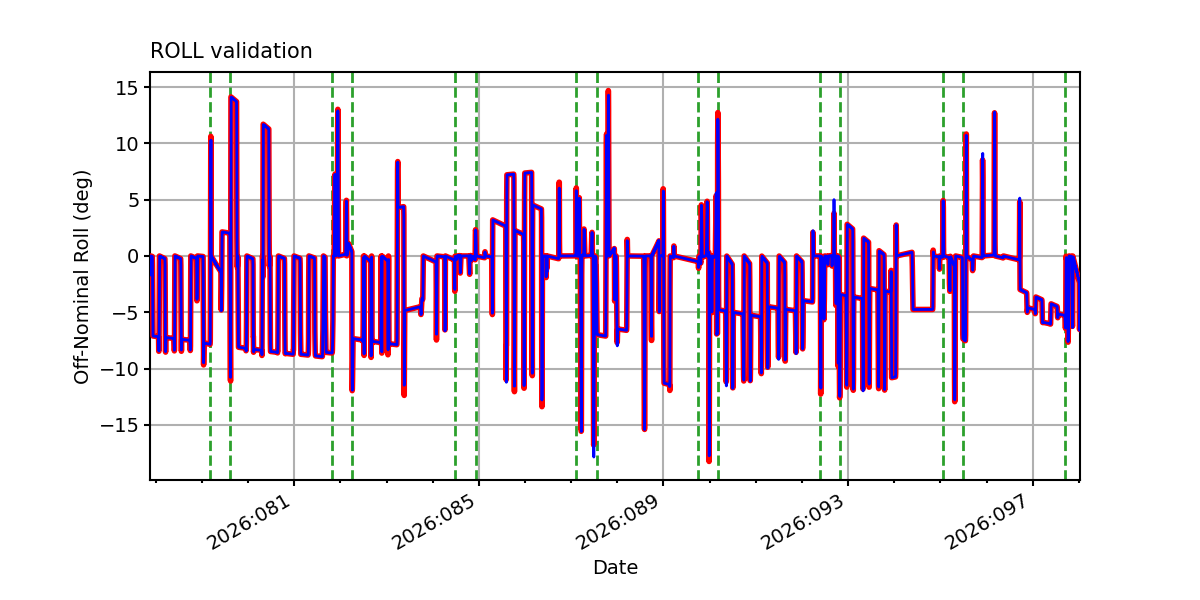

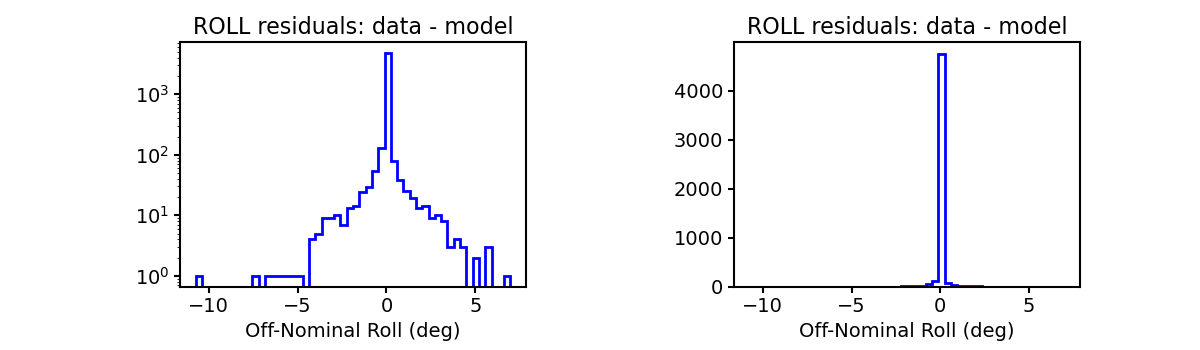

ROLL

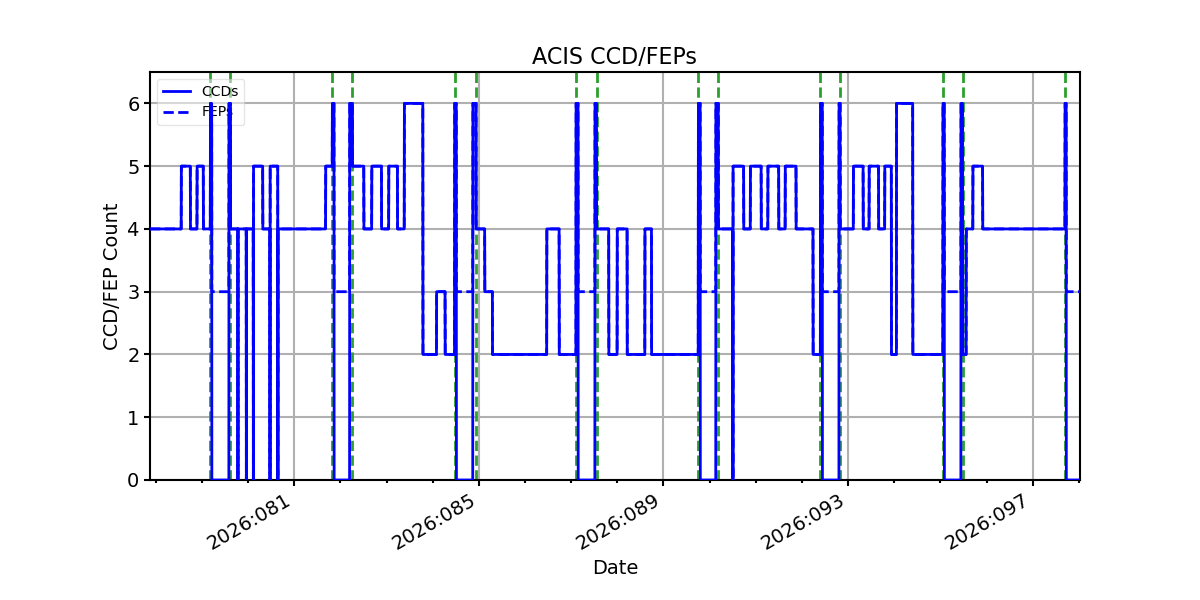

ACIS CCD/FEP Count
