DEA Temperatures Check
Summary
| Date start | 2025:216:00:55:48.416 |
| Date stop | 2025:222:16:35:40.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG0425/ofls |
| Run time | Wed Jul 30 12:33:49 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.53 | -1.27 | -0.74 | -0.11 | 0.78 | 1.61 | 2.23 |
| pitch | -9.335 | -0.136 | -0.004 | 0.000 | 0.004 | 0.366 | 8.459 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.035 | -0.108 | -0.006 | -0.000 | 0.006 | 0.093 | 1.802 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.23 | 2.00 |
| PITCH | 1 | -9.335 | 3.00 |
| PITCH | 99 | 8.459 | 3.00 |

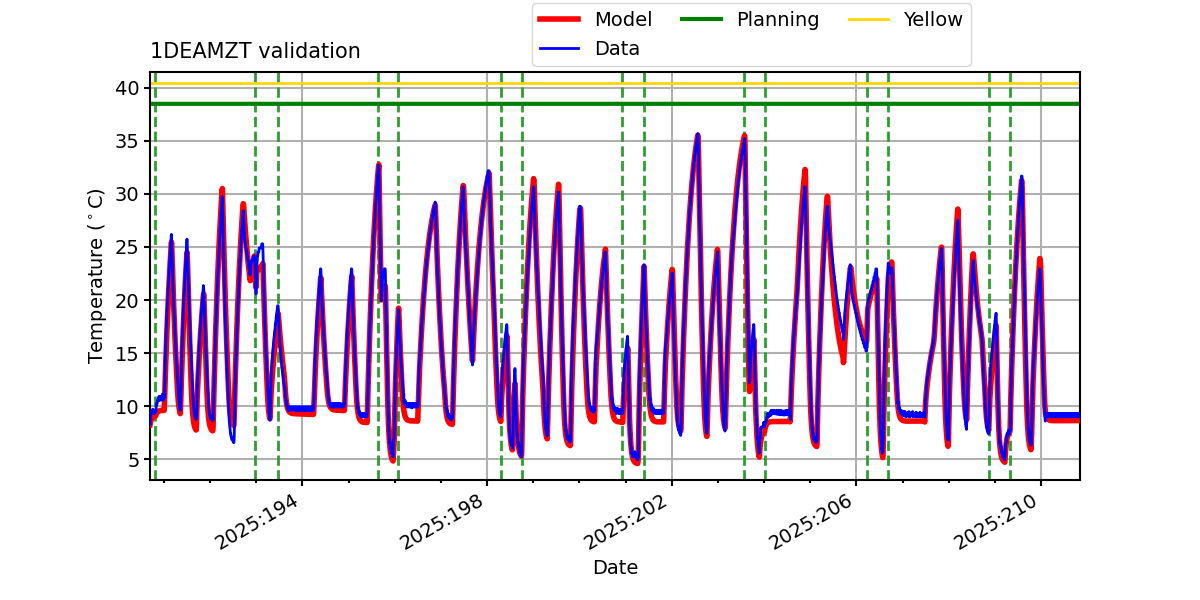

1DEAMZT

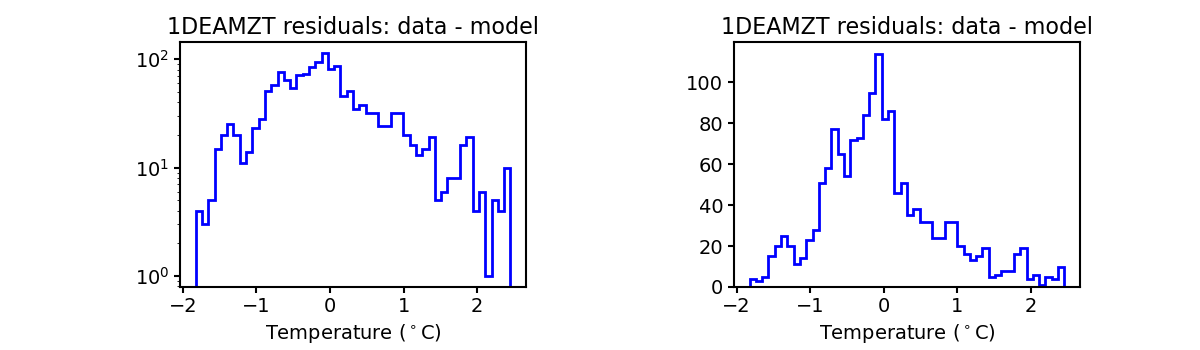

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.
PITCH

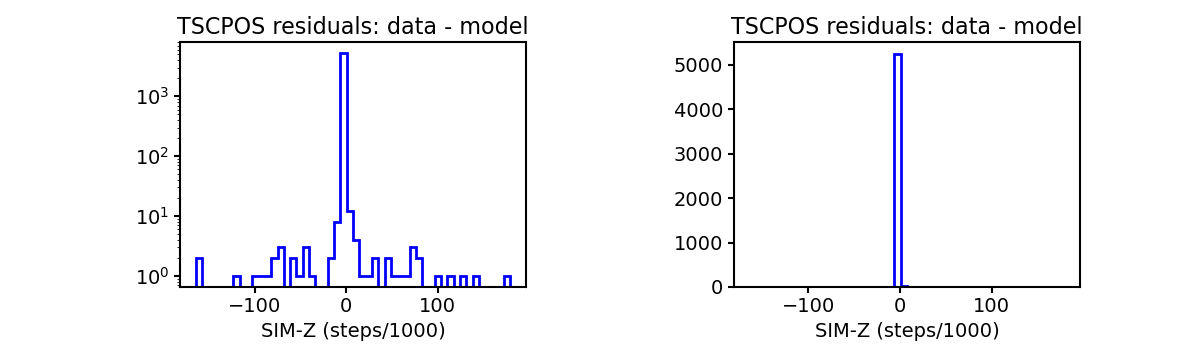

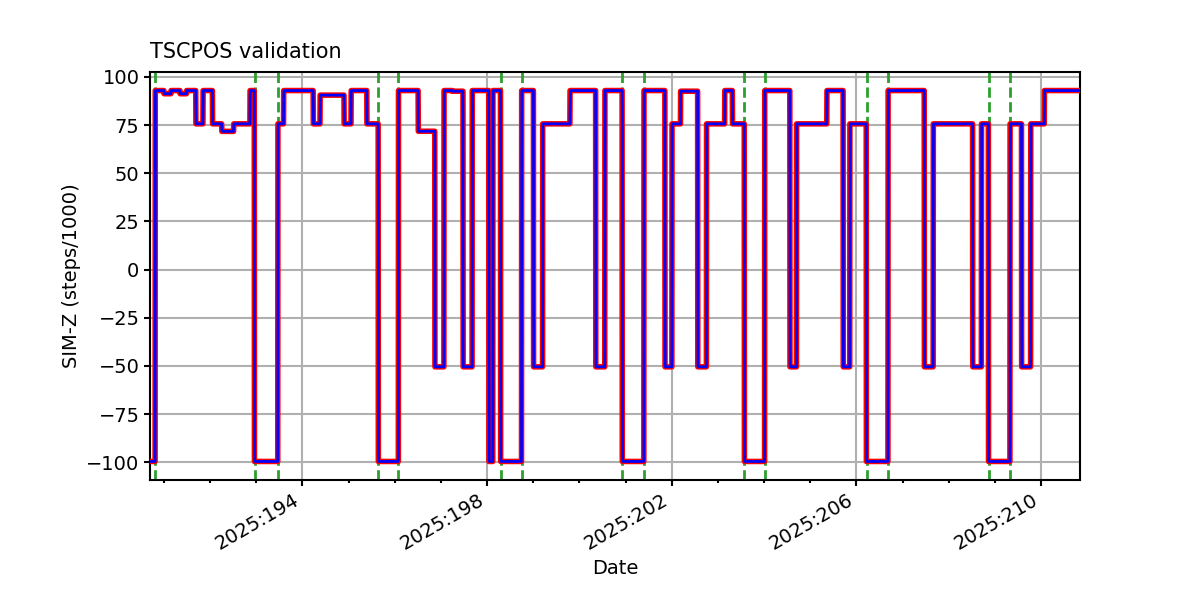

TSCPOS

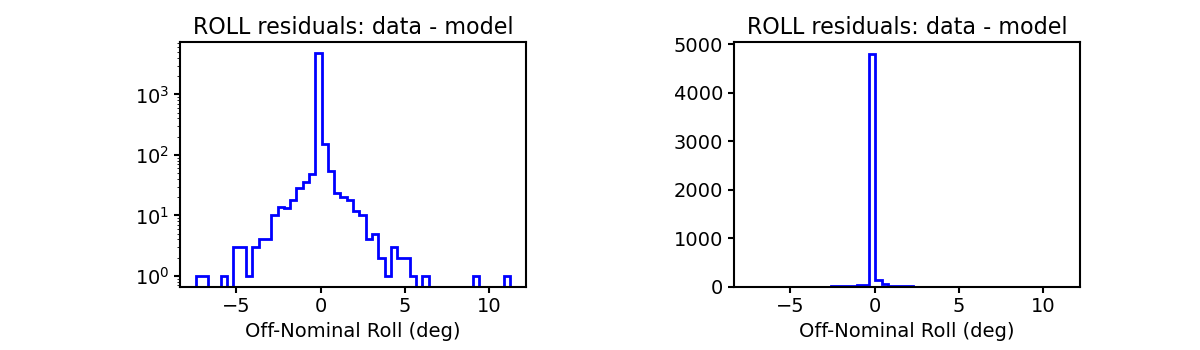

ROLL

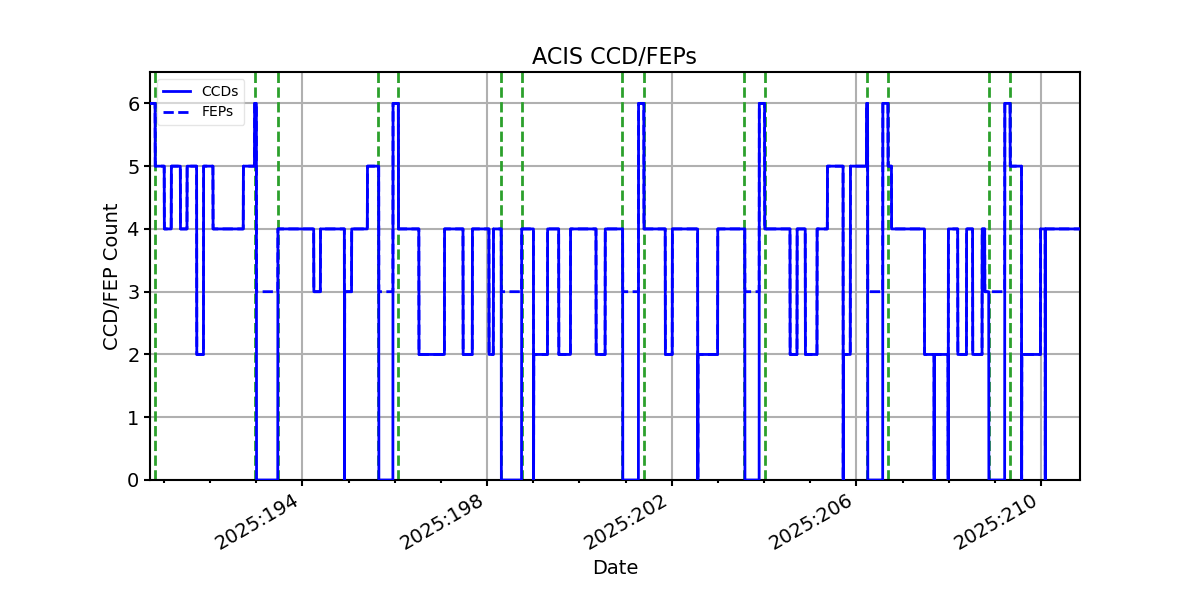

ACIS CCD/FEP Count
