DEA Temperatures Check
Summary
| Date start | 2025:222:16:32:40.916 |
| Date stop | 2025:230:00:53:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1125/oflsa |
| Run time | Wed Aug 6 15:41:15 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.48 | -1.21 | -0.76 | -0.16 | 0.55 | 1.07 | 2.23 |
| pitch | -10.967 | -0.326 | -0.004 | 0.000 | 0.004 | 0.541 | 9.724 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.780 | -0.112 | -0.006 | -0.000 | 0.005 | 0.121 | 1.591 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.23 | 2.00 |
| PITCH | 1 | -10.967 | 3.00 |
| PITCH | 99 | 9.724 | 3.00 |

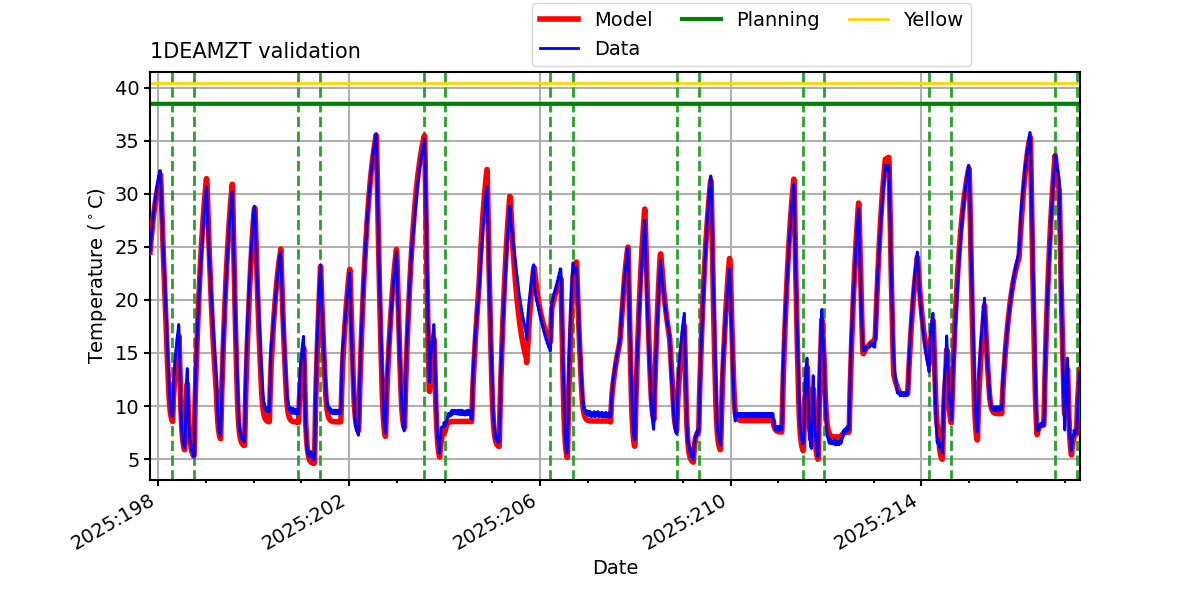

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

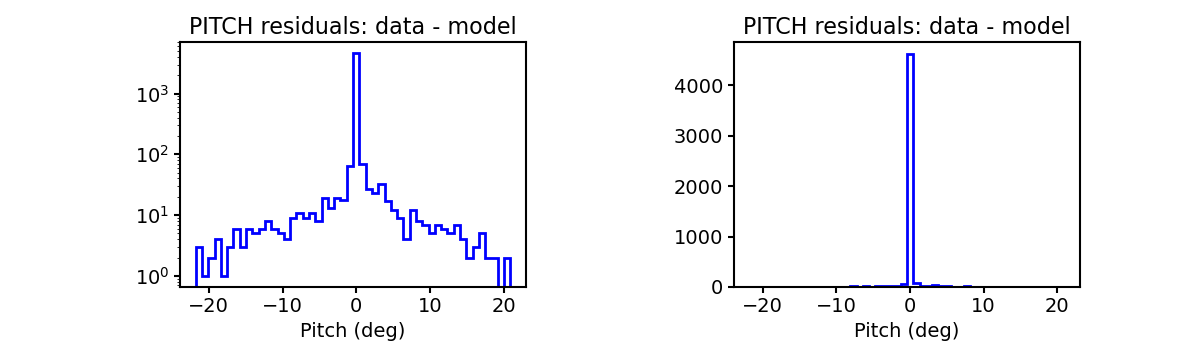

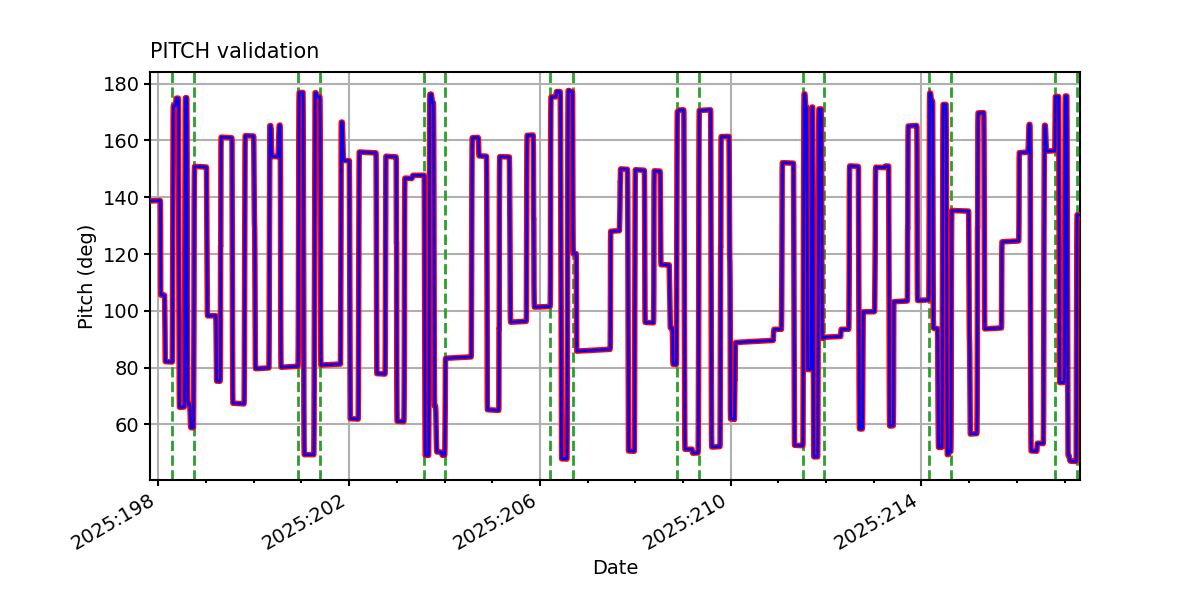

PITCH

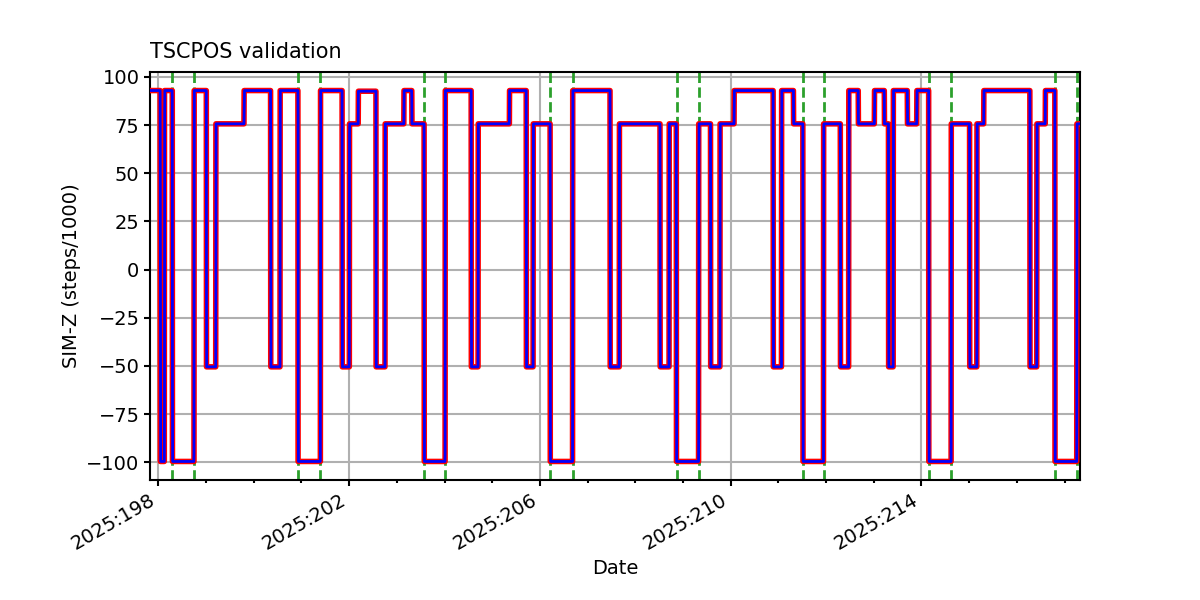

TSCPOS

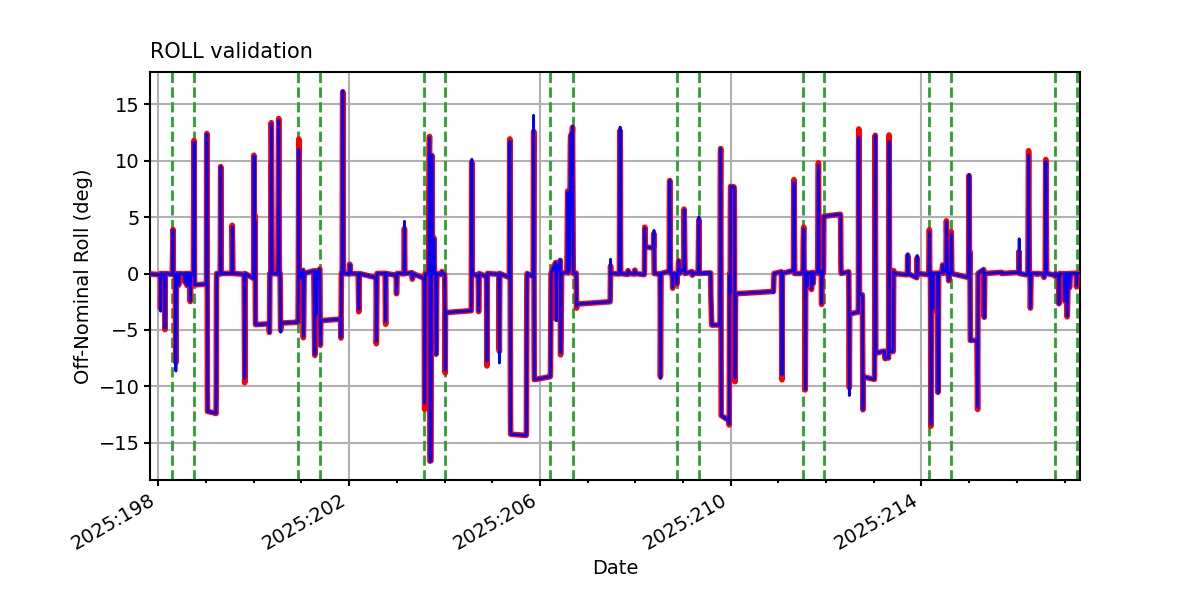

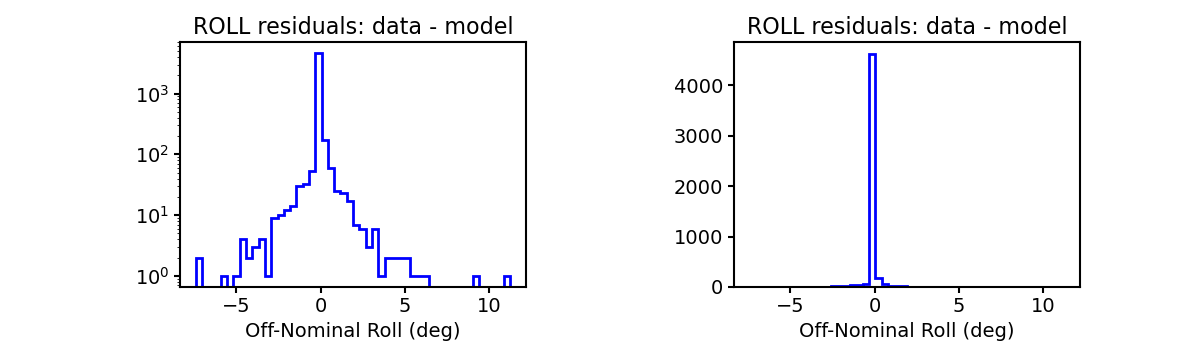

ROLL

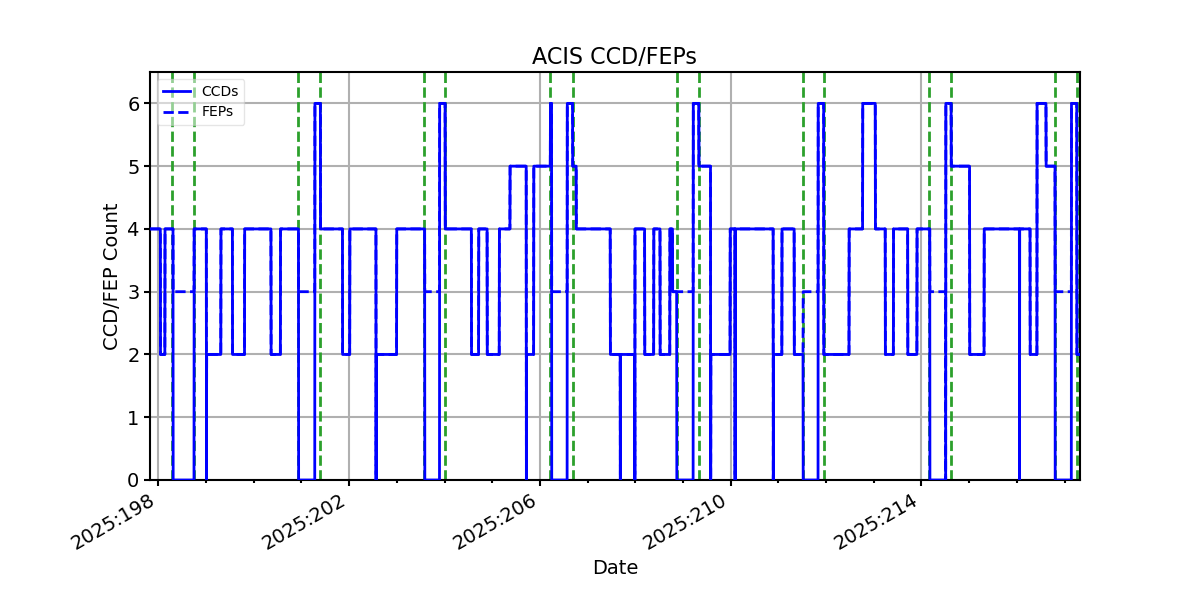

ACIS CCD/FEP Count
