DEA Temperatures Check
Summary
| Date start | 2026:229:01:16:21.916 |
| Date stop | 2026:235:21:59:21.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1726/oflsa |
| Run time | Thu Aug 13 13:39:36 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.18 | -0.92 | -0.68 | -0.20 | 1.41 | 1.93 | 2.22 |
| pitch | -10.498 | -1.398 | -0.004 | 0.000 | 0.004 | 0.961 | 11.313 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.937 | -0.195 | -0.009 | 0.000 | 0.009 | 0.304 | 2.030 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.22 | 2.00 |
| PITCH | 1 | -10.498 | 3.00 |
| PITCH | 99 | 11.313 | 3.00 |

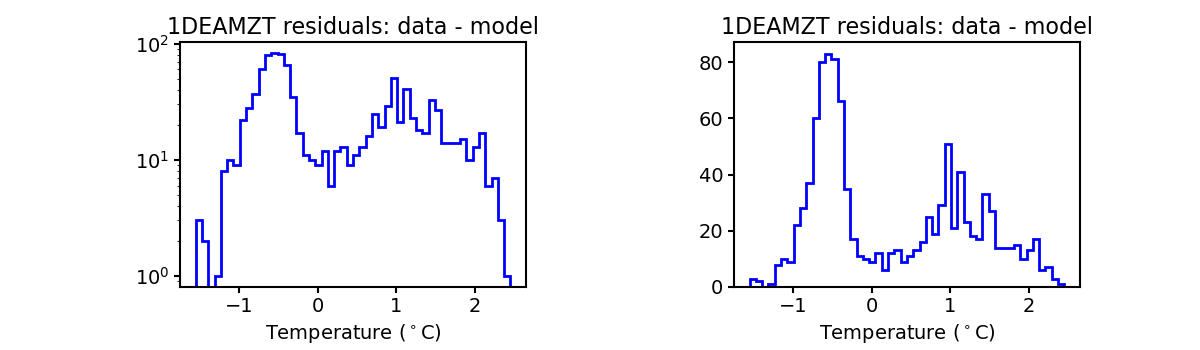

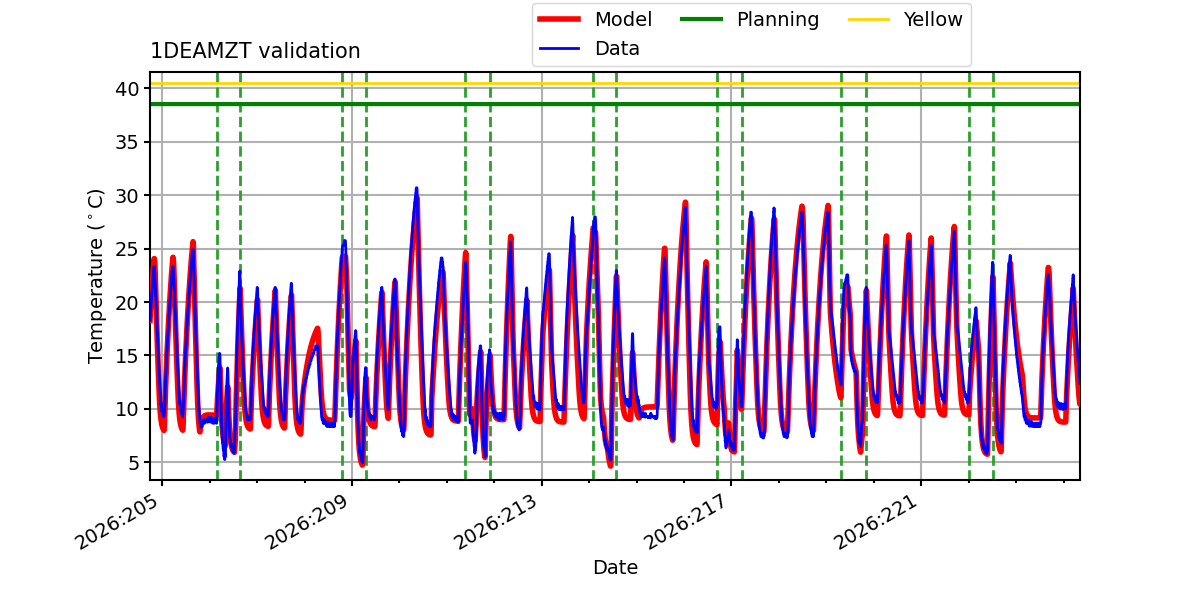

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

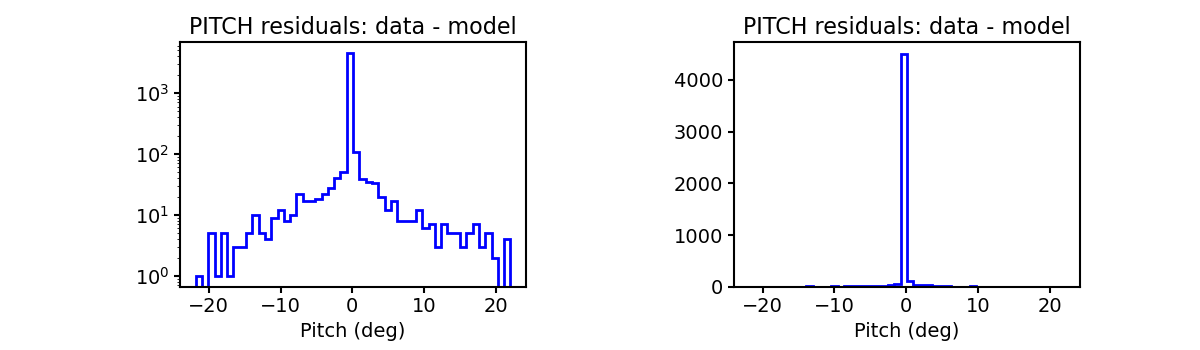

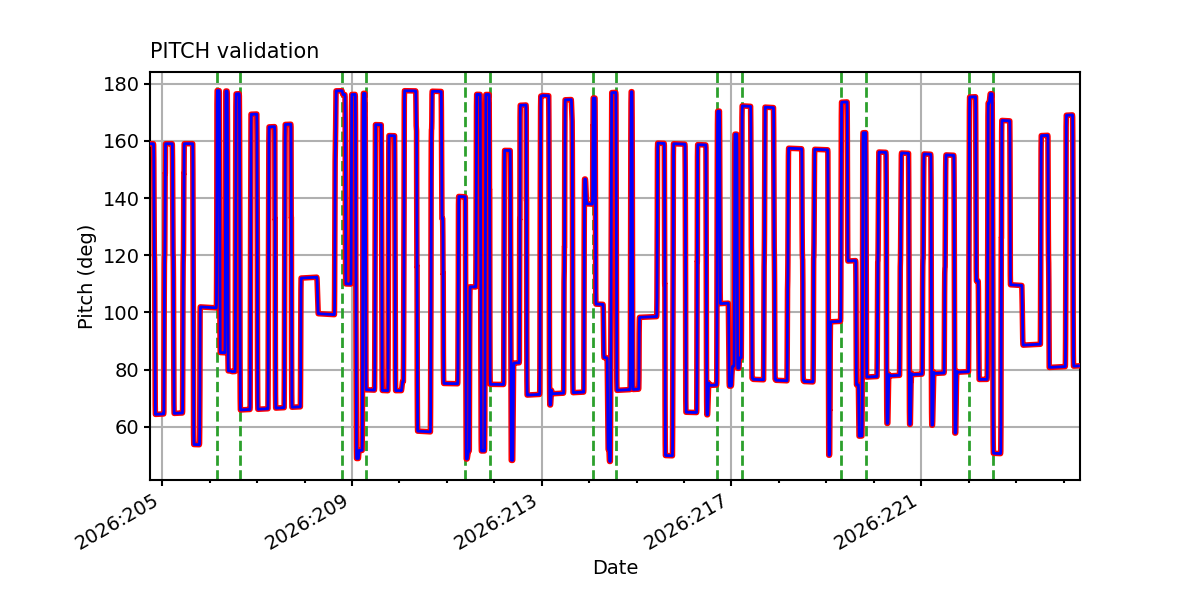

PITCH

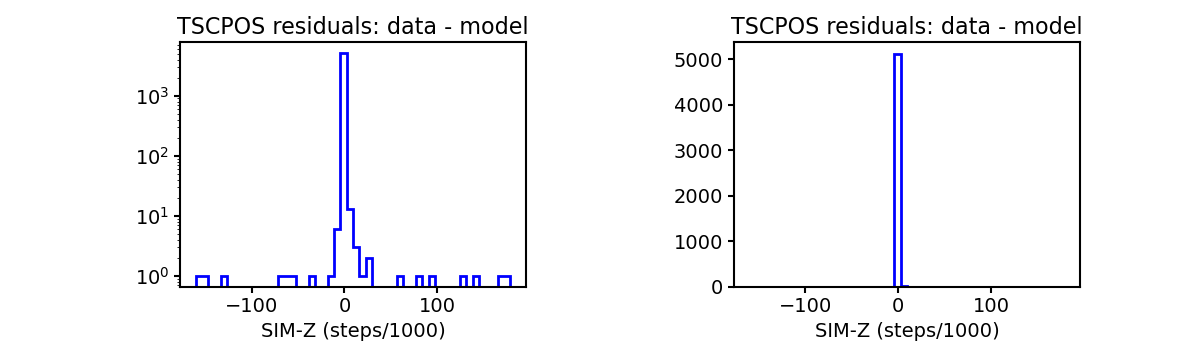

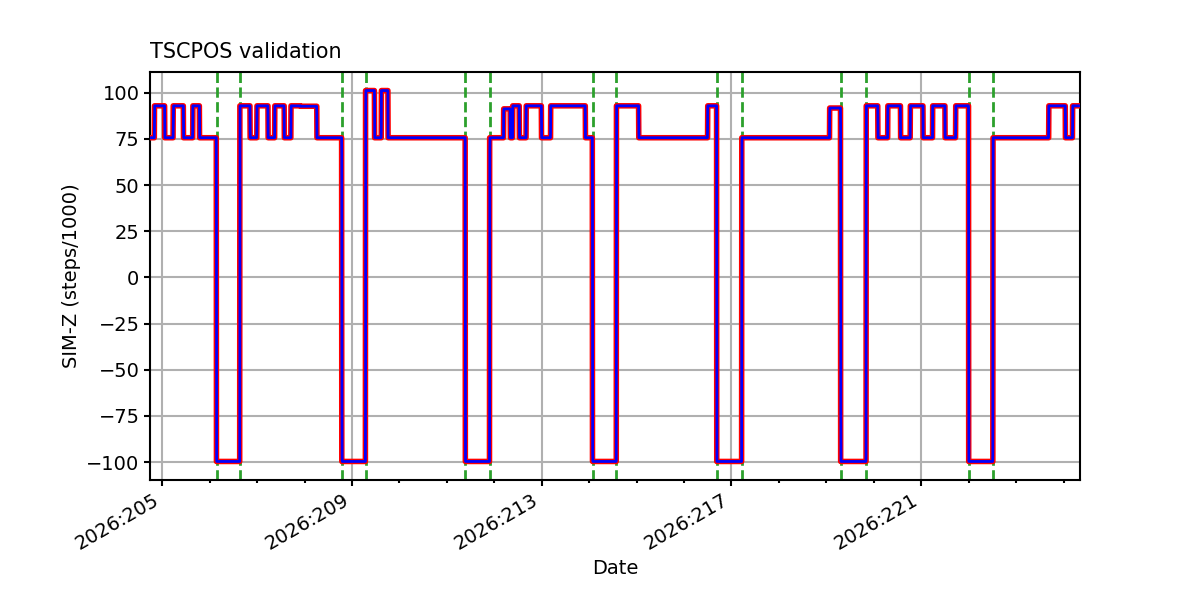

TSCPOS

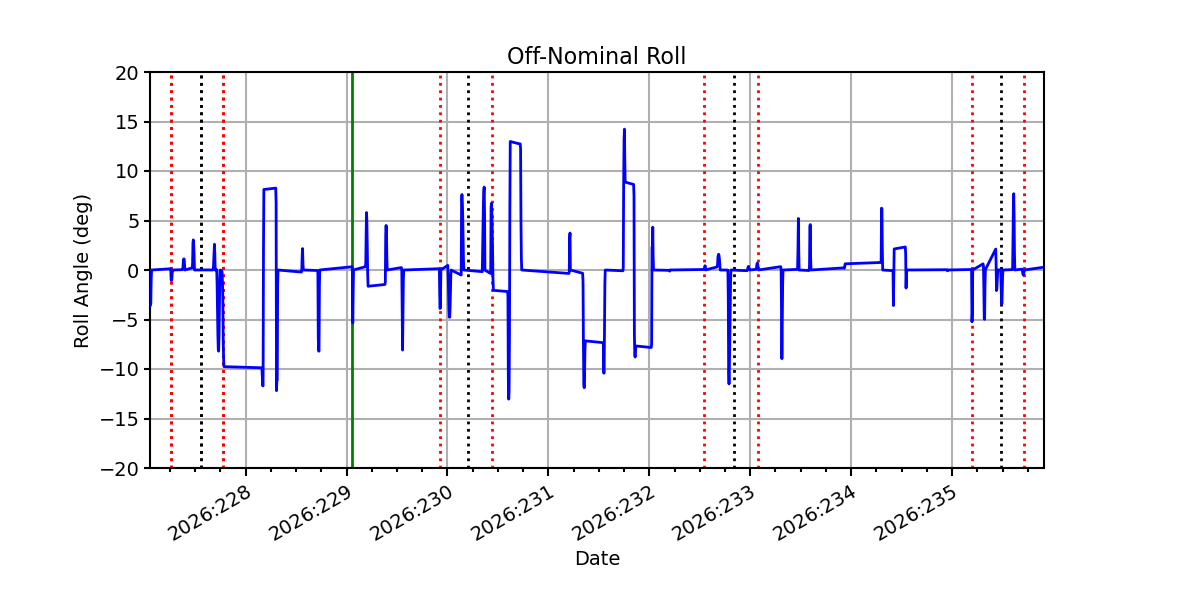

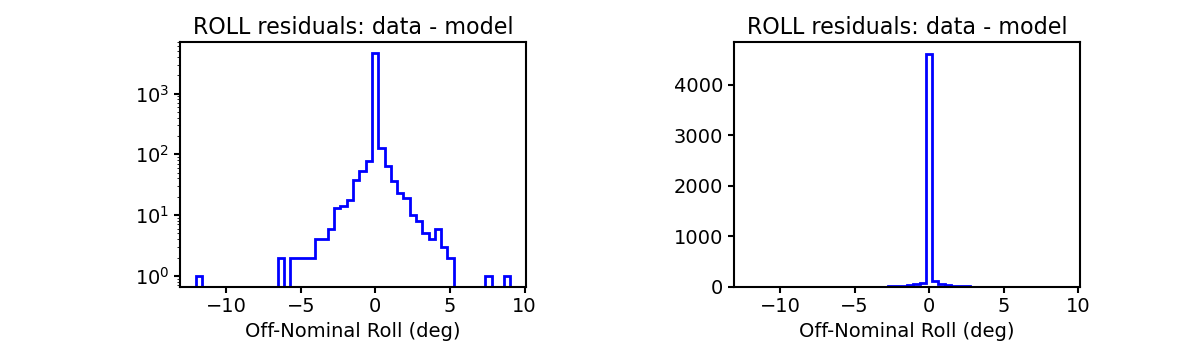

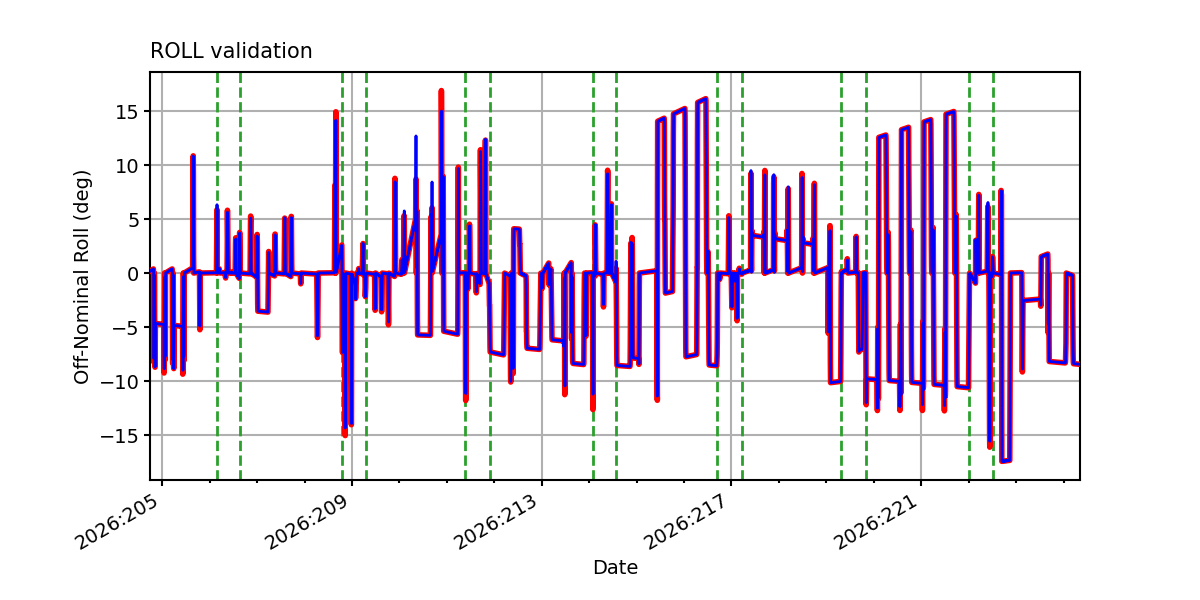

ROLL

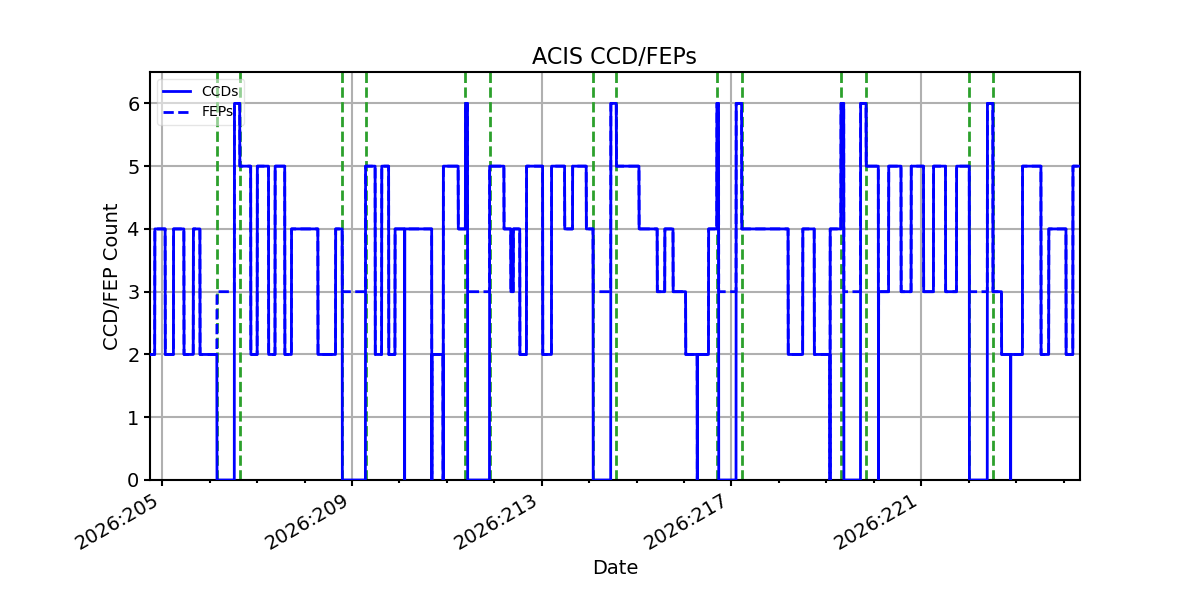

ACIS CCD/FEP Count
