DEA temperatures check
Summary
| Date start | 2014:230:01:58:30.631 |
| Date stop | 2014:244:10:12:54.229 |
| 1DEAMZT status | NOT OK (limit = 32.5 C) |
| Run time | Tue Aug 12 12:46:23 2014 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
1DEAMZT Violations
| Date start | Date stop | Max temperature |
|---|---|---|
| 2014:235:21:47:20.816 | 2014:236:09:32:32.816 | 33.14 |
DEA Model Validation
MSID quantiles
Note: DEA quantiles are calculated using only points where 1DEAMZT > 20 degC.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1DEAMZT | -4.73 | -4.16 | -2.97 | -2.35 | -0.75 | 3.24 | 3.91 |
| PITCH | -1.981 | 0.044 | 0.070 | 0.163 | 0.207 | 0.825 | 1.996 |
| TSCPOS | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -4.73 | 2.50 |
| 1DEAMZT | 50 | -2.35 | 1.00 |
| 1DEAMZT | 99 | 3.91 | 2.50 |
1DEAMZT
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model
PITCH
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model

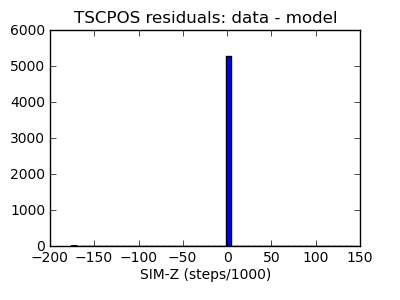

TSCPOS
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model
