DEA Temperatures Check
Summary
| Date start | 2025:237:02:26:32.916 |
| Date stop | 2025:244:00:23:40.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG2525/oflsa |
| Run time | Thu Aug 21 13:32:55 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

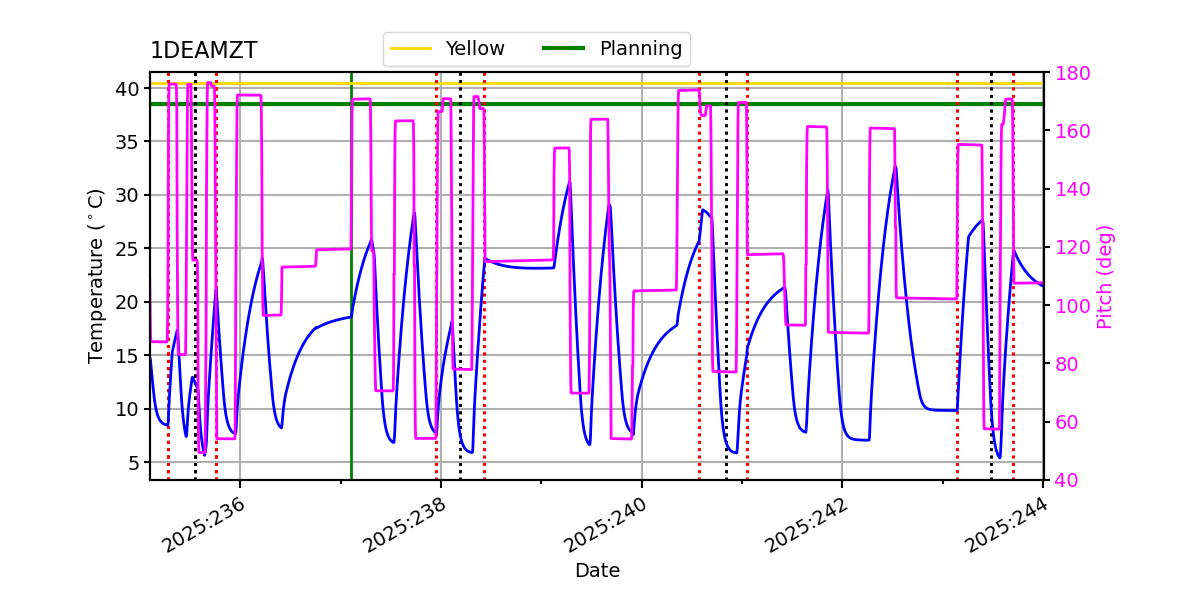

No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.84 | -1.03 | -0.71 | -0.07 | 0.89 | 1.43 | 2.06 |
| pitch | -8.091 | -0.284 | -0.004 | -0.000 | 0.004 | 0.146 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.336 | -0.068 | -0.005 | 0.000 | 0.005 | 0.092 | 1.580 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.06 | 2.00 |
| PITCH | 1 | -8.091 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |

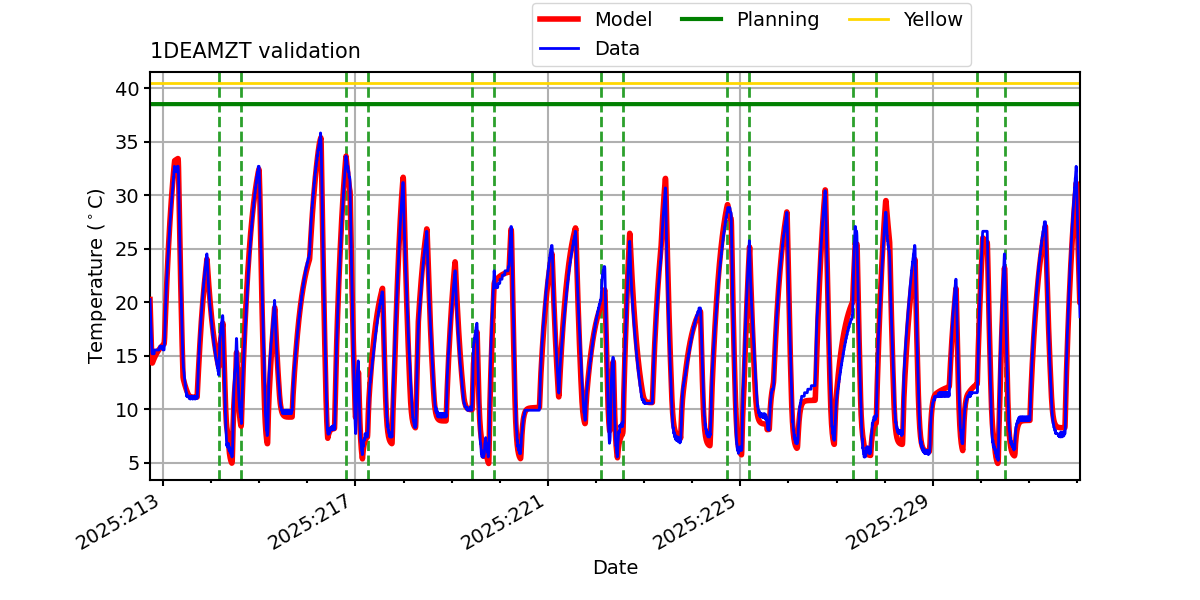

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

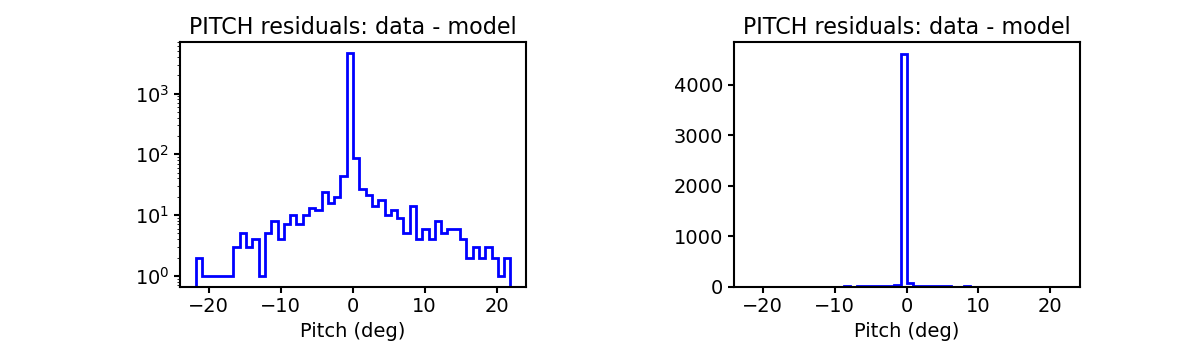

PITCH

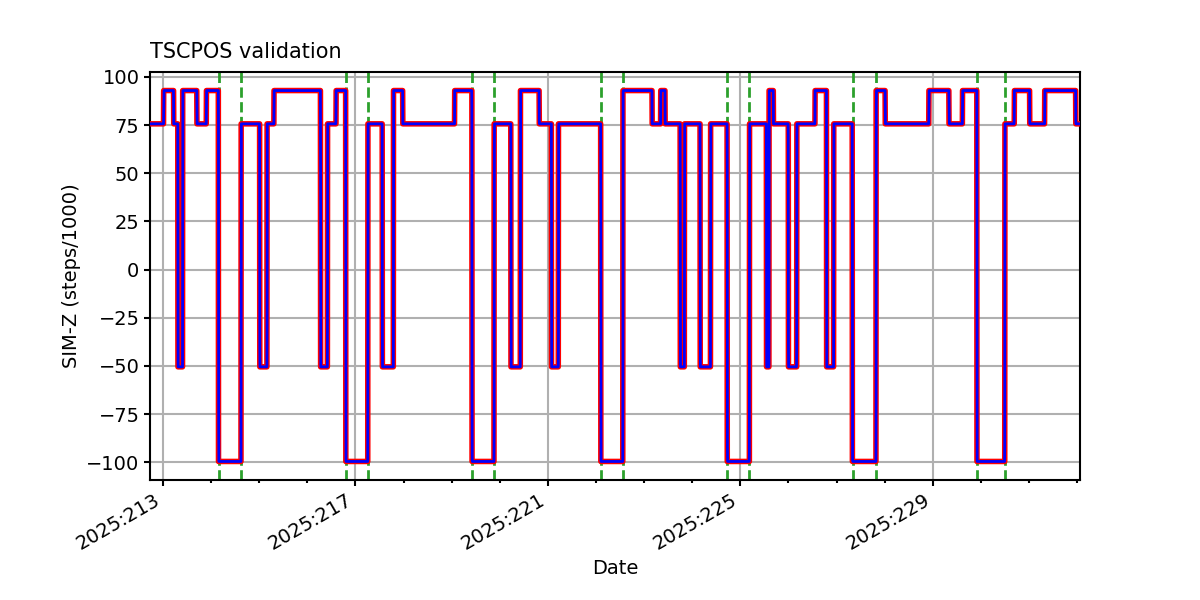

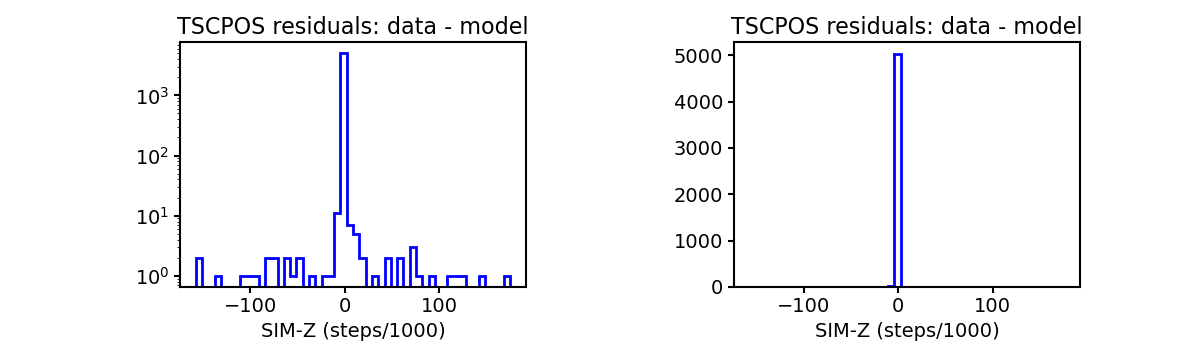

TSCPOS

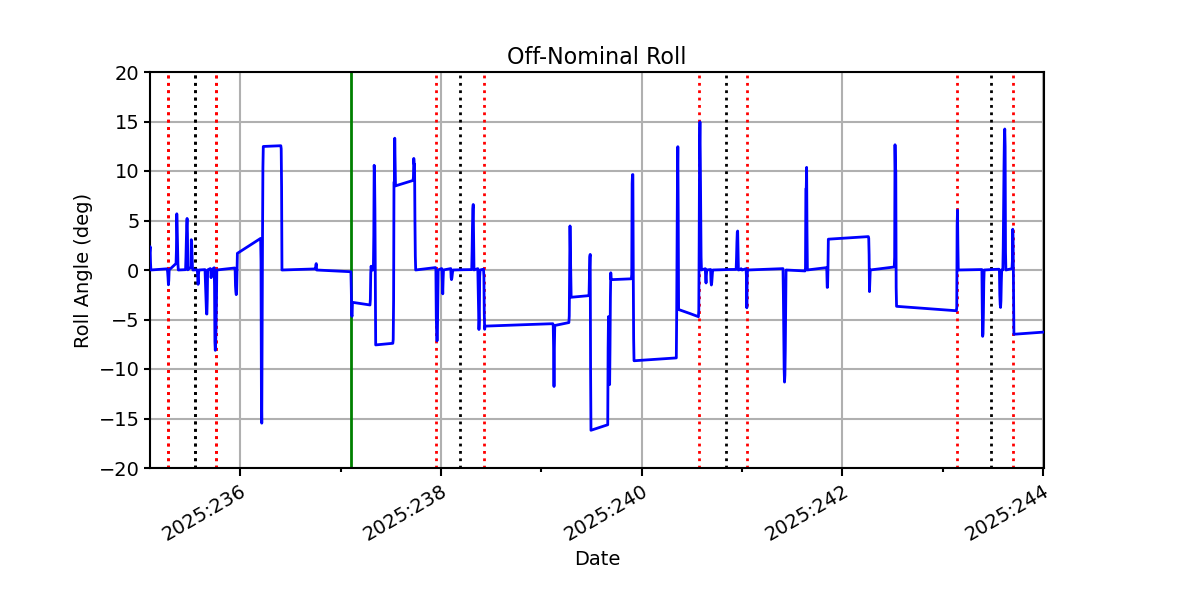

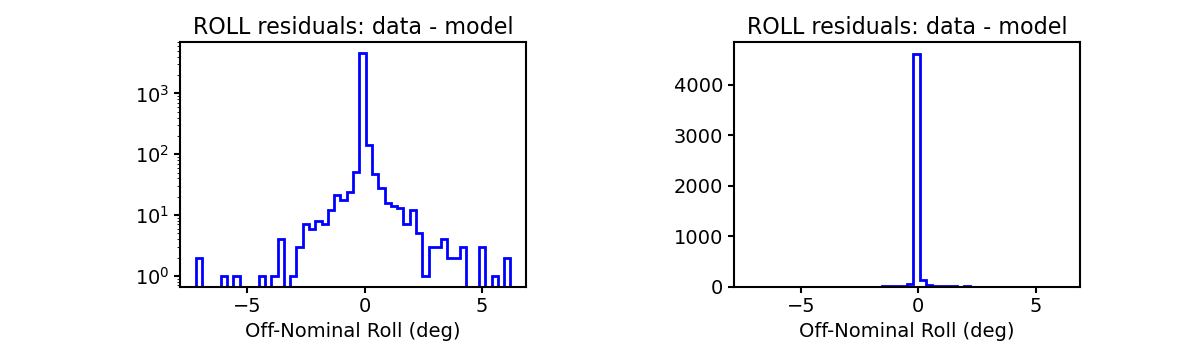

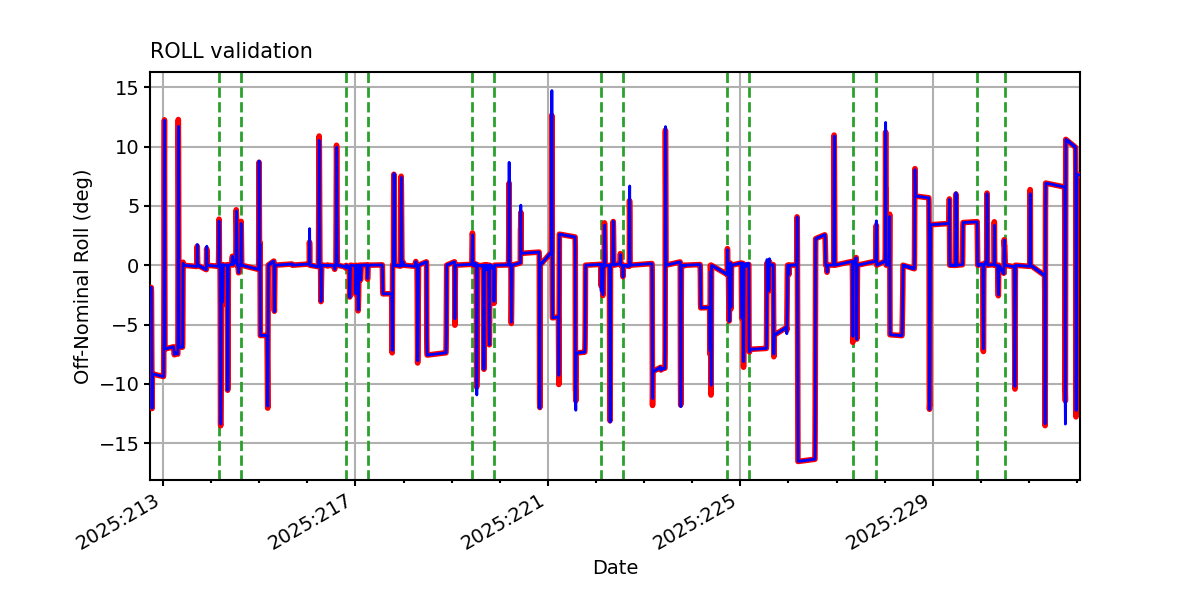

ROLL
ACIS CCD/FEP Count
