DEA Temperatures Check
Summary
| Date start | 2025:355:22:55:21.916 |
| Date stop | 2025:363:02:43:37.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2225/oflsa |
| Run time | Thu Dec 18 20:06:05 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.66 | -1.13 | -0.67 | 0.28 | 1.17 | 1.78 | 2.96 |
| pitch | -10.709 | -0.383 | -0.004 | 0.000 | 0.004 | 0.546 | 11.156 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.555 | -0.091 | -0.007 | 0.000 | 0.007 | 0.126 | 1.573 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.96 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 11.156 | 3.00 |
1DEAMZT

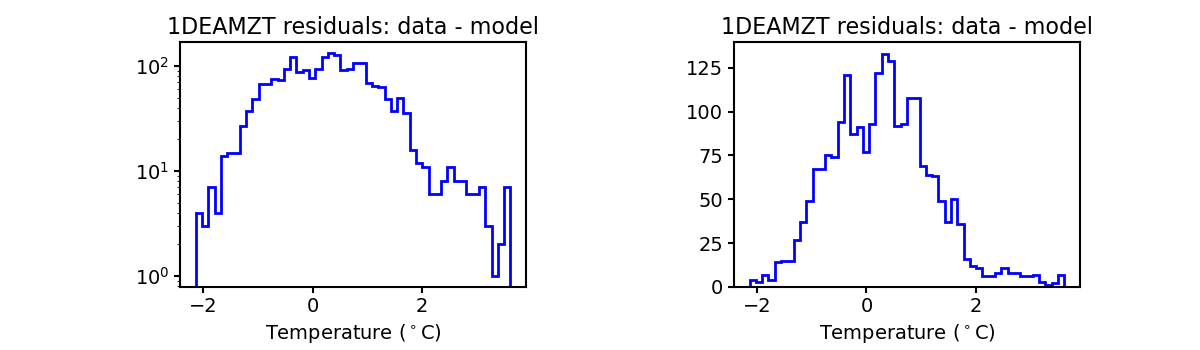

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

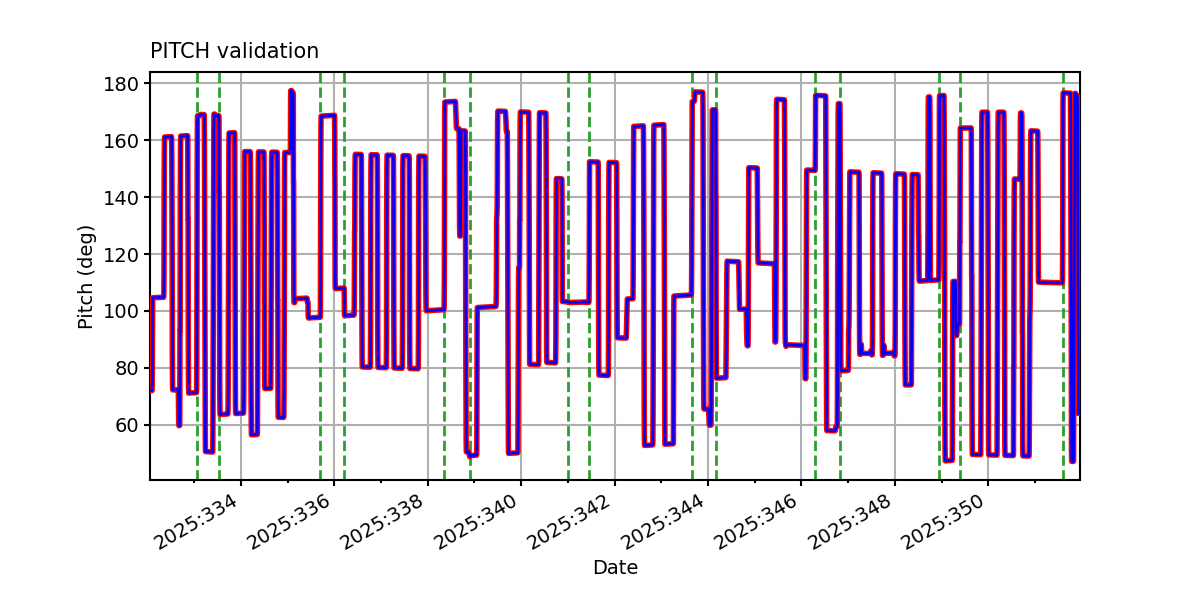

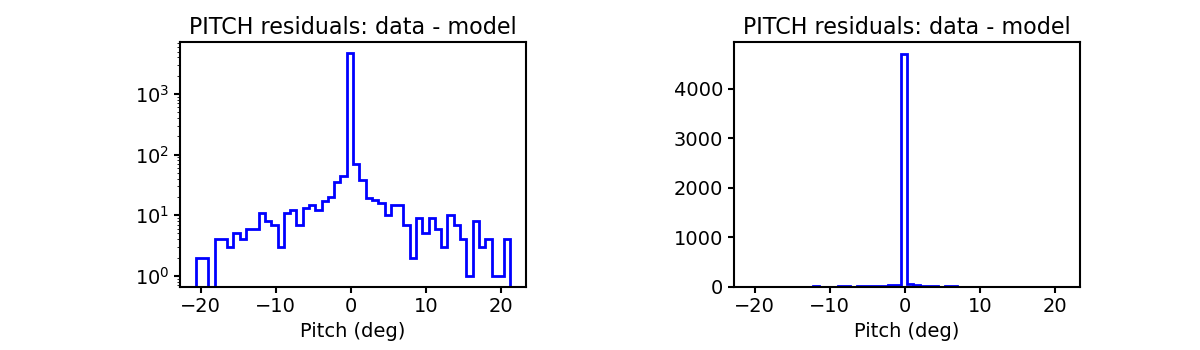

PITCH

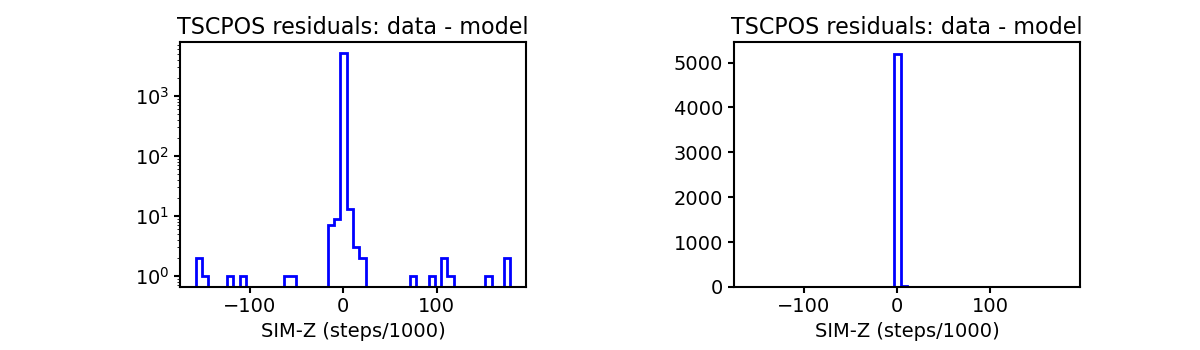

TSCPOS

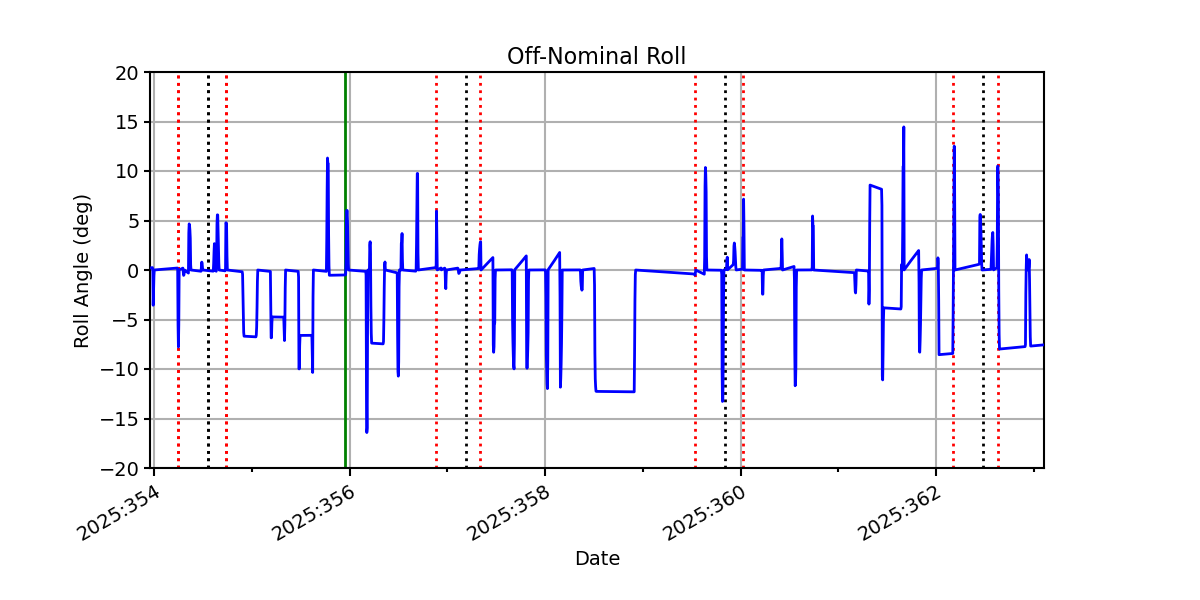

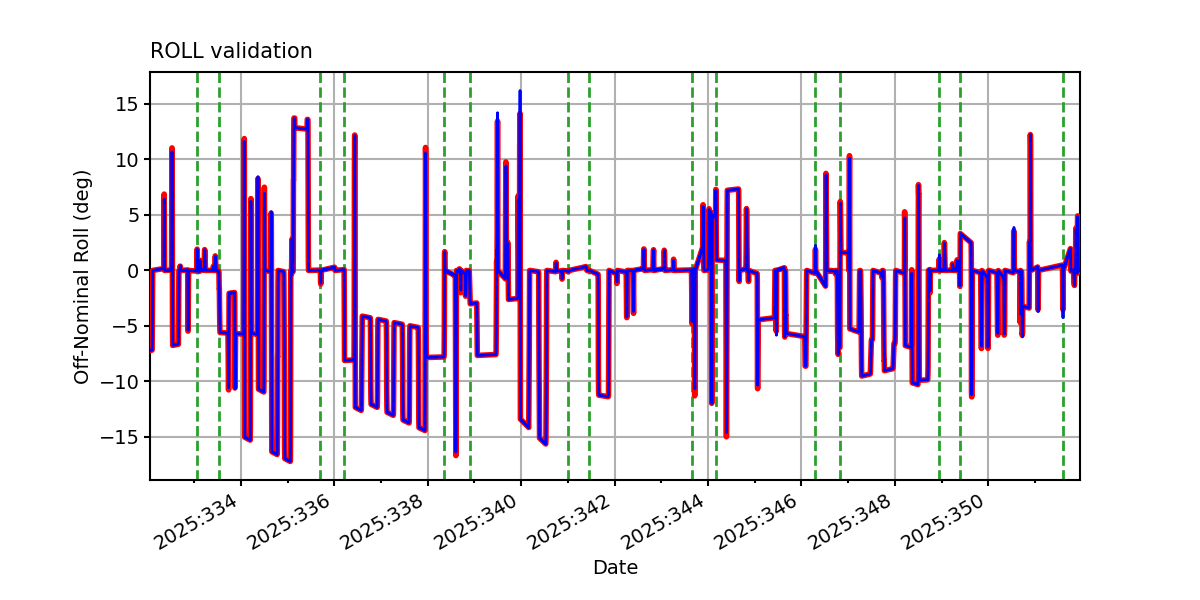

ROLL

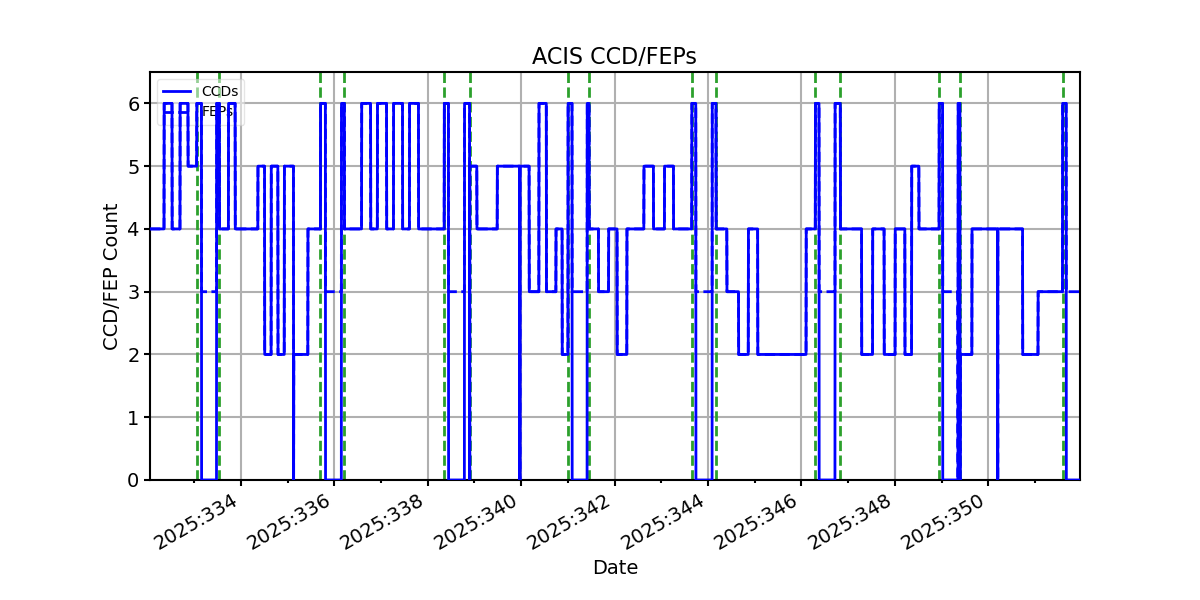

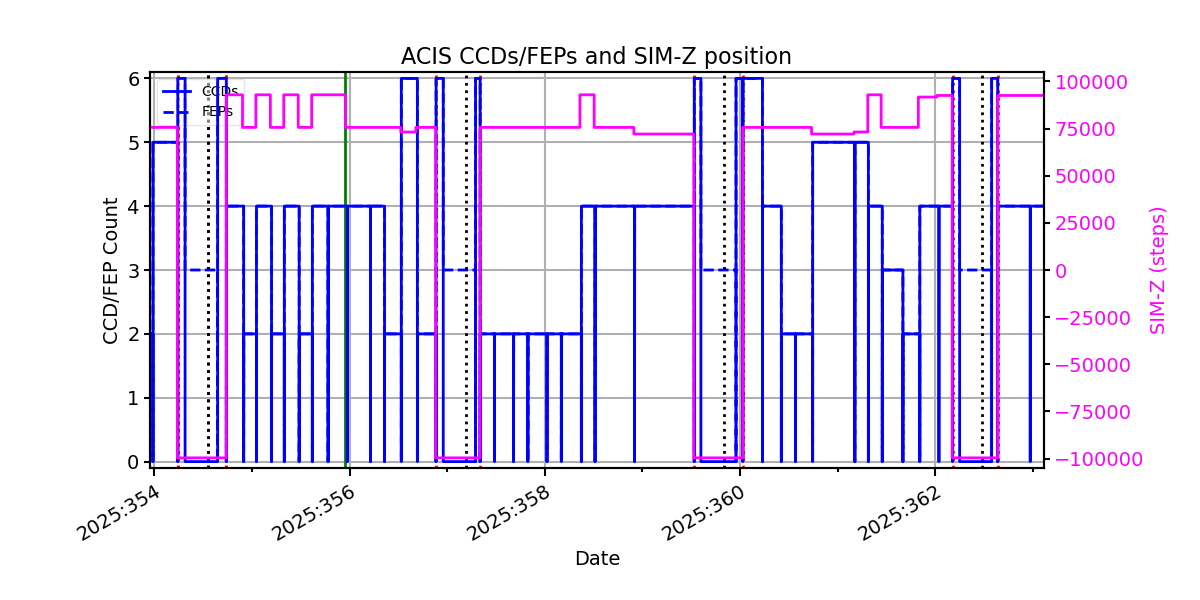

ACIS CCD/FEP Count
