DEA Temperatures Check
Summary
| Date start | 2025:363:02:40:37.616 |
| Date stop | 2026:012:00:54:56.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2925/oflsb |
| Run time | Tue Dec 23 11:50:37 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.67 | -1.14 | -0.66 | 0.17 | 1.18 | 1.78 | 2.84 |
| pitch | -10.709 | -0.540 | -0.004 | -0.000 | 0.004 | 0.541 | 10.879 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.593 | -0.102 | -0.006 | 0.000 | 0.006 | 0.158 | 1.533 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.84 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 10.879 | 3.00 |

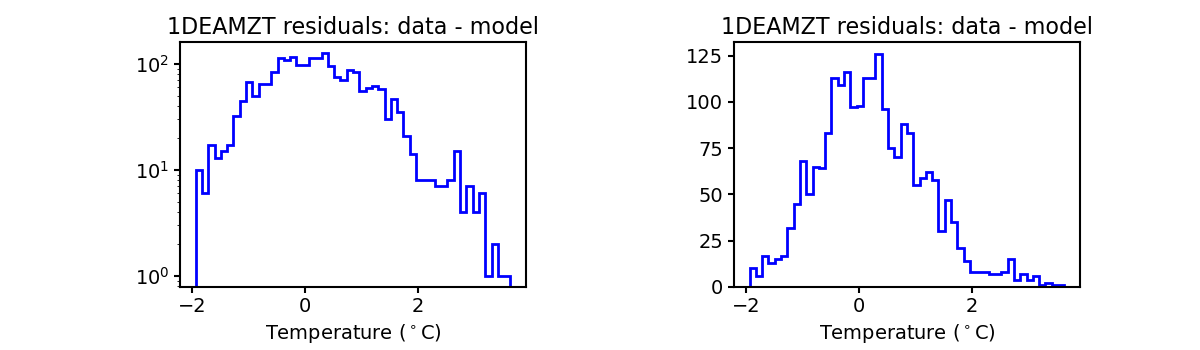

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

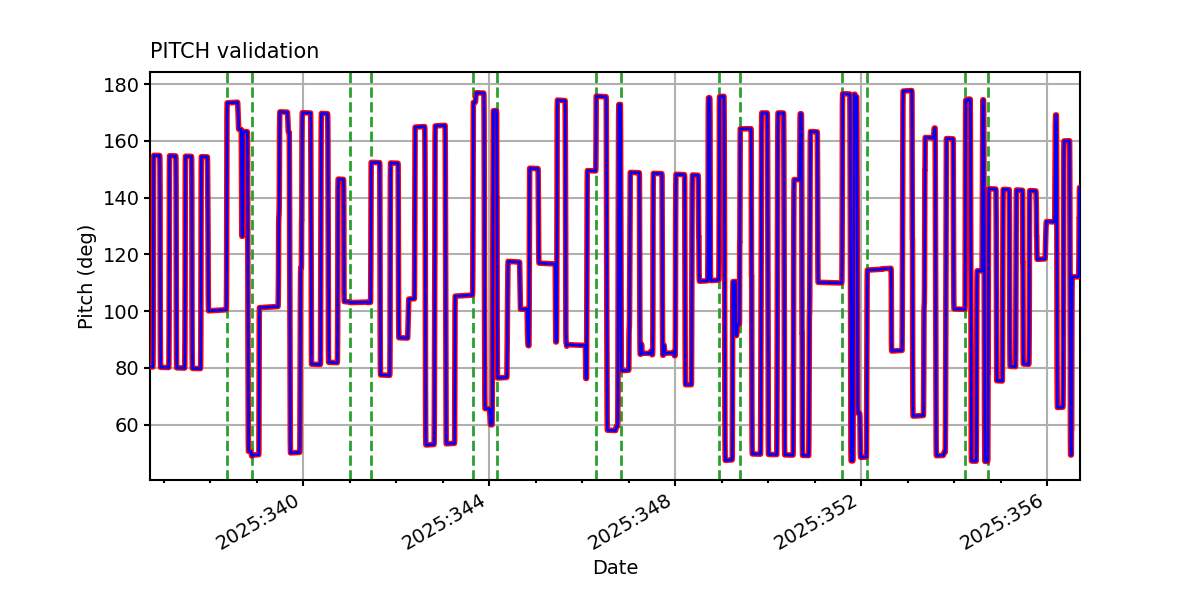

PITCH

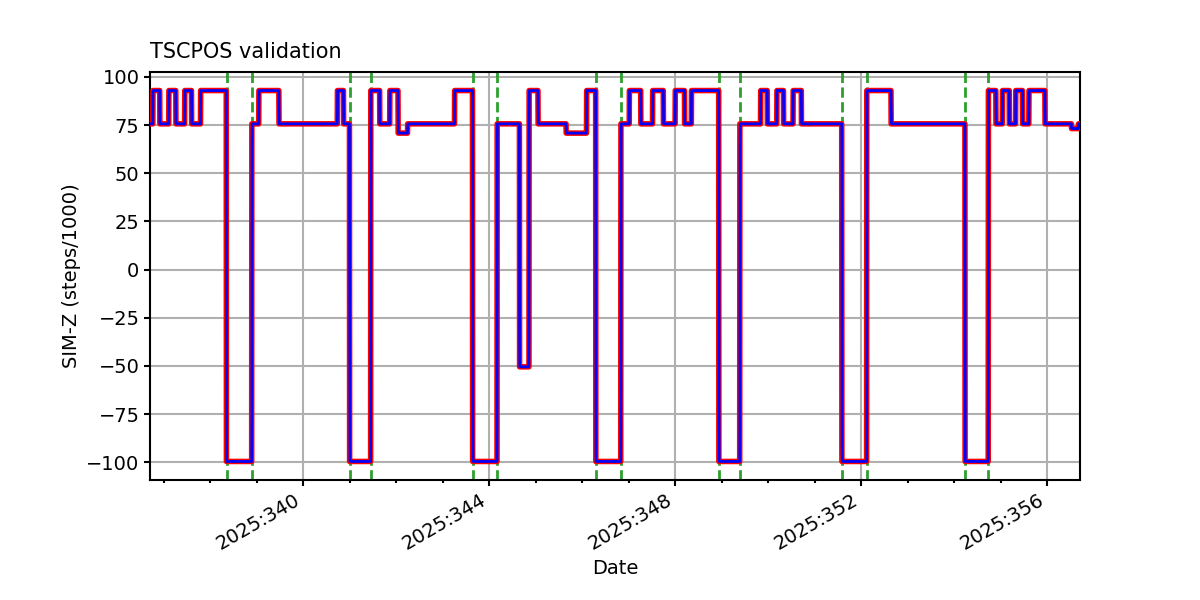

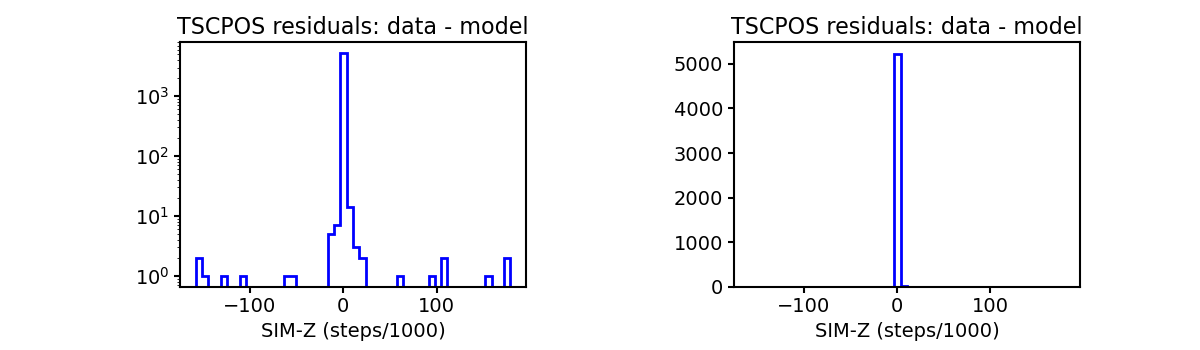

TSCPOS

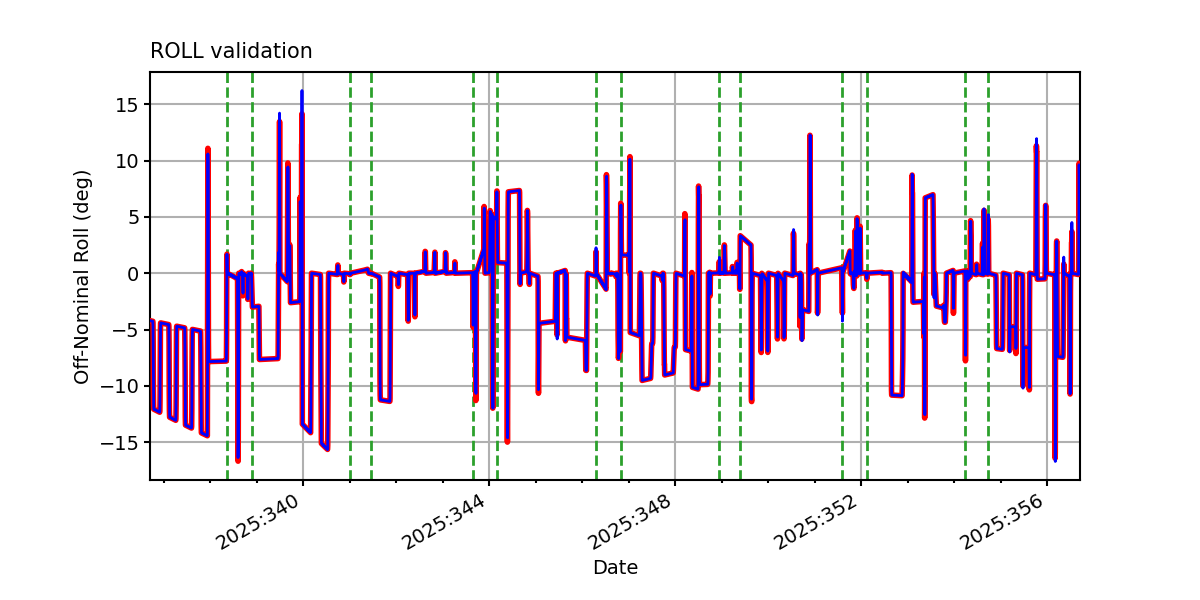

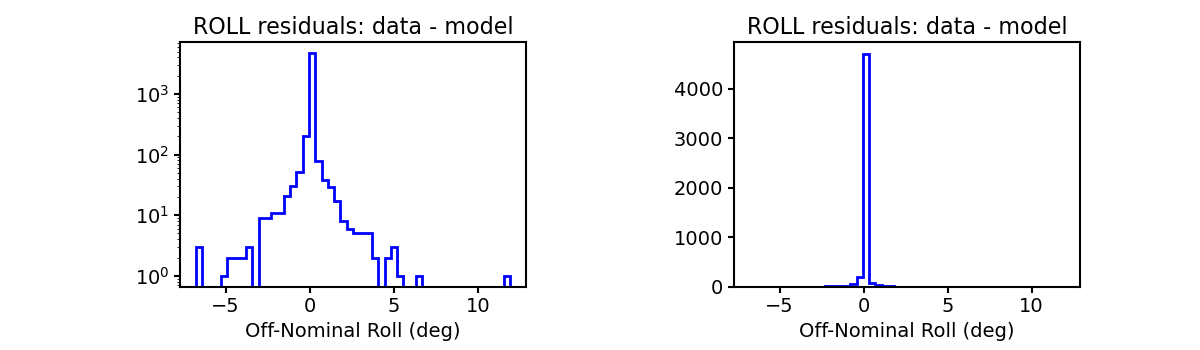

ROLL

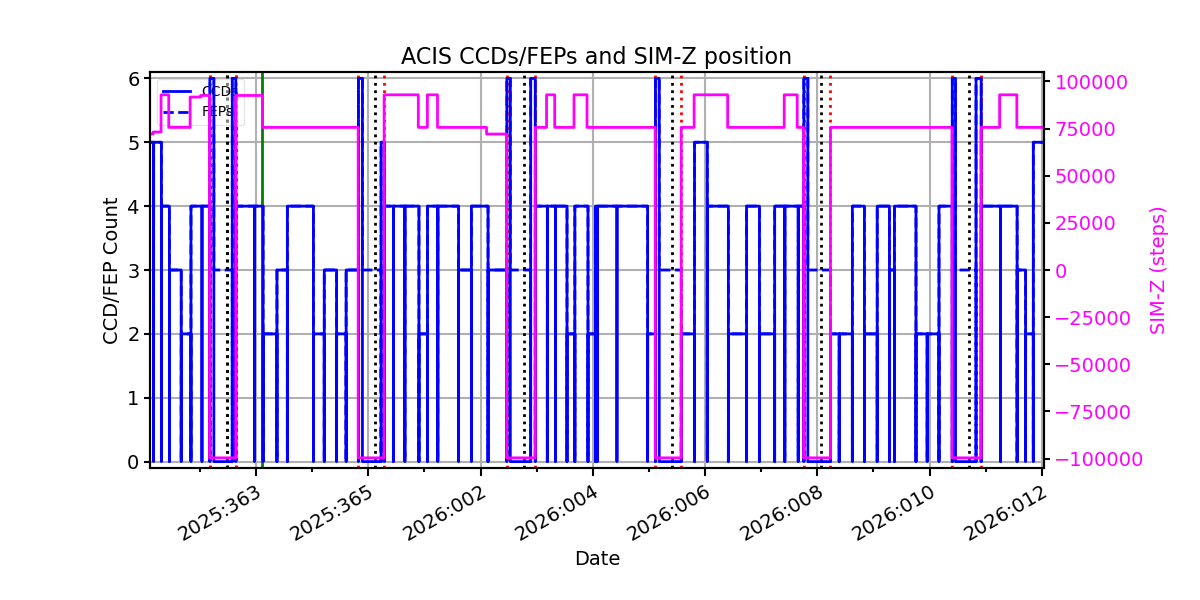

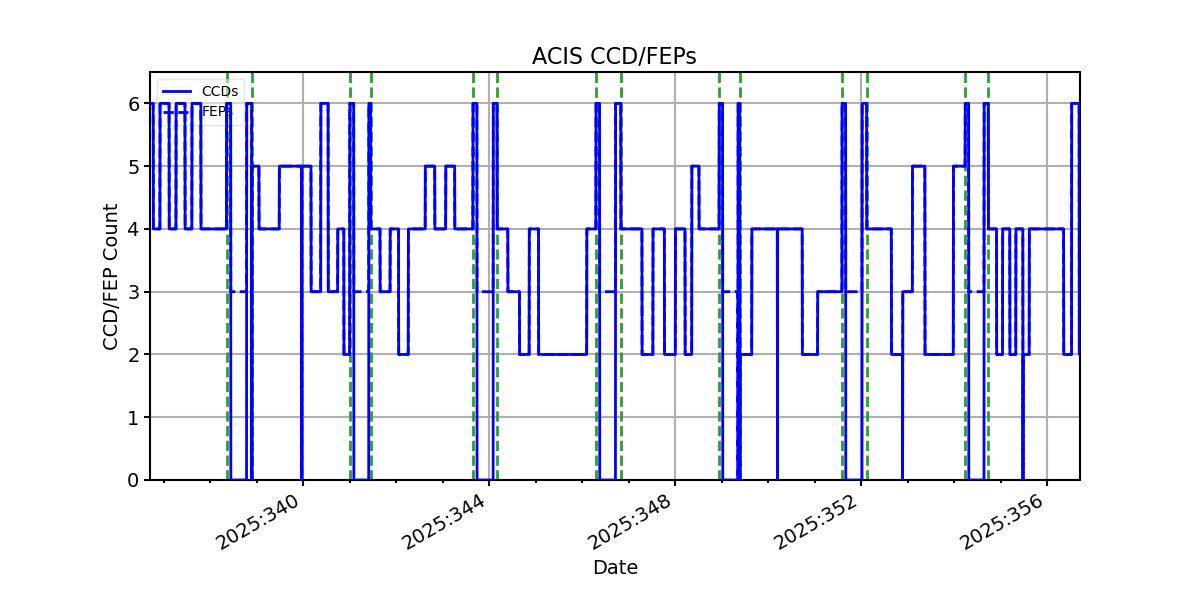

ACIS CCD/FEP Count
