DEA Temperatures Check
Summary
| Date start | 2026:037:13:10:00.016 |
| Date stop | 2026:046:22:07:13.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0626/oflsa |
| Run time | Tue Feb 3 16:01:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.19 | -1.66 | -1.18 | 0.30 | 1.52 | 2.07 | 2.83 |
| pitch | -9.086 | -0.459 | -0.004 | 0.000 | 0.004 | 0.449 | 8.479 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.044 | -0.166 | -0.007 | -0.000 | 0.004 | 0.070 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.19 | 2.00 |
| 1DEAMZT | 99 | 2.83 | 2.00 |
| PITCH | 1 | -9.086 | 3.00 |
| PITCH | 99 | 8.479 | 3.00 |

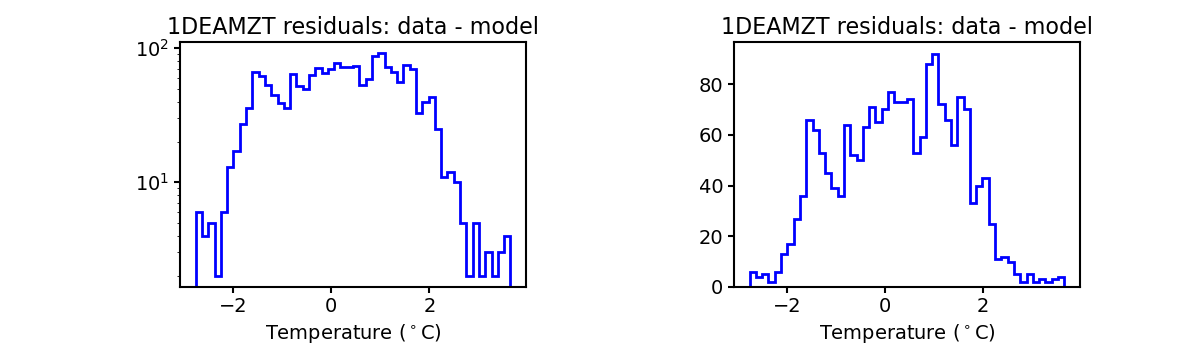

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

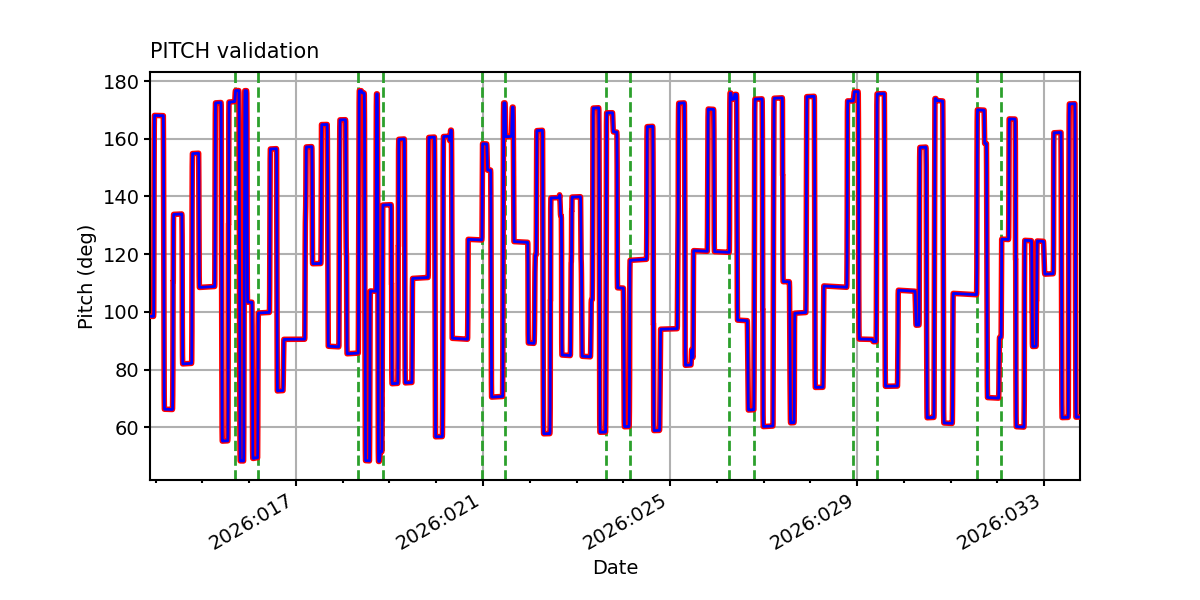

PITCH

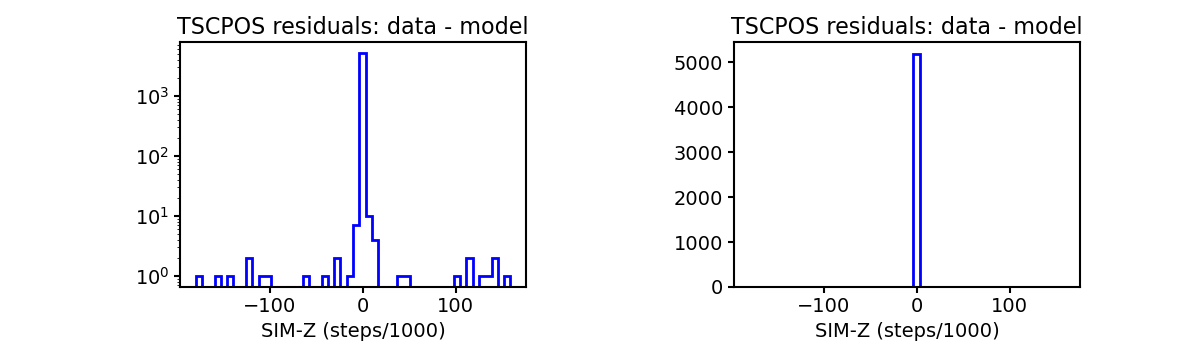

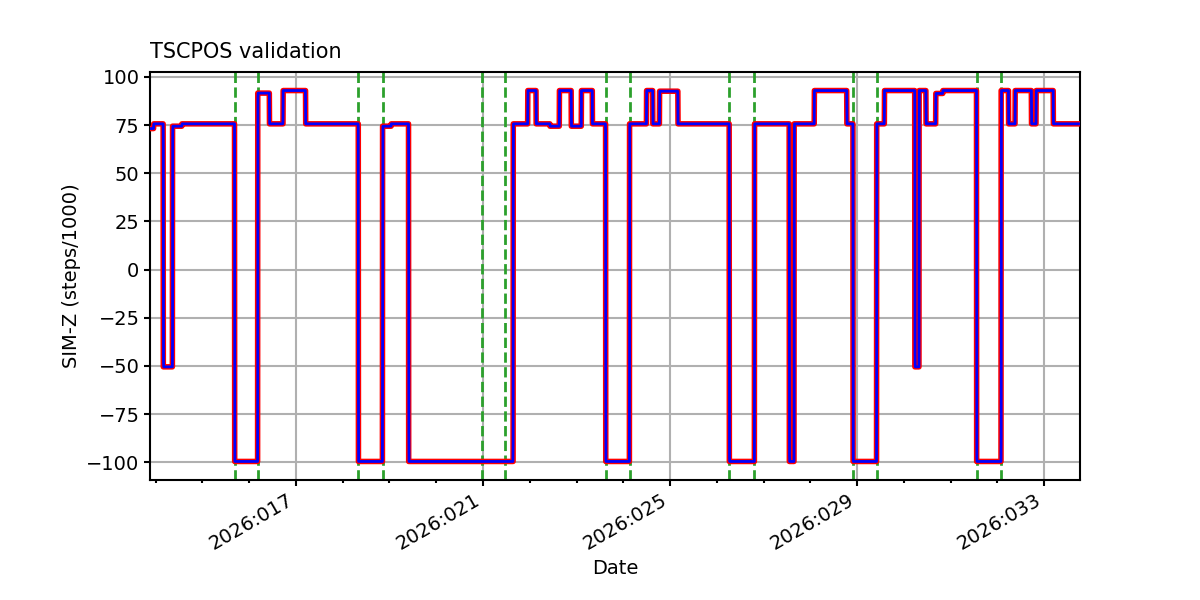

TSCPOS
ROLL

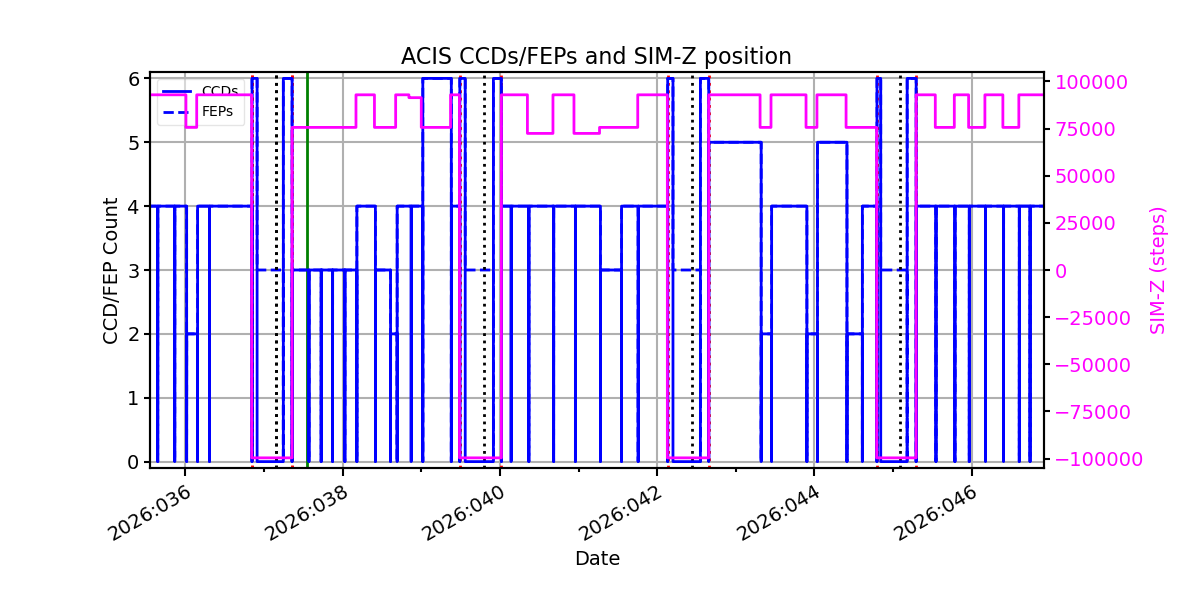

ACIS CCD/FEP Count
