DEA Temperatures Check
Summary
| Date start | 2026:046:22:04:13.416 |
| Date stop | 2026:054:01:55:44.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB1626/oflsa |
| Run time | Wed Feb 11 15:17:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.56 | -0.77 | -0.19 | 0.75 | 1.66 | 2.10 | 2.83 |
| pitch | -8.760 | -0.500 | -0.004 | 0.000 | 0.004 | 0.273 | 9.387 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.833 | -0.154 | -0.009 | 0.000 | 0.007 | 0.088 | 1.852 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.83 | 2.00 |
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 9.387 | 3.00 |

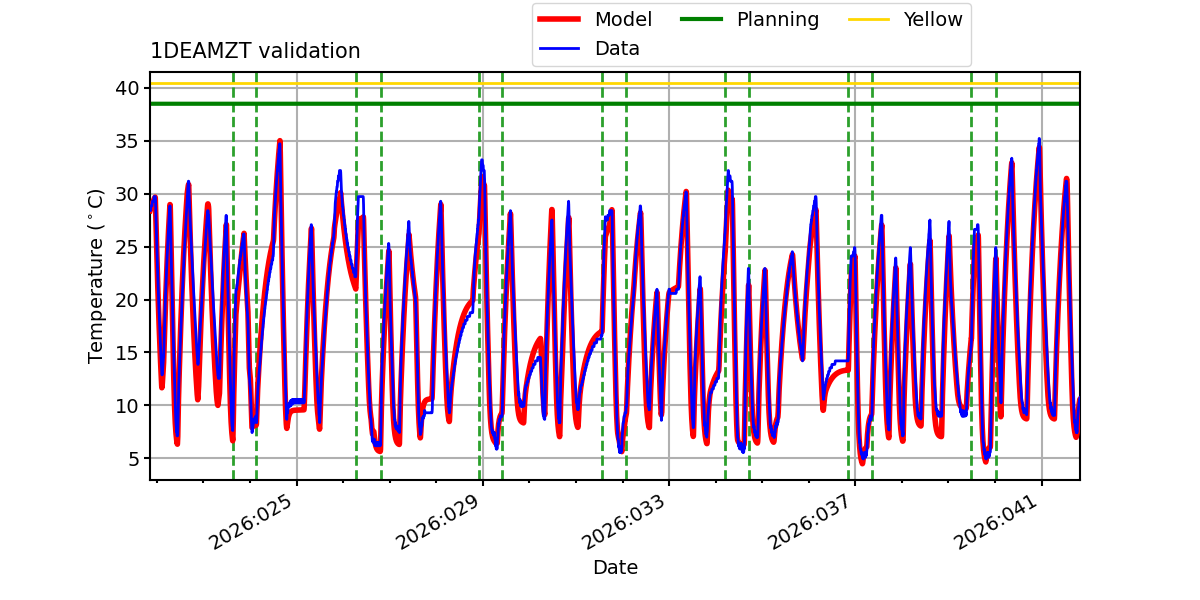

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

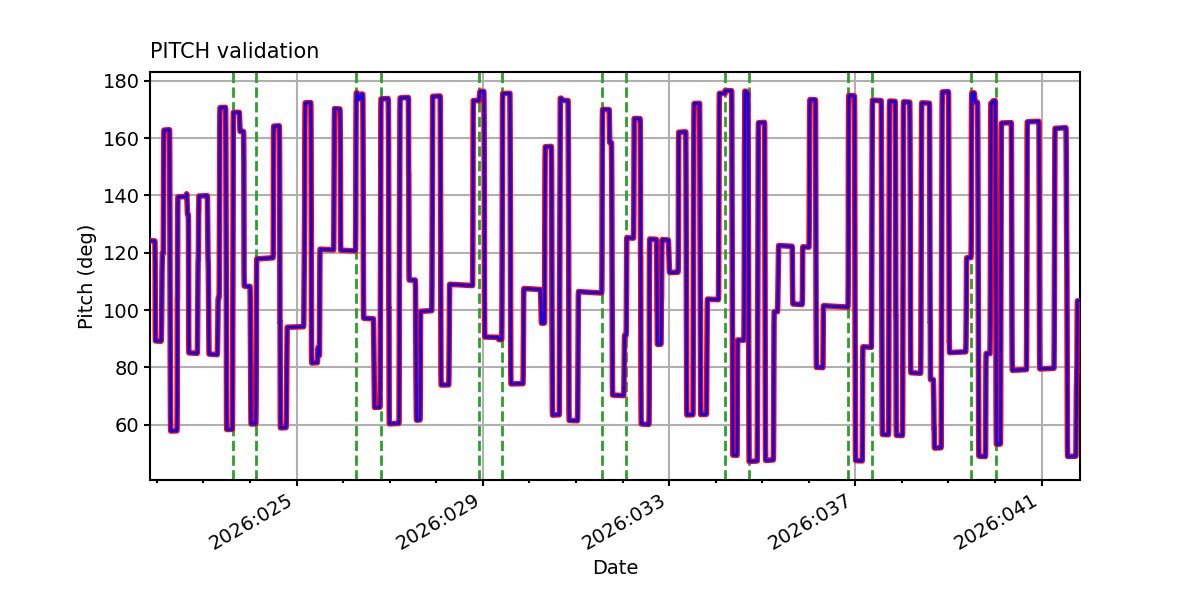

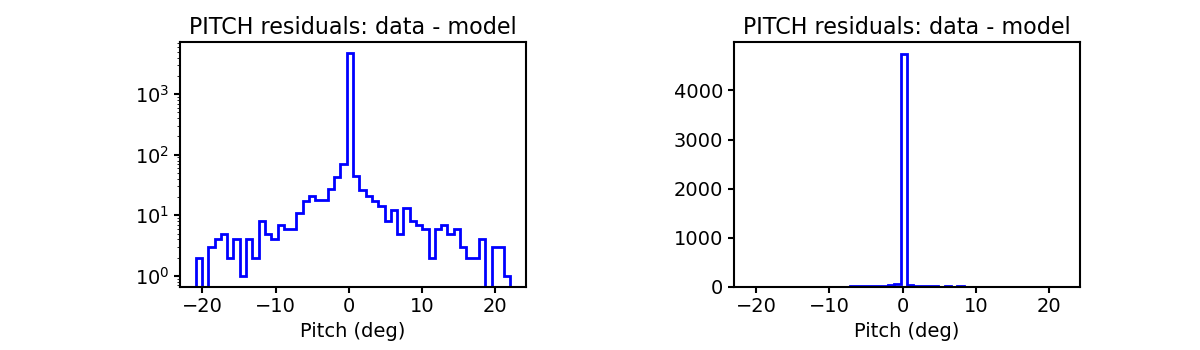

PITCH

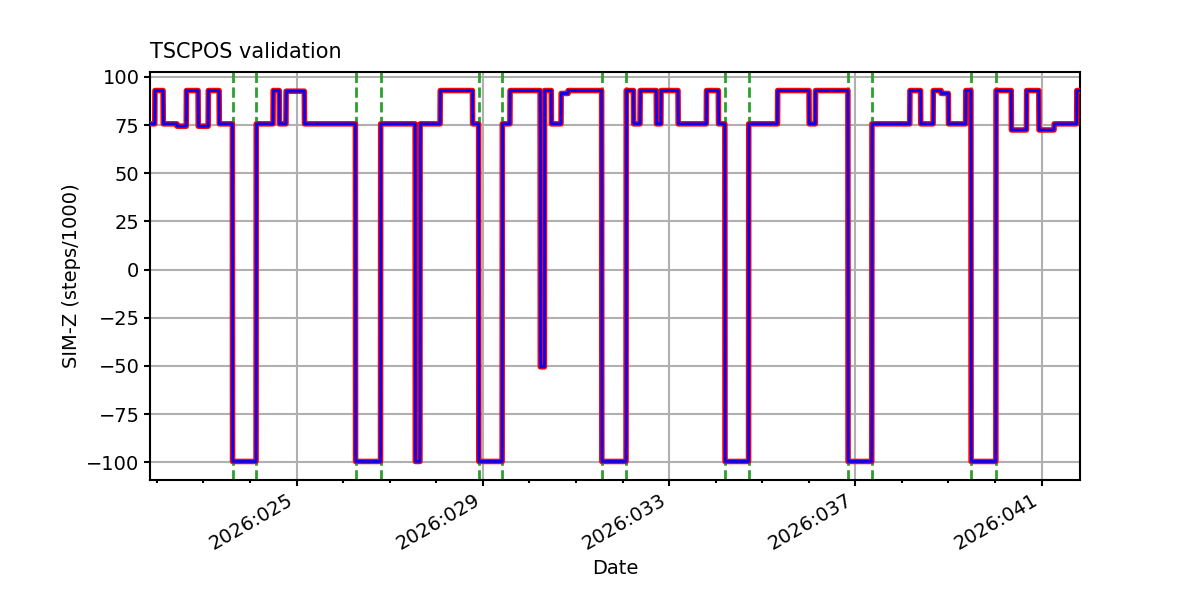

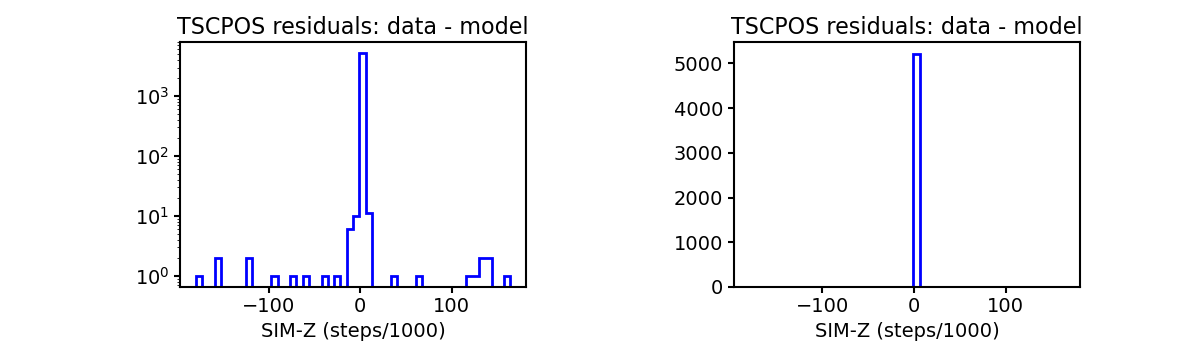

TSCPOS

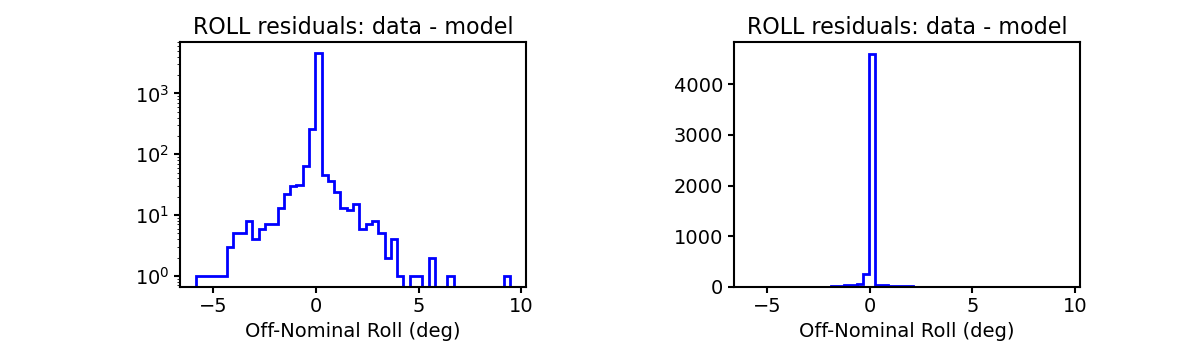

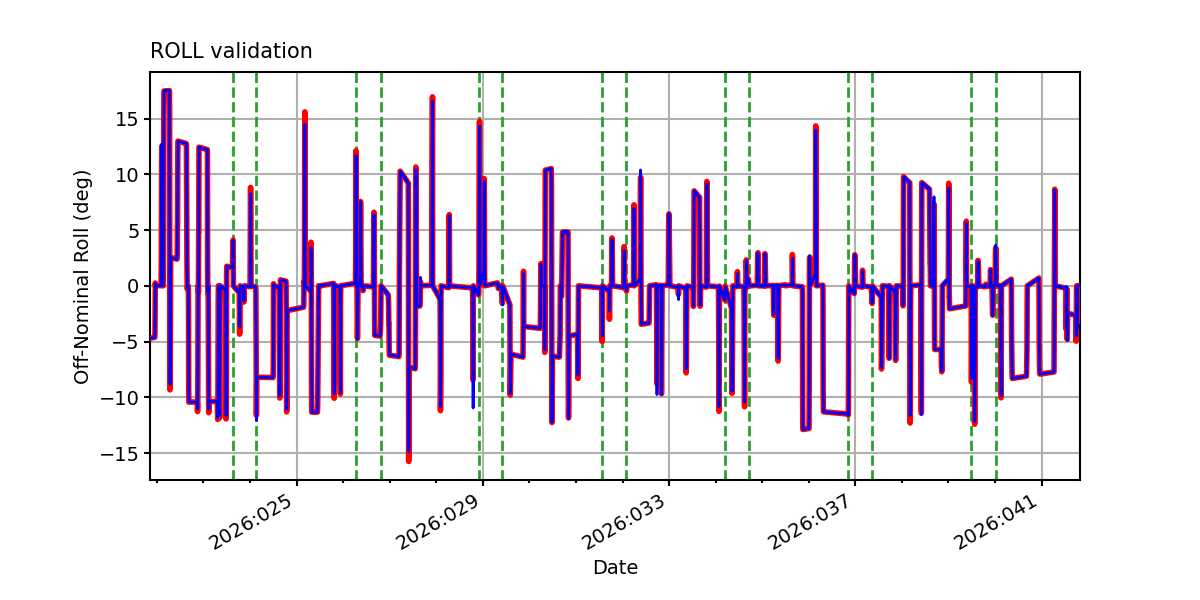

ROLL

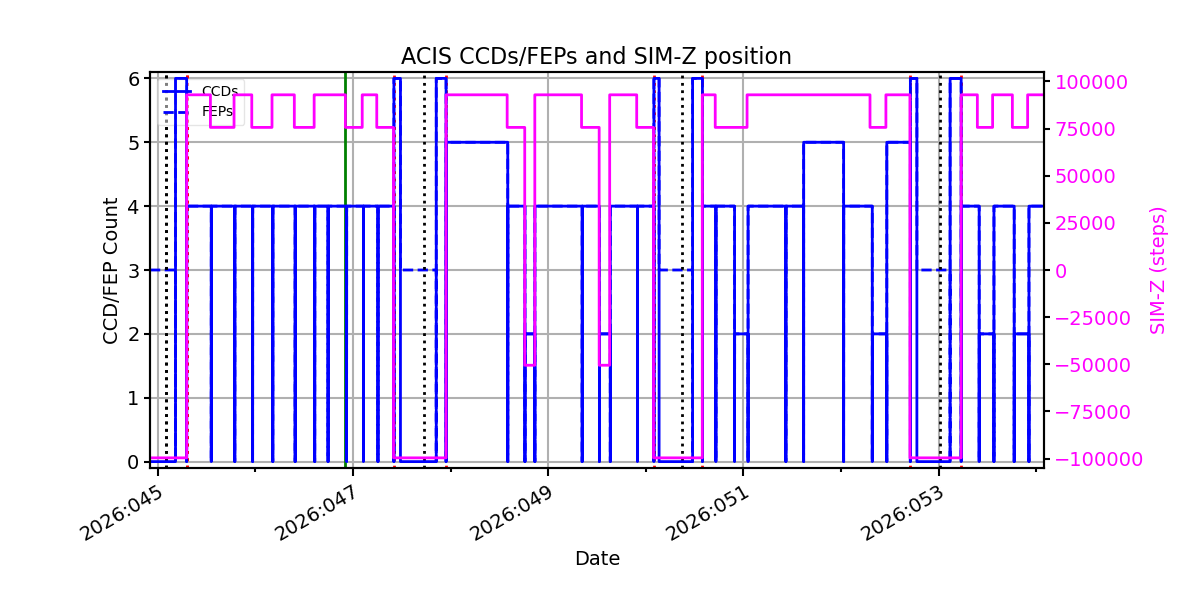

ACIS CCD/FEP Count
