DEA Temperatures Check

Summary

Date start 2026:019:00:49:29.616
Date stop 2026:025:19:08:18.516
Model status OK
Load directory /data/acis/LoadReviews/2026/JAN1926/oflsb
Run time Thu Jan 15 22:01:43 2026 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1DEAMZT Upper Limit Violations

1deamzt.png pow_sim.png roll.png

DEA Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1deamzt -1.95 -0.90 -0.49 0.41 1.46 1.83 2.52
pitch -11.776 -0.584 -0.004 0.000 0.004 0.646 11.568
tscpos -1 -1 -1 0 0 0 0
roll -1.950 -0.244 -0.009 -0.000 0.007 0.172 1.844

Validation Violations

MSID Quantile Value Limit
1DEAMZT 99 2.52 2.00
PITCH 1 -11.776 3.00
PITCH 99 11.568 3.00

1DEAMZT

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

1deamzt_valid.png 1deamzt_valid_hist.png

PITCH

pitch_valid.png pitch_valid_hist.png

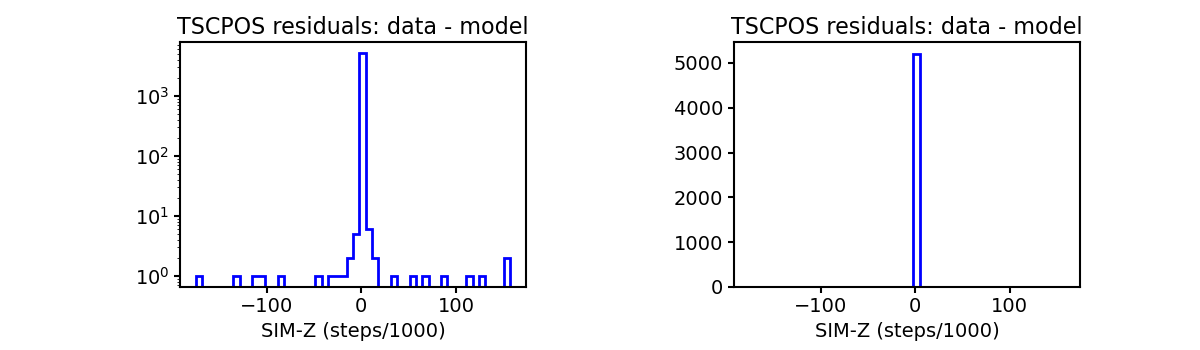

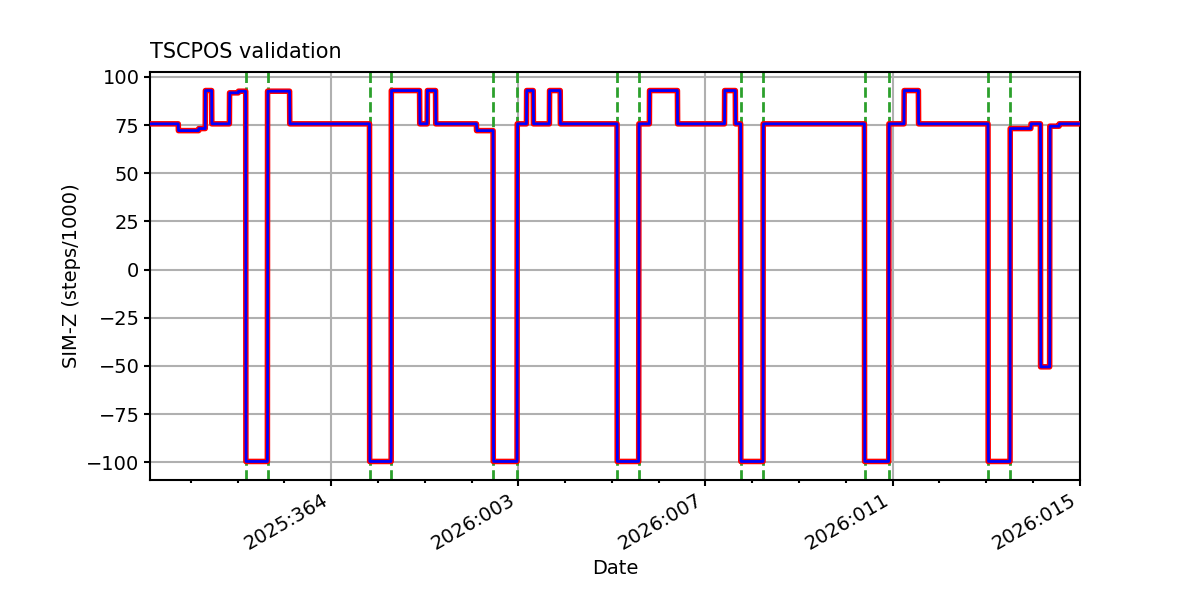

TSCPOS

tscpos_valid.png tscpos_valid_hist.png

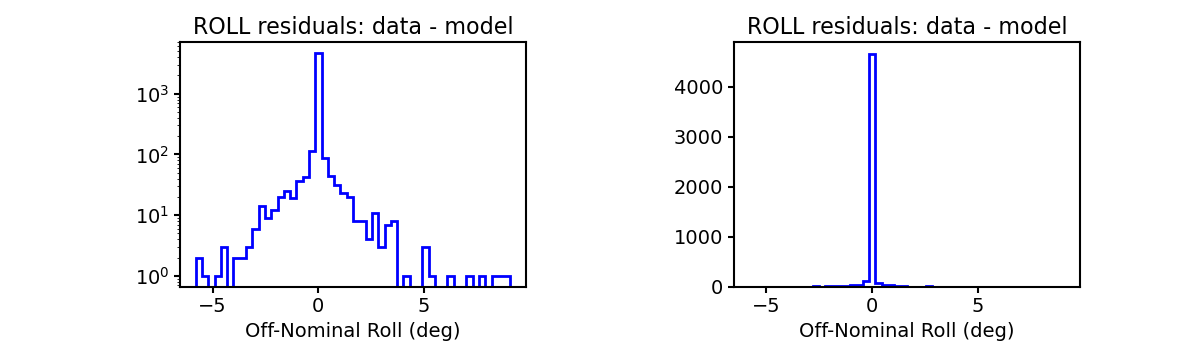

ROLL

roll_valid.png roll_valid_hist.png

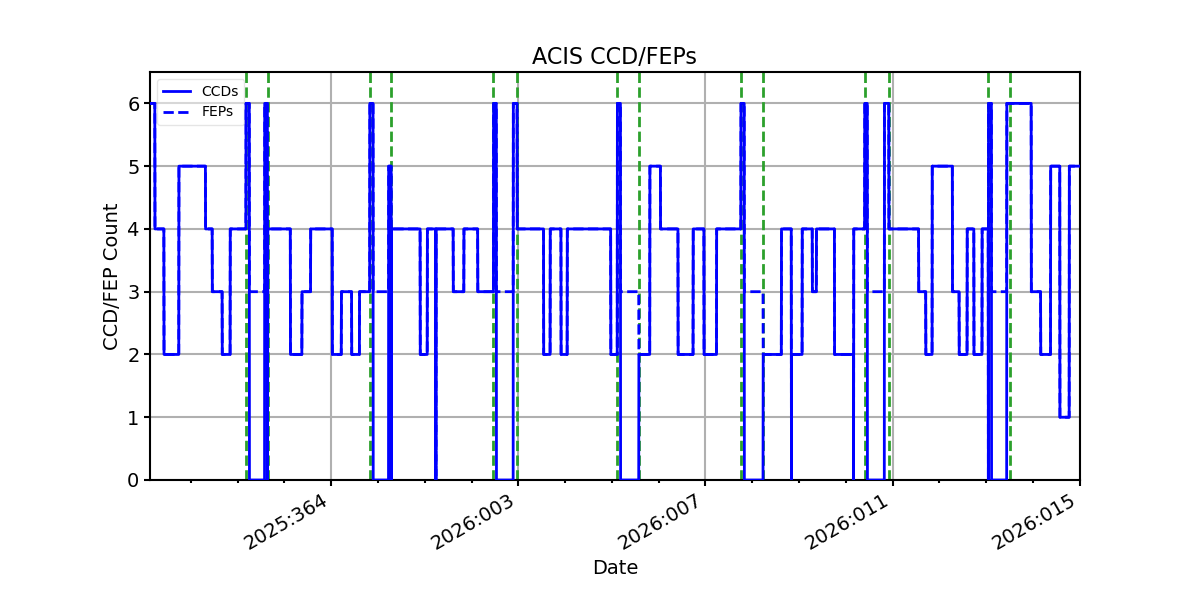

ACIS CCD/FEP Count
