DEA Temperatures Check
Summary
| Date start | 2025:026:10:00:00.016 |
| Date stop | 2025:033:20:57:05.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JAN2725/ofls |
| Run time | Fri Jan 24 08:08:46 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.02 | -1.46 | -0.67 | 0.39 | 1.49 | 2.38 | 3.09 |
| pitch | -5.822 | -0.419 | -0.004 | 0.000 | 0.004 | 0.697 | 6.799 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.281 | -0.139 | -0.008 | 0.000 | 0.008 | 0.102 | 0.996 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.02 | 2.00 |
| 1DEAMZT | 99 | 3.09 | 2.00 |
| PITCH | 1 | -5.822 | 3.00 |
| PITCH | 99 | 6.799 | 3.00 |

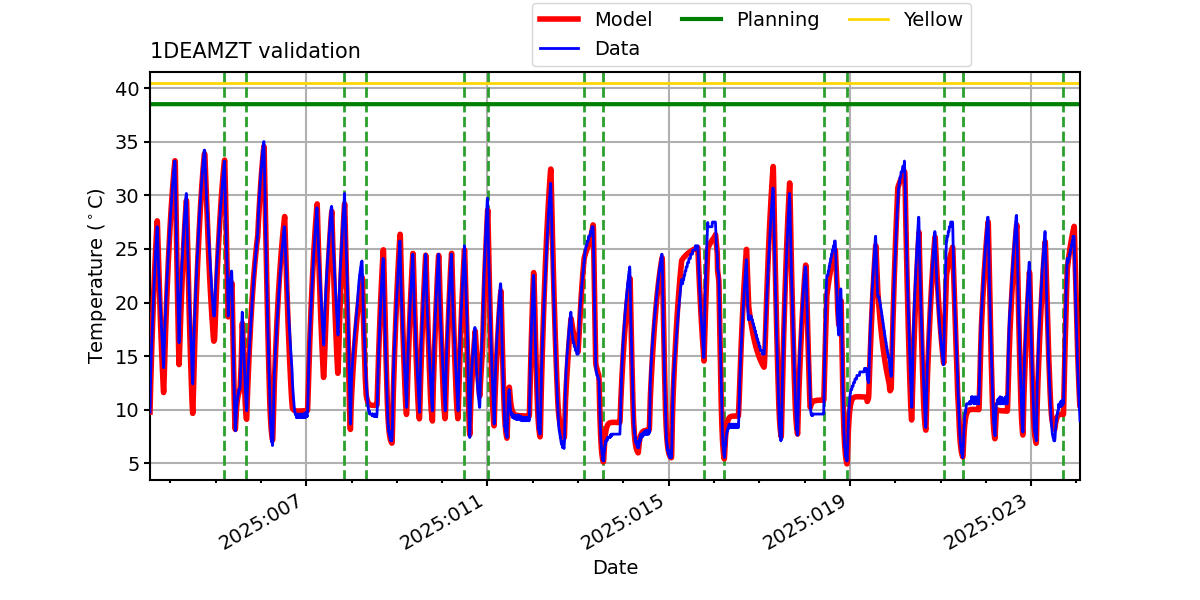

1DEAMZT

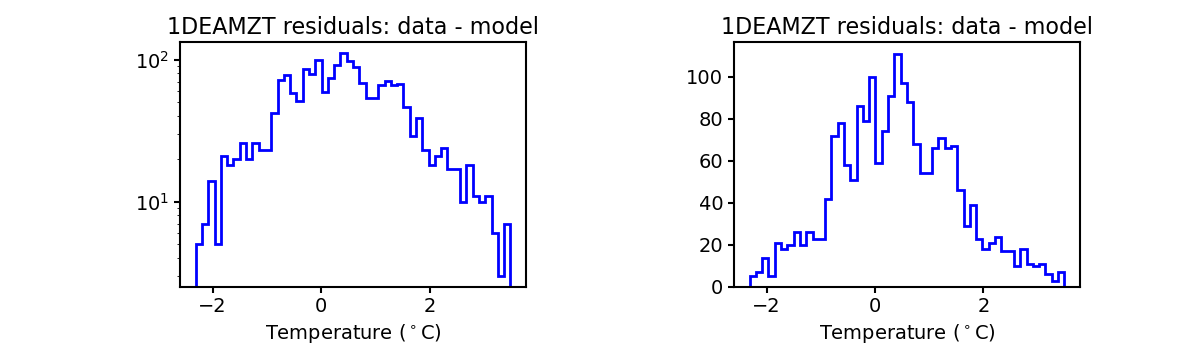

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

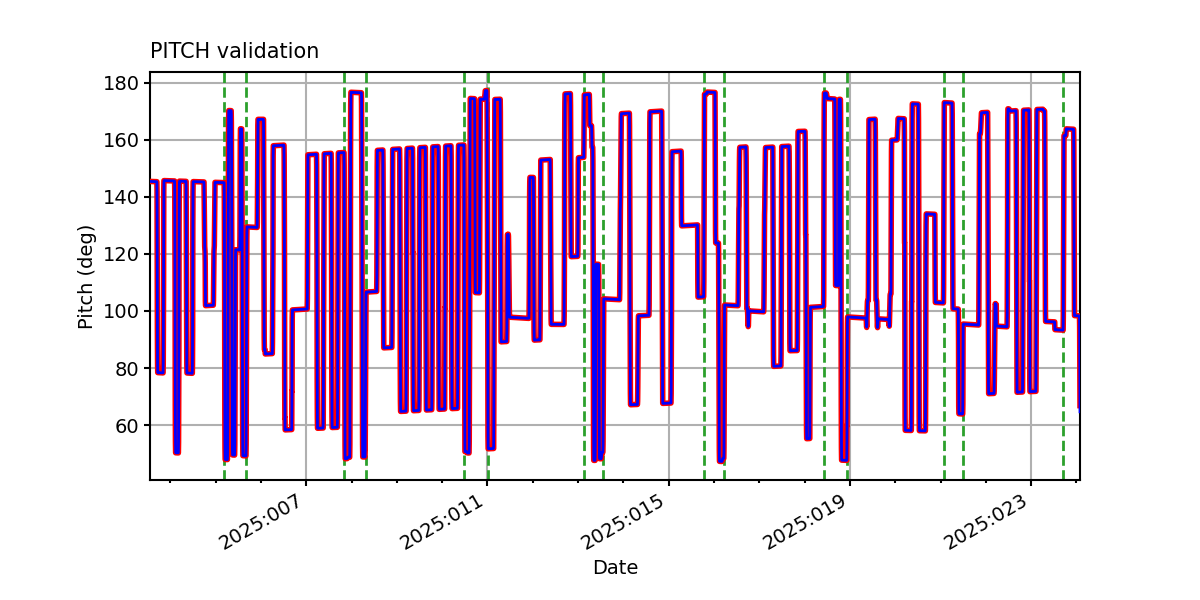

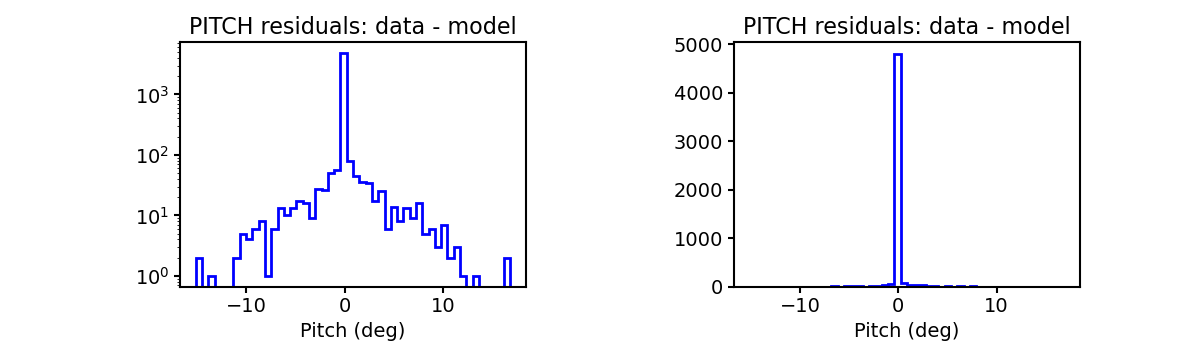

PITCH

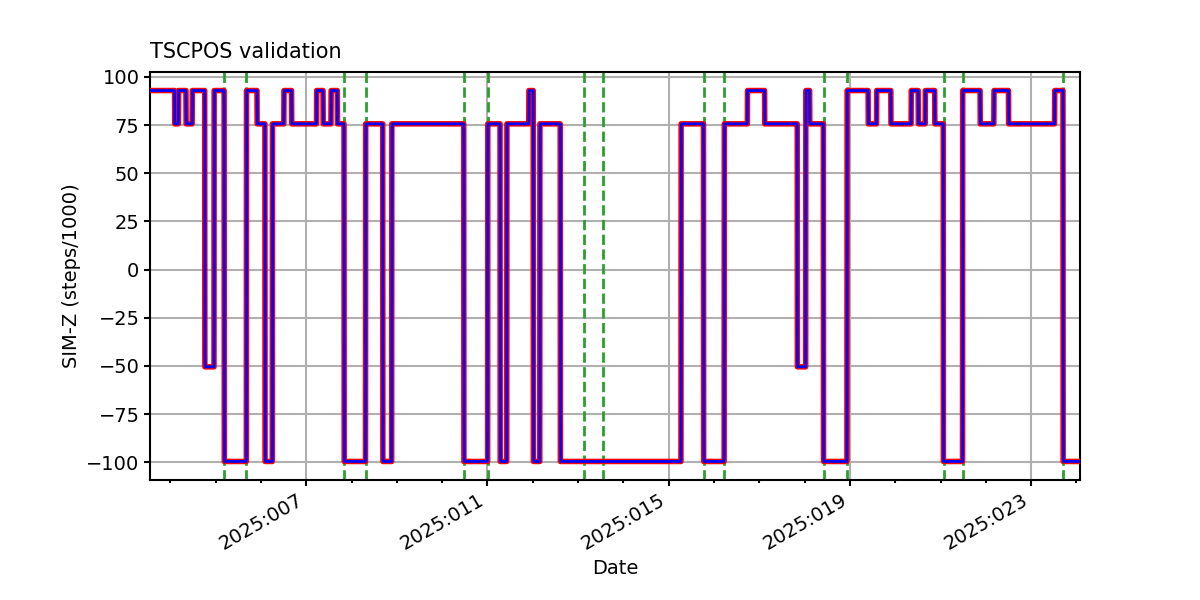

TSCPOS

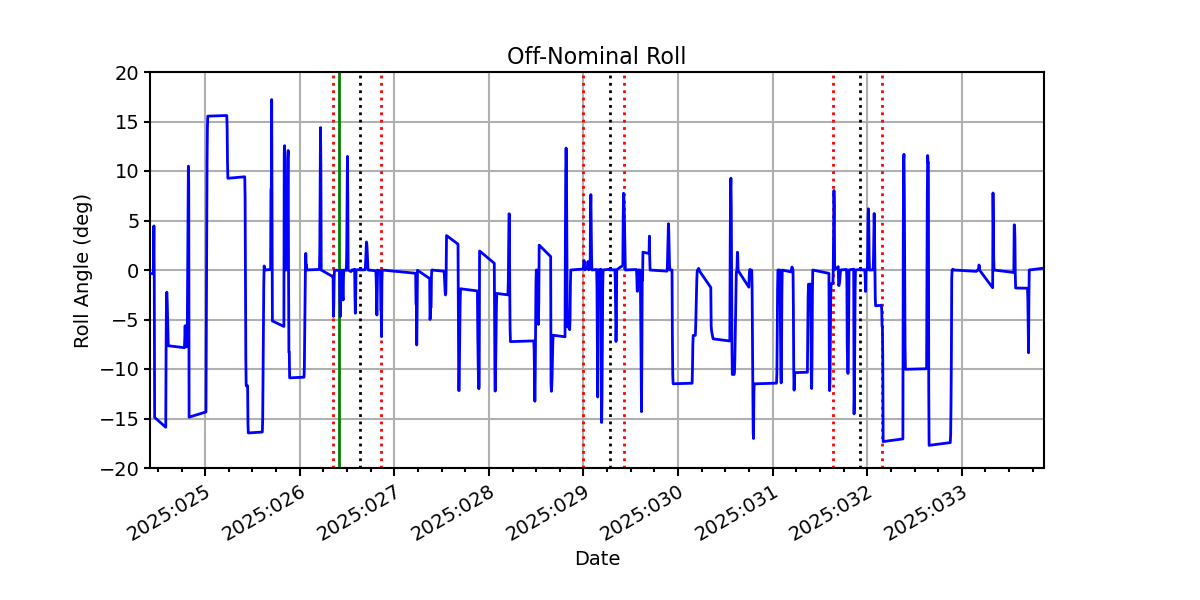

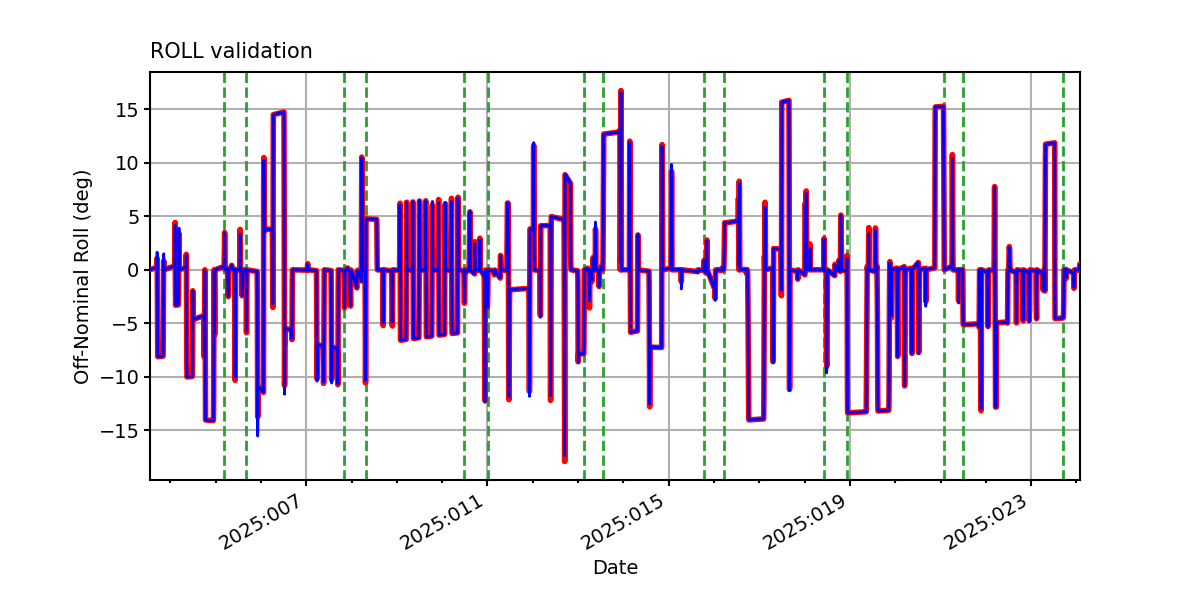

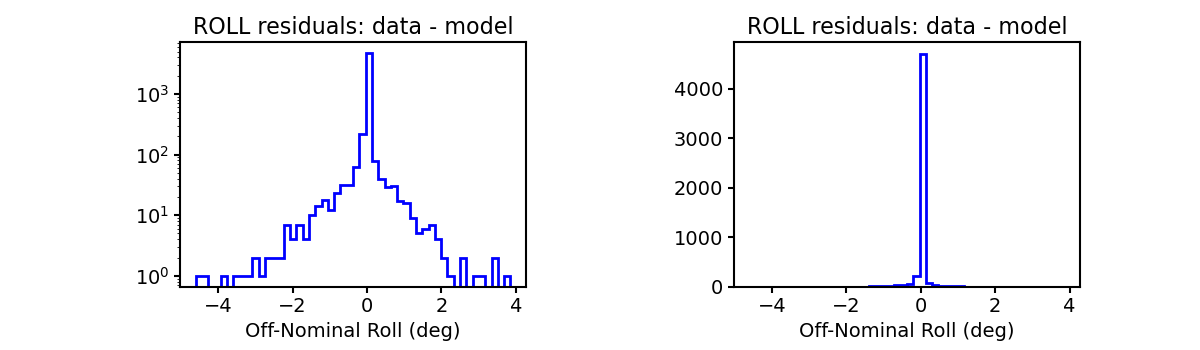

ROLL

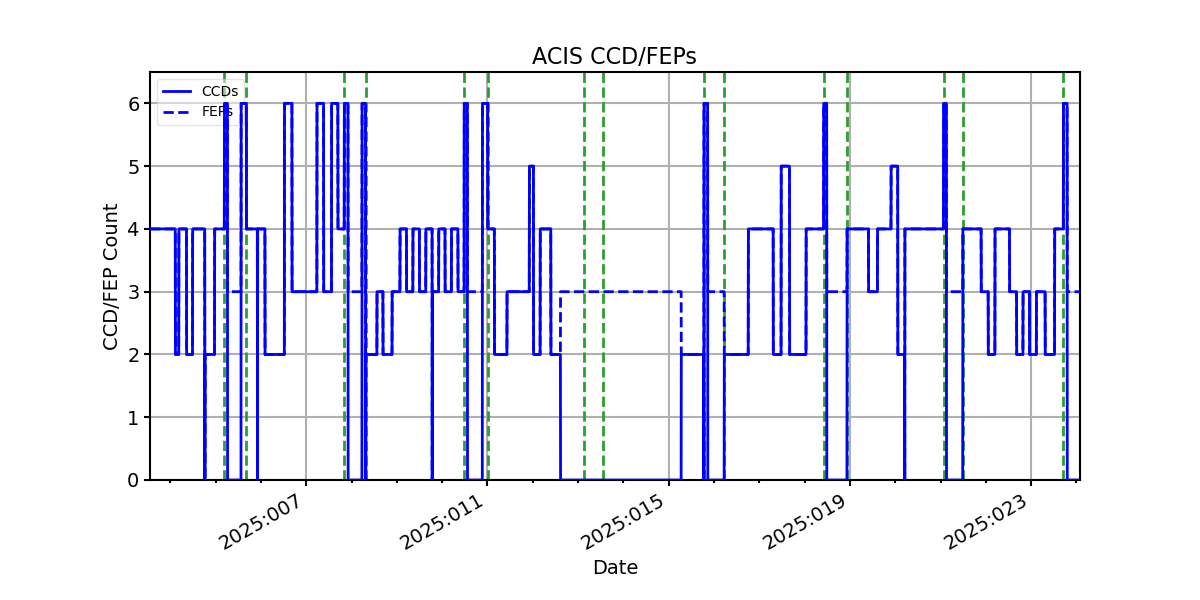

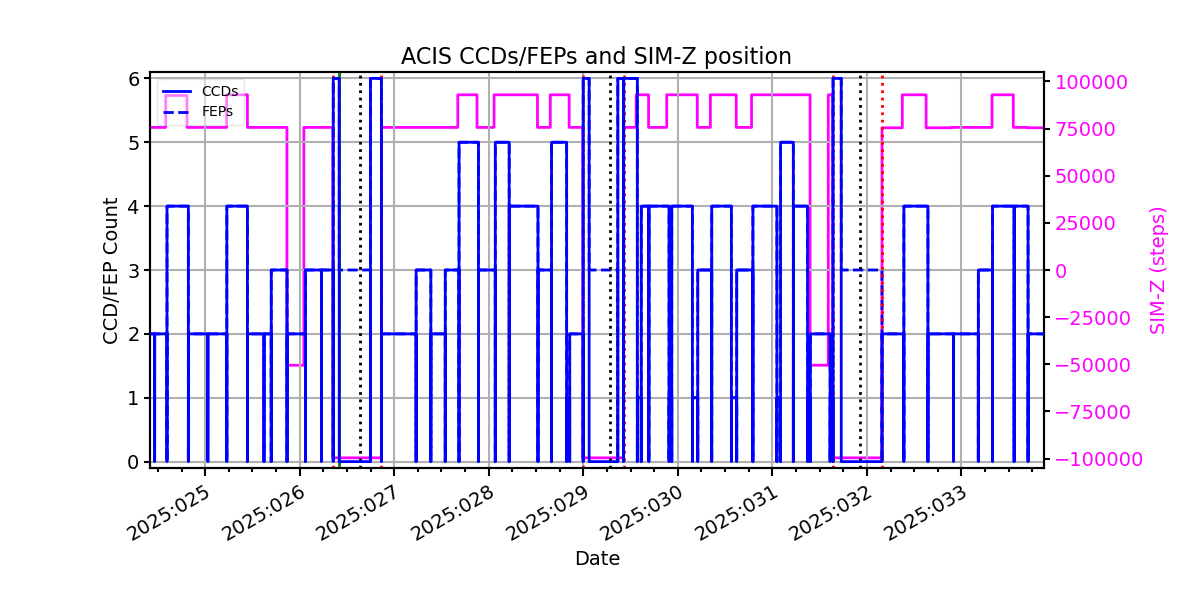

ACIS CCD/FEP Count
