DEA Temperatures Check
Summary
| Date start | 2025:187:17:20:00.016 |
| Date stop | 2025:195:01:16:43.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL0725/ofls |
| Run time | Thu Jul 3 10:26:39 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.45 | -0.74 | -0.23 | 0.80 | 1.41 | 1.74 | 1.83 |
| pitch | -7.671 | -0.176 | -0.004 | -0.000 | 0.004 | 0.366 | 10.157 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.724 | -0.087 | -0.007 | 0.000 | 0.007 | 0.109 | 1.941 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -7.671 | 3.00 |
| PITCH | 99 | 10.157 | 3.00 |

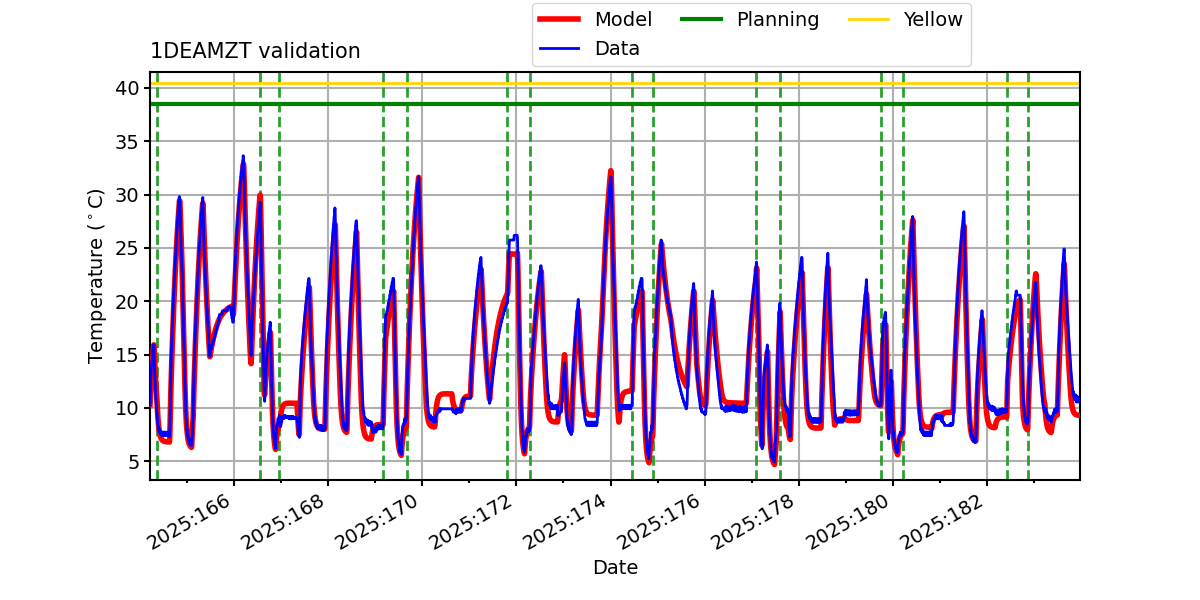

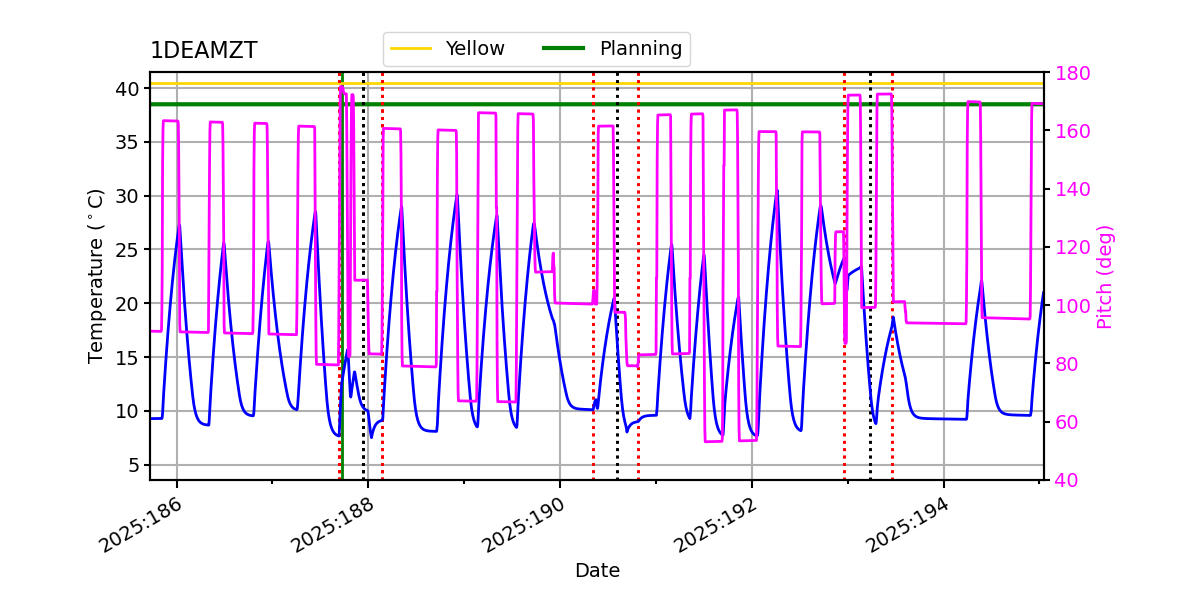

1DEAMZT

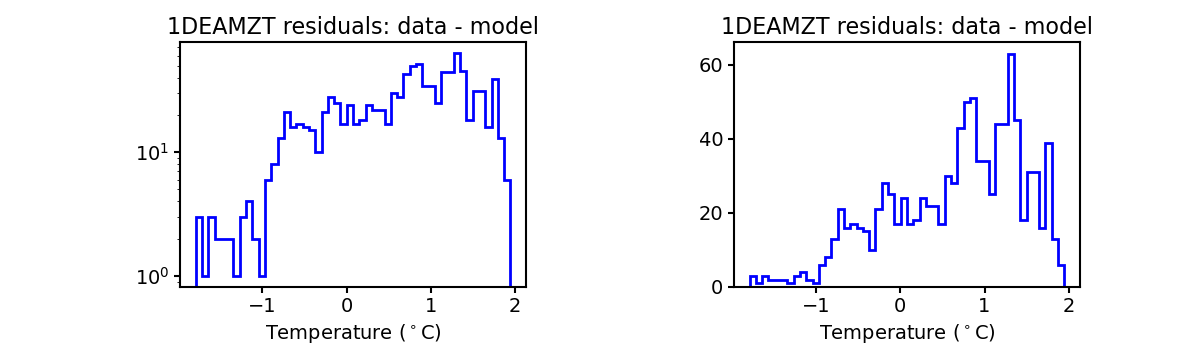

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

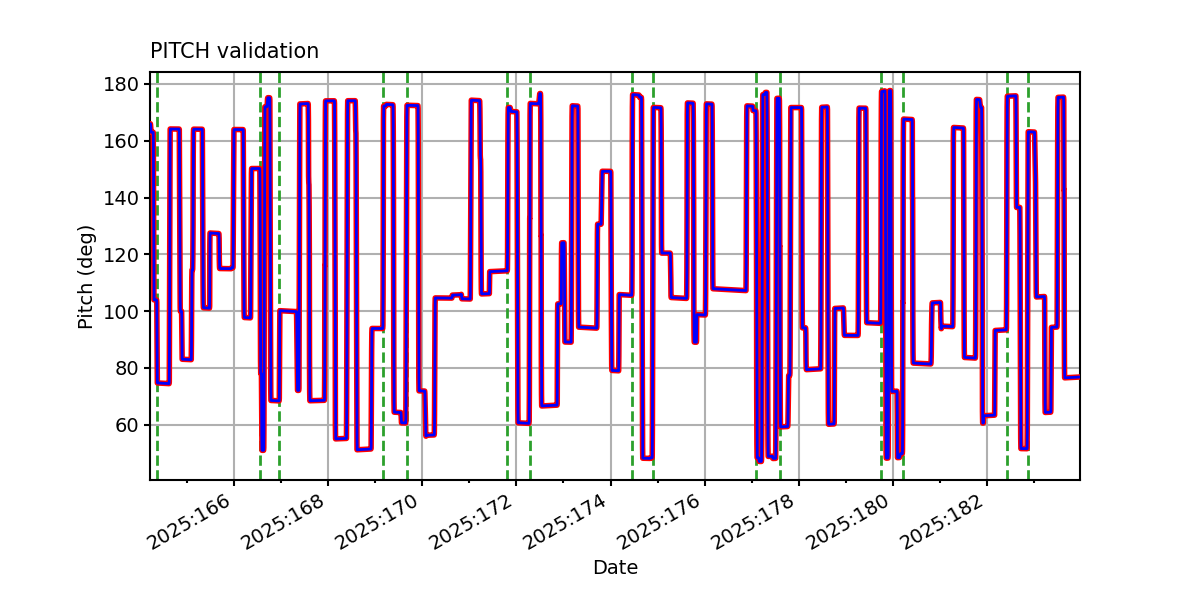

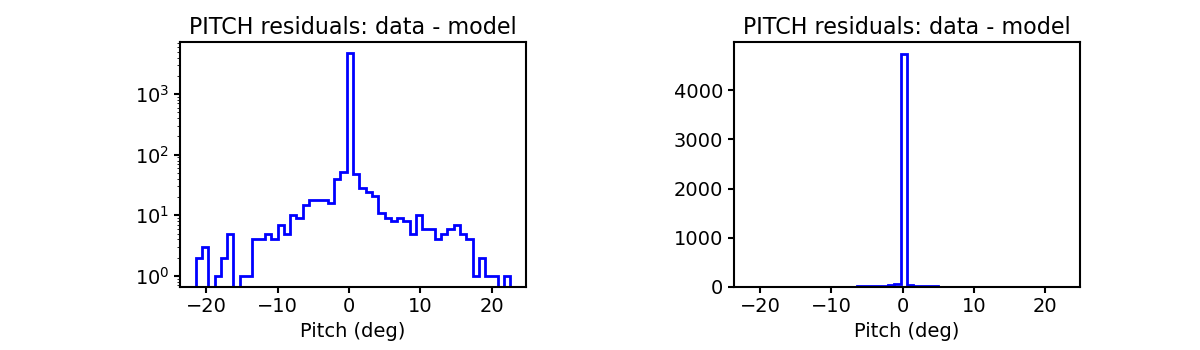

PITCH

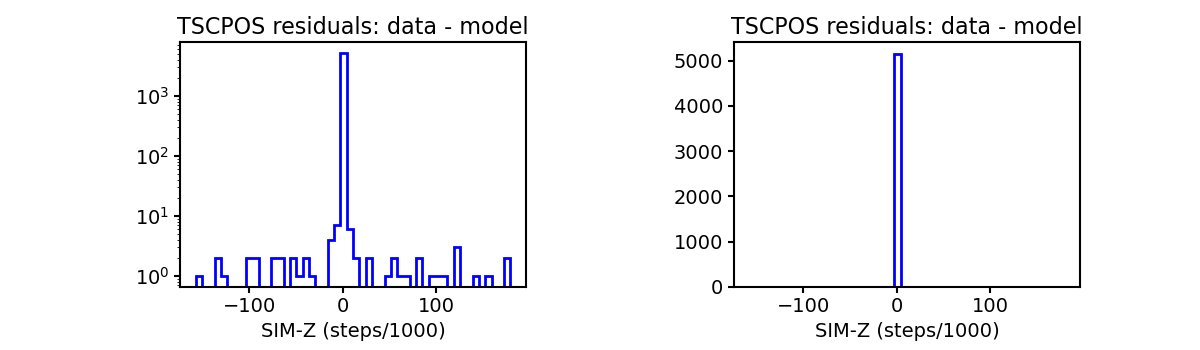

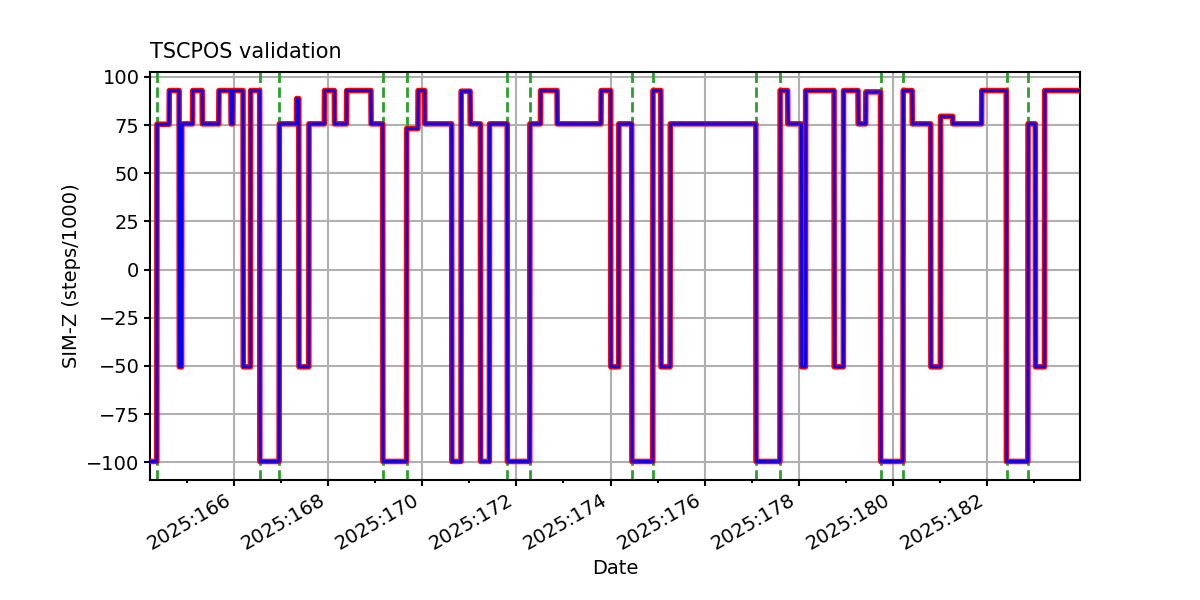

TSCPOS

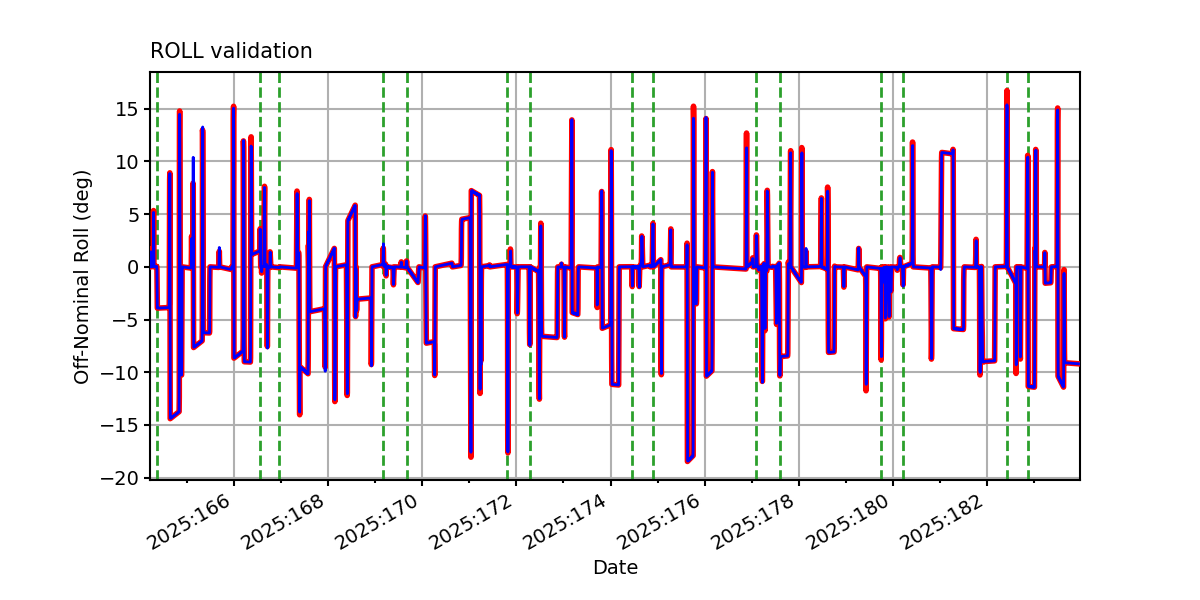

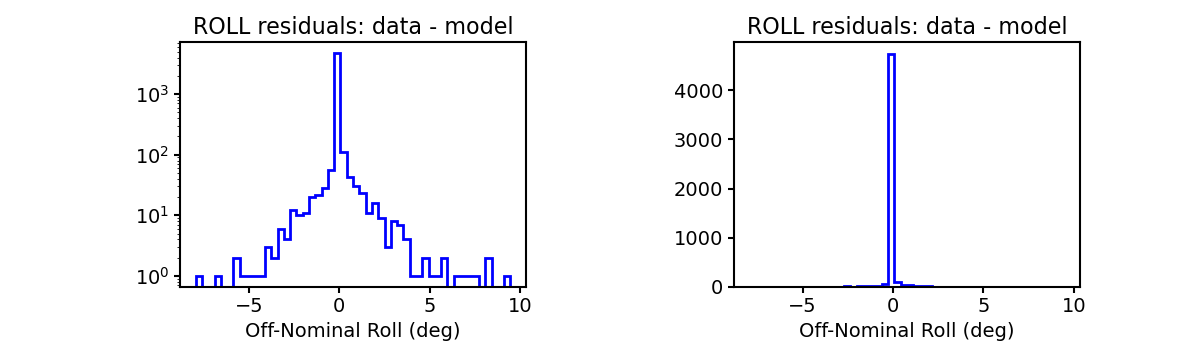

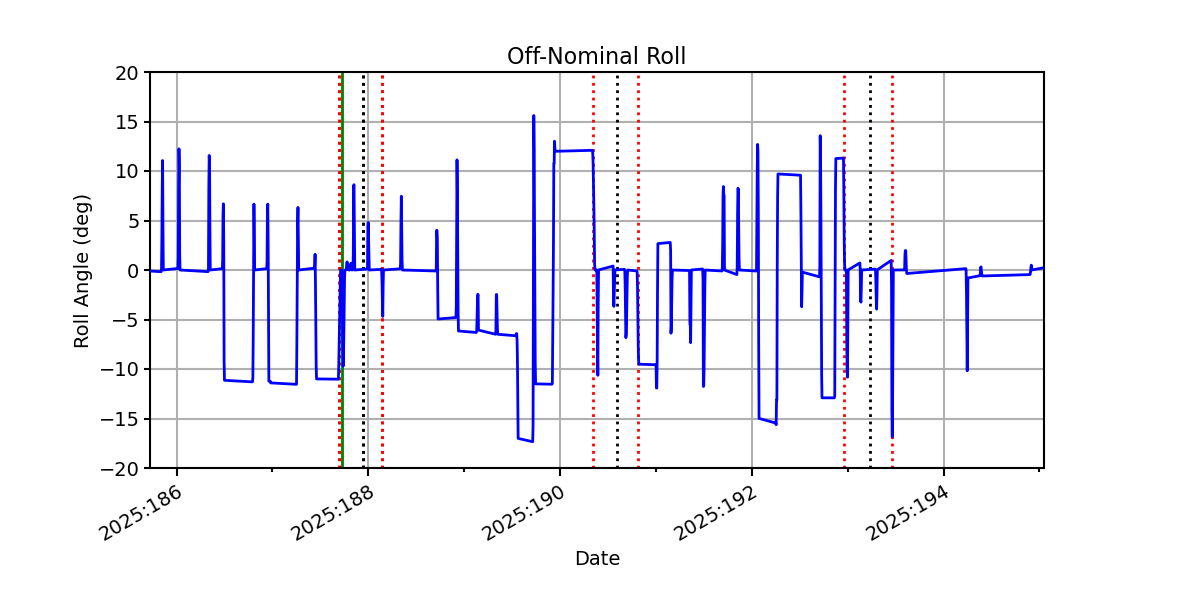

ROLL

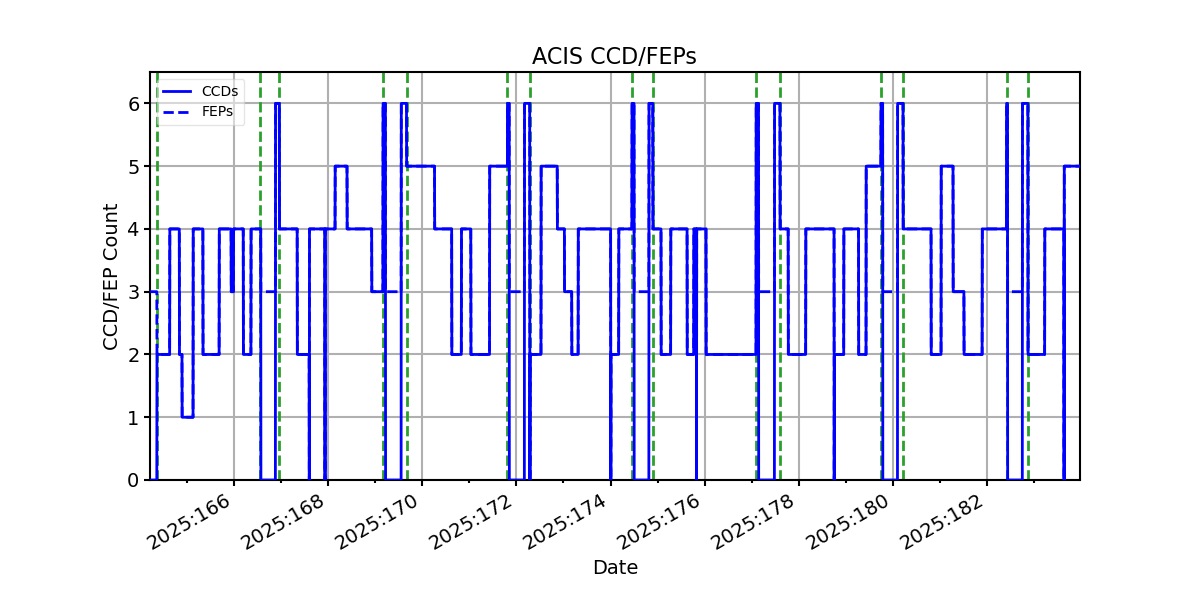

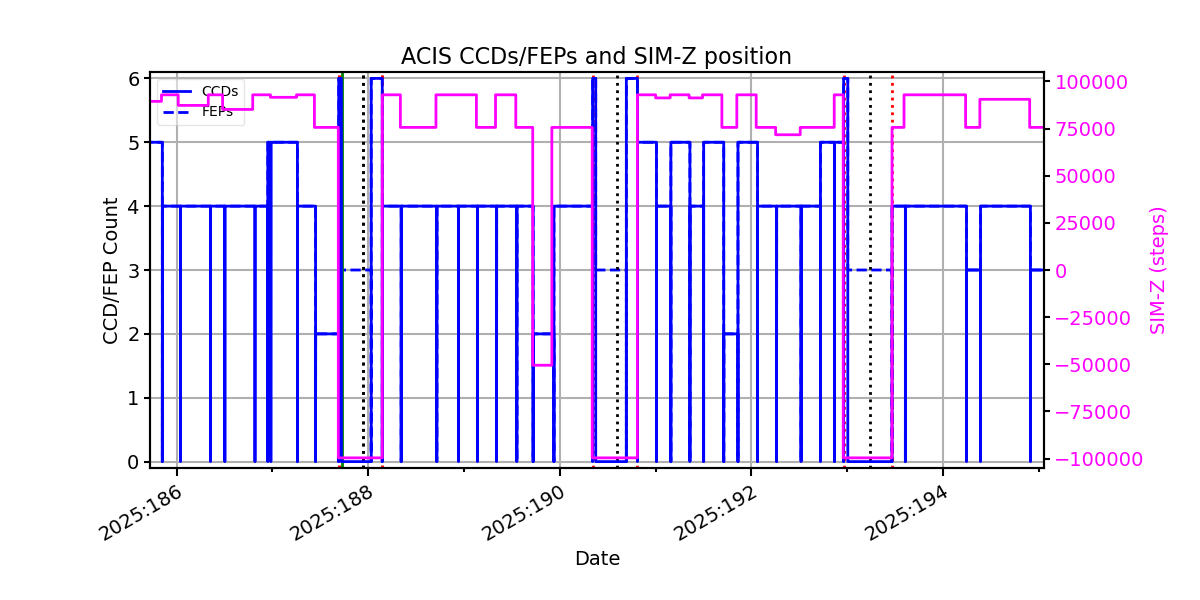

ACIS CCD/FEP Count
