DEA Temperatures Check
Summary
| Date start | 2025:202:00:01:37.716 |
| Date stop | 2025:208:21:31:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2125/ofls |
| Run time | Thu Jul 17 13:49:05 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.57 | -0.86 | -0.38 | 0.33 | 1.22 | 1.64 | 1.89 |
| pitch | -8.603 | -0.332 | -0.004 | 0.000 | 0.004 | 0.395 | 9.807 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.893 | -0.131 | -0.007 | 0.000 | 0.007 | 0.109 | 1.889 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.603 | 3.00 |
| PITCH | 99 | 9.807 | 3.00 |

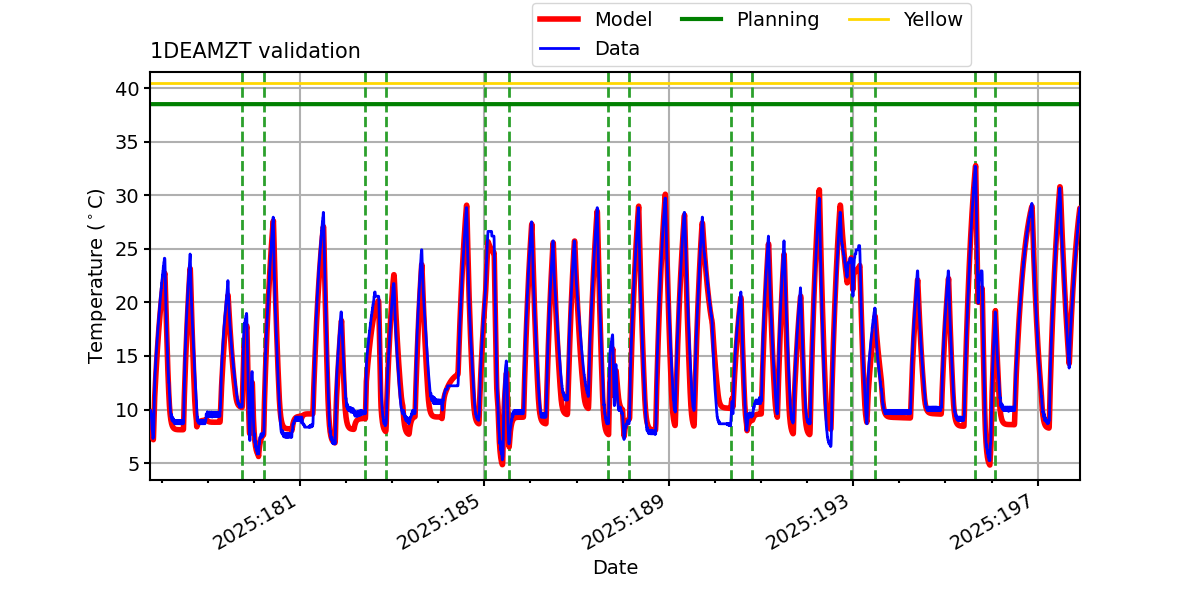

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

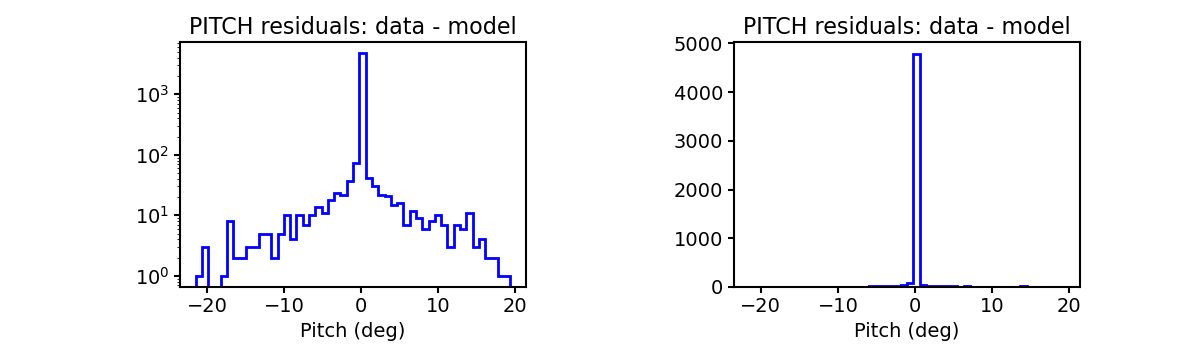

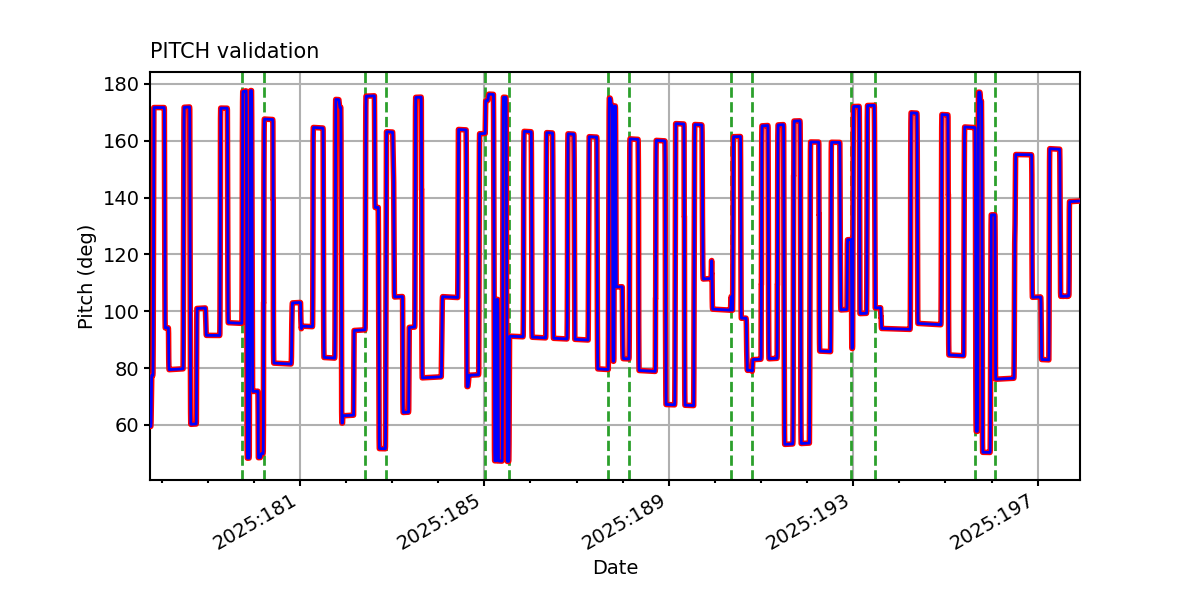

PITCH

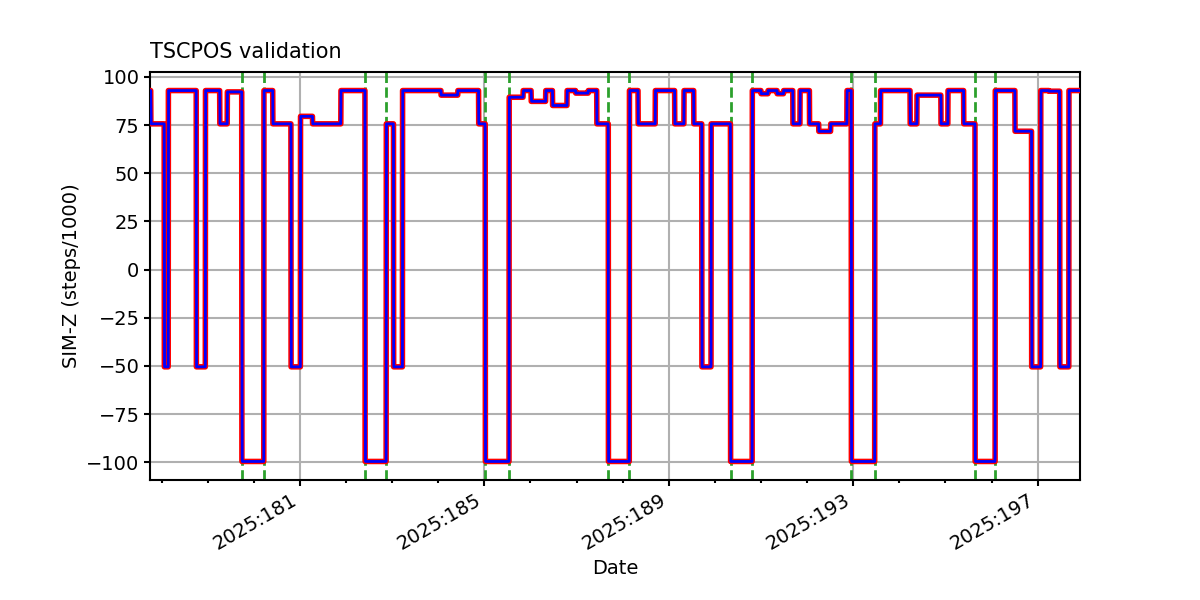

TSCPOS

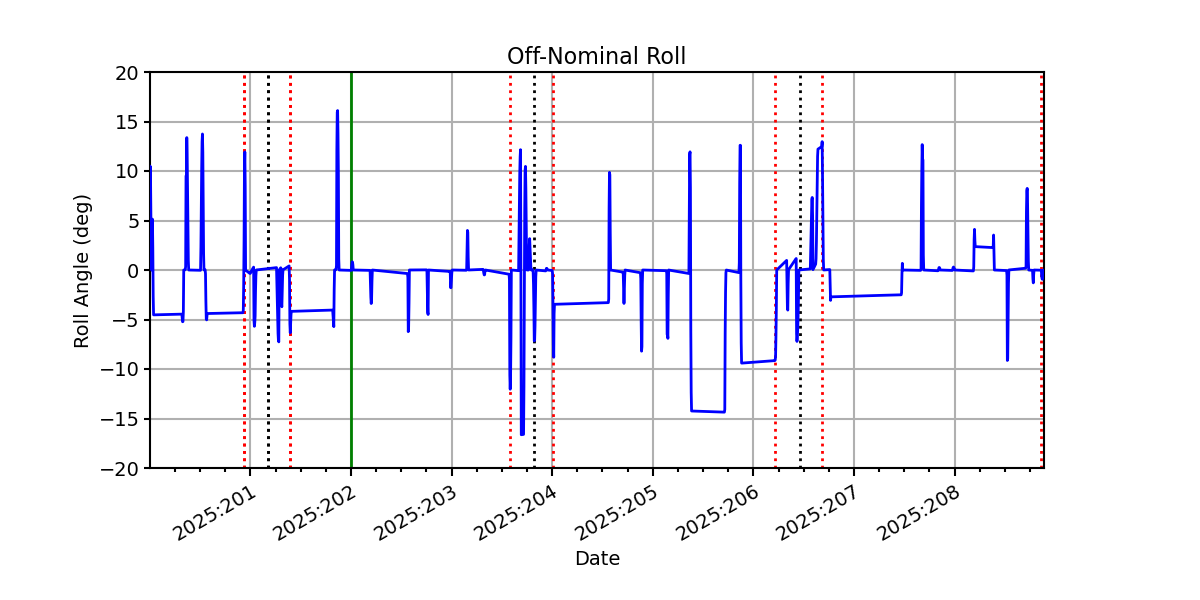

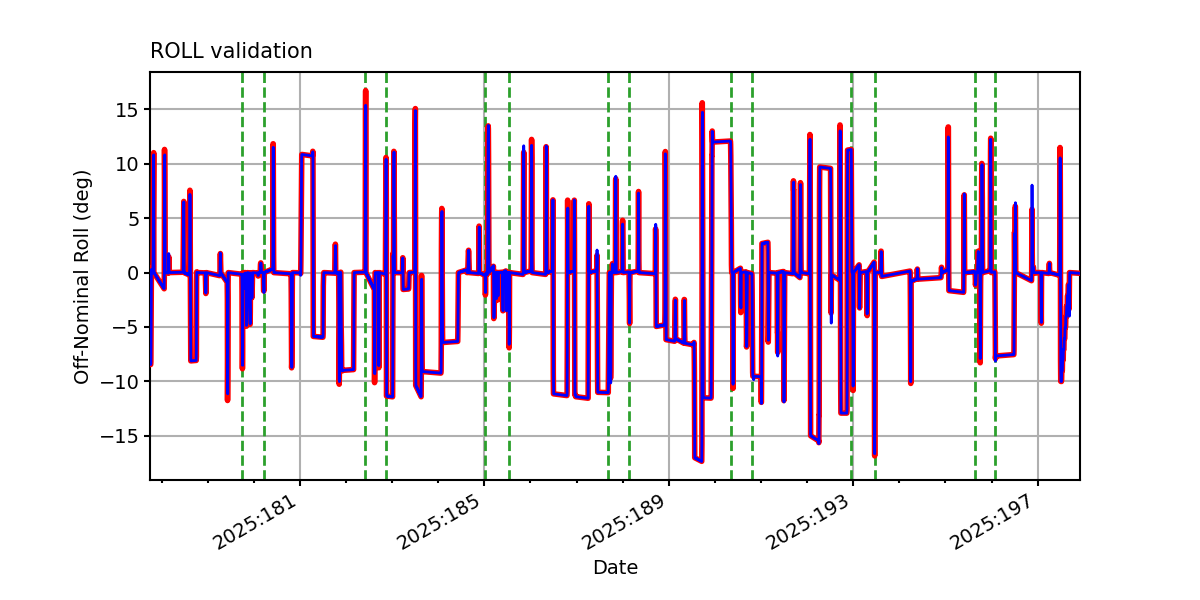

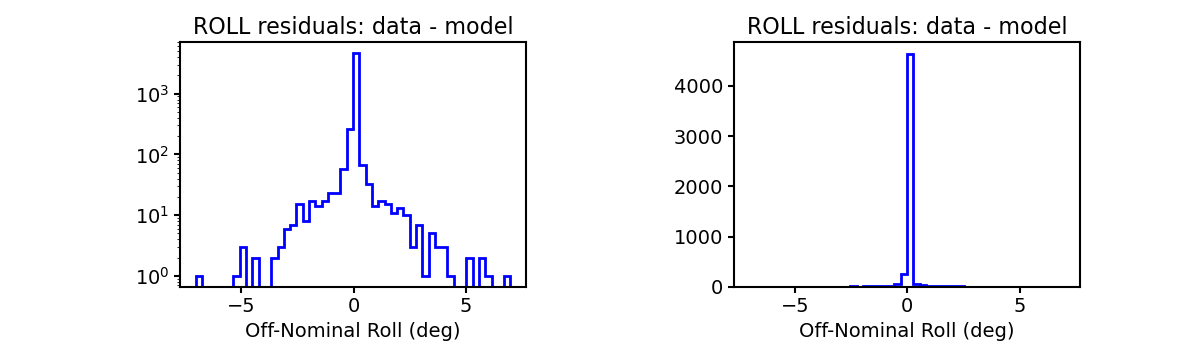

ROLL

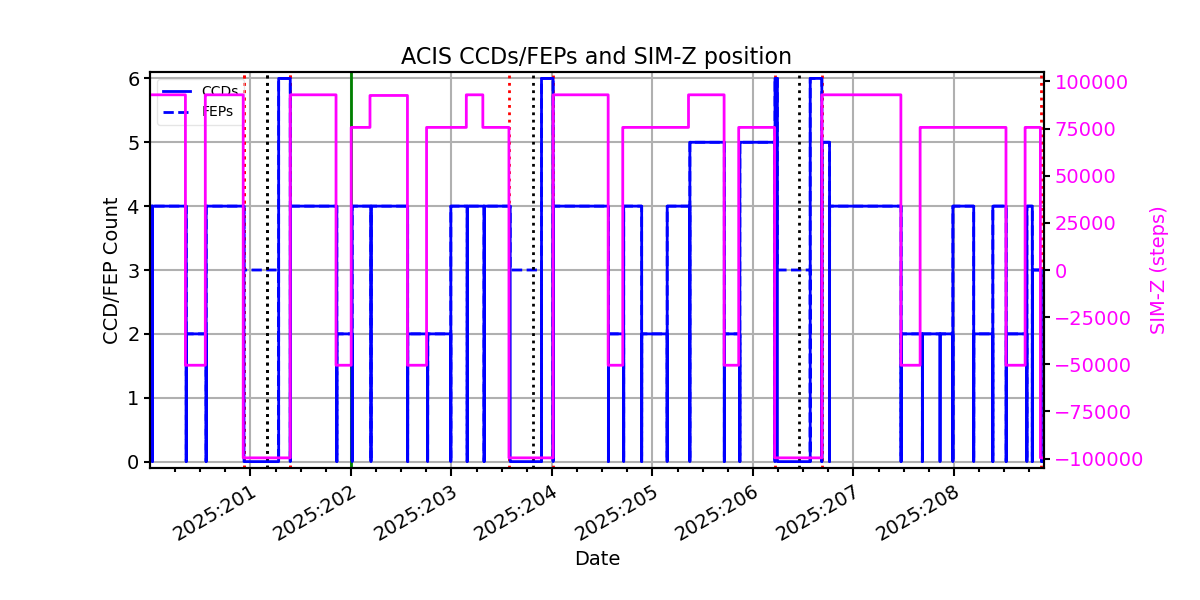

ACIS CCD/FEP Count
