DEA Temperatures Check

Summary

Date start 2025:208:21:28:00.016
Date stop 2025:216:00:58:48.416
Model status OK
Load directory /data/acis/LoadReviews/2025/JUL2825/ofls
Run time Wed Jul 23 18:21:23 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1DEAMZT Upper Limit Violations

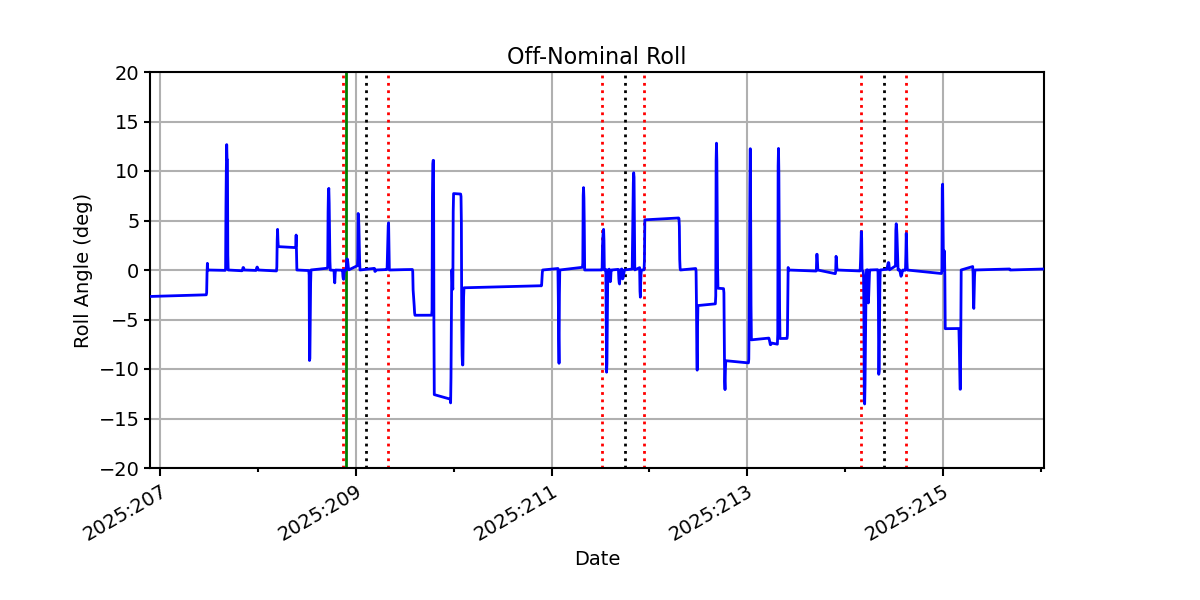

1deamzt.png pow_sim.png roll.png

DEA Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1deamzt -1.51 -0.85 -0.54 0.02 0.77 1.38 1.88
pitch -8.836 -0.403 -0.004 0.000 0.004 0.467 9.377
tscpos -1 -1 -1 0 0 1 1
roll -2.050 -0.136 -0.007 0.000 0.007 0.173 1.773

Validation Violations

MSID Quantile Value Limit
PITCH 1 -8.836 3.00
PITCH 99 9.377 3.00

1DEAMZT

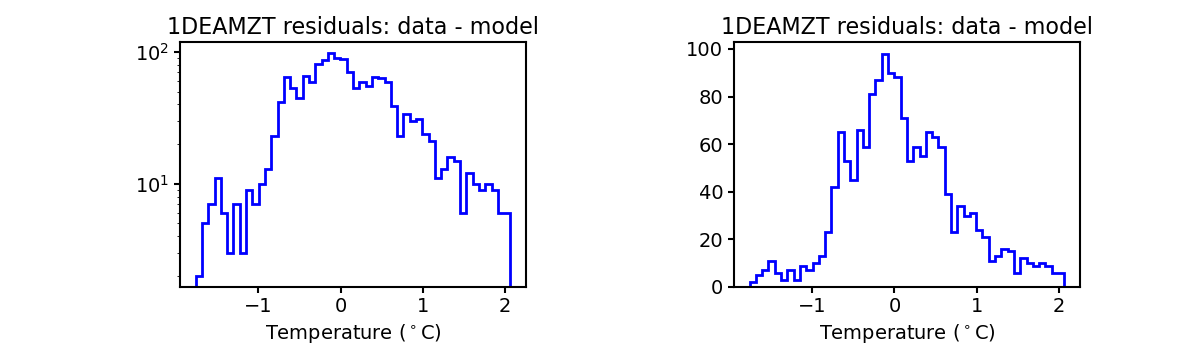

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

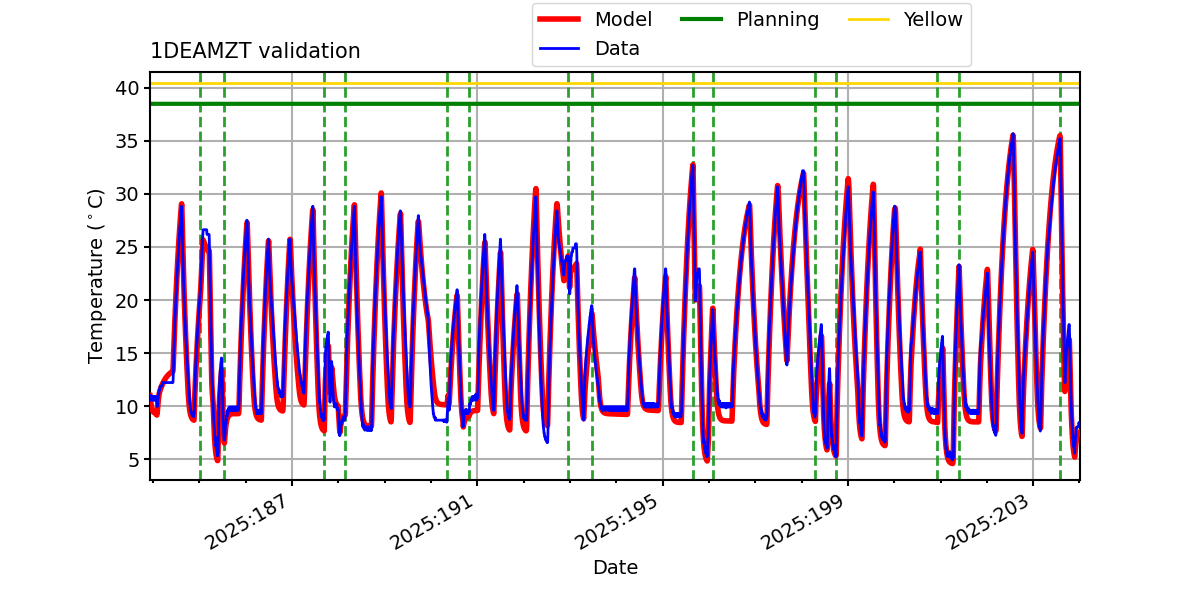

1deamzt_valid.png 1deamzt_valid_hist.png

PITCH

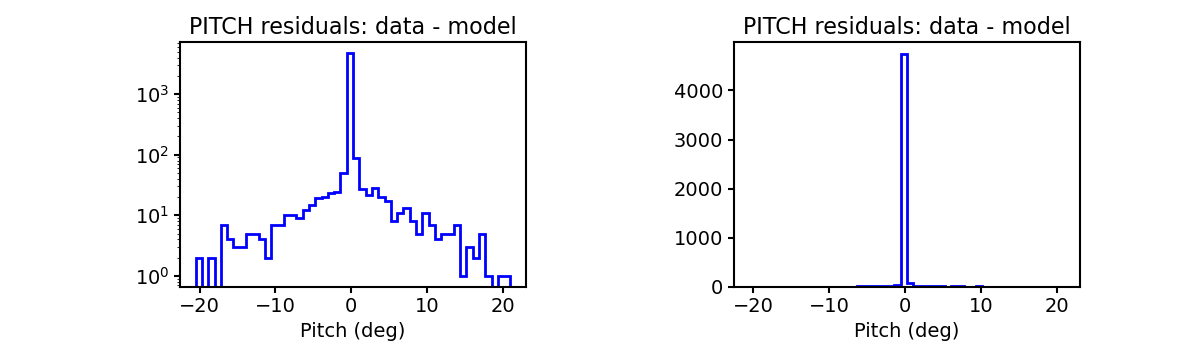

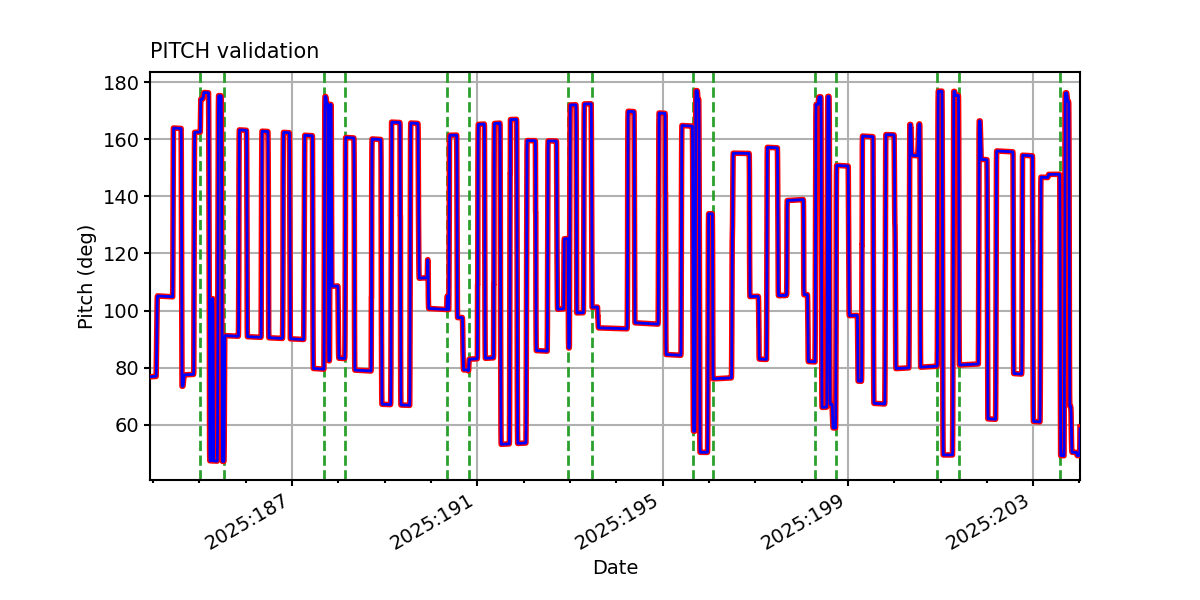

pitch_valid.png pitch_valid_hist.png

TSCPOS

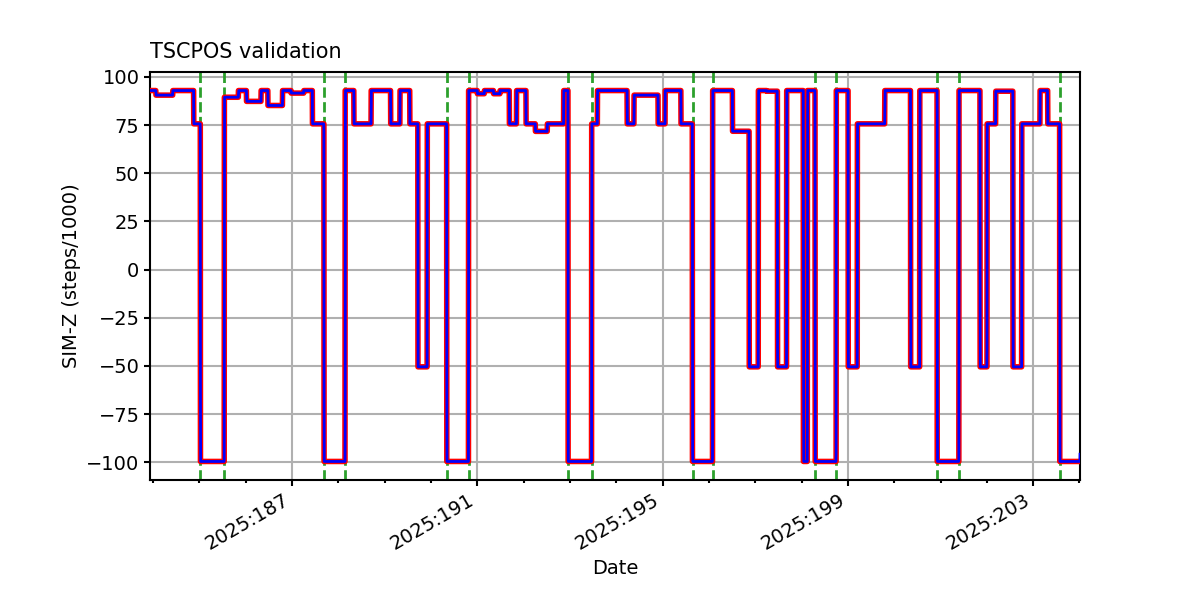

tscpos_valid.png tscpos_valid_hist.png

ROLL

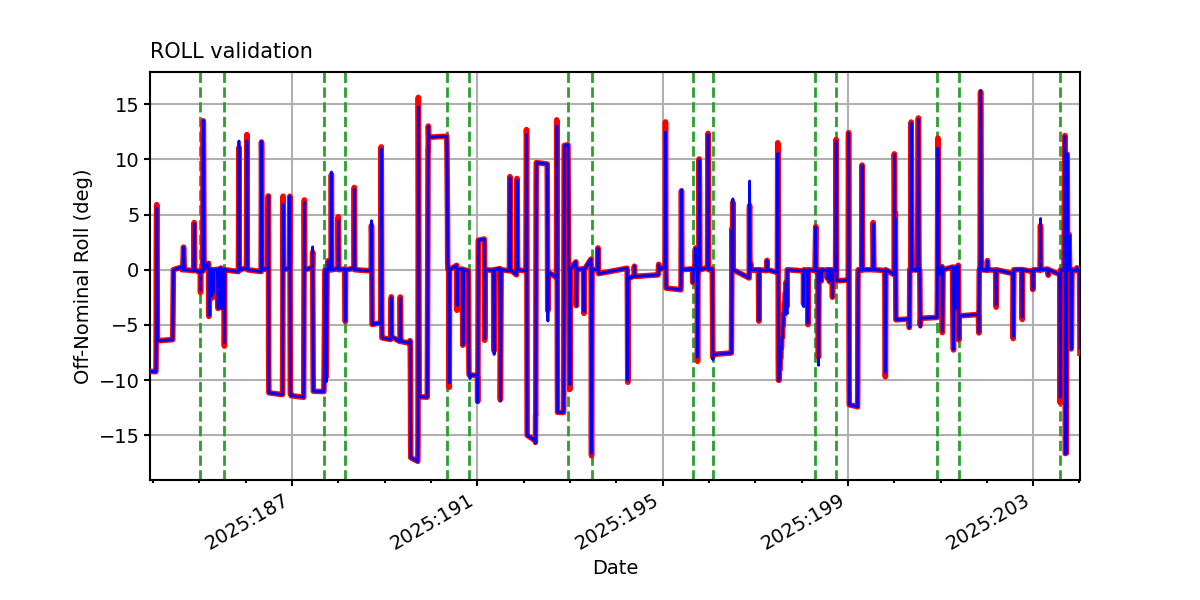

roll_valid.png roll_valid_hist.png

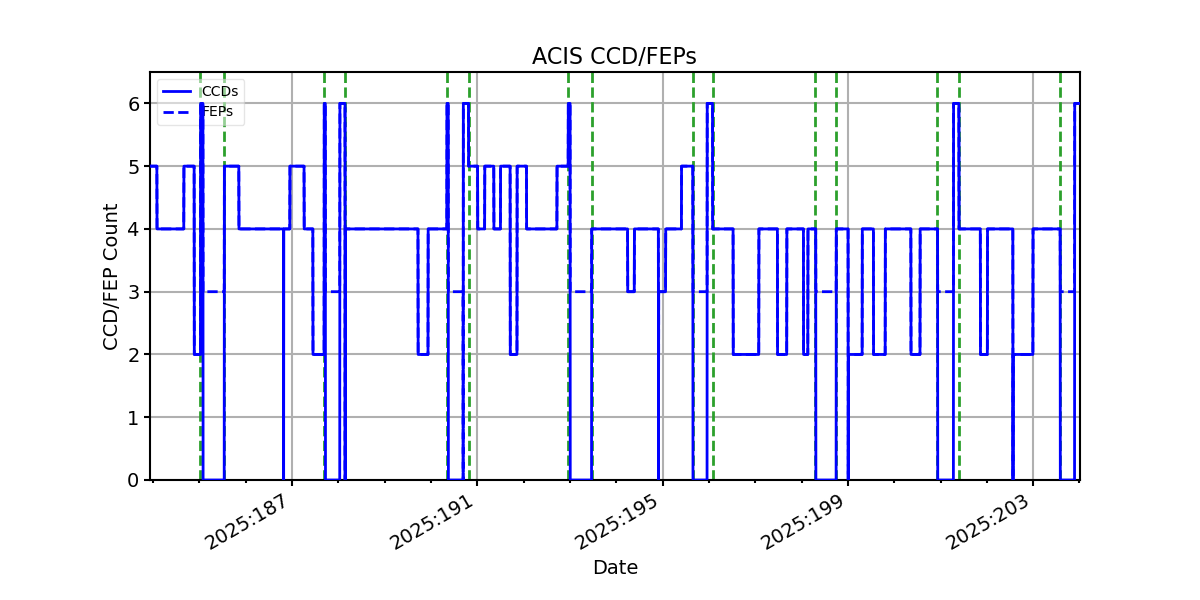

ACIS CCD/FEP Count
