DEA Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Fri Jun 5 05:59:54 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.02 | -1.38 | -0.82 | 0.10 | 1.50 | 2.42 | 3.54 |
| pitch | -8.342 | -0.174 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.308 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.02 | 2.00 |
| 1DEAMZT | 99 | 3.54 | 2.00 |
| PITCH | 1 | -8.342 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |
1DEAMZT

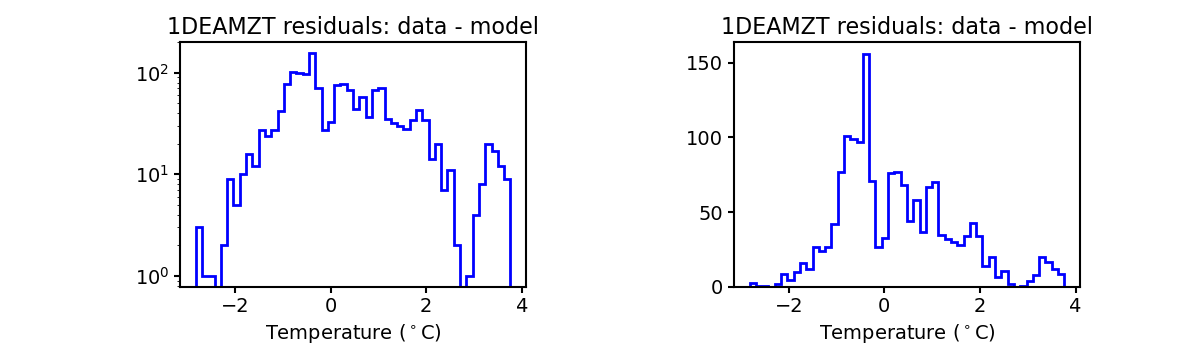

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

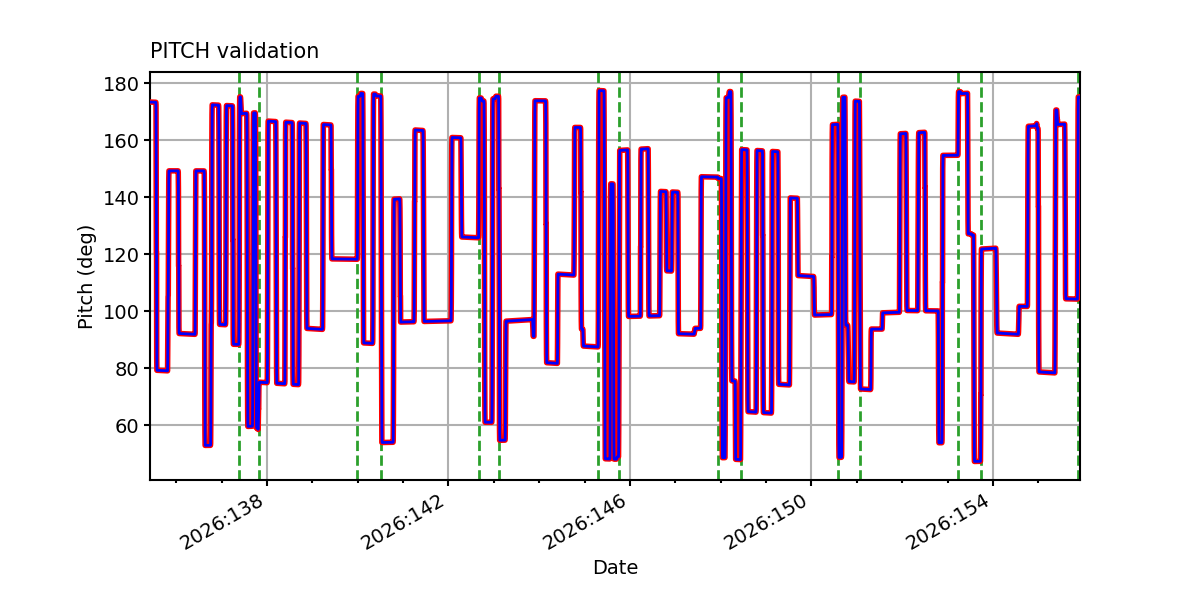

PITCH

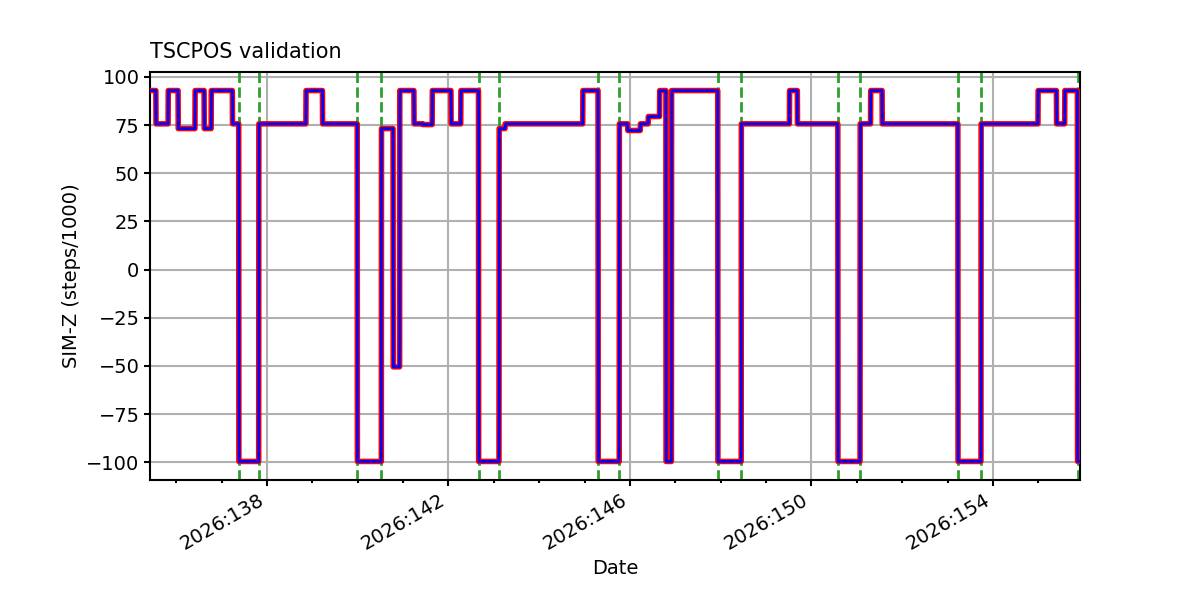

TSCPOS

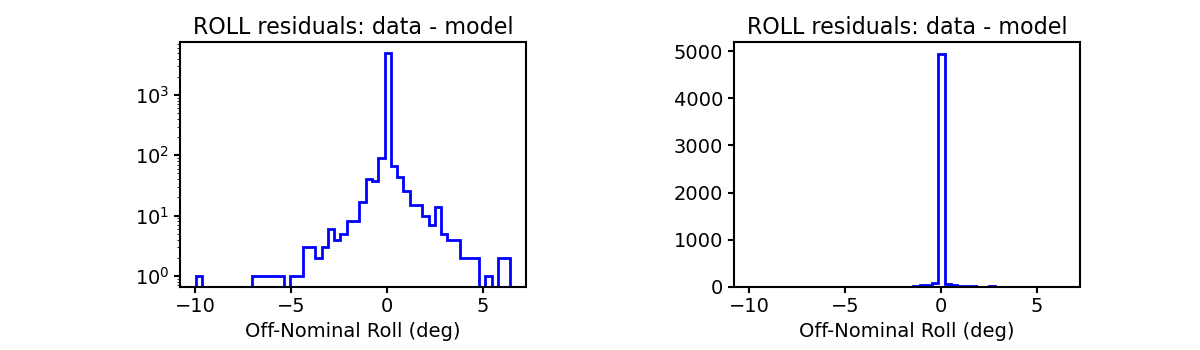

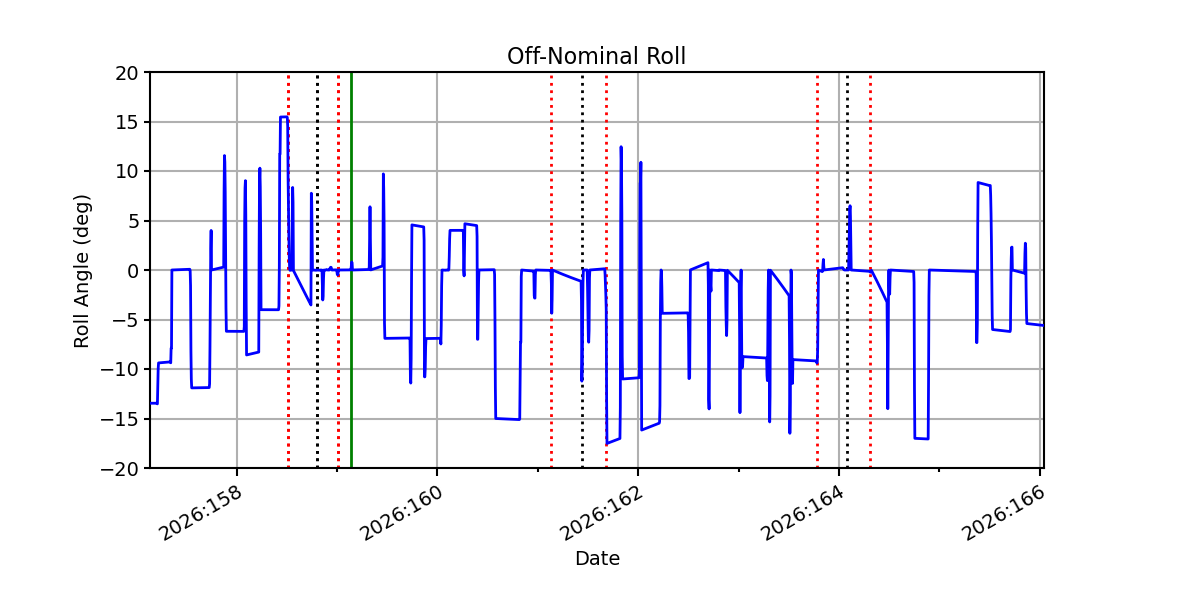

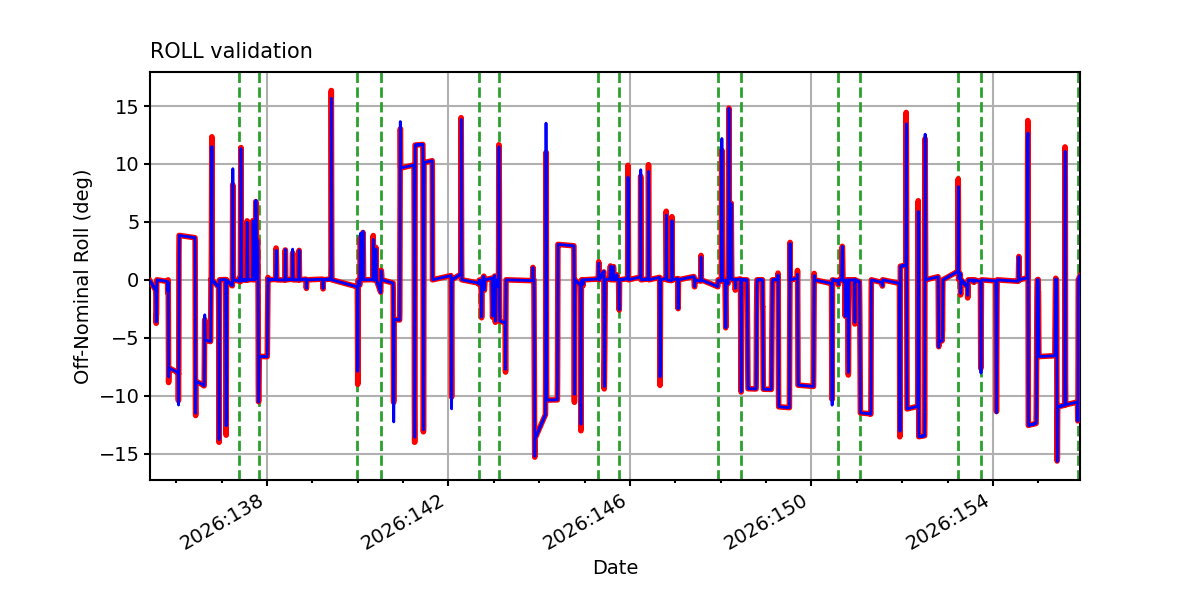

ROLL

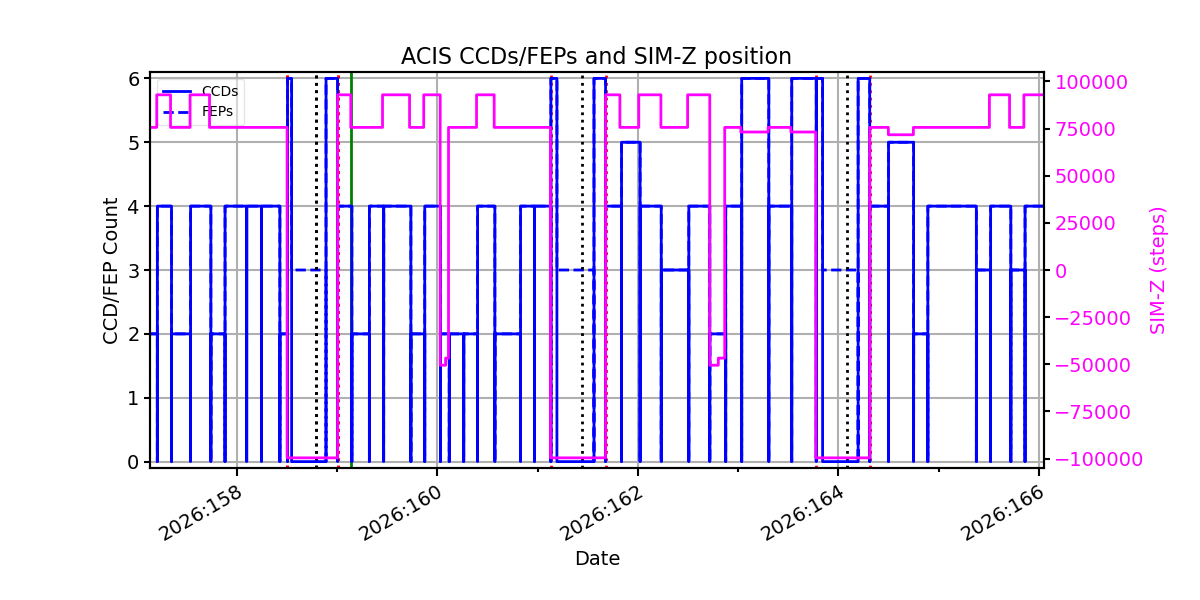

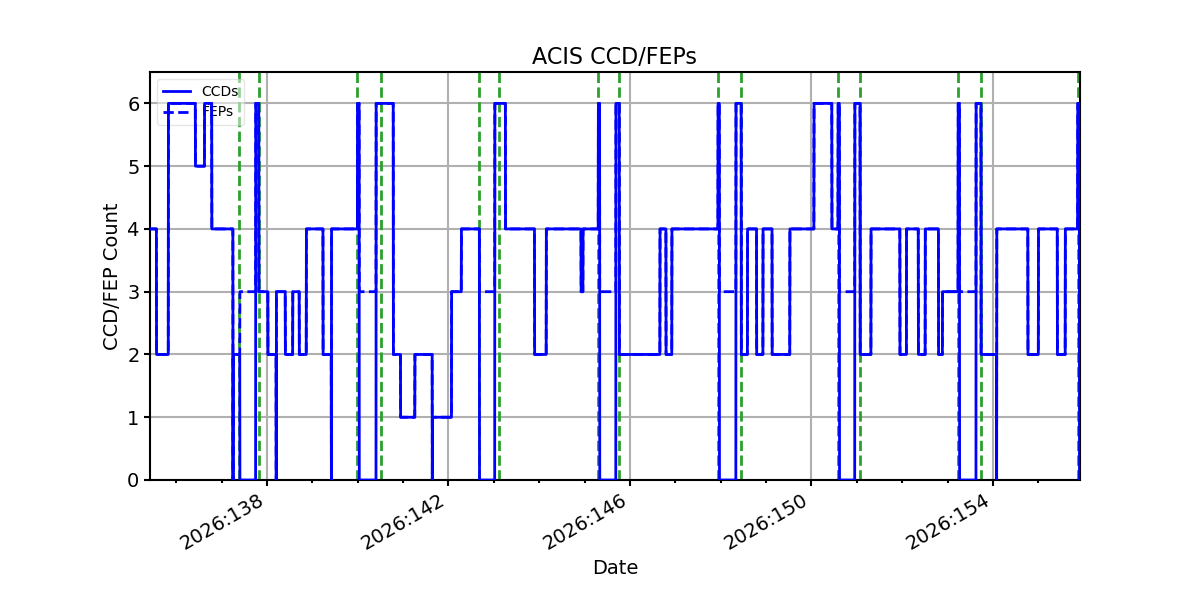

ACIS CCD/FEP Count
