DEA Temperatures Check
Summary
| Date start | 2026:166:01:09:48.416 |
| Date stop | 2026:173:00:14:21.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN1526/oflsa |
| Run time | Thu Jun 11 21:44:01 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.82 | -1.41 | -0.86 | 0.05 | 1.31 | 2.15 | 2.52 |
| pitch | -9.199 | -0.153 | -0.004 | -0.000 | 0.004 | 0.315 | 7.725 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.455 | -0.076 | -0.004 | -0.000 | 0.004 | 0.083 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.52 | 2.00 |
| PITCH | 1 | -9.199 | 3.00 |
| PITCH | 99 | 7.725 | 3.00 |

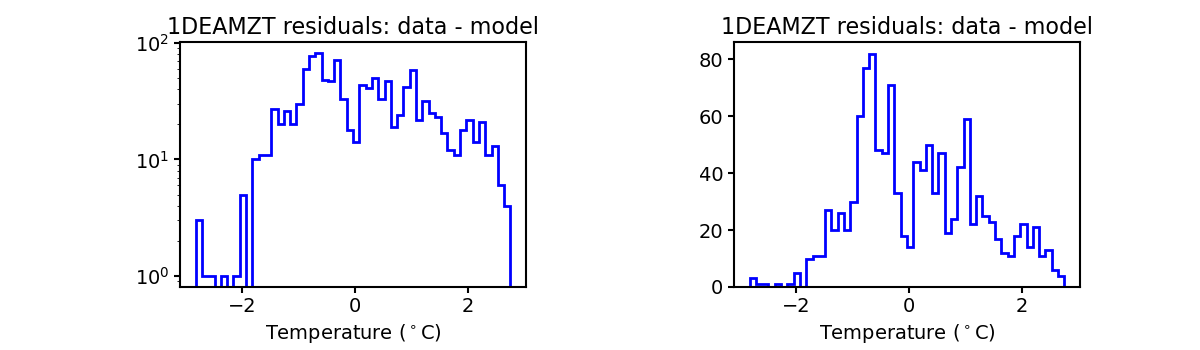

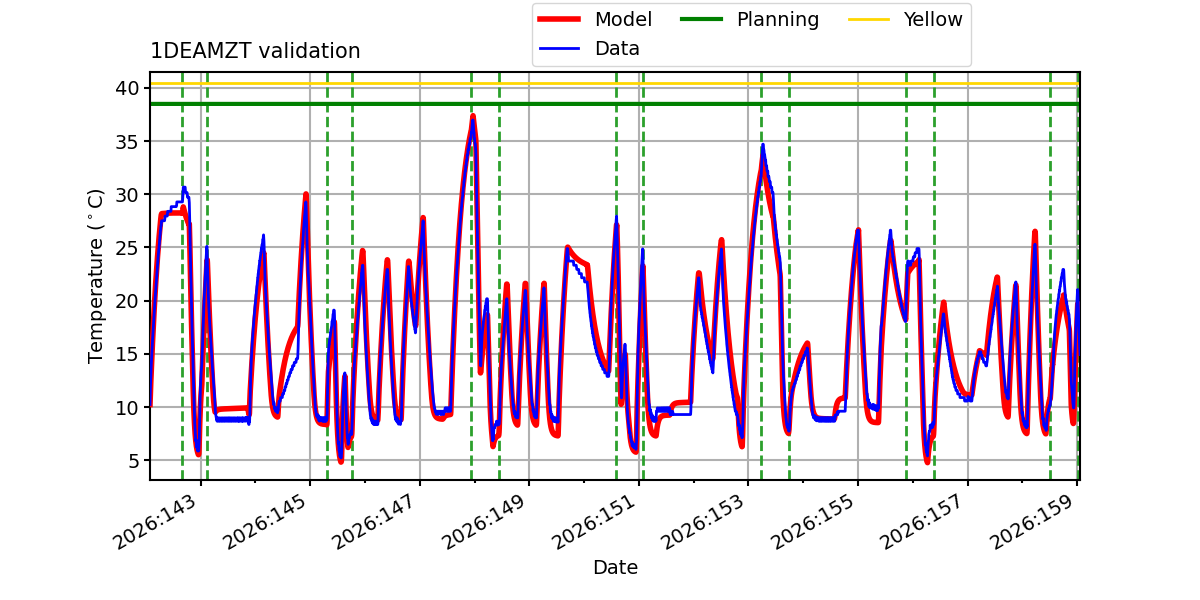

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

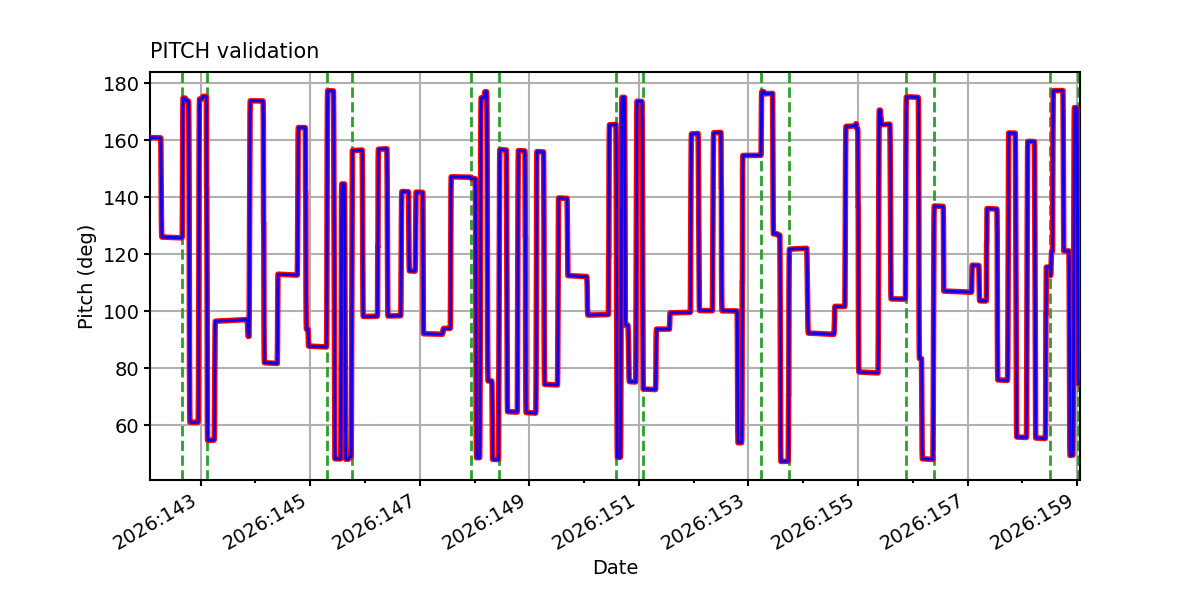

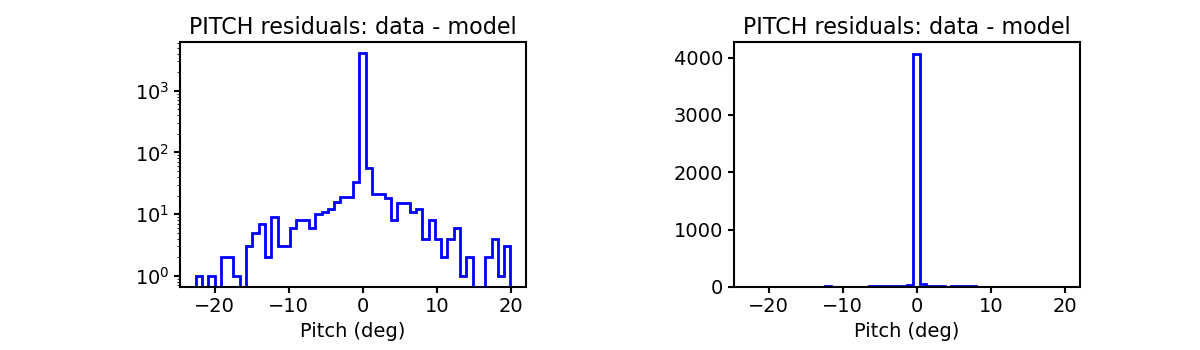

PITCH

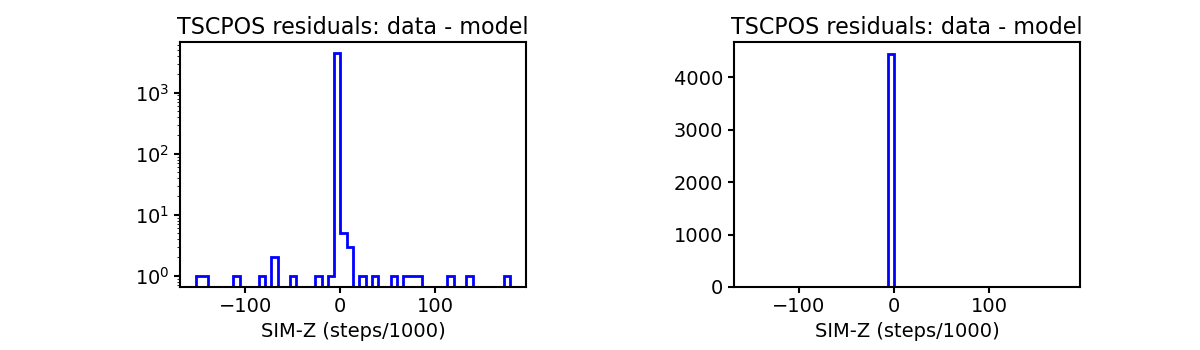

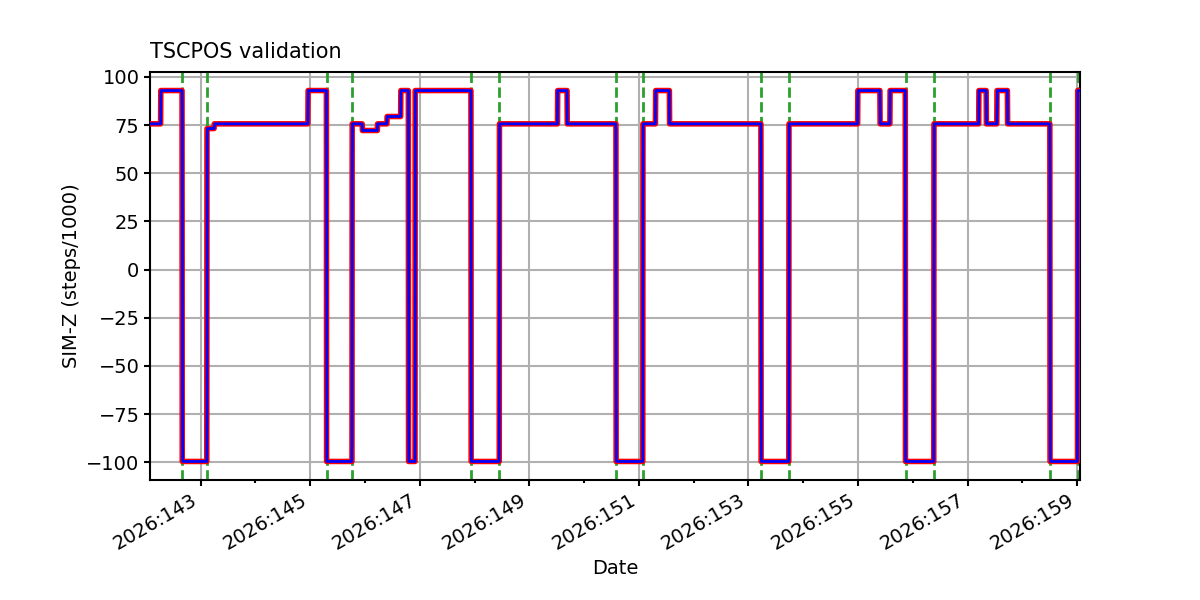

TSCPOS

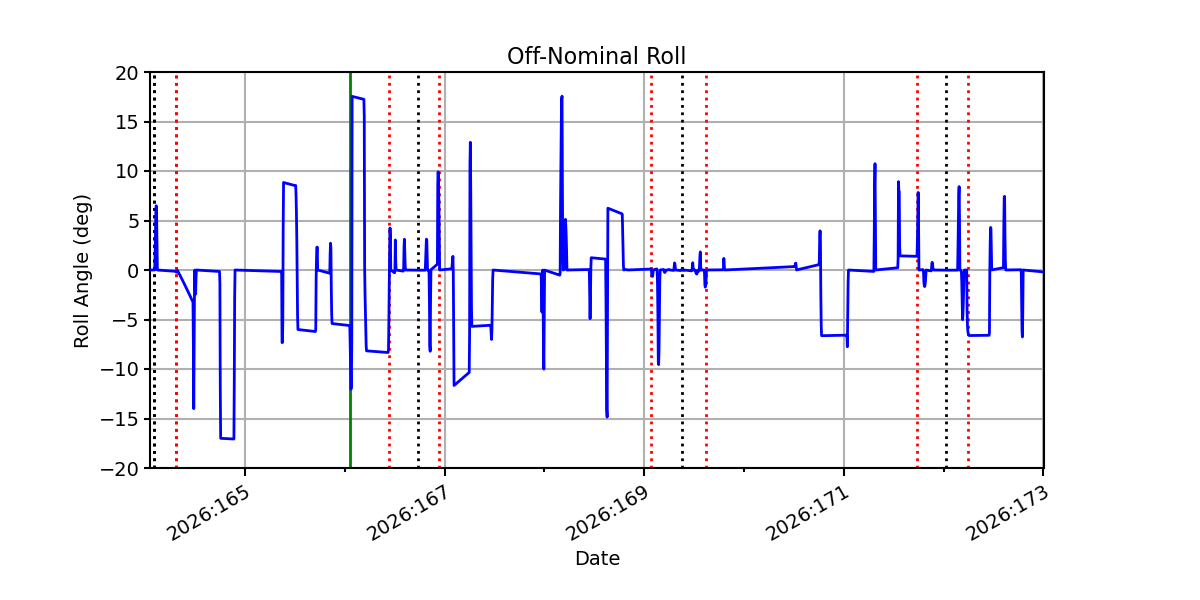

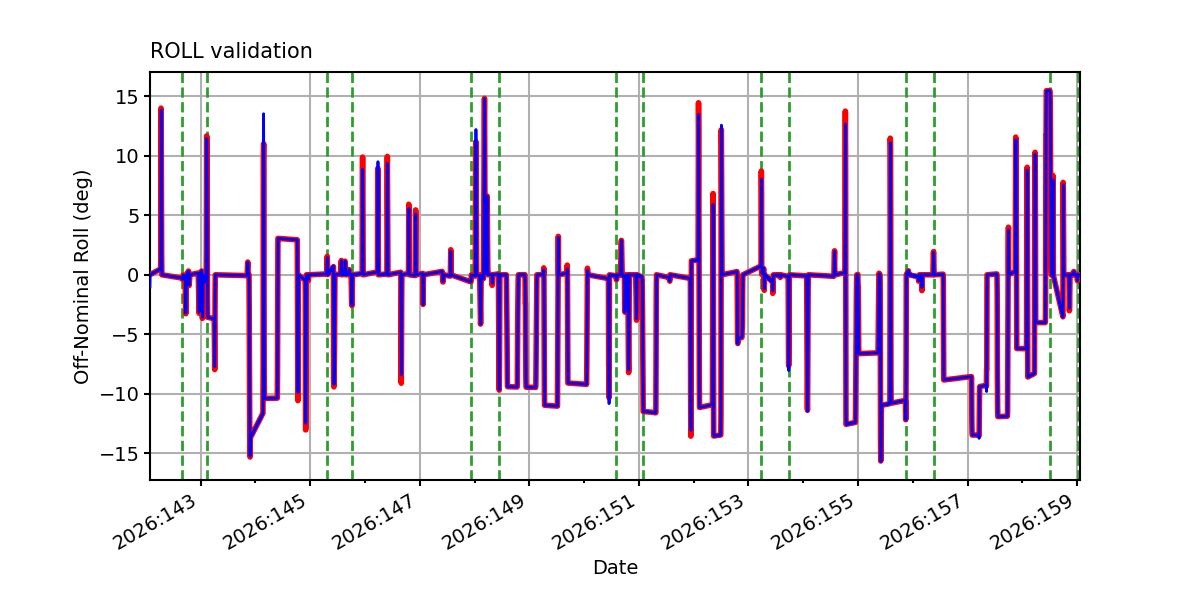

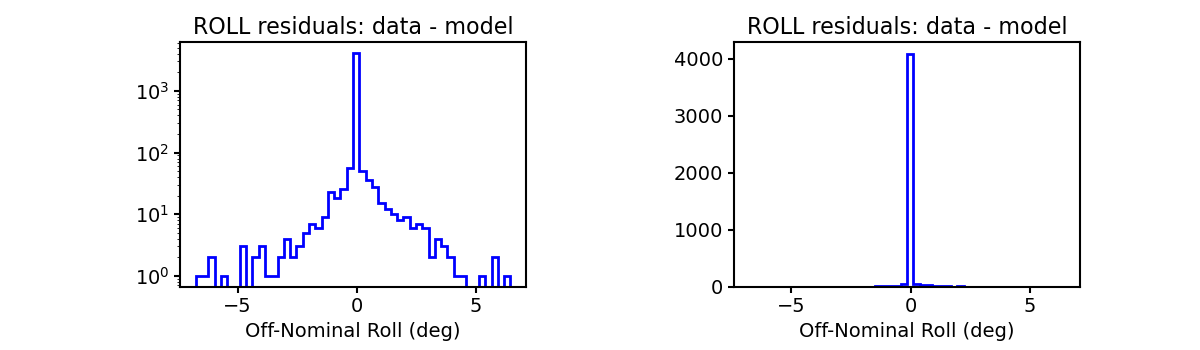

ROLL

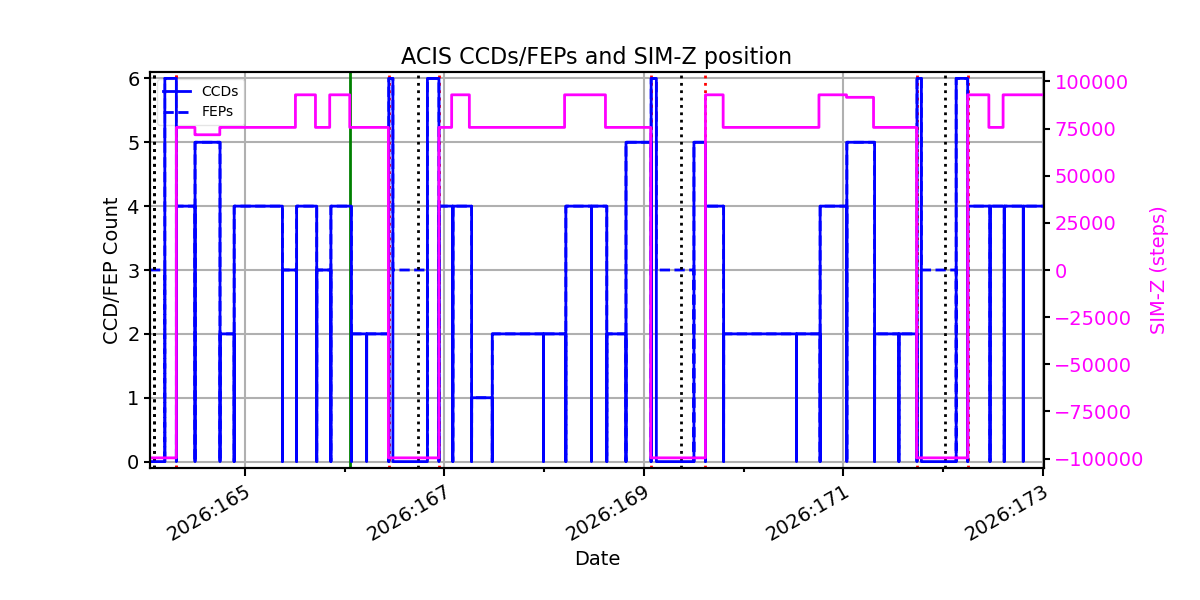

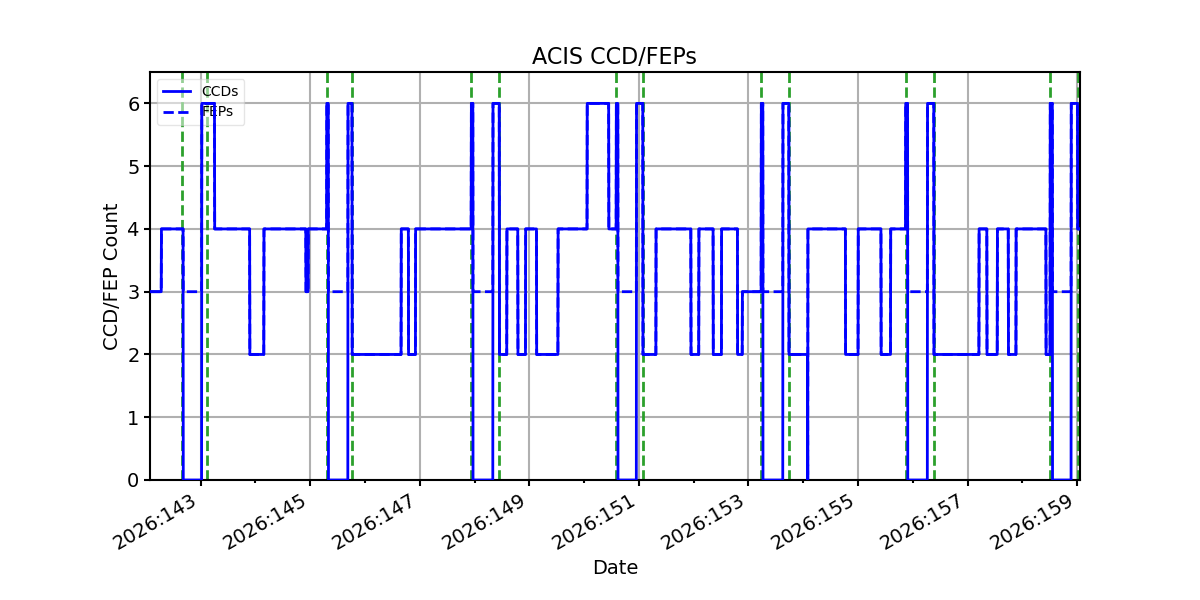

ACIS CCD/FEP Count
