DEA Temperatures Check
Summary
| Date start | 2025:181:00:12:08.516 |
| Date stop | 2025:187:17:23:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN3025/ofls |
| Run time | Thu Jun 26 12:02:59 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.63 | -1.18 | -0.75 | 0.35 | 1.42 | 1.87 | 2.03 |
| pitch | -25.946 | -2.309 | -0.004 | -0.000 | 0.004 | 0.168 | 6.103 |
| tscpos | -134637 | -1 | -1 | 0 | 0 | 0 | 126128 |
| roll | -3.847 | -0.189 | -0.007 | 0.000 | 0.009 | 0.200 | 9.211 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.03 | 2.00 |
| PITCH | 1 | -25.946 | 3.00 |
| PITCH | 99 | 6.103 | 3.00 |
| TSCPOS | 1 | -134637.0 | 2.50 |
| TSCPOS | 99 | 126128.0 | 2.50 |

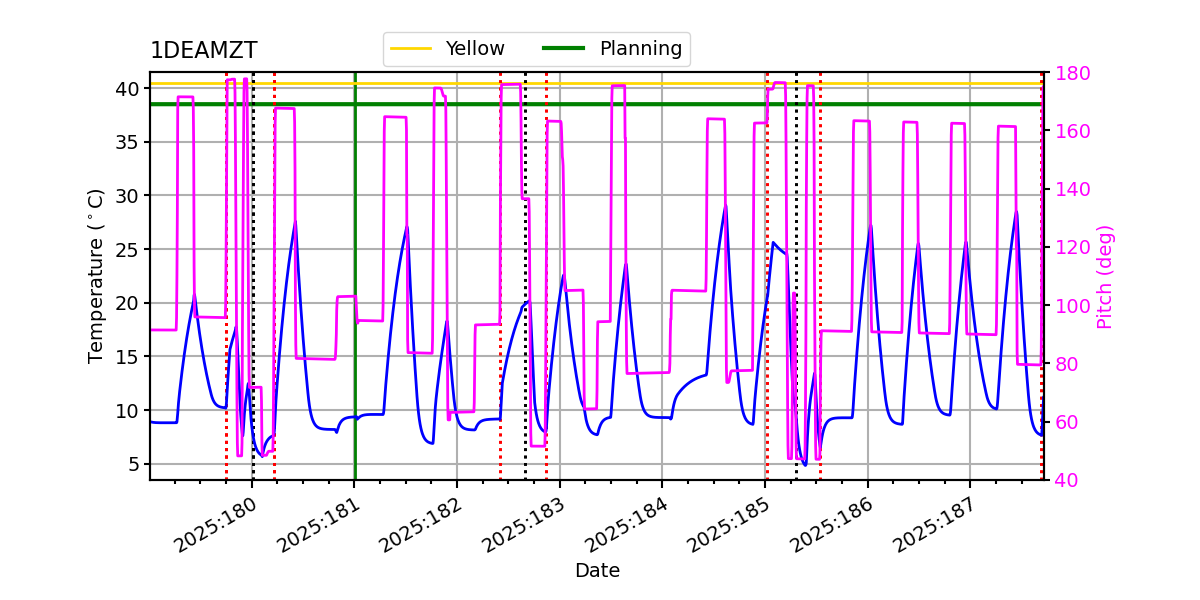

1DEAMZT

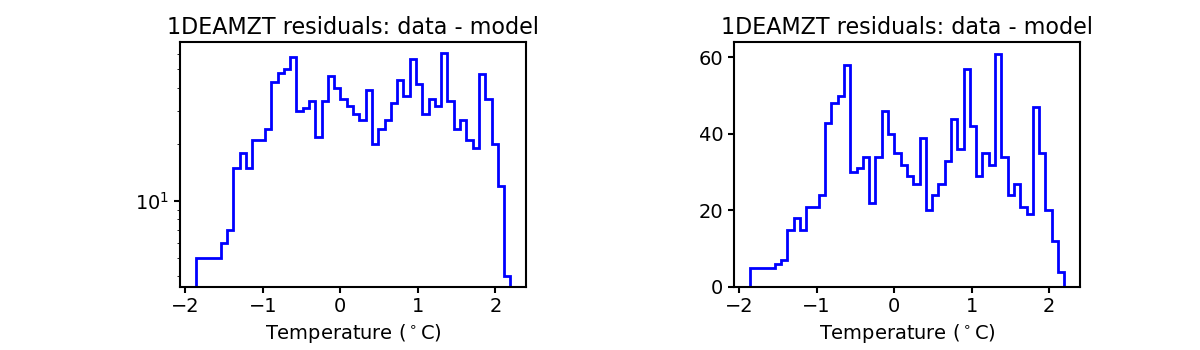

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

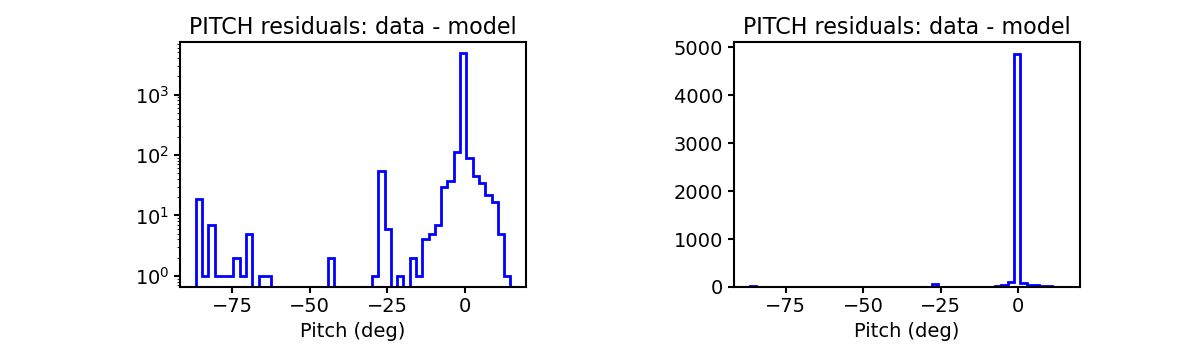

PITCH

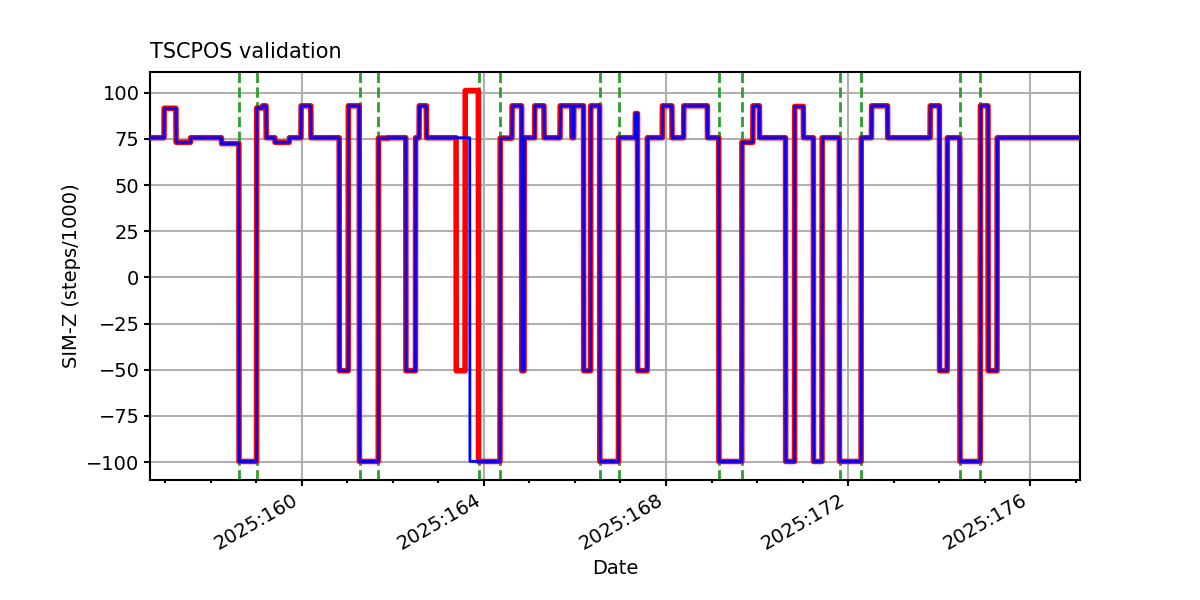

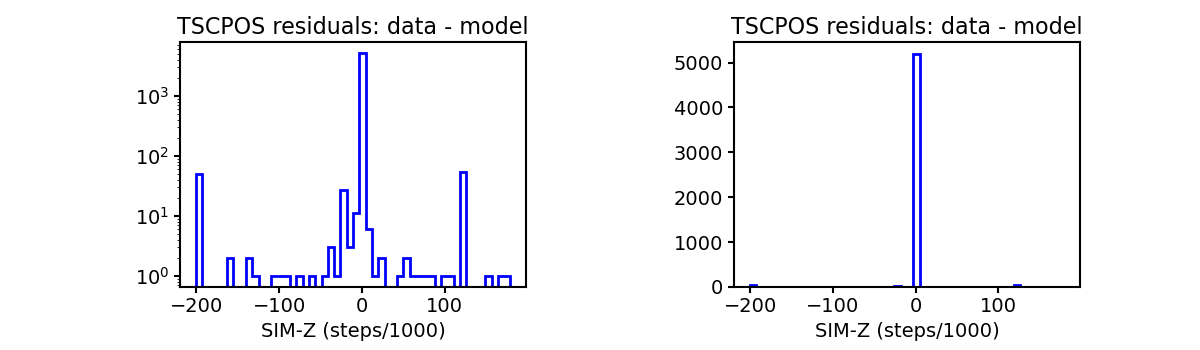

TSCPOS

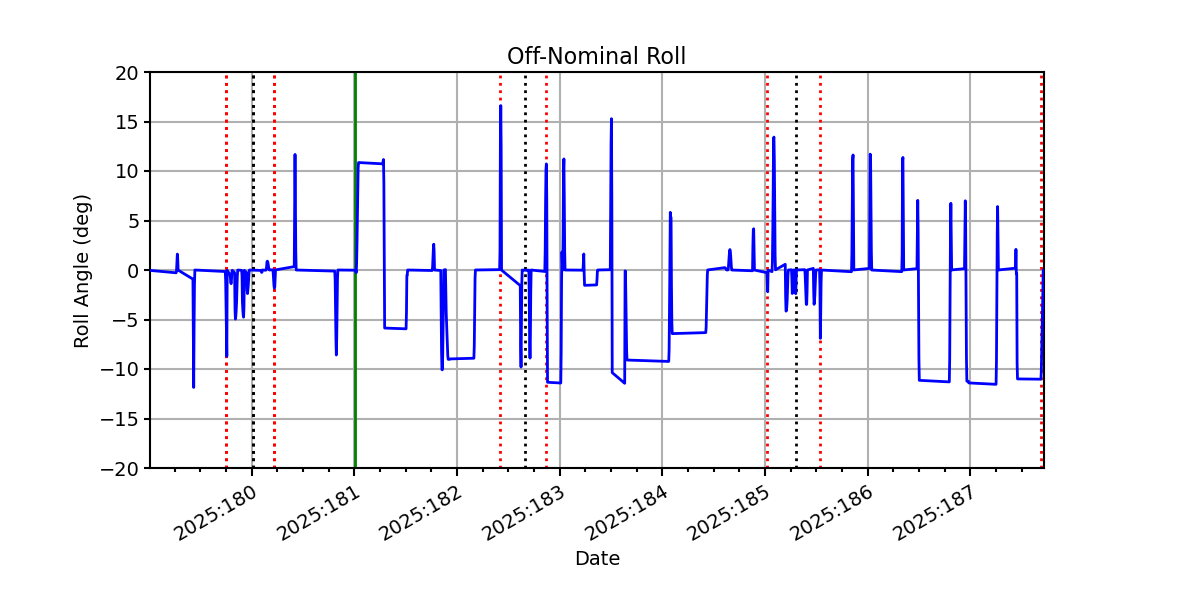

ROLL

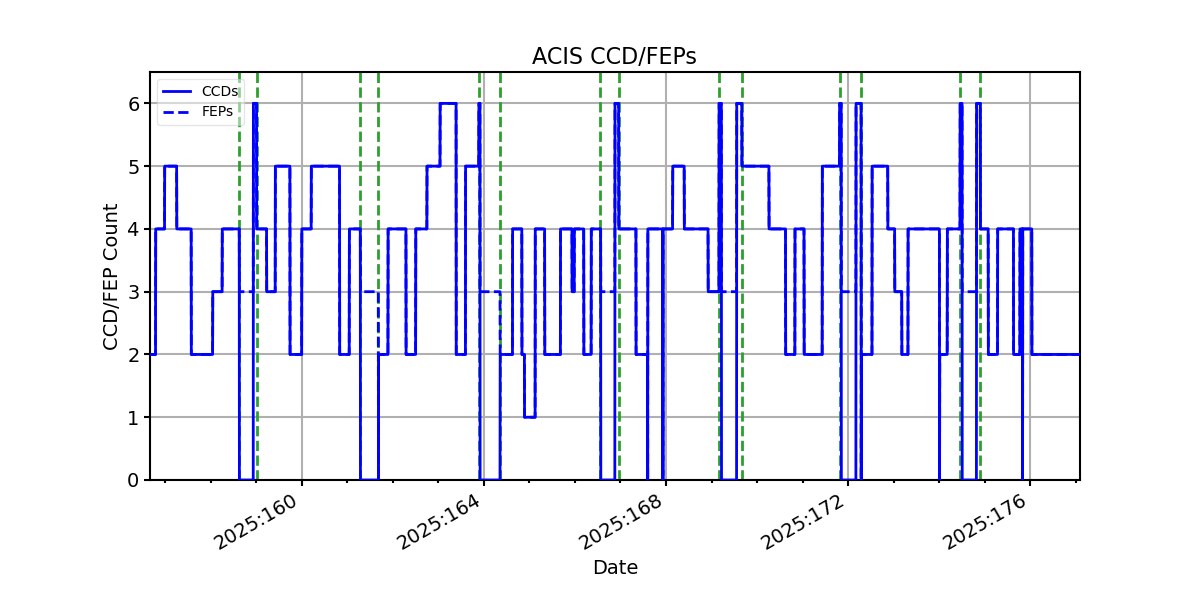

ACIS CCD/FEP Count
