DEA Temperatures Check
Summary
| Date start | 2026:067:21:25:00.016 |
| Date stop | 2026:075:02:35:52.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0926/oflsa |
| Run time | Thu Mar 5 10:13:32 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.82 | -1.44 | -0.55 | 1.05 | 1.71 | 2.31 | 2.91 |
| pitch | -10.835 | -0.787 | -0.004 | -0.000 | 0.004 | 0.788 | 11.034 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.900 | -0.181 | -0.010 | -0.000 | 0.011 | 0.178 | 2.109 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 50 | 1.05 | 1.00 |
| 1DEAMZT | 99 | 2.91 | 2.00 |
| PITCH | 1 | -10.835 | 3.00 |
| PITCH | 99 | 11.034 | 3.00 |
1DEAMZT

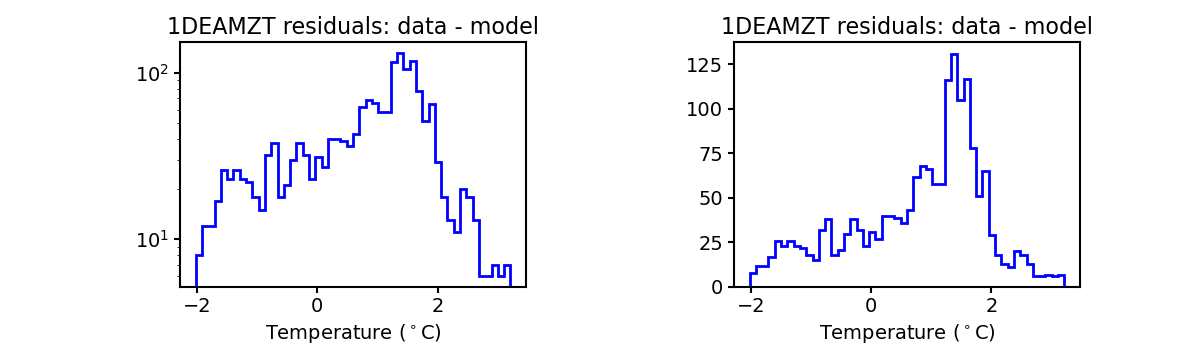

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

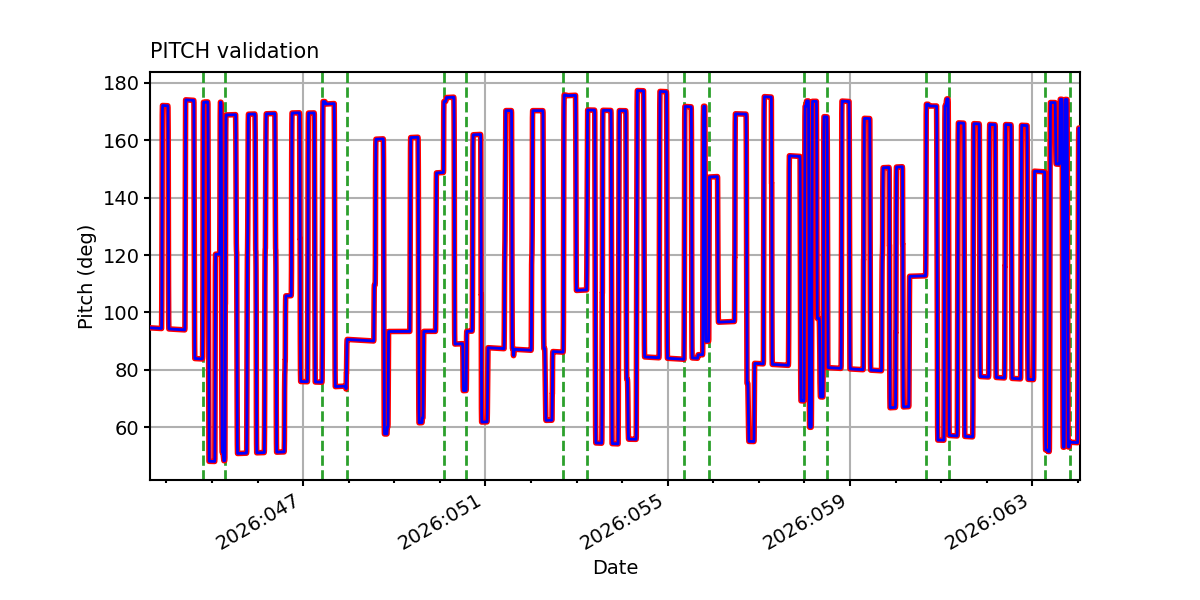

PITCH

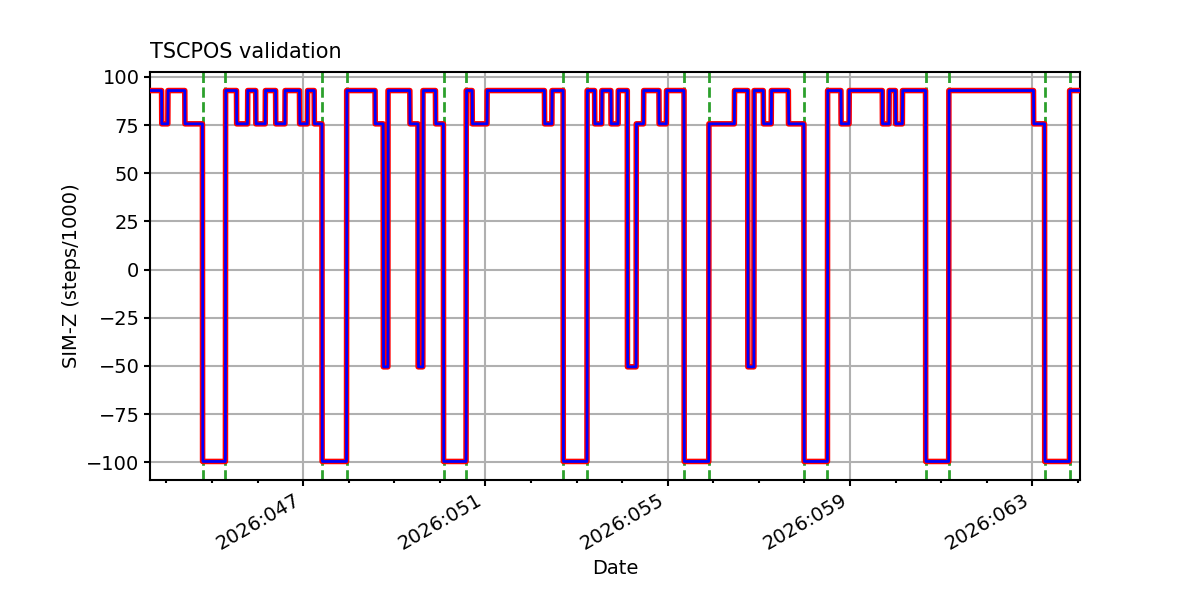

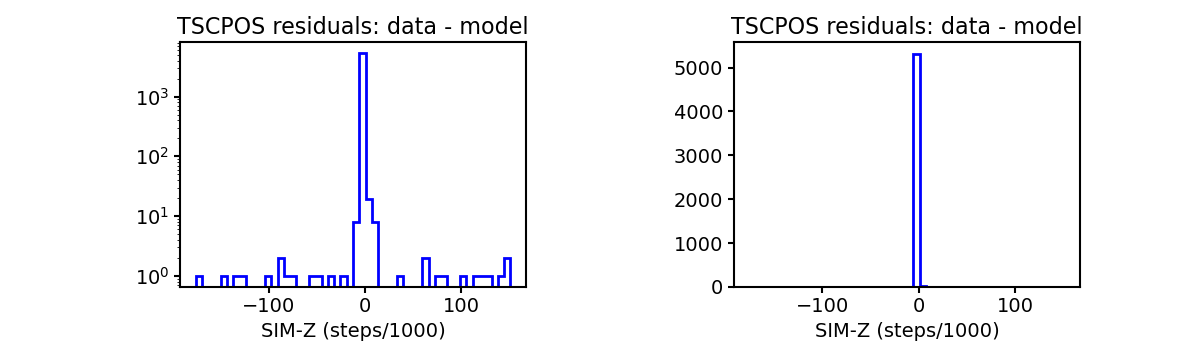

TSCPOS

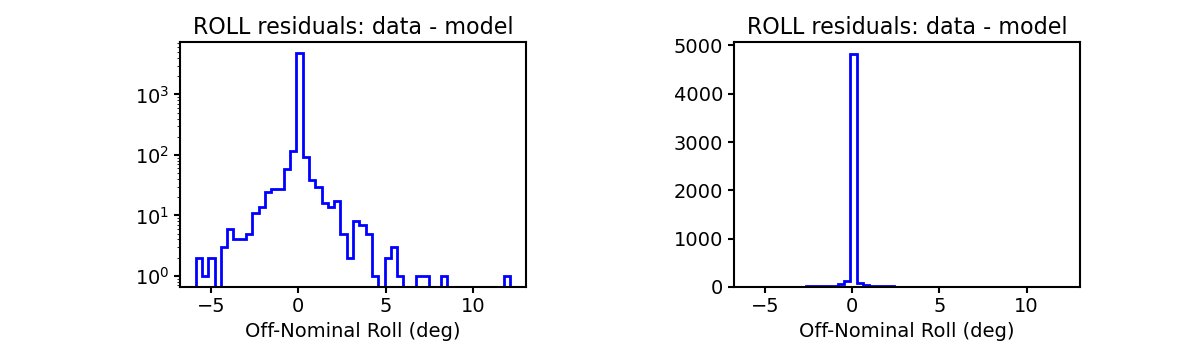

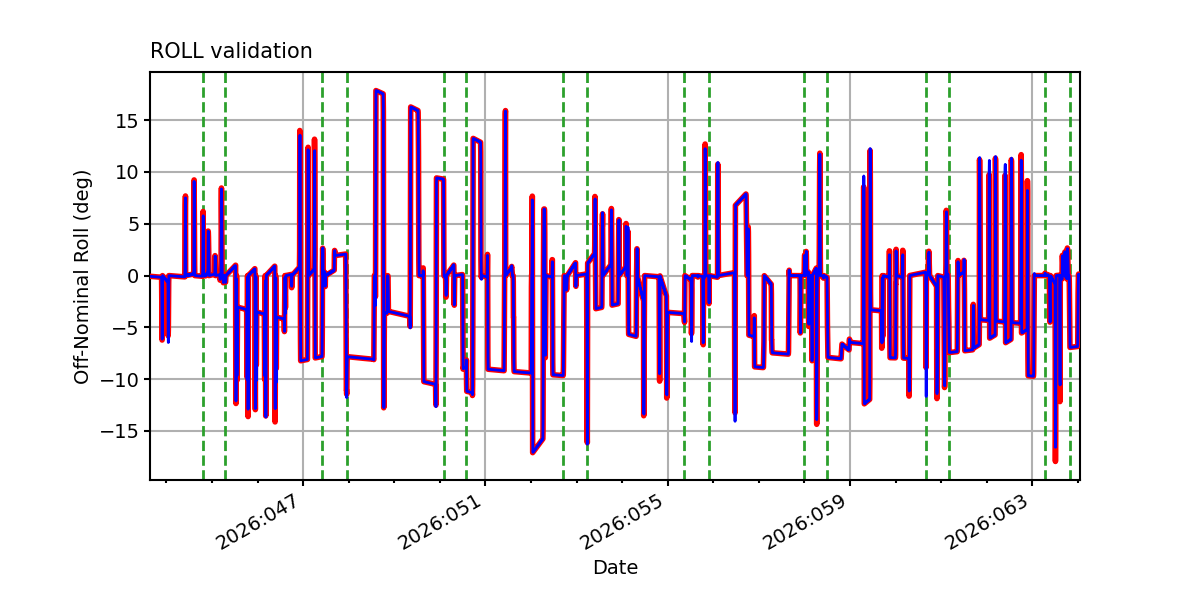

ROLL

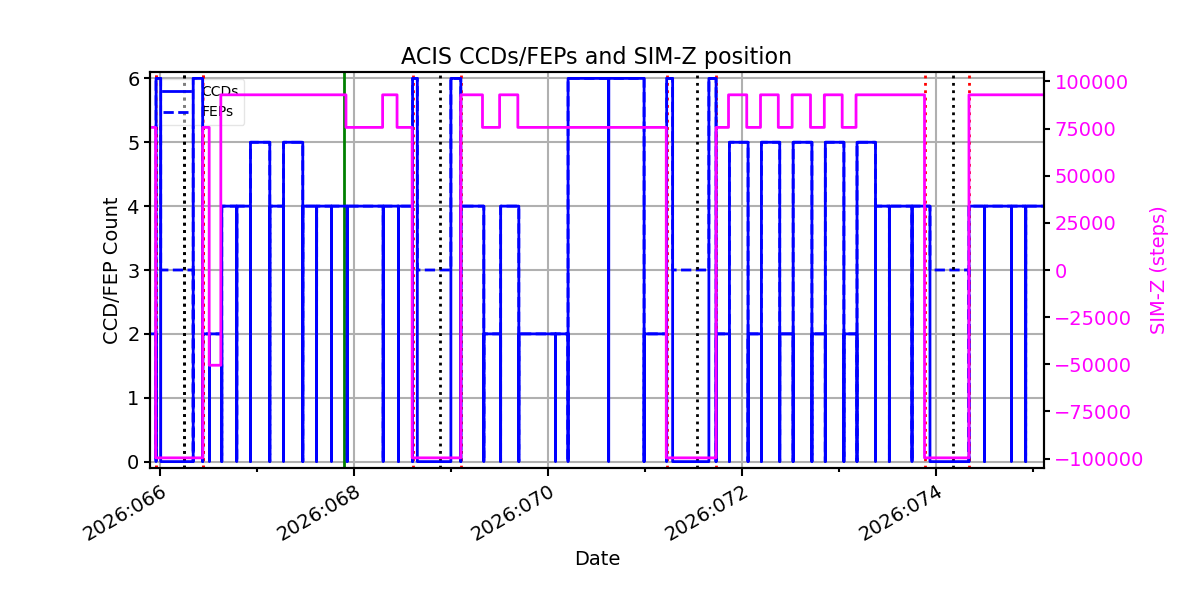

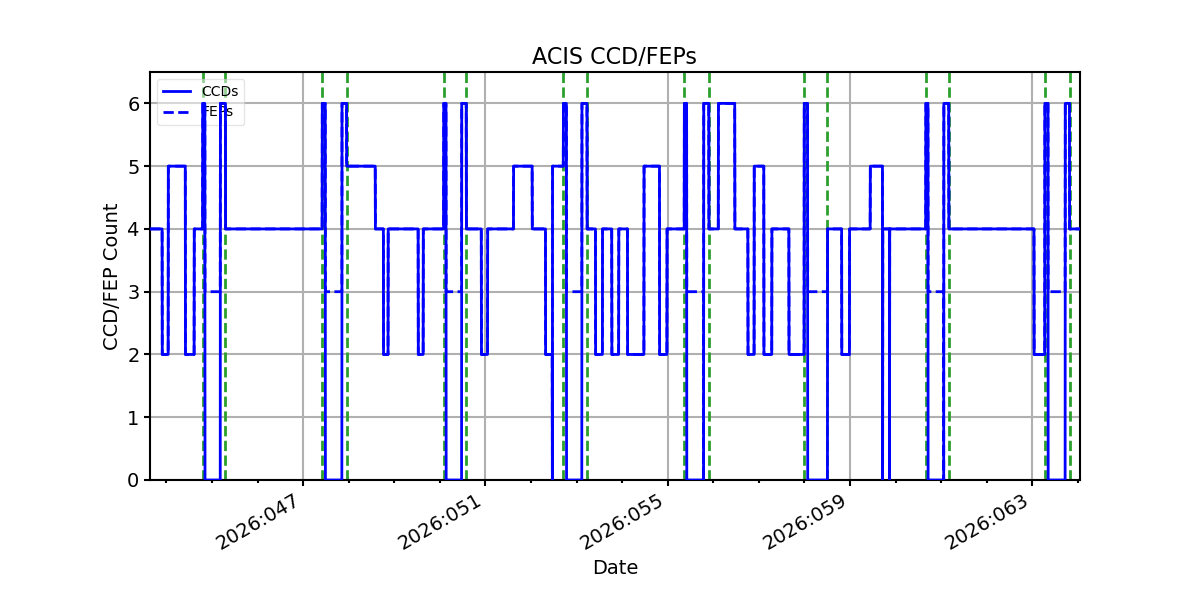

ACIS CCD/FEP Count
