DEA Temperatures Check
Summary
| Date start | 2026:081:20:41:00.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2326/oflsa |
| Run time | Thu Mar 19 10:48:36 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.44 | -0.93 | -0.37 | 0.82 | 1.72 | 2.20 | 2.50 |
| pitch | -13.289 | -1.567 | -0.004 | 0.000 | 0.004 | 2.120 | 12.438 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.325 | -0.287 | -0.011 | 0.000 | 0.013 | 0.325 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.5 | 2.00 |
| PITCH | 1 | -13.289 | 3.00 |
| PITCH | 99 | 12.438 | 3.00 |

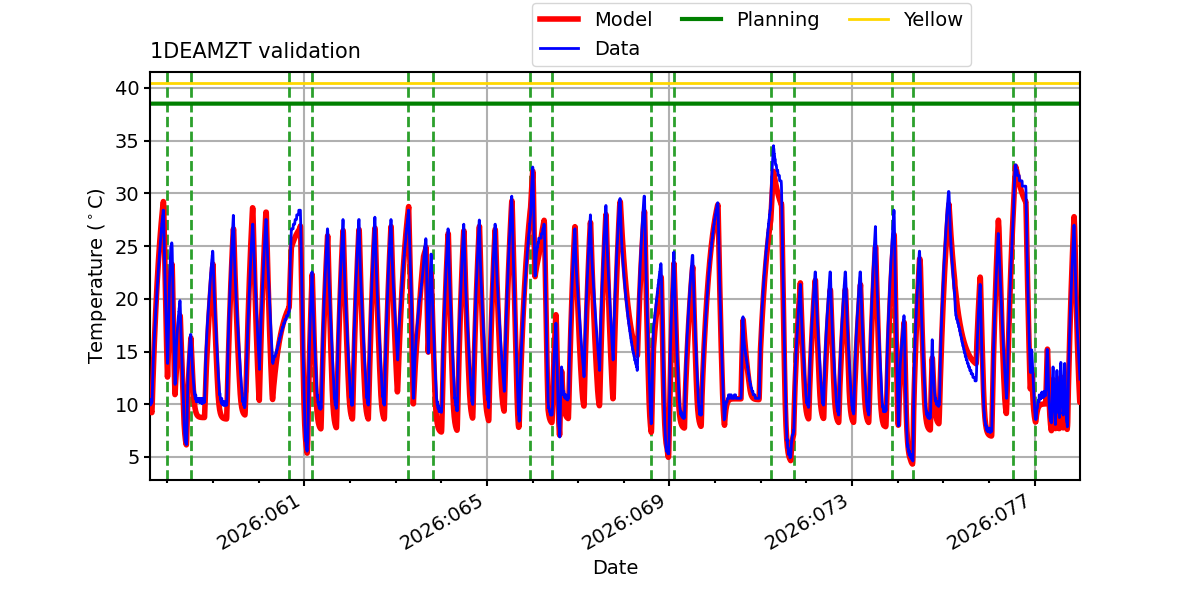

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

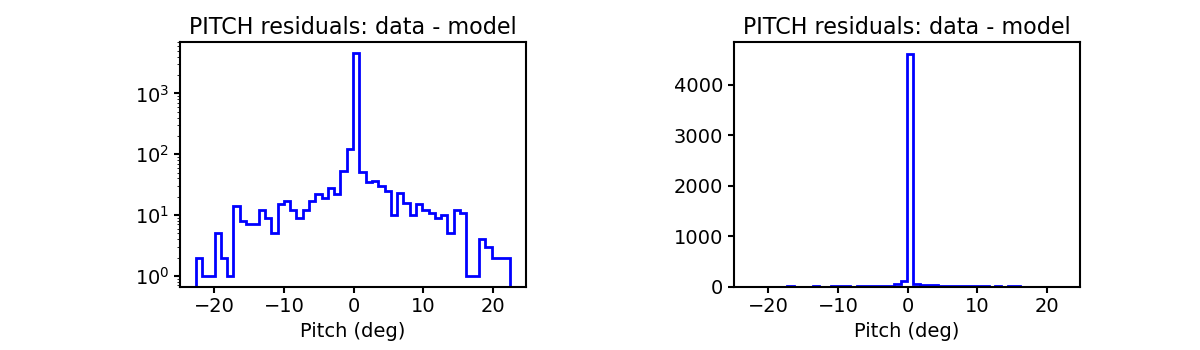

PITCH

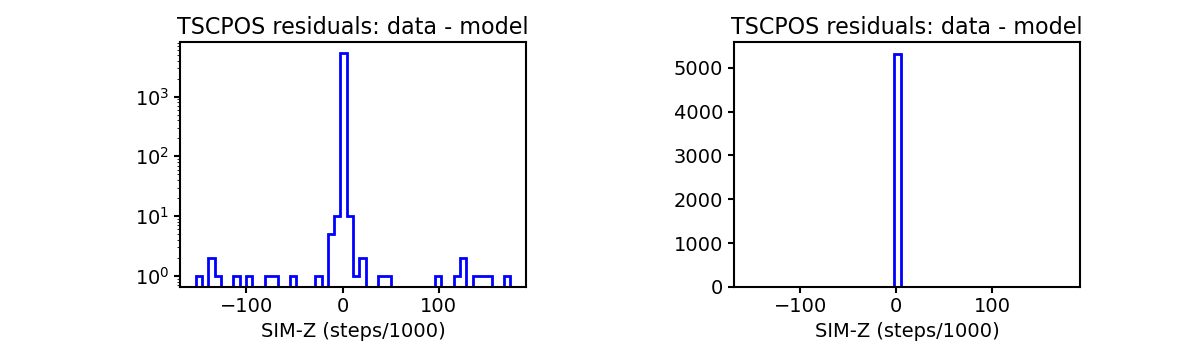

TSCPOS

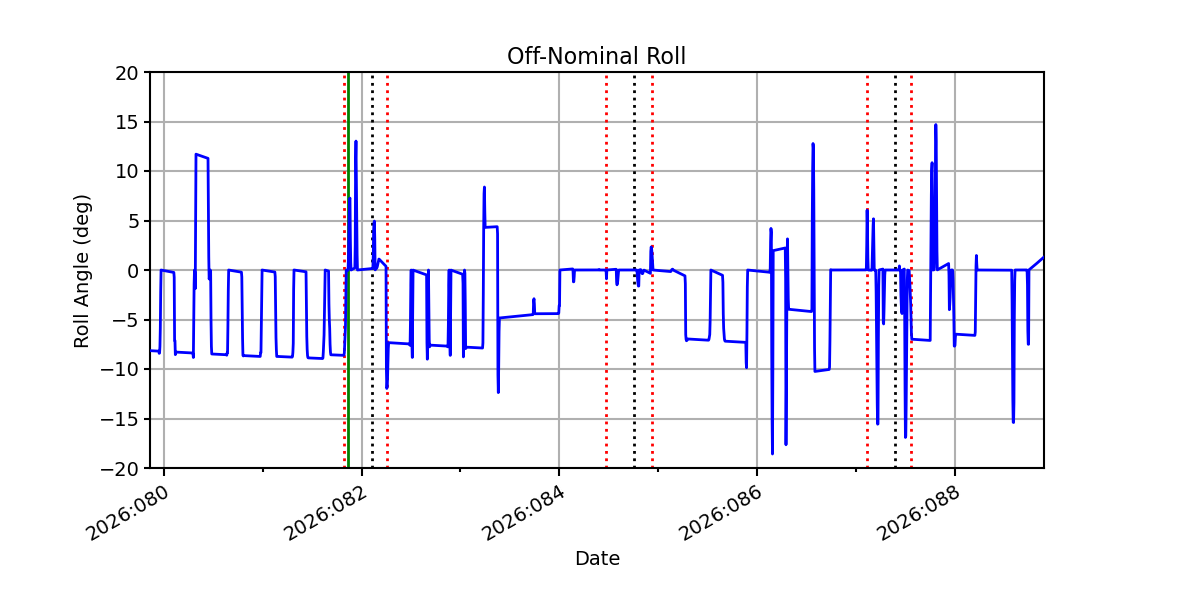

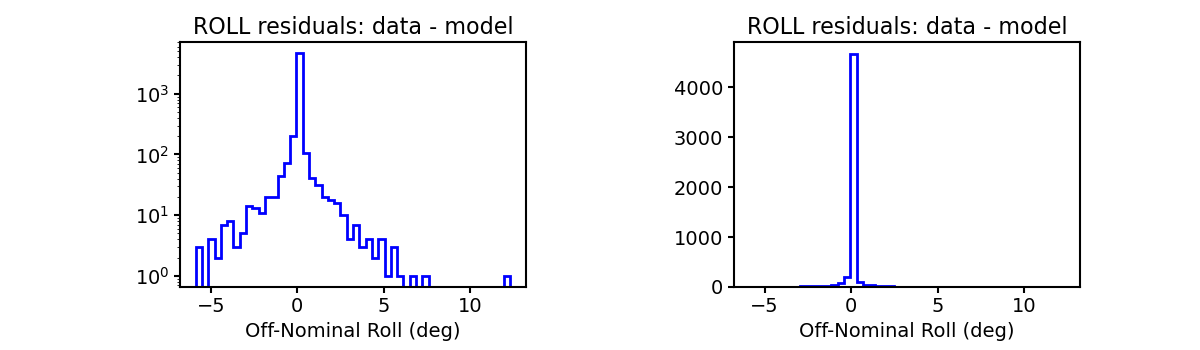

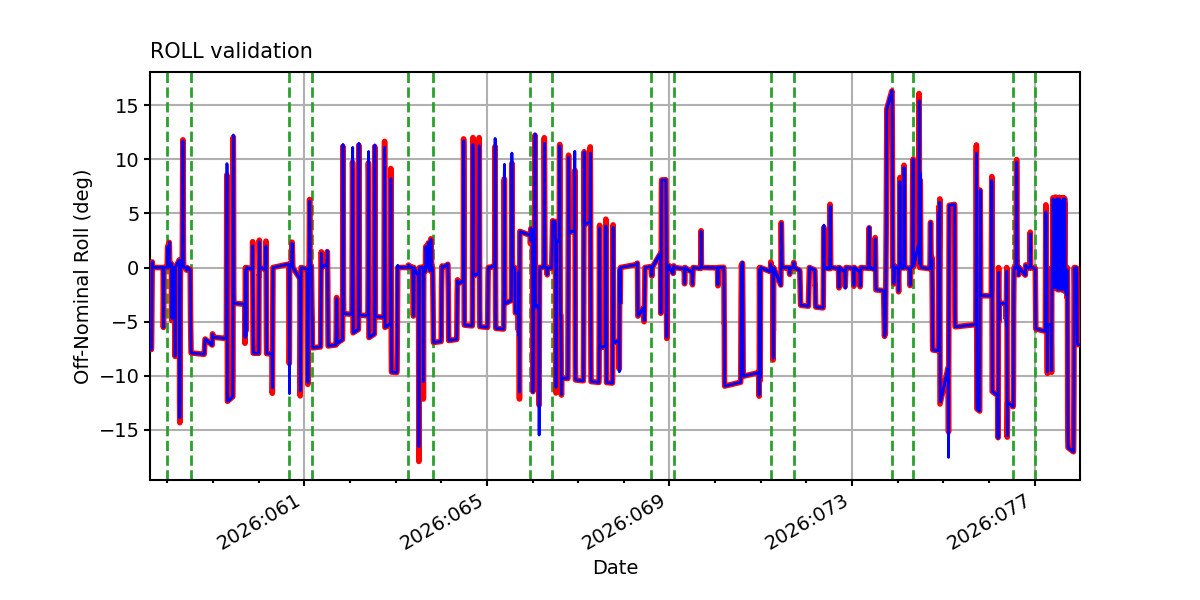

ROLL

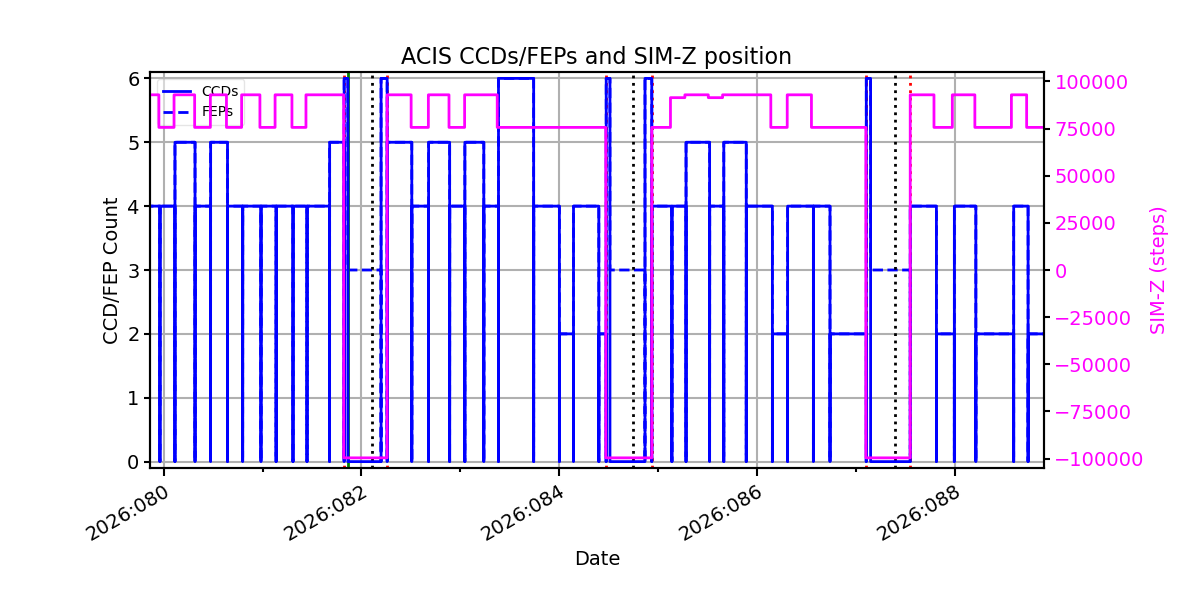

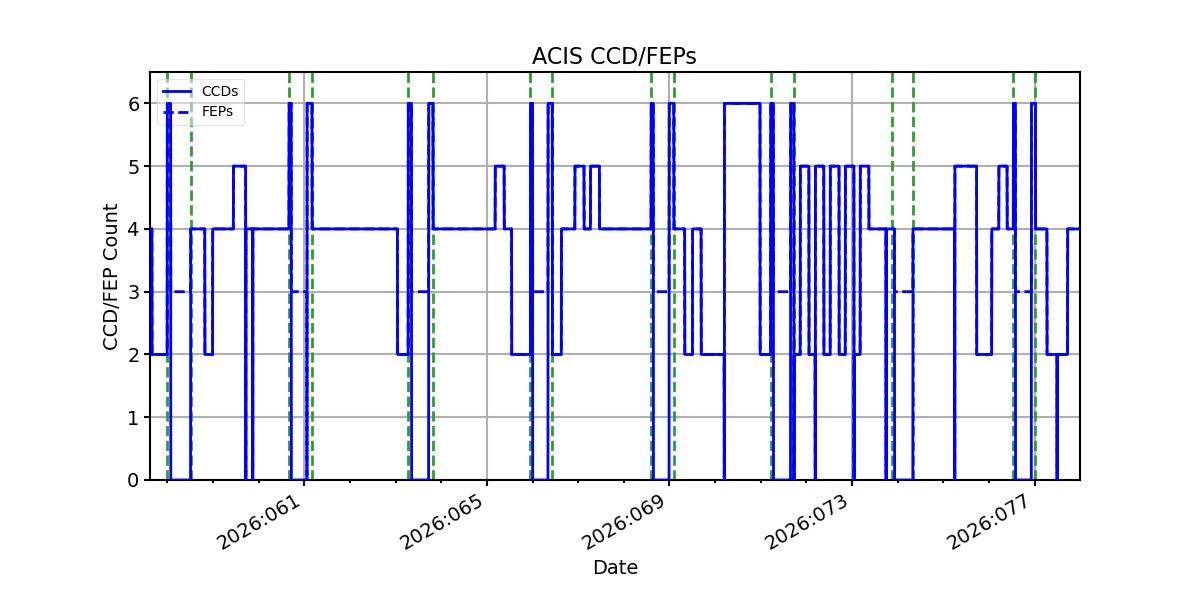

ACIS CCD/FEP Count
