DEA Temperatures Check
Summary
| Date start | 2026:123:23:20:16.016 |
| Date stop | 2026:130:20:58:40.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY0426/oflsa |
| Run time | Thu Apr 30 10:18:52 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.86 | -1.29 | -0.80 | 0.41 | 1.21 | 1.74 | 2.59 |
| pitch | -10.339 | -0.551 | -0.004 | 0.000 | 0.004 | 0.519 | 11.024 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.838 | -0.125 | -0.007 | -0.000 | 0.007 | 0.125 | 2.122 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.59 | 2.00 |
| PITCH | 1 | -10.339 | 3.00 |
| PITCH | 99 | 11.024 | 3.00 |

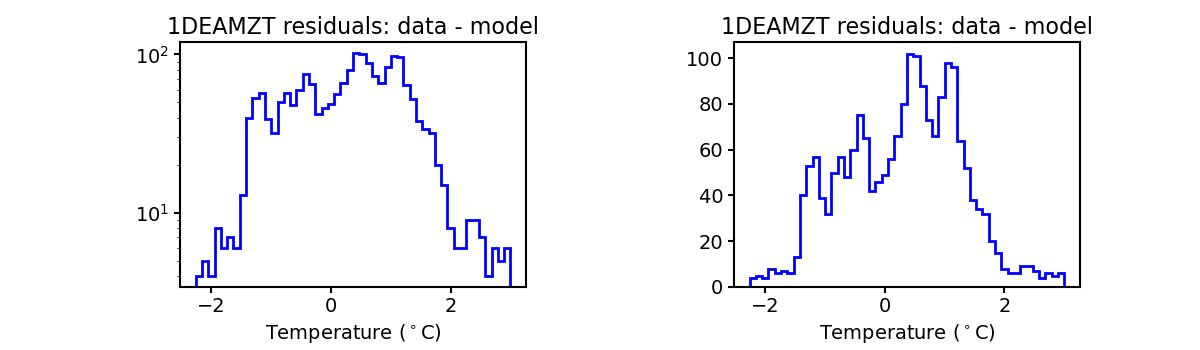

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

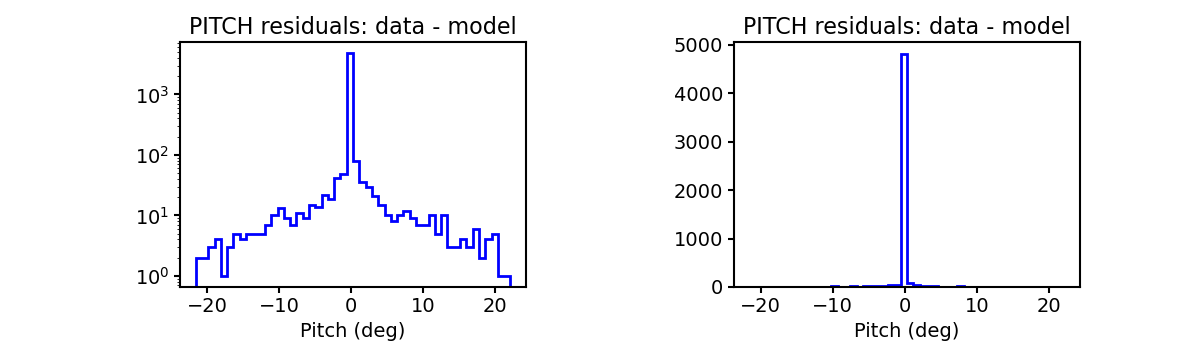

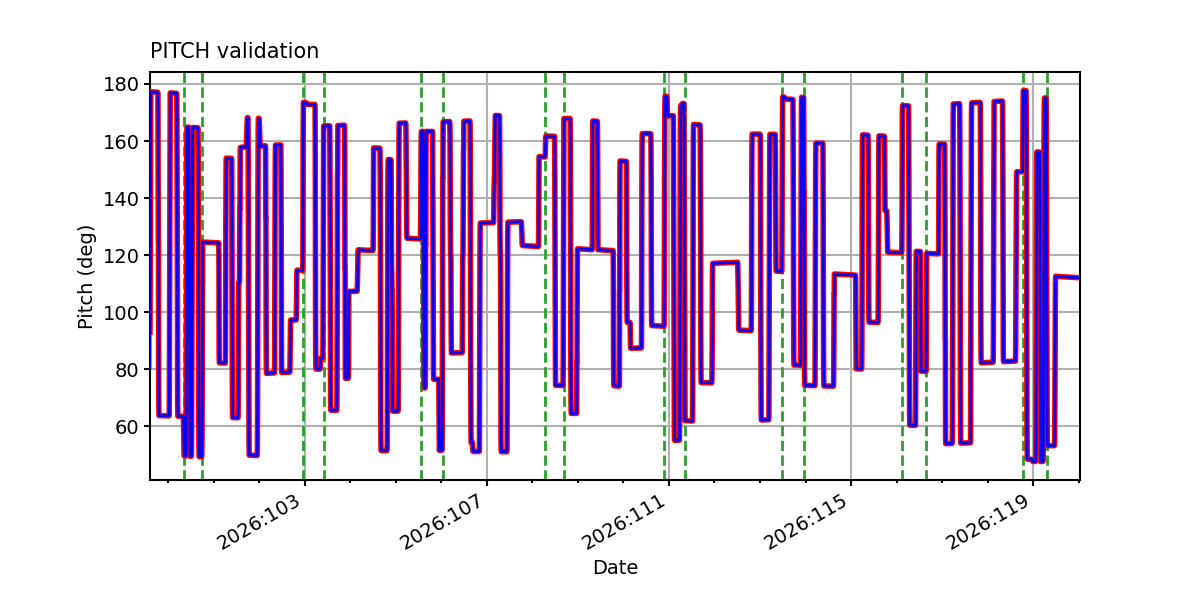

PITCH

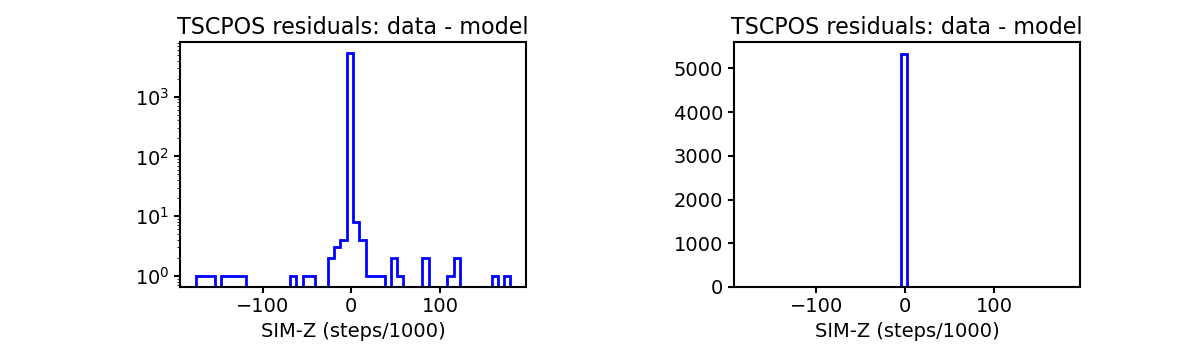

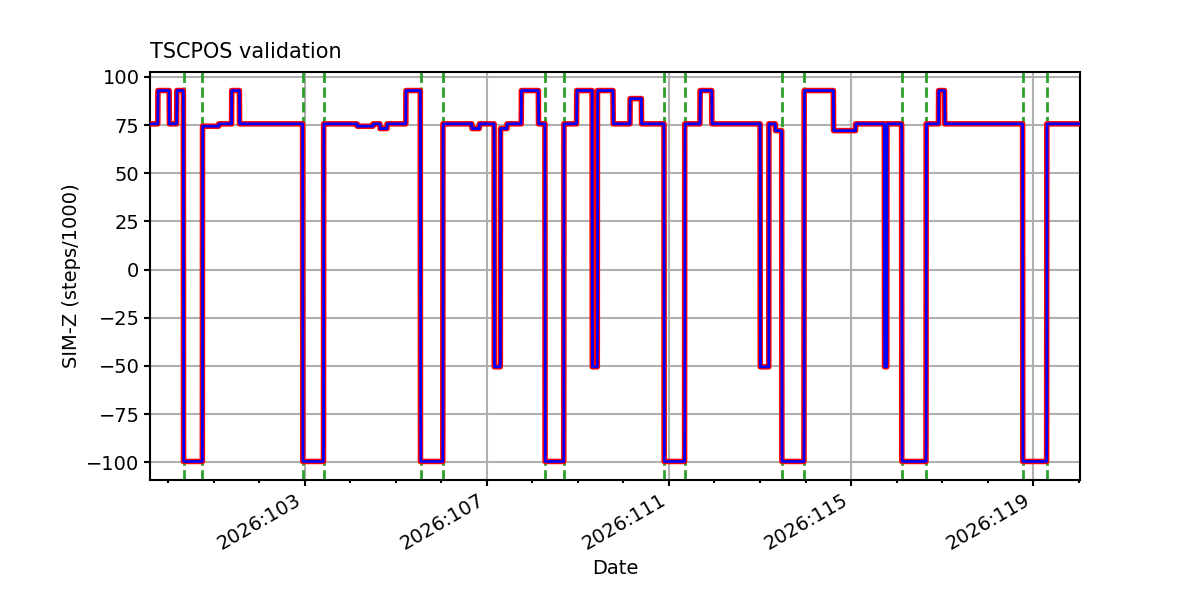

TSCPOS

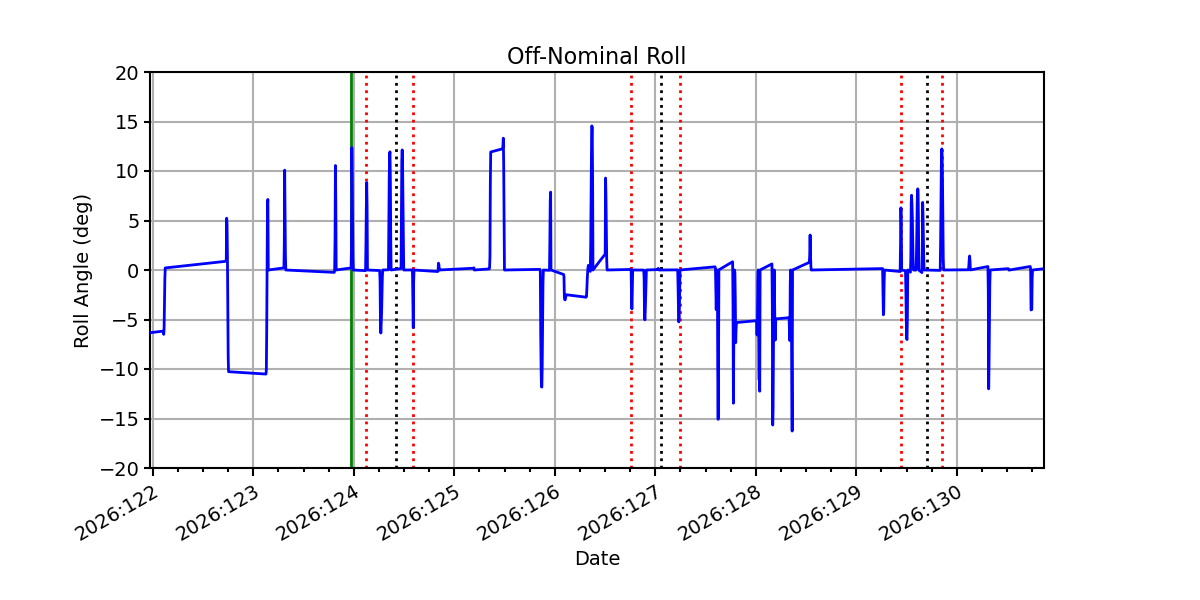

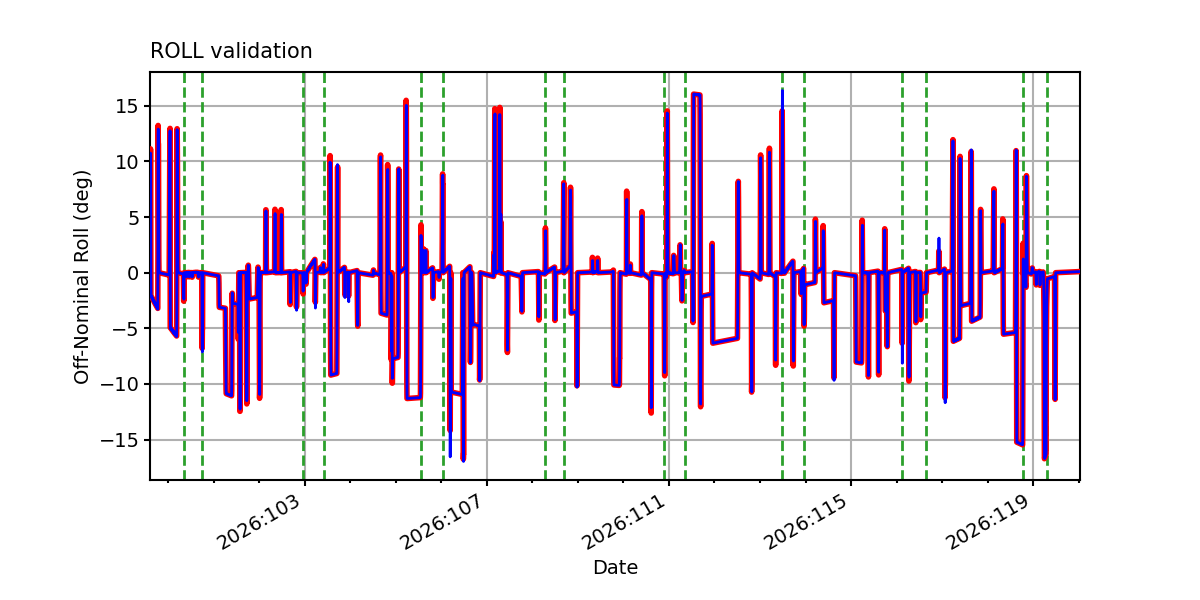

ROLL

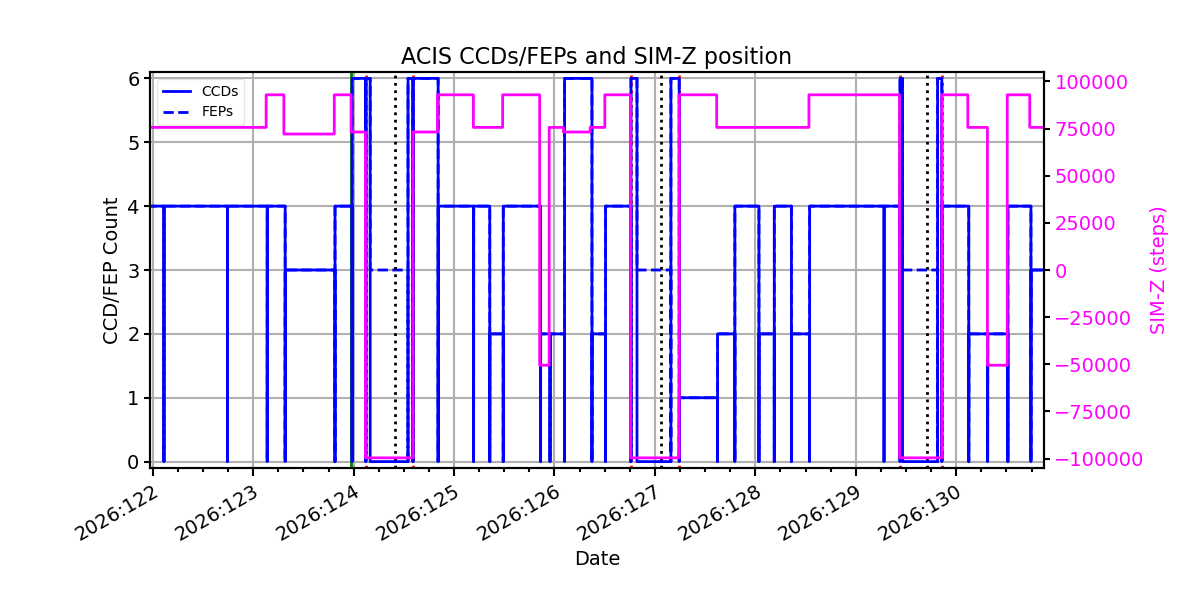

ACIS CCD/FEP Count
