DEA Temperatures Check
Summary
| Date start | 2025:125:01:49:24.916 |
| Date stop | 2025:131:21:15:39.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY0525/ofls |
| Run time | Wed Apr 30 12:12:45 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.63 | -1.32 | -0.66 | 0.46 | 1.32 | 2.03 | 2.36 |
| pitch | -6.644 | -0.416 | -0.004 | 0.000 | 0.004 | 0.666 | 5.803 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.413 | -0.079 | -0.004 | 0.000 | 0.006 | 0.166 | 1.367 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.36 | 2.00 |
| PITCH | 1 | -6.644 | 3.00 |
| PITCH | 99 | 5.803 | 3.00 |

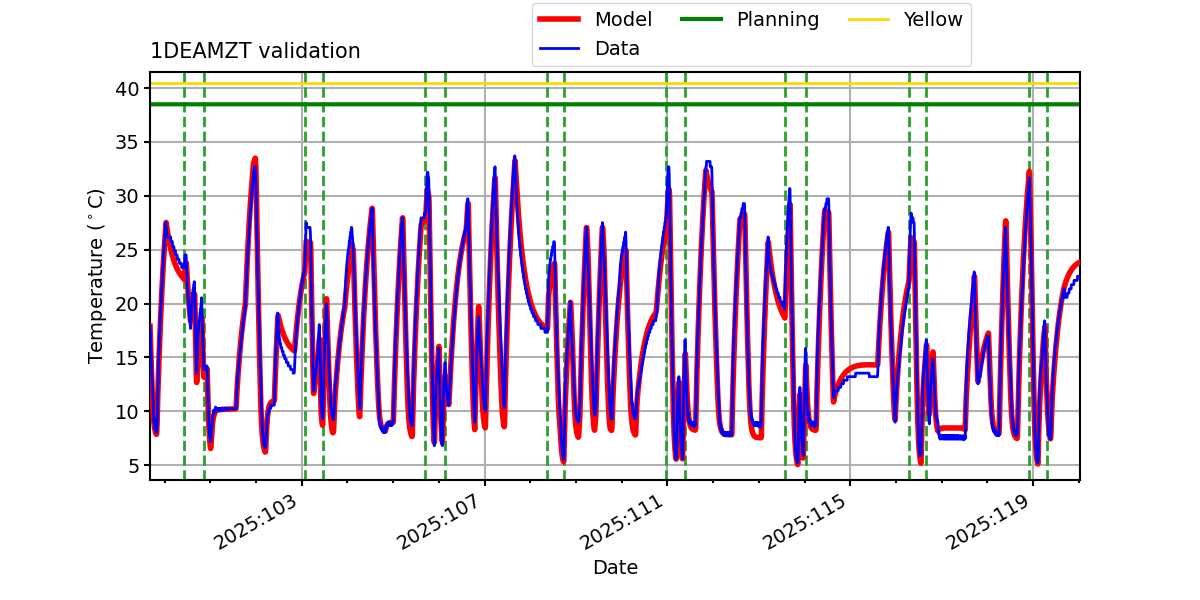

1DEAMZT

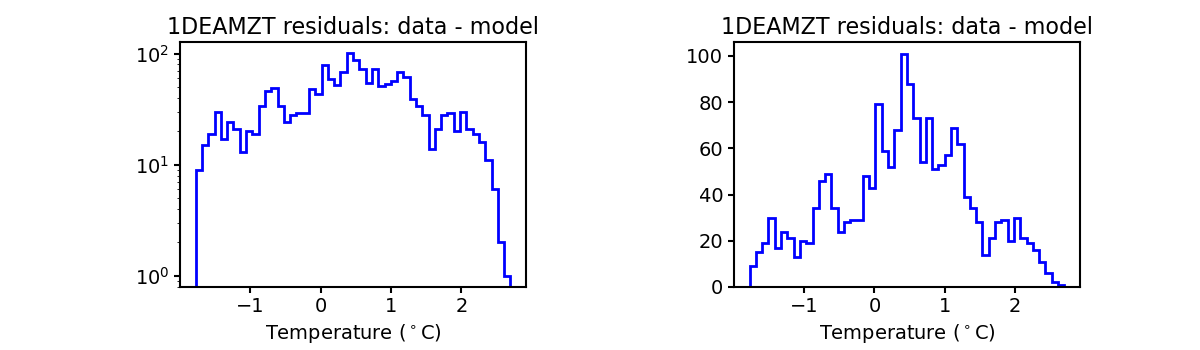

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

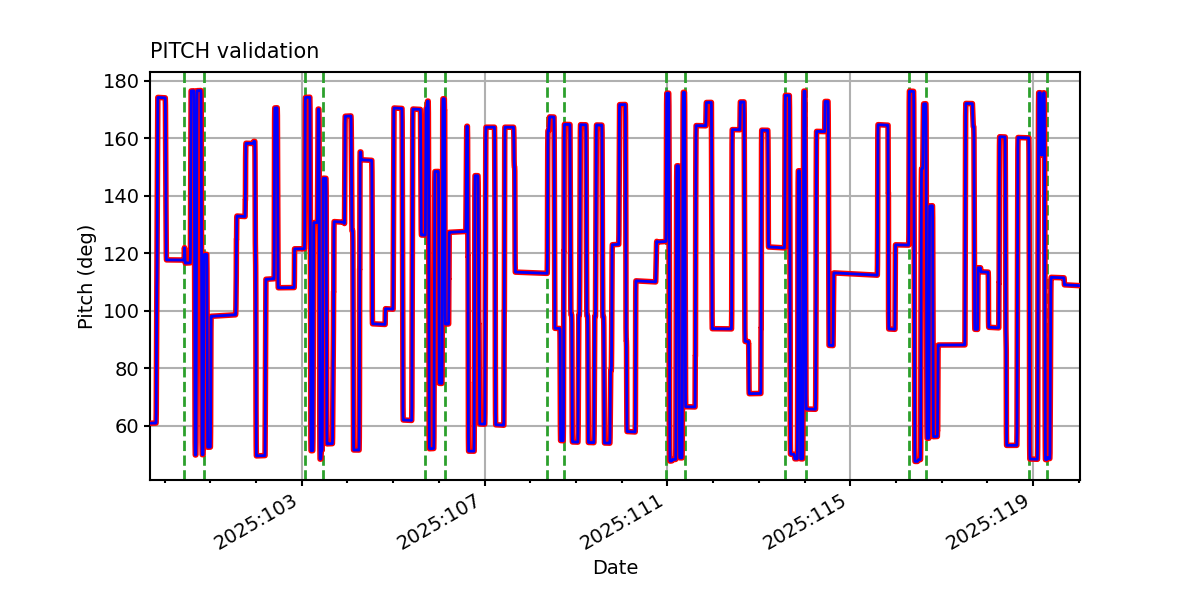

PITCH

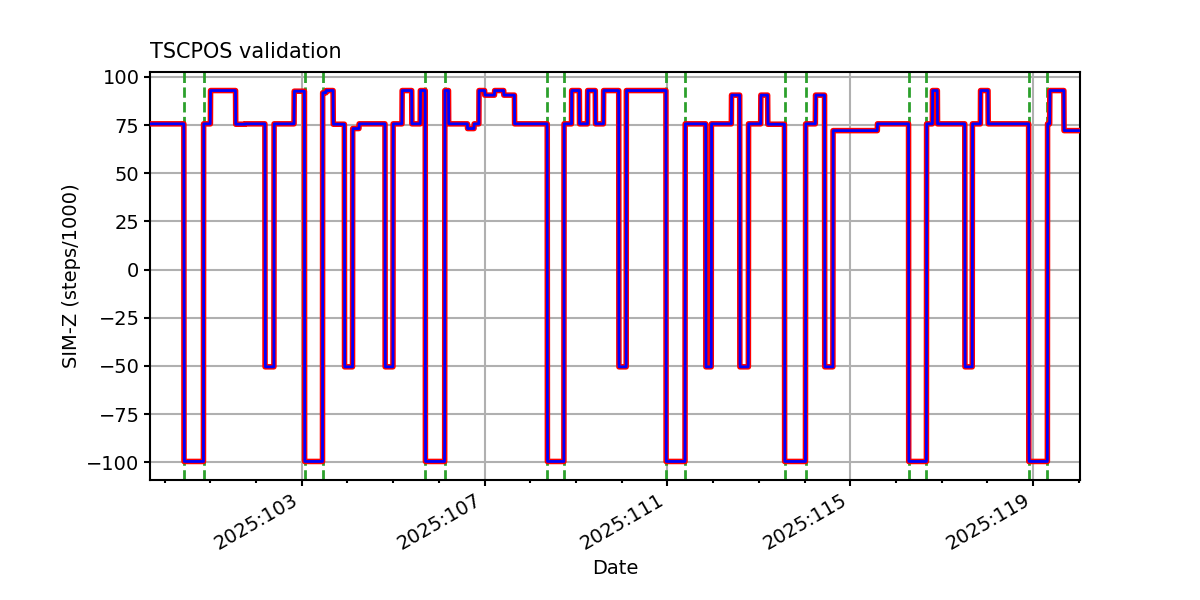

TSCPOS

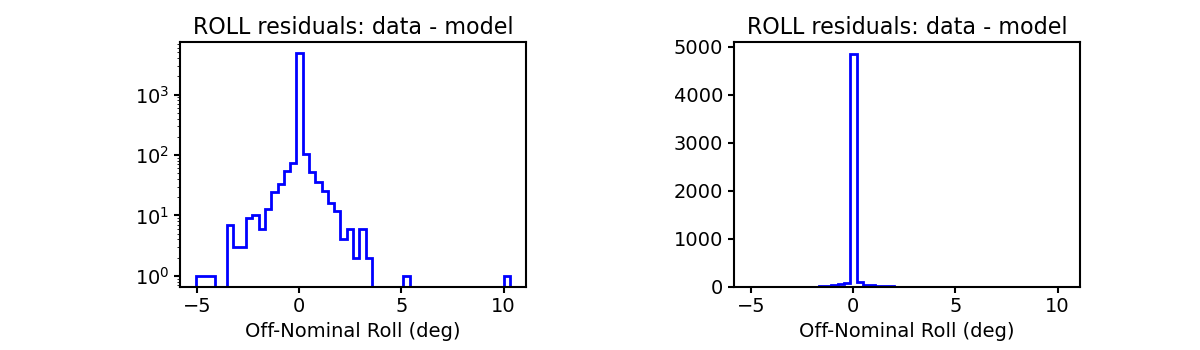

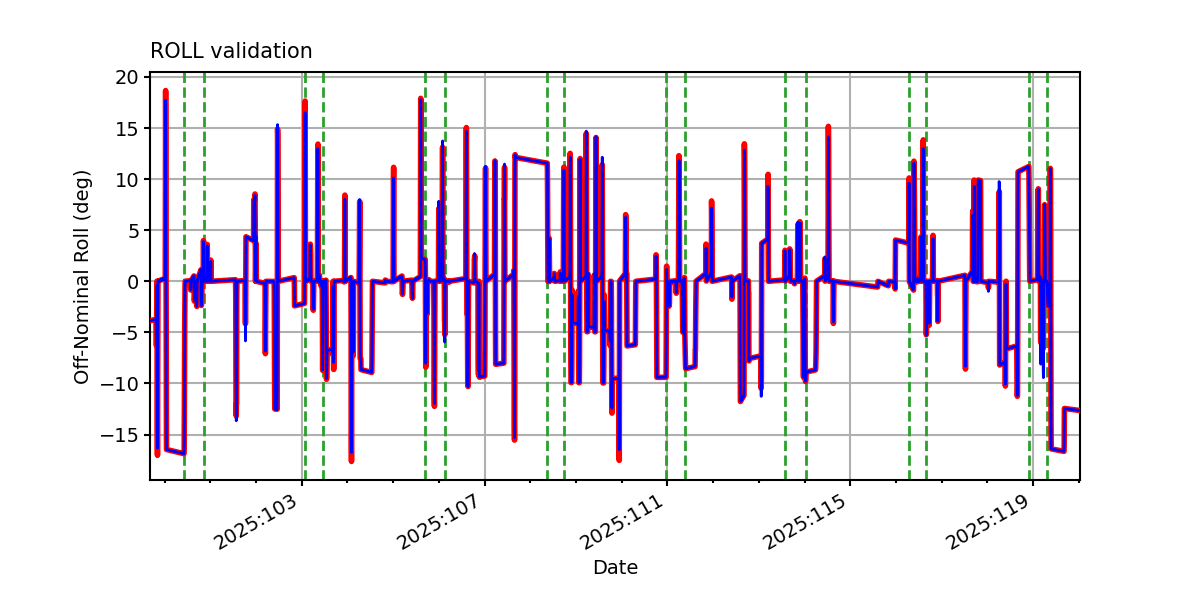

ROLL

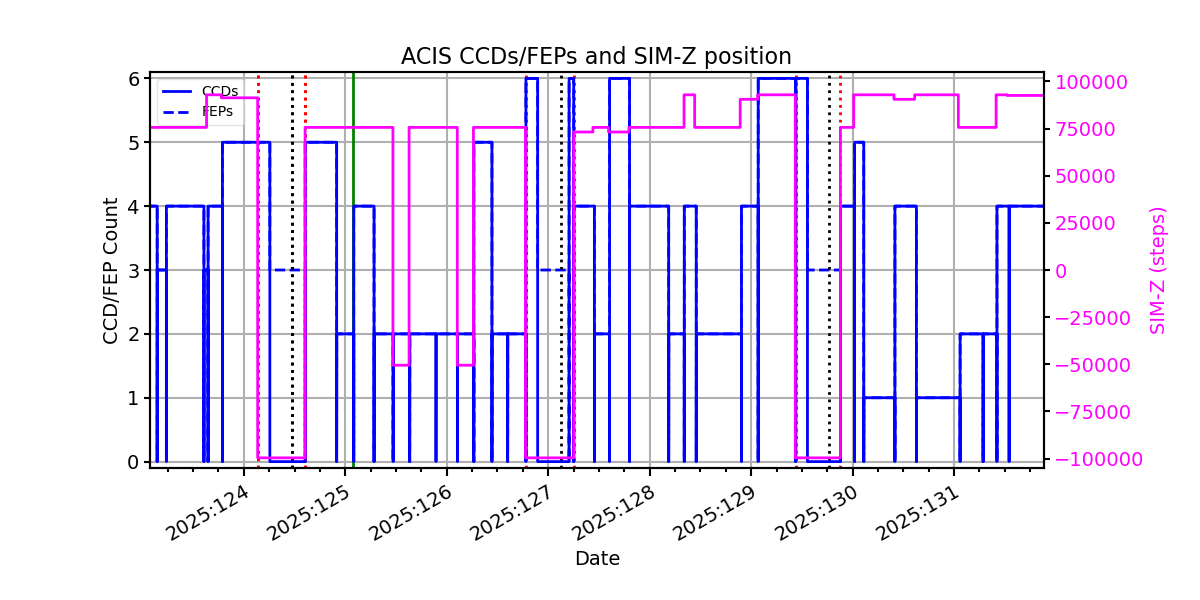

ACIS CCD/FEP Count
