DEA Temperatures Check
Summary
| Date start | 2025:312:17:45:00.016 |
| Date stop | 2025:320:22:47:28.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0825/oflsa |
| Run time | Wed Nov 5 15:29:44 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.91 | -1.32 | -0.85 | 0.14 | 1.36 | 1.91 | 2.39 |
| pitch | -12.400 | -0.906 | -0.004 | 0.000 | 0.004 | 0.526 | 11.230 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.956 | -0.138 | -0.008 | -0.000 | 0.007 | 0.142 | 1.746 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.39 | 2.00 |
| PITCH | 1 | -12.4 | 3.00 |
| PITCH | 99 | 11.23 | 3.00 |

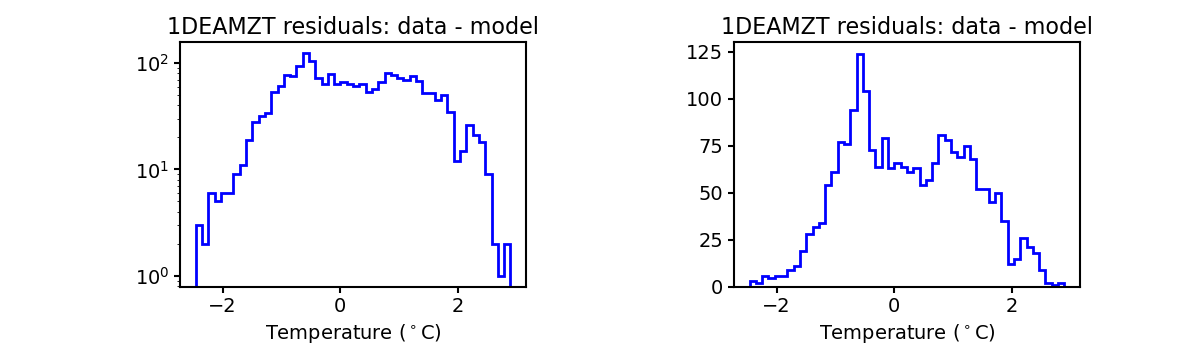

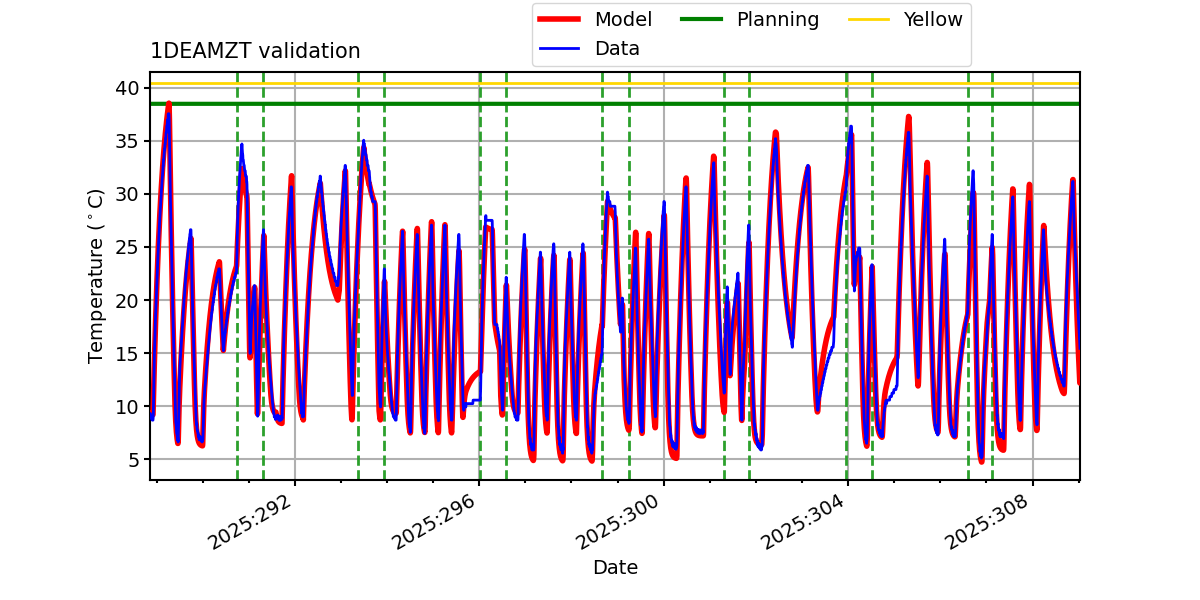

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

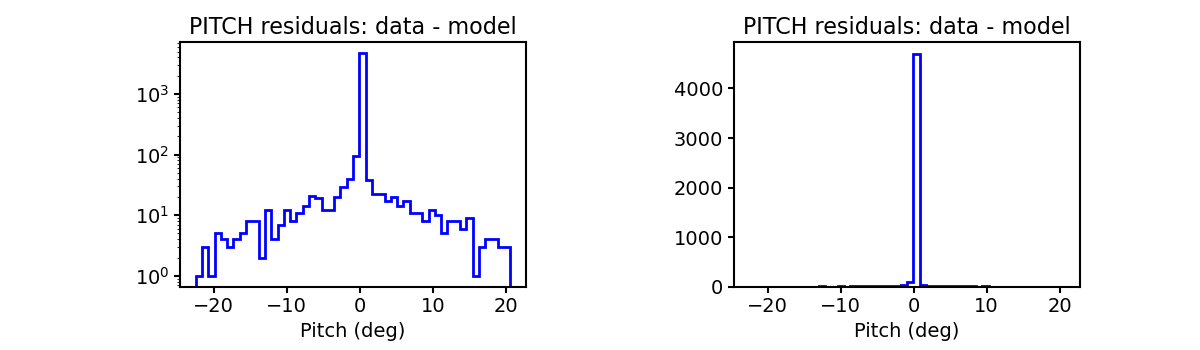

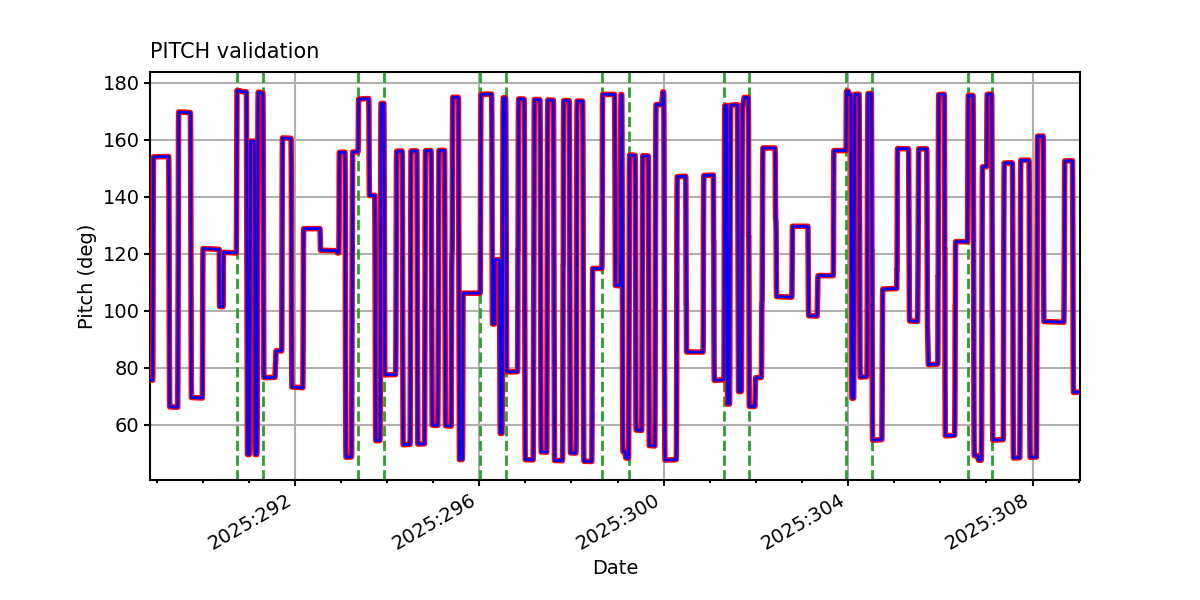

PITCH

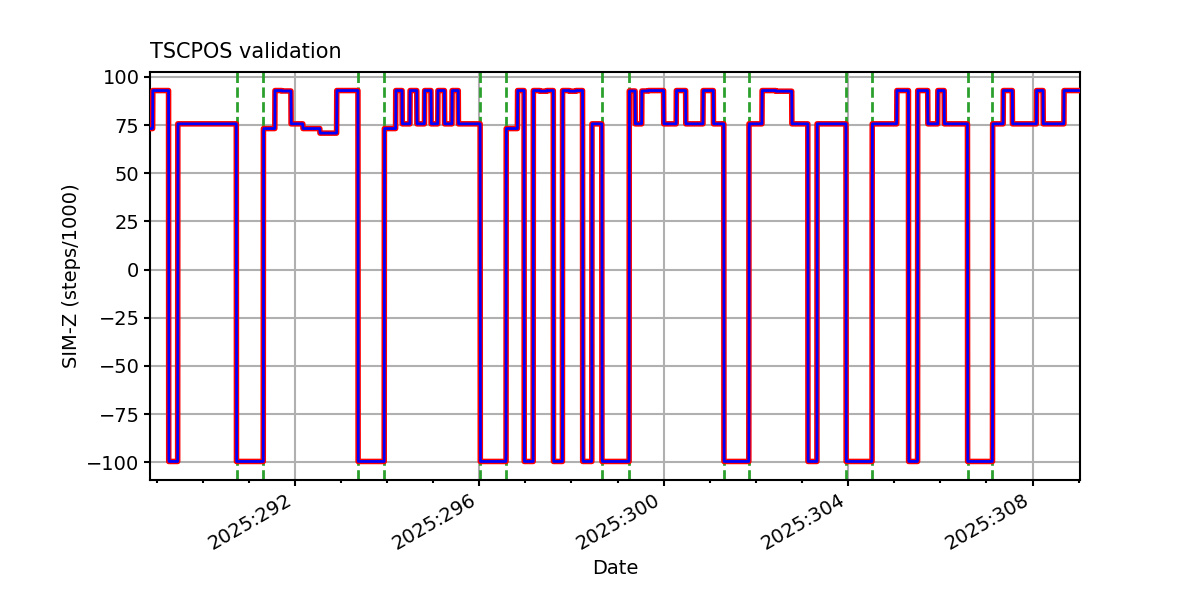

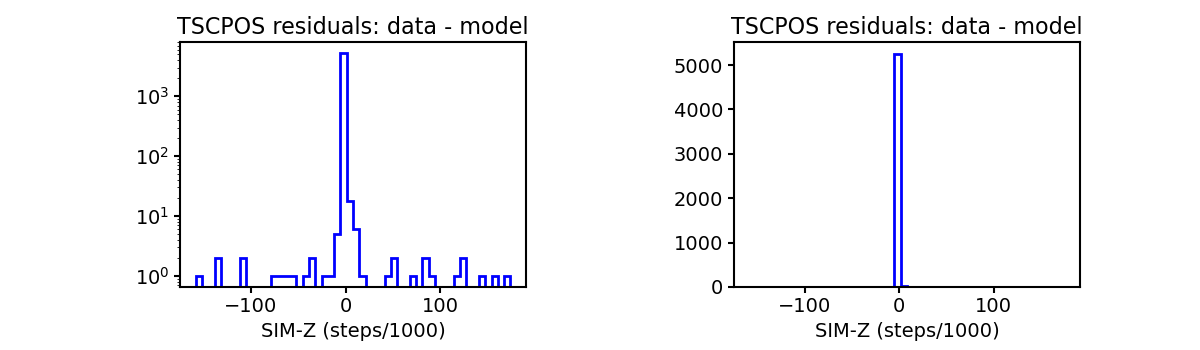

TSCPOS

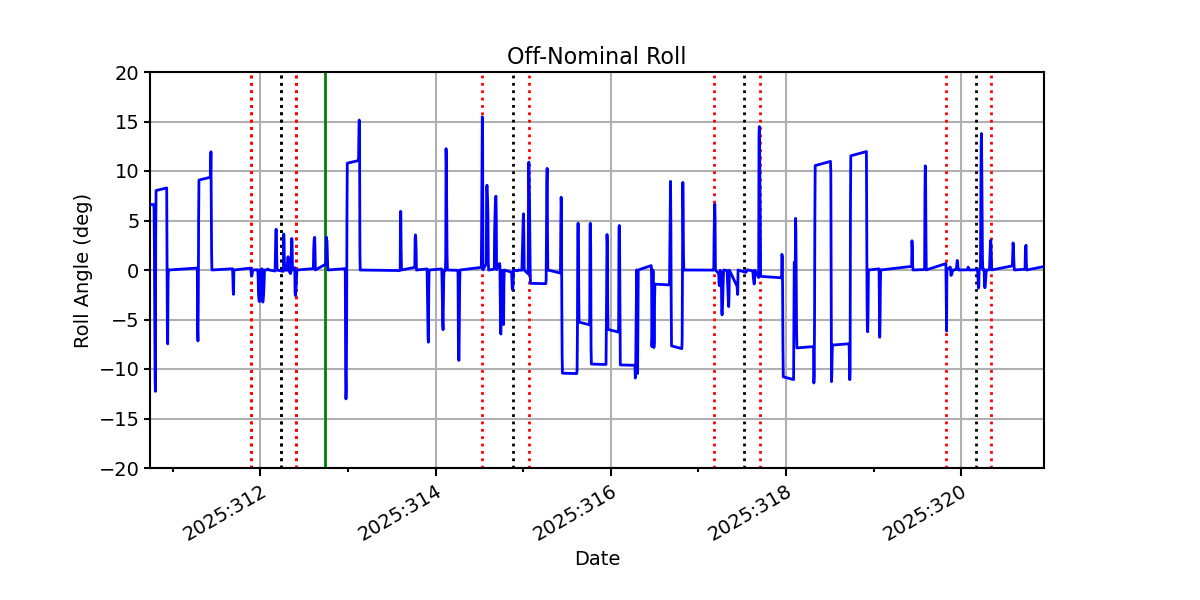

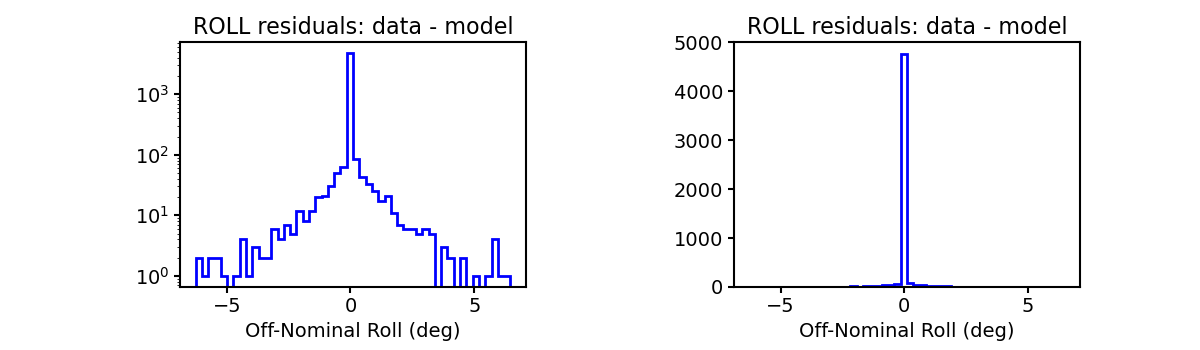

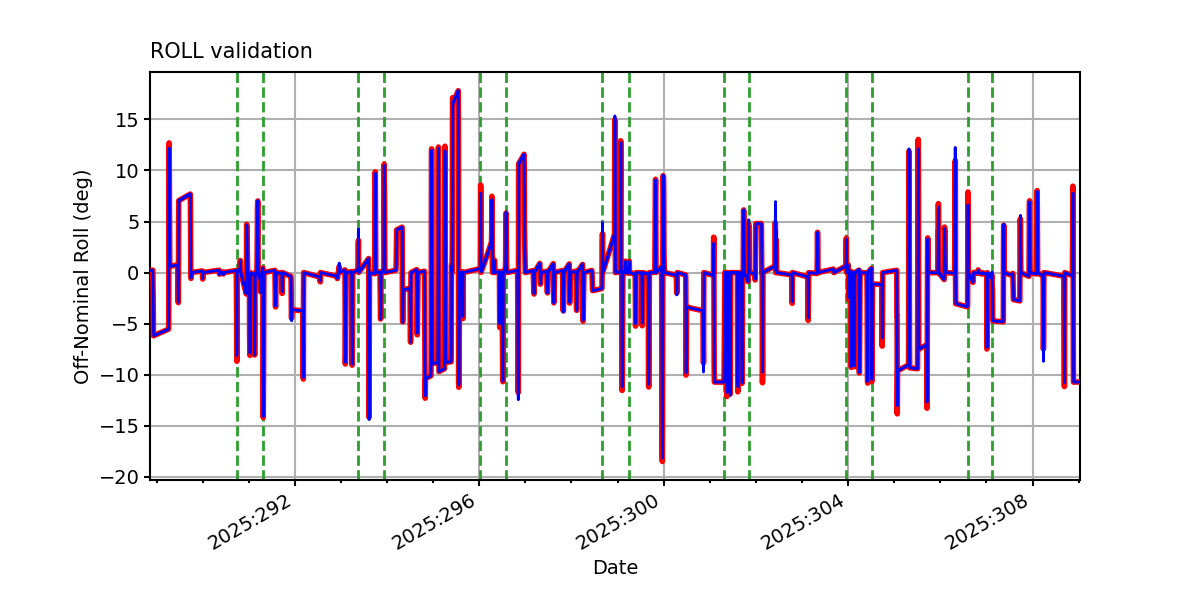

ROLL

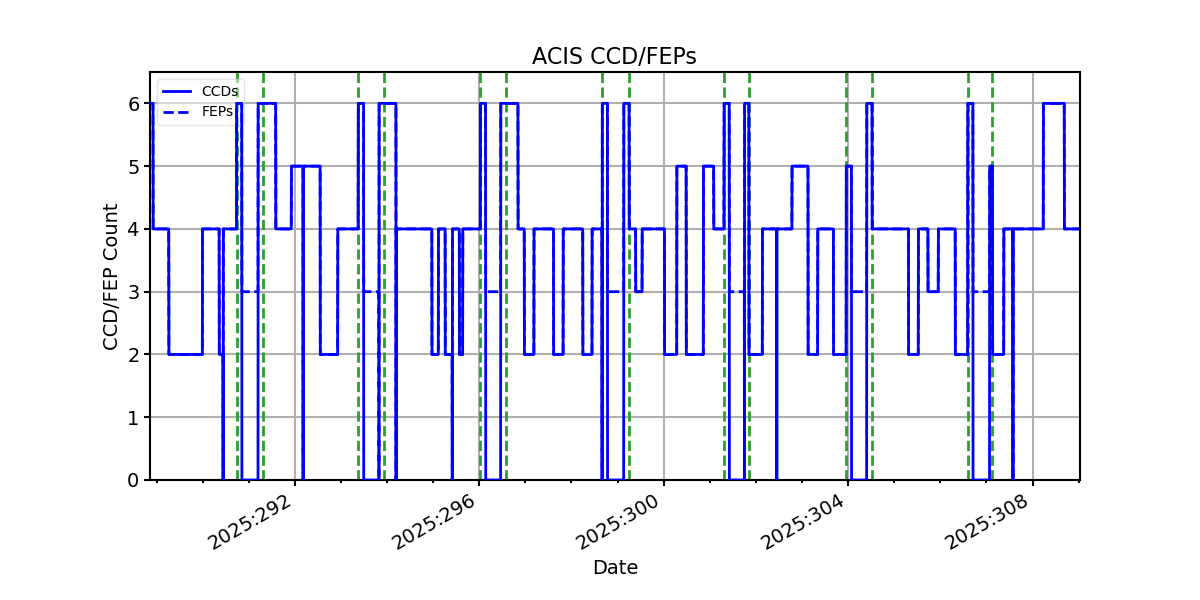

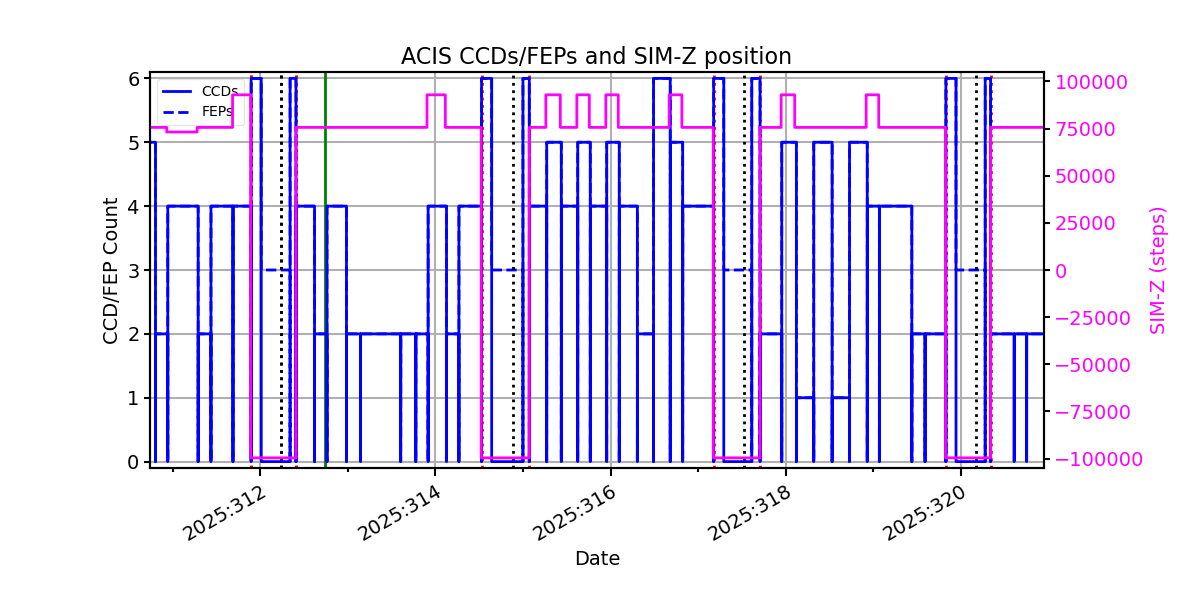

ACIS CCD/FEP Count
