DEA Temperatures Check
Summary
| Date start | 2025:318:21:50:00.016 |
| Date stop | 2025:327:21:06:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV1425/oflsa |
| Run time | Thu Nov 13 11:24:52 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.07 | -1.68 | -1.13 | -0.17 | 1.19 | 1.84 | 2.39 |
| pitch | -12.858 | -1.629 | -0.004 | -0.000 | 0.004 | 1.061 | 12.290 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.247 | -0.221 | -0.007 | -0.000 | 0.007 | 0.229 | 2.500 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.07 | 2.00 |
| 1DEAMZT | 99 | 2.39 | 2.00 |
| PITCH | 1 | -12.858 | 3.00 |
| PITCH | 99 | 12.29 | 3.00 |

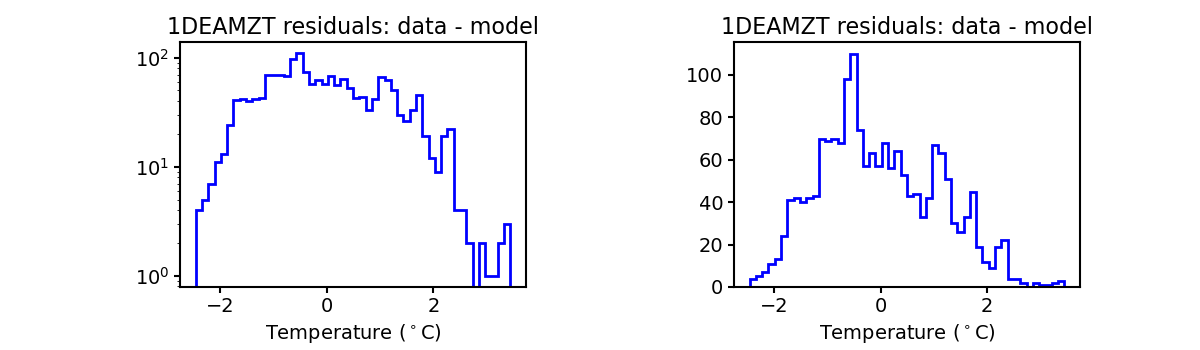

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

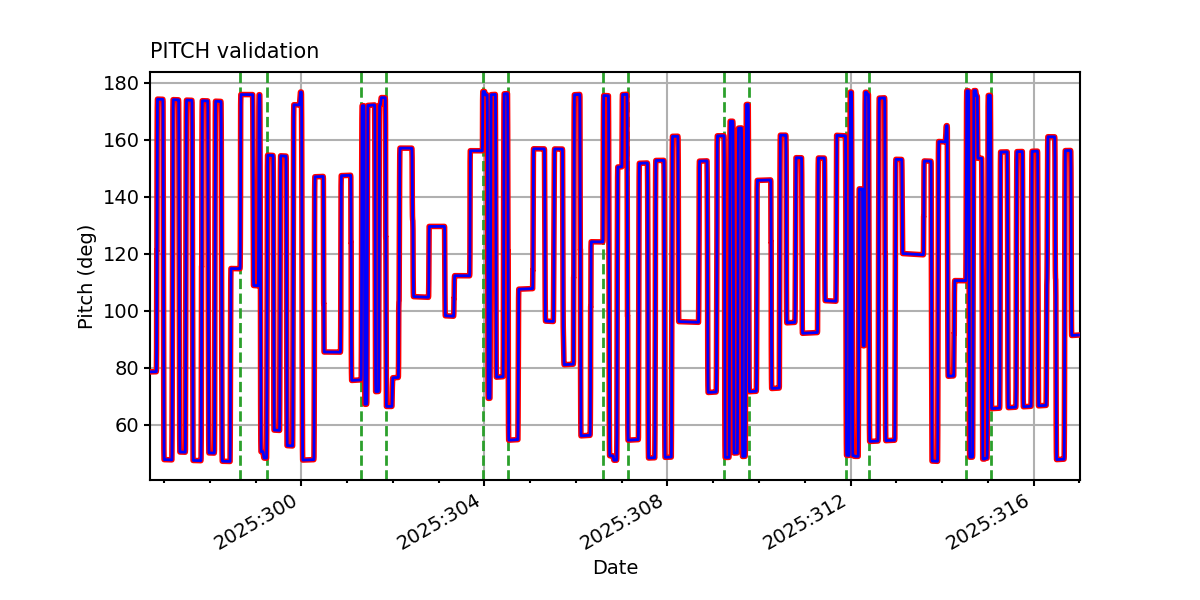

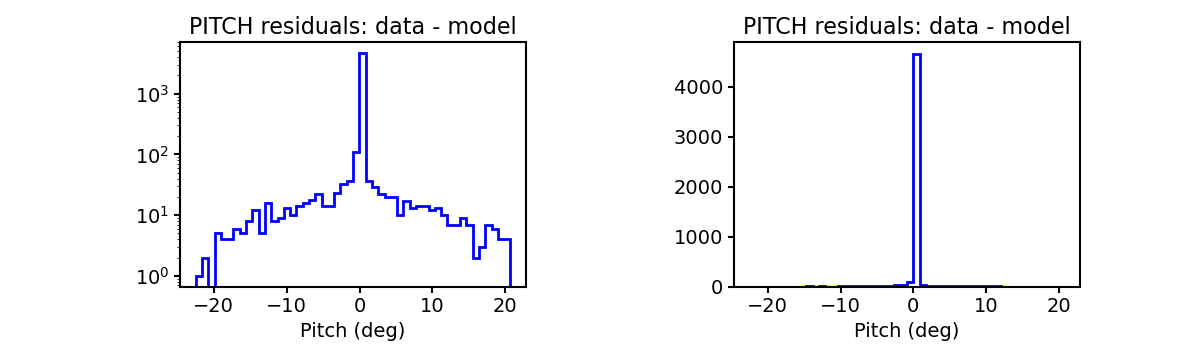

PITCH

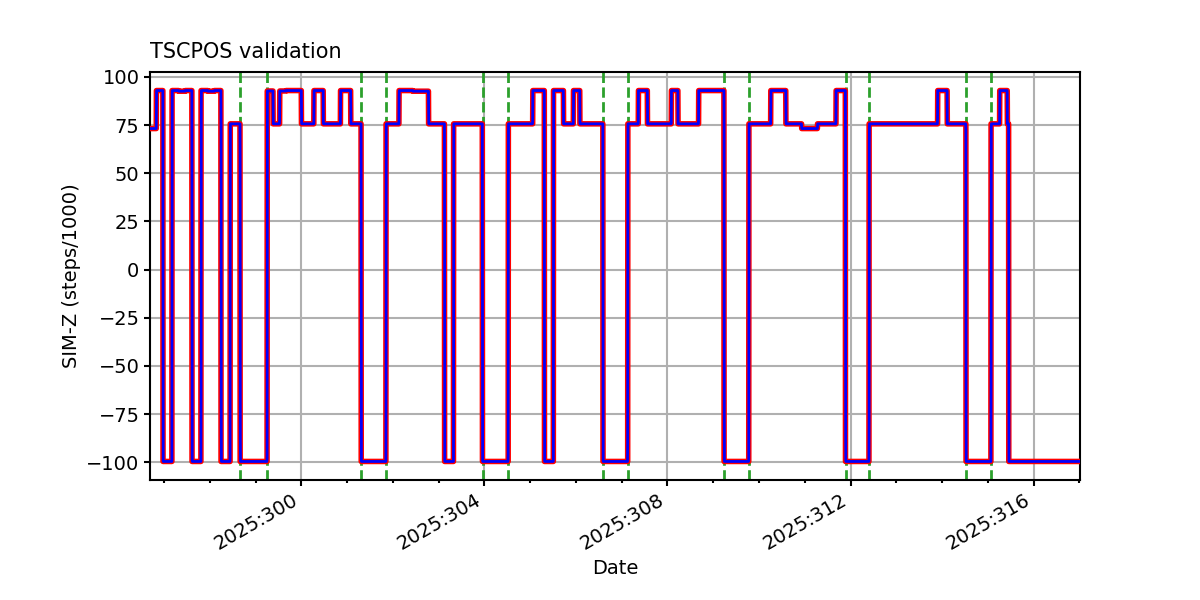

TSCPOS

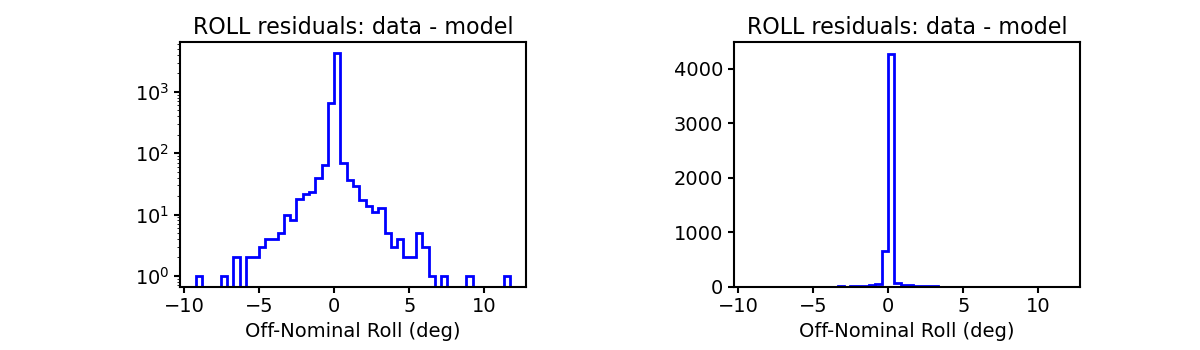

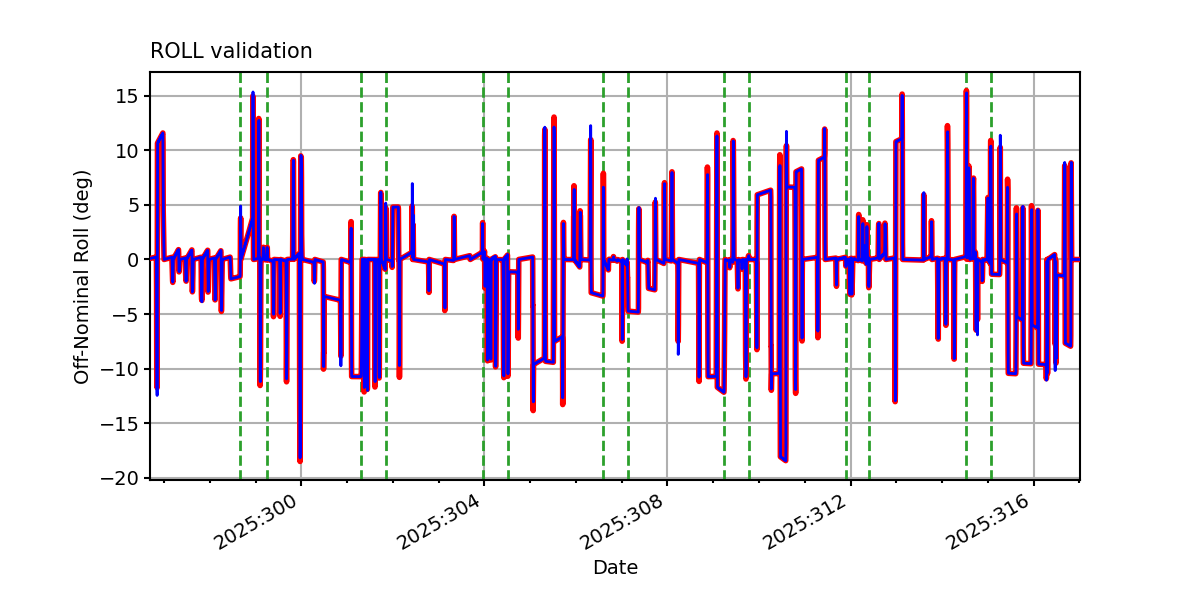

ROLL

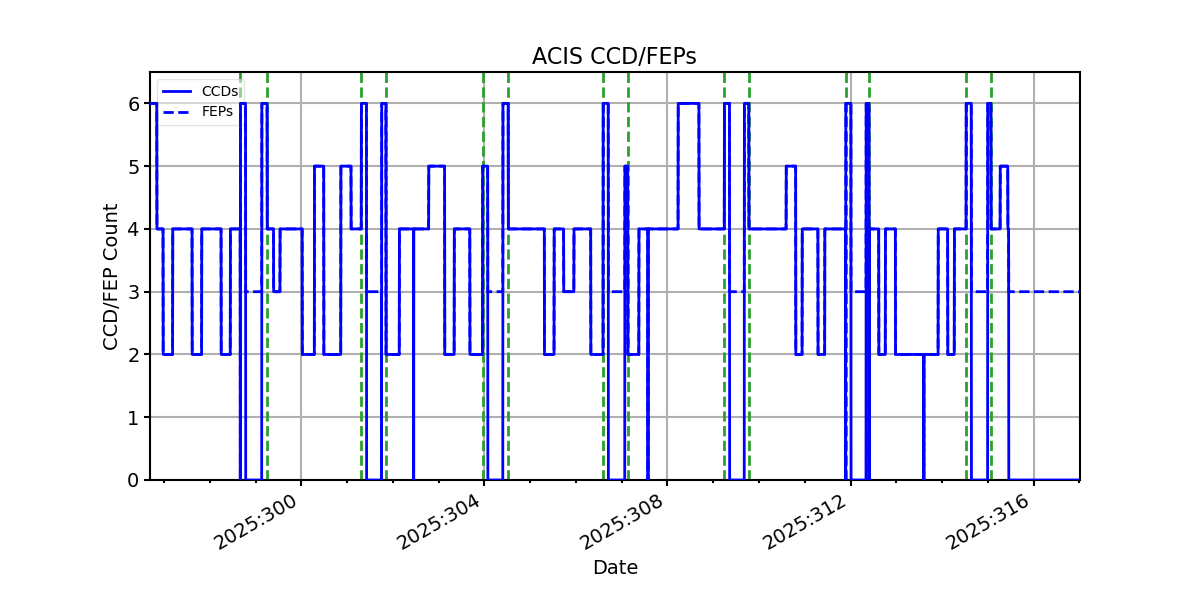

ACIS CCD/FEP Count
