DEA Temperatures Check

Summary

Date start 2025:278:23:10:04.316
Date stop 2025:285:13:23:00.016
Model status OK
Load directory /data/acis/LoadReviews/2025/OCT0625/oflsa
Run time Thu Oct 2 10:48:35 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1DEAMZT Upper Limit Violations

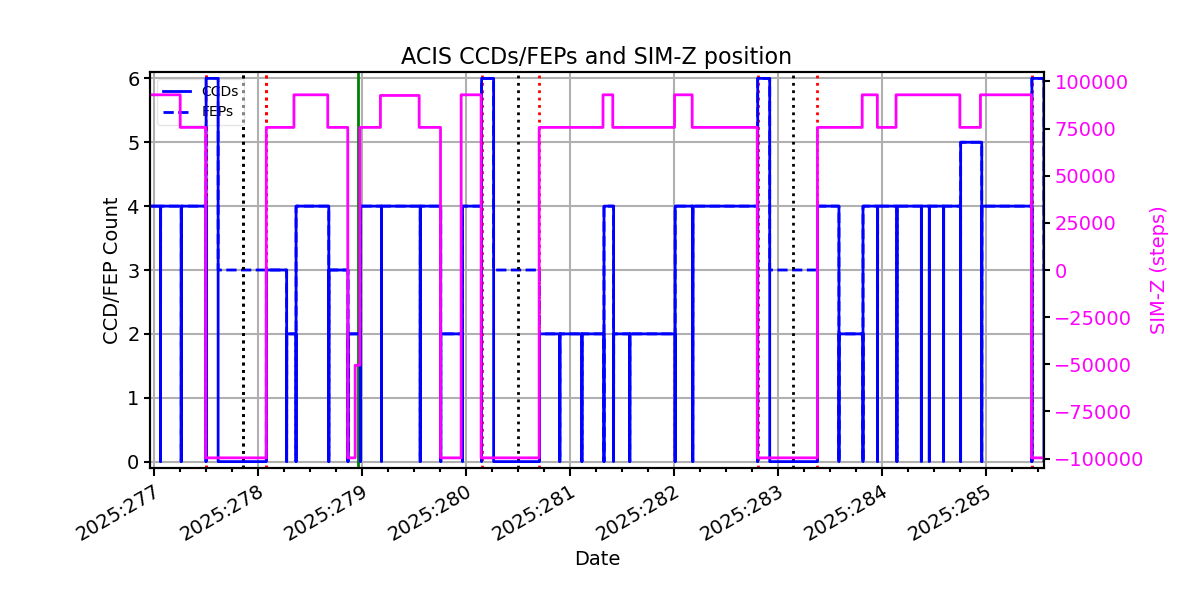

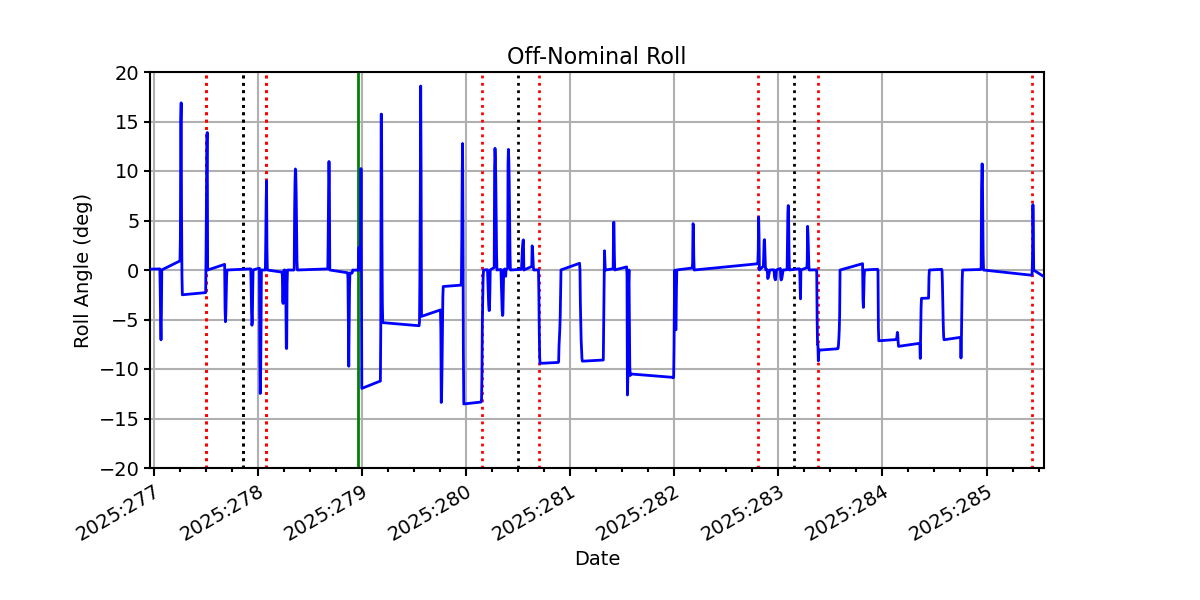

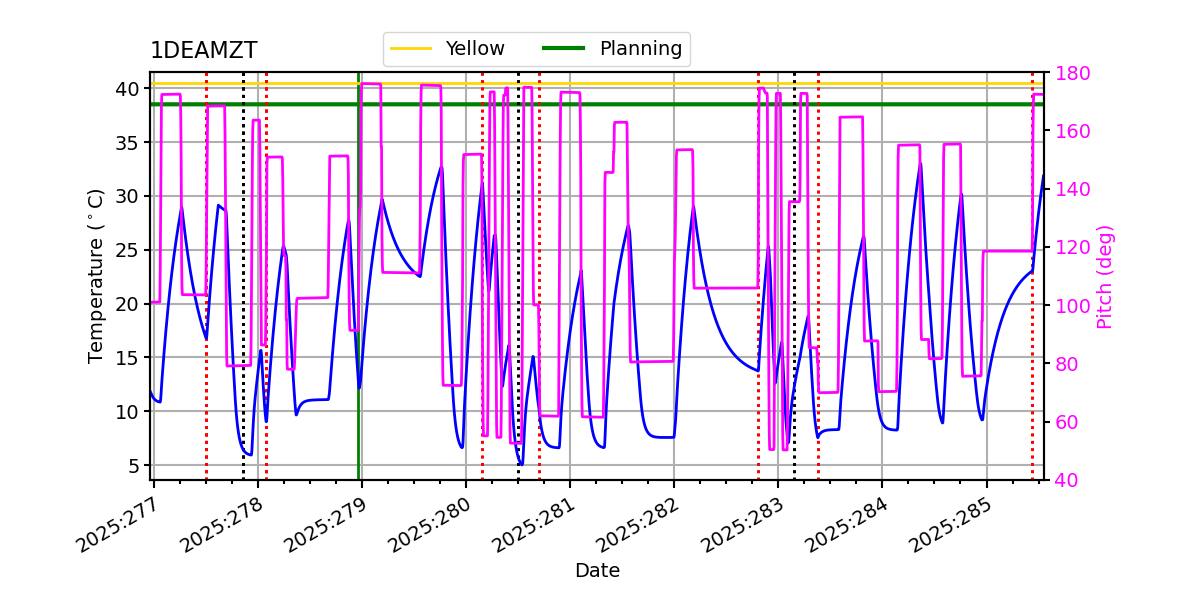

1deamzt.png pow_sim.png roll.png

DEA Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1deamzt -2.27 -1.47 -0.94 -0.04 1.11 1.54 1.85
pitch -10.078 -0.824 -0.004 0.000 0.004 0.944 10.915
tscpos -1 -1 -1 0 0 0 1
roll -2.093 -0.241 -0.007 0.000 0.007 0.207 1.933

Validation Violations

MSID Quantile Value Limit
1DEAMZT 1 -2.27 2.00
PITCH 1 -10.078 3.00
PITCH 99 10.915 3.00

1DEAMZT

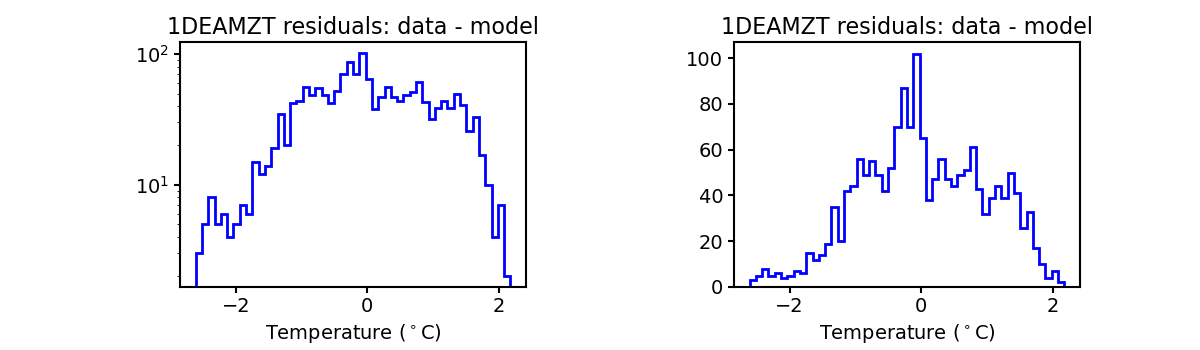

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

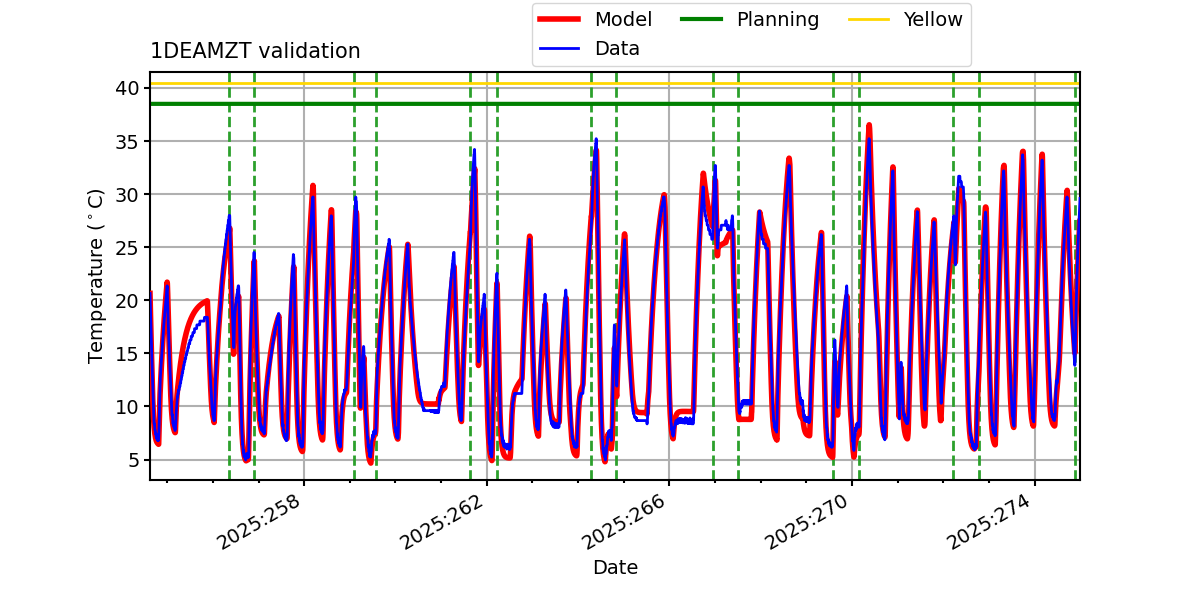

1deamzt_valid.png 1deamzt_valid_hist.png

PITCH

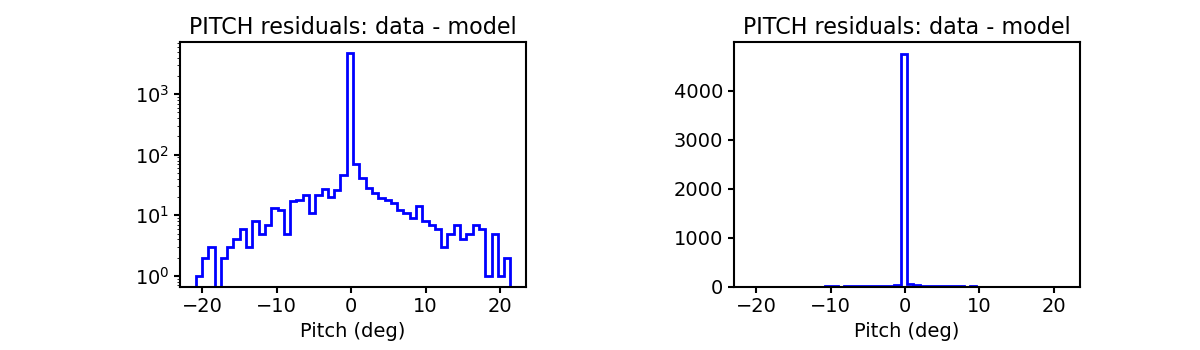

pitch_valid.png pitch_valid_hist.png

TSCPOS

tscpos_valid.png tscpos_valid_hist.png

ROLL

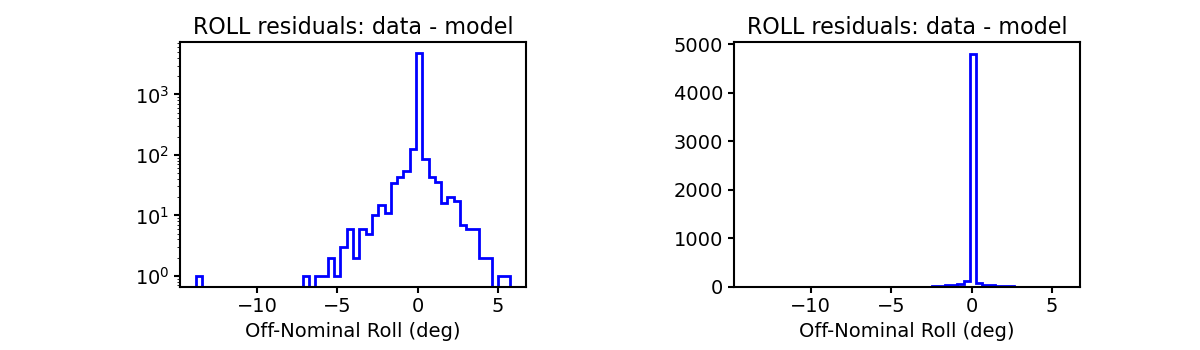

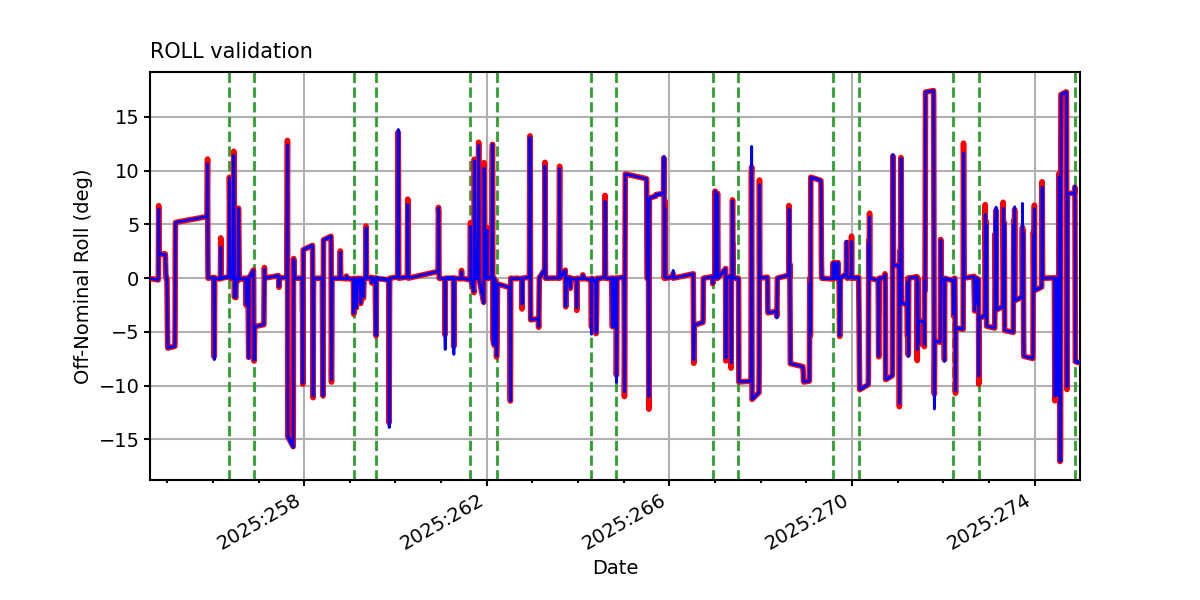

roll_valid.png roll_valid_hist.png

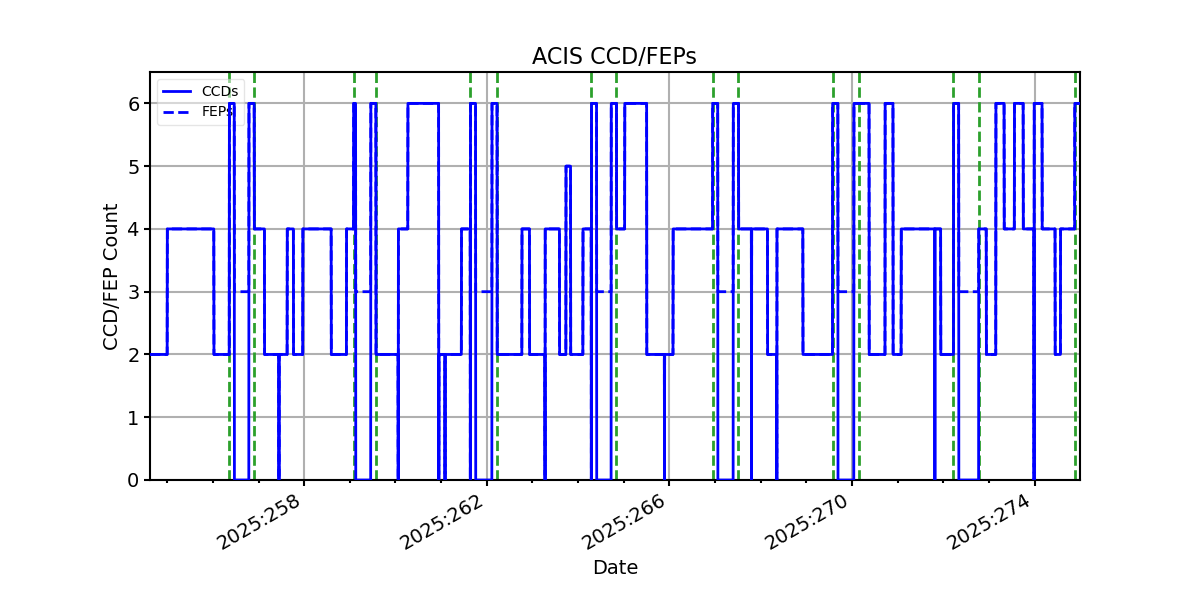

ACIS CCD/FEP Count
