DEA Temperatures Check
Summary
| Date start | 2025:285:13:20:00.016 |
| Date stop | 2025:292:21:47:50.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT1325/oflsa |
| Run time | Thu Oct 9 14:31:48 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
1DEAMZT Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:289:06:22:25.746 | 2025:289:06:28:43.727 | 0.38 | 38.57 / 38.50 |
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.23 | -1.43 | -0.97 | -0.12 | 1.04 | 1.43 | 1.73 |
| pitch | -10.319 | -1.230 | -0.004 | -0.000 | 0.004 | 1.054 | 10.563 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.187 | -0.291 | -0.008 | -0.000 | 0.008 | 0.309 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.23 | 2.00 |
| PITCH | 1 | -10.319 | 3.00 |
| PITCH | 99 | 10.563 | 3.00 |
1DEAMZT

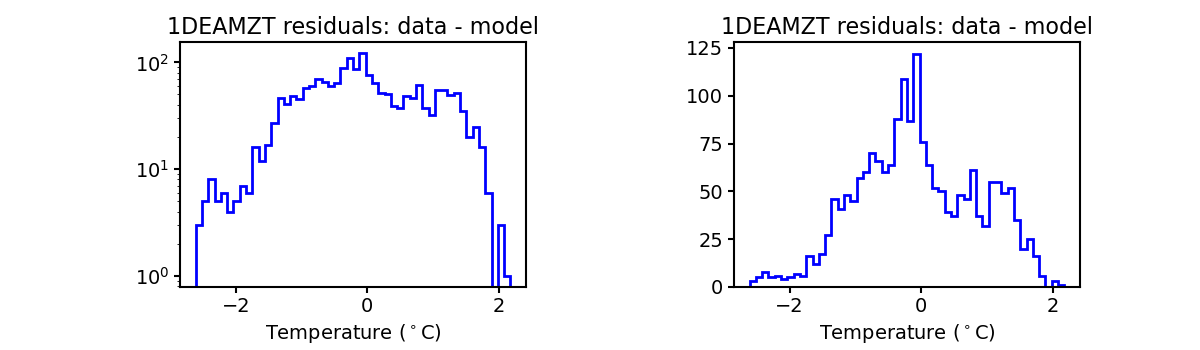

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

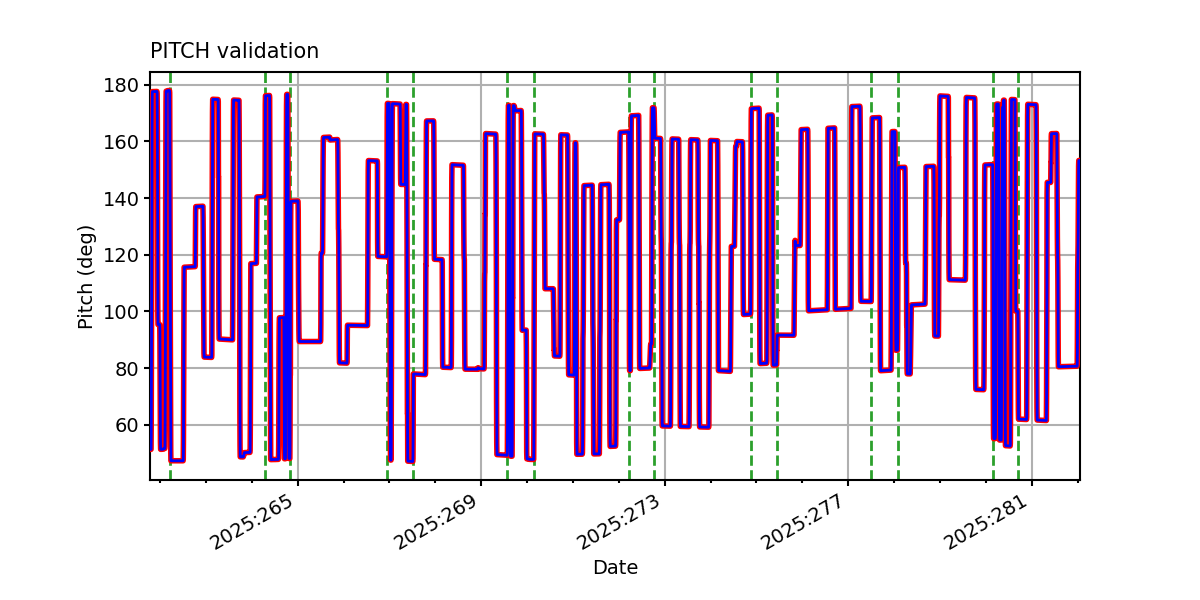

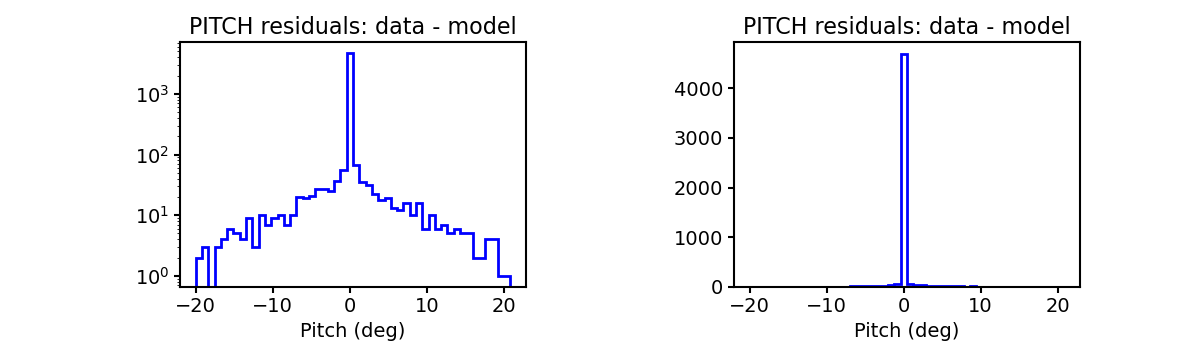

PITCH

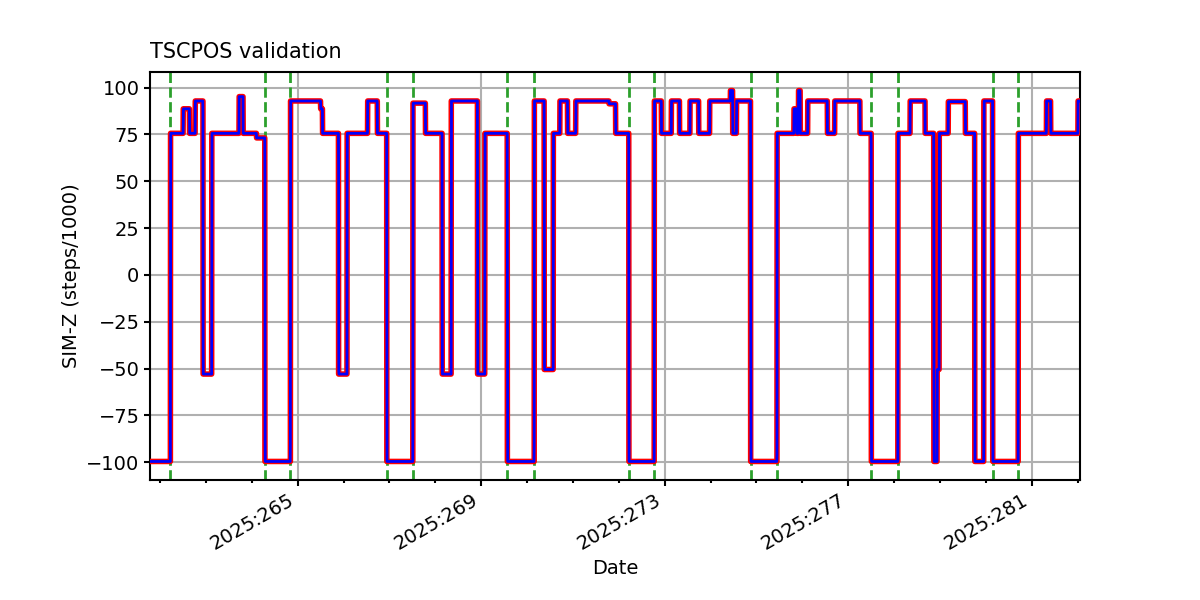

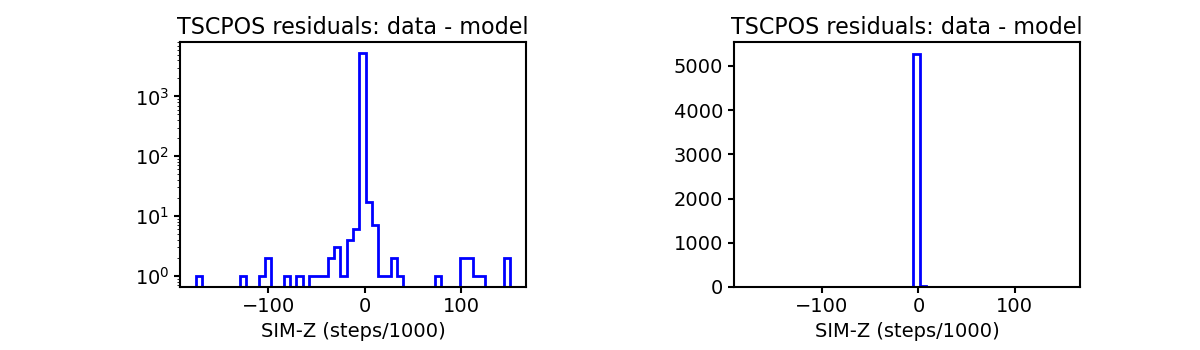

TSCPOS

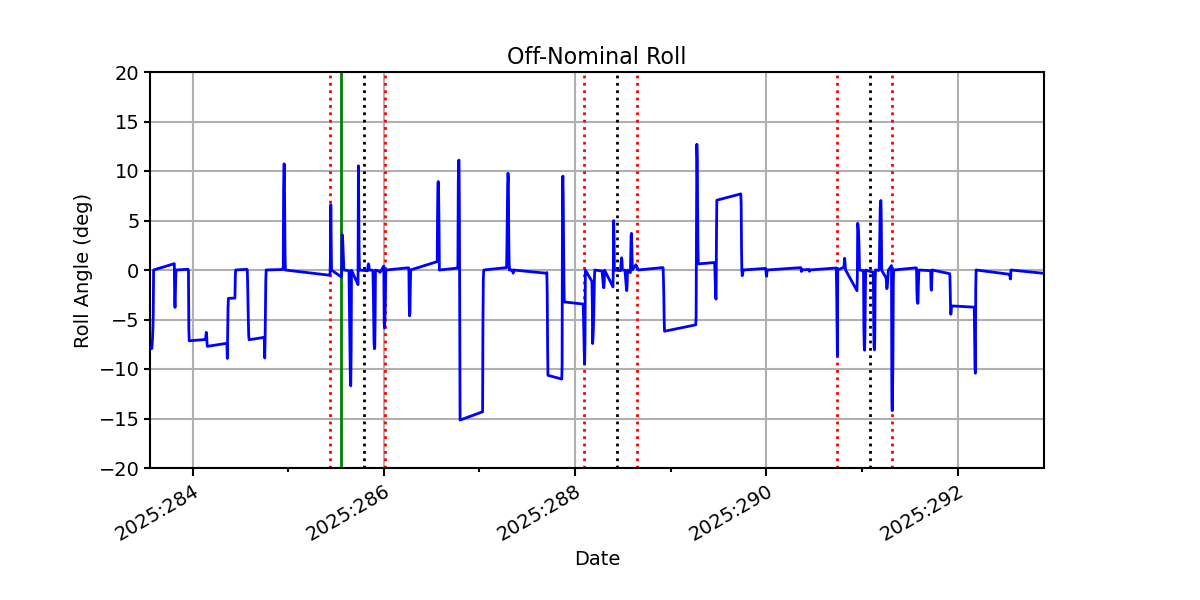

ROLL

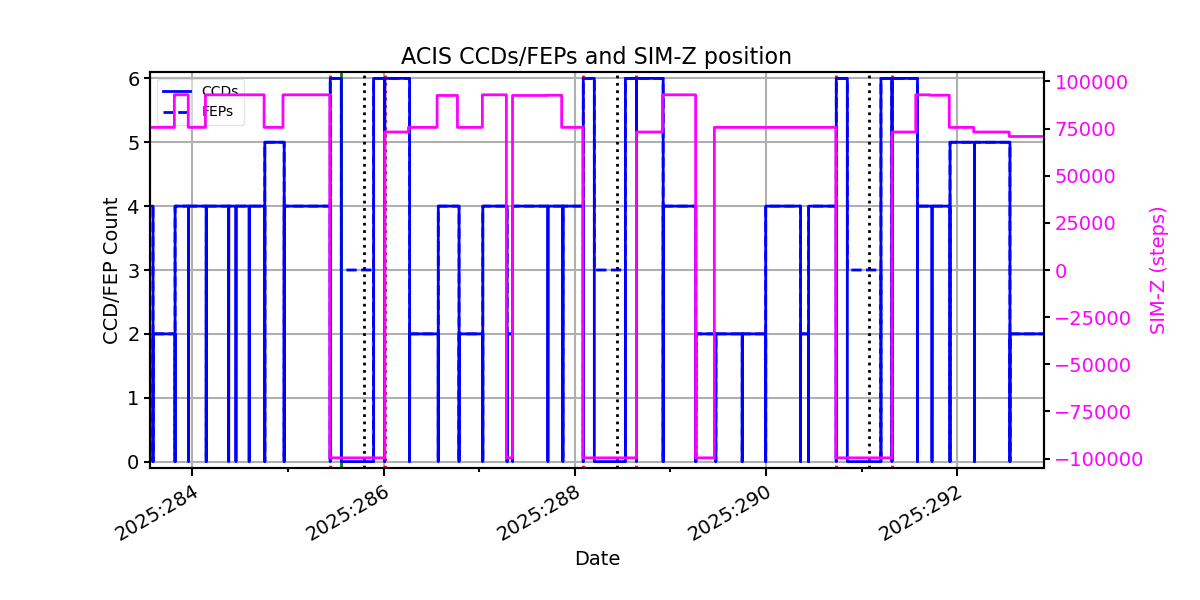

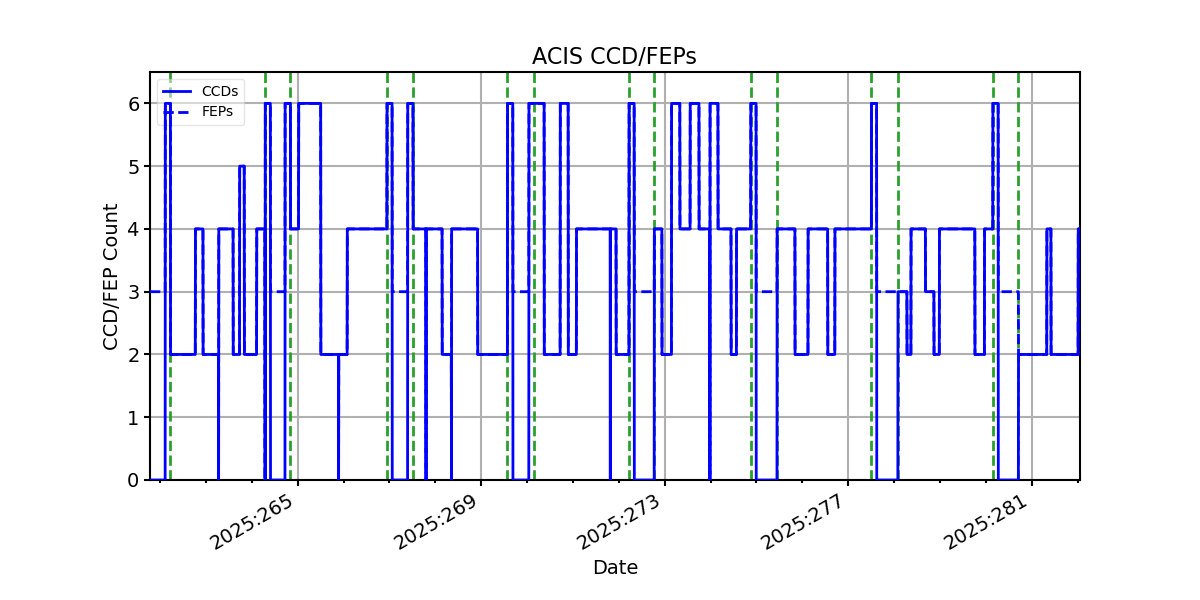

ACIS CCD/FEP Count
